2020 Sany SY375H

1/4

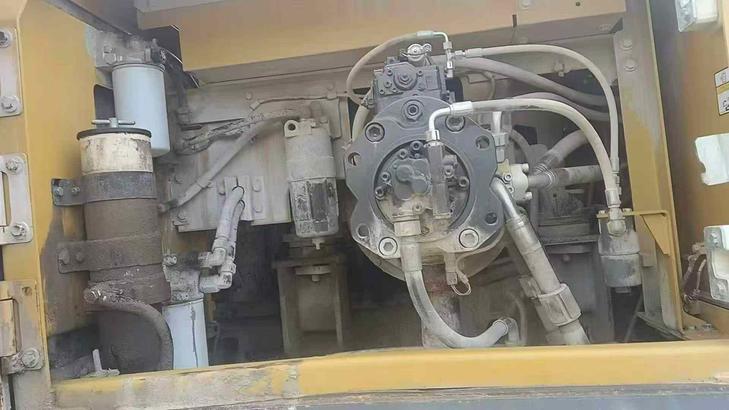

Buy Sany SY375H Used Excavator / 1
Buy Sany SY375H Used Excavator / 2
Buy Sany SY375H Used Excavator / 3
Buy Sany SY375H Used Excavator / 4

Product Description

This 2020 Sany SY375H hydraulic excavator offers reliable performance for demanding earthmoving and construction applications. Located in Sichuan, China, this 37-ton class machine features Sany's proven hydraulic system and robust undercarriage designed for extended operational life in challenging site conditions.

  • Year: 2020
  • Model: Sany SY375H
  • Operating Weight: Approximately 37,500 kg
  • Engine: Isuzu diesel engine meeting emission standards
  • Bucket Capacity: 1.6-1.9 m³ (standard configuration)
  • Location: Sichuan Province, China

The SY375H is well-suited for medium to large-scale excavation, material handling, and site development projects. This unit represents an economical option for contractors seeking proven Chinese excavator technology with parts availability and service support throughout Asia-Pacific markets.

SpecificationsValue
No.1170790
Tonnage (tons)37
Working weight (kg)37500
Bucket capacity (m³)1.7-2.4 (1.9)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeGH-6HK1XKSC
Rated power (kw/rpm)212/2000
Cooling modewater-cooling
Maximum torque (N.m)1080/1500
Number of cylinders (PCS)6
Displacement (L)7.79
Working formDirect injection, 6 cylinders, 4 strokes, turbocharged, water cooled
Ground specific pressure (Kpa)68.8
Rotation speed (rpm)8.8
Climbing ability (%)70
Bucket digging force (kN)235
Rod digging force (kN)210
Travel speed (km/h)5.5/3.5
Fuel Tank (L)540
Engine Oil changes (L)36
Total transport length (mm)11425
Total transport width (mm)3190
Total transport height (mm)3825
Full cab height (mm)3440
Minimum ground clearance (mm)550
Minimum turning radius of front working device (mm)4390
Back end turning radius (mm)3610
Onboard width (mm)3230
Total track length (mm)5100
Track gauge (mm)2590
Track plate width (mm)600
Track ground length (mm)4140
Maximum height at minimum turning radius (mm)8930
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)49
Maximum digging radius (mm)10750
Maximum digging depth (mm)7155
Maximum excavation height (mm)9920
Maximum unloading height (mm)7010
Maximum vertical digging depth (mm)5125
see more

Overview

No.1170790

Brand Name:

Sany

Model Number:

SY375H

Year:

2020

Location:

Sichuan China

Pub Date:
