Product Description

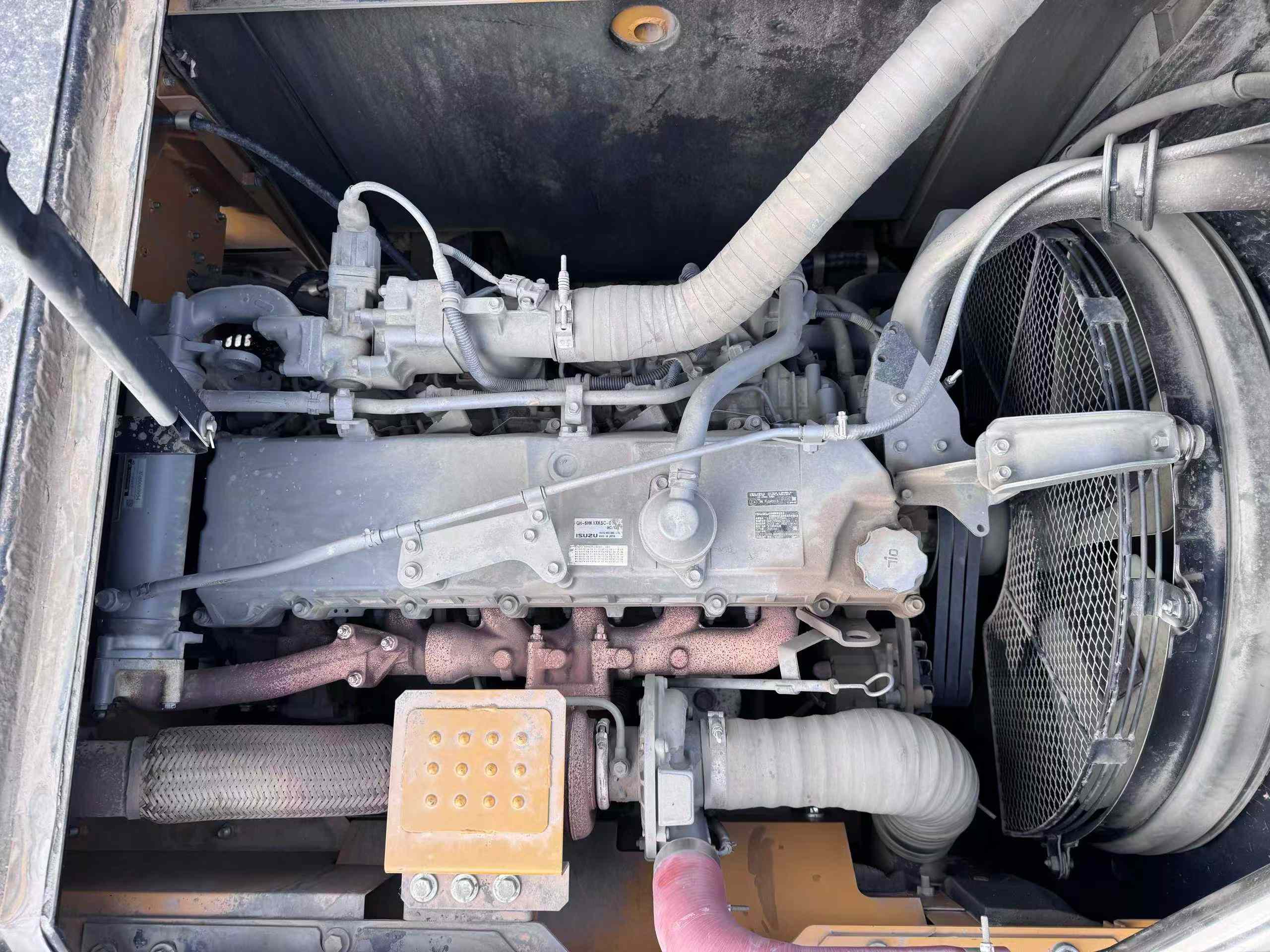

With a working weight of 37,500 kg and a bucket capacity ranging from 1.7 to 2.4 m³, the Sany SY375H excavator stands as a robust choice for demanding projects. Equipped with a GH-6HK1XKSC engine, this machine delivers 212 kW of power at 2000 rpm, ensuring efficient performance. Water-cooled and turbocharged, the 6-cylinder engine provides reliable operation even in challenging conditions.
- Parts availability: Sany’s global network ensures easy access to genuine parts, minimizing downtime.
- Resale value: Known for its durability and reliability, the SY375H retains strong resale value, making it a sound investment.
- Maximum digging force: 235 kN (bucket) and 210 kN (rod), ideal for tough excavation tasks.
- Travel speed: 5.5 km/h (high) and 3.5 km/h (low), providing flexibility on various terrains.
- Fuel tank capacity: 540 L, supporting extended operational hours without frequent refueling.
Located in 四川, this 2021 Sany SY375H is ready to meet your heavy-duty construction needs with the assurance of a brand known for its reliability and support.
| Specifications | Value |
|---|---|
| No. | 1023290 |
| Tonnage (tons) | 37 |
| Working weight (kg) | 37500 |
| Bucket capacity (m³) | 1.7-2.4 (1.9) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | GH-6HK1XKSC |
| Rated power (kw/rpm) | 212/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1080/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Working form | Direct injection, 6 cylinders, 4 strokes, turbocharged, water cooled |
| Ground specific pressure (Kpa) | 68.8 |
| Rotation speed (rpm) | 8.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 235 |
| Rod digging force (kN) | 210 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 540 |
| Engine Oil changes (L) | 36 |
| Total transport length (mm) | 11425 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3825 |
| Full cab height (mm) | 3440 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4390 |
| Back end turning radius (mm) | 3610 |
| Onboard width (mm) | 3230 |
| Total track length (mm) | 5100 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4140 |
| Maximum height at minimum turning radius (mm) | 8930 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10750 |
| Maximum digging depth (mm) | 7155 |
| Maximum excavation height (mm) | 9920 |
| Maximum unloading height (mm) | 7010 |
| Maximum vertical digging depth (mm) | 5125 |
