Product Description

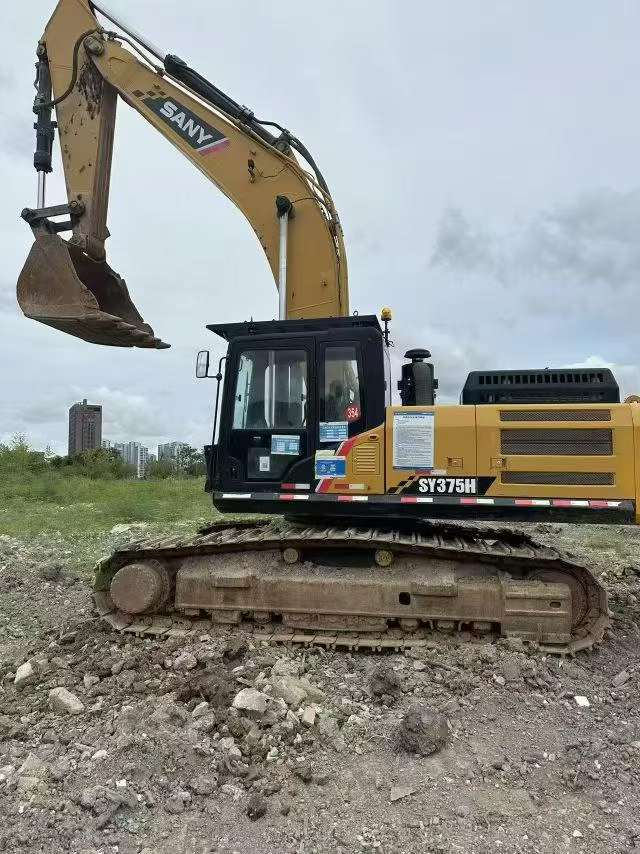

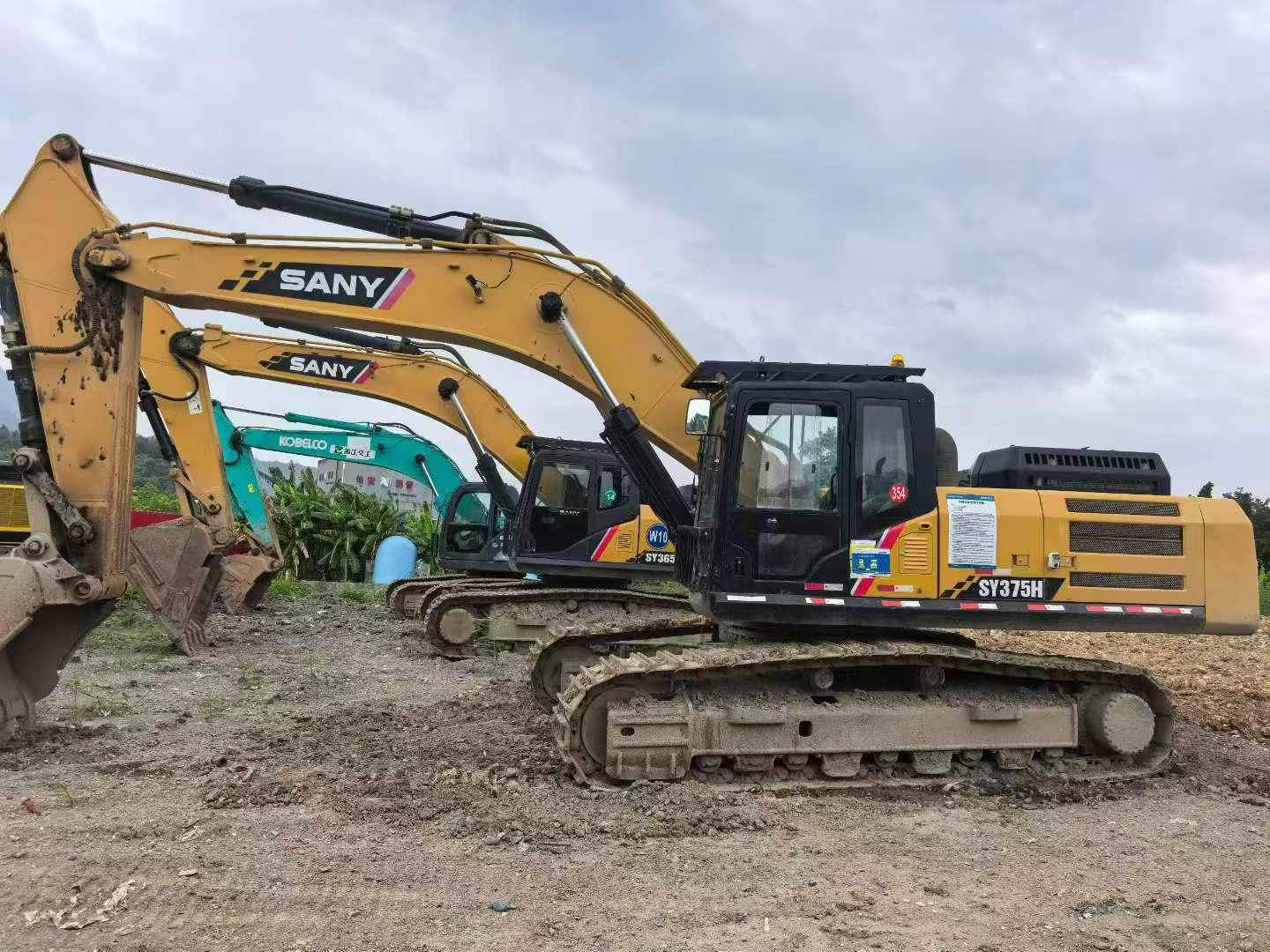

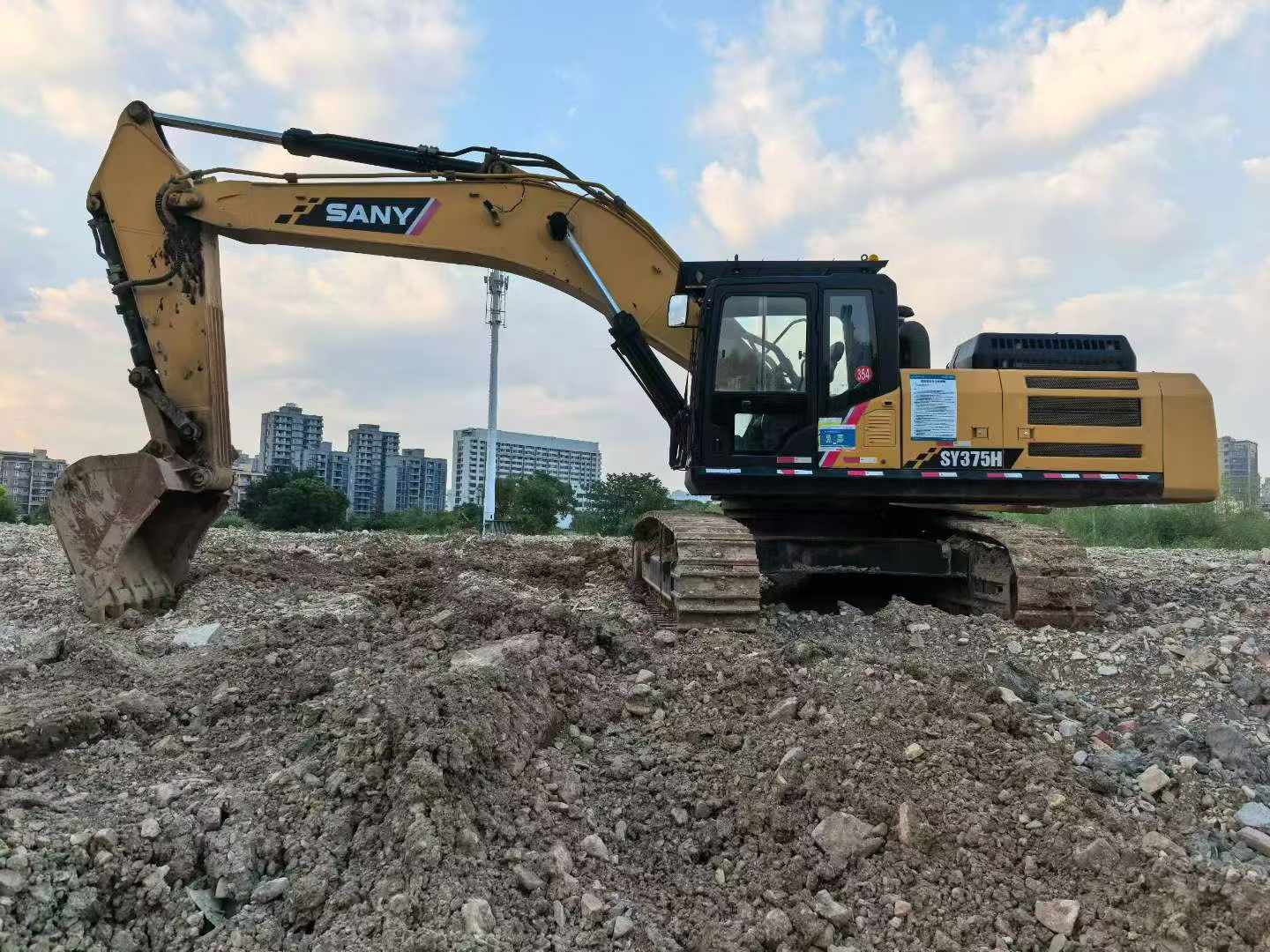

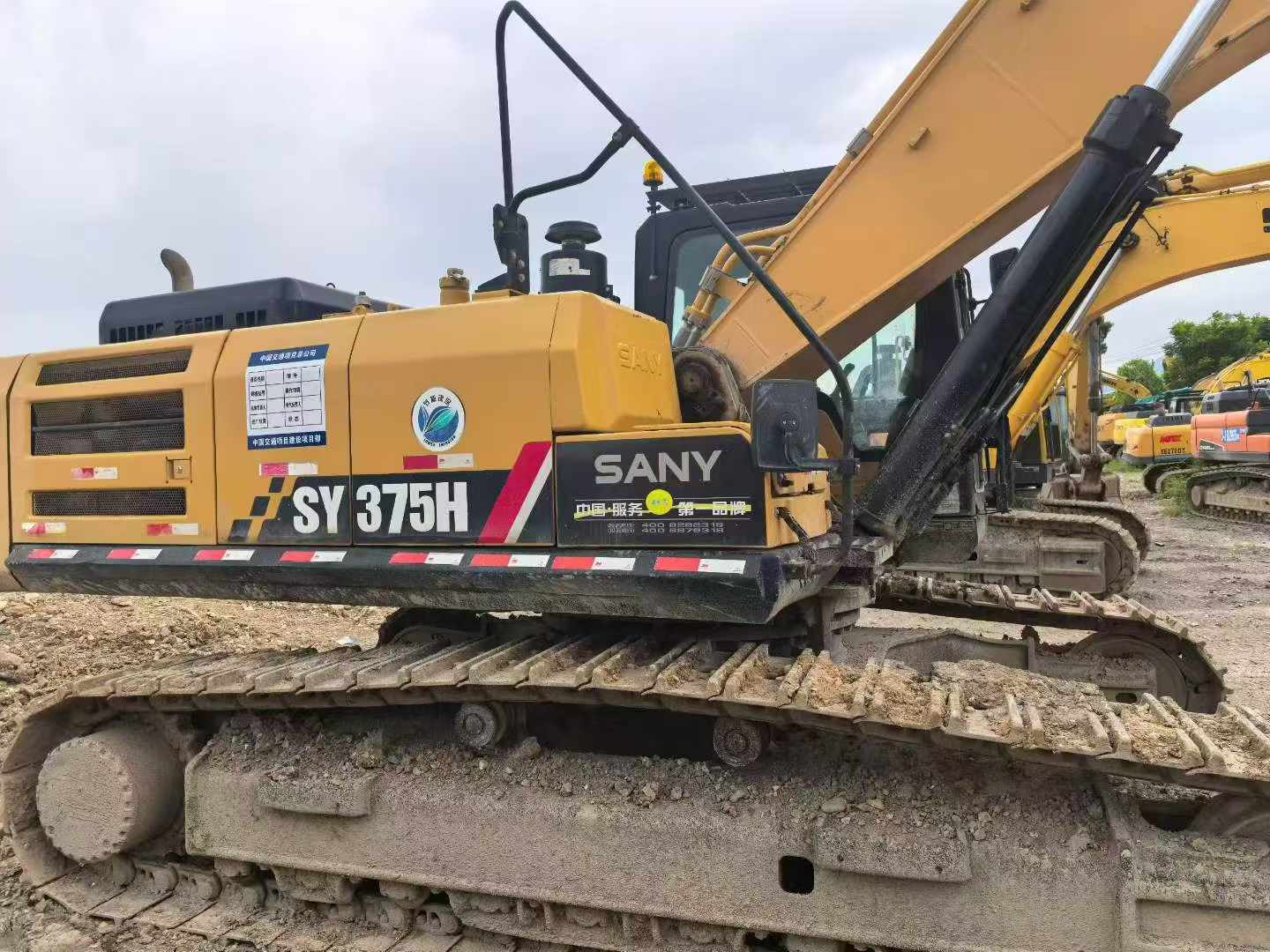

The 2021 Sany SY375H is a 37-tonne-class hydraulic crawler excavator — a mainstream production machine for bulk earthworks, quarry loading and heavy civil work. This unit is currently located in Zhejiang, China, and is available for inspection at our yard.
- Year of manufacture: 2021
- Brand and model: Sany SY375H
- Machine class: 37-tonne hydraulic crawler excavator
- Configuration: as photographed; attachments quoted separately
- Location: Zhejiang, China
Sany's 375 class is widely deployed on Chinese infrastructure and aggregate projects, which keeps parts, service support and operator familiarity straightforward for buyers in the region. The machine is presented as a used unit: hour meter reading, undercarriage wear measurements and detailed walkaround photographs are available on request, and independent inspection is welcome before purchase.
Zhejiang offers direct access to the Ningbo-Zhoushan and Shanghai port facilities, and we can assist with loading, documentation and container or breakbulk shipment to international buyers.
| Specifications | Value |
|---|---|
| No. | 1156164 |
| Tonnage (tons) | 37 |
| Working weight (kg) | 37500 |
| Bucket capacity (m³) | 1.7-2.4 (1.9) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | GH-6HK1XKSC |
| Rated power (kw/rpm) | 212/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1080/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 7.79 |
| Working form | Direct injection, 6 cylinders, 4 strokes, turbocharged, water cooled |
| Ground specific pressure (Kpa) | 68.8 |
| Rotation speed (rpm) | 8.8 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 235 |
| Rod digging force (kN) | 210 |
| Travel speed (km/h) | 5.5/3.5 |
| Fuel Tank (L) | 540 |
| Engine Oil changes (L) | 36 |
| Total transport length (mm) | 11425 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3825 |
| Full cab height (mm) | 3440 |
| Minimum ground clearance (mm) | 550 |
| Minimum turning radius of front working device (mm) | 4390 |
| Back end turning radius (mm) | 3610 |
| Onboard width (mm) | 3230 |
| Total track length (mm) | 5100 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4140 |
| Maximum height at minimum turning radius (mm) | 8930 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 49 |
| Maximum digging radius (mm) | 10750 |
| Maximum digging depth (mm) | 7155 |
| Maximum excavation height (mm) | 9920 |
| Maximum unloading height (mm) | 7010 |
| Maximum vertical digging depth (mm) | 5125 |
