Product Description

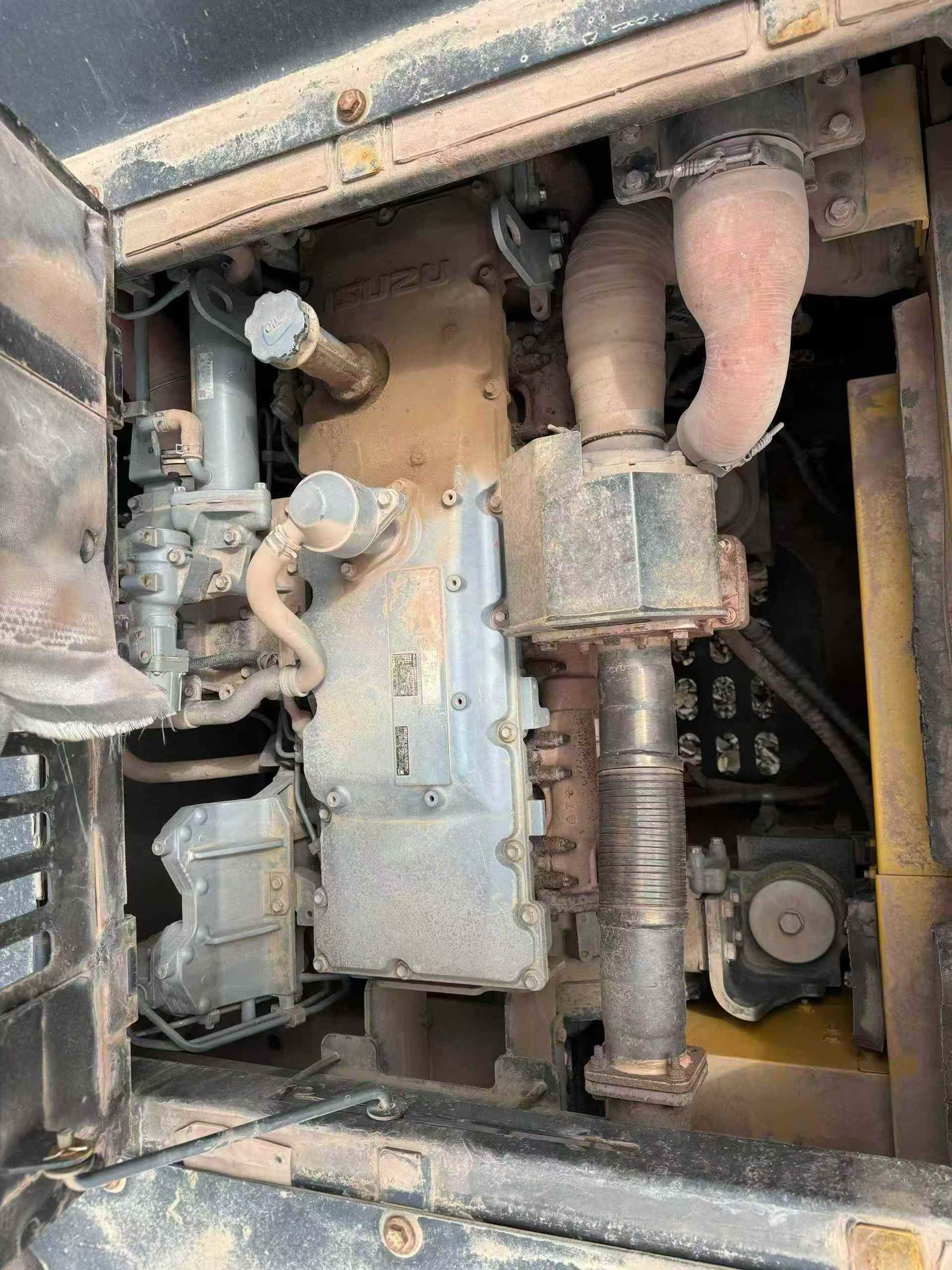

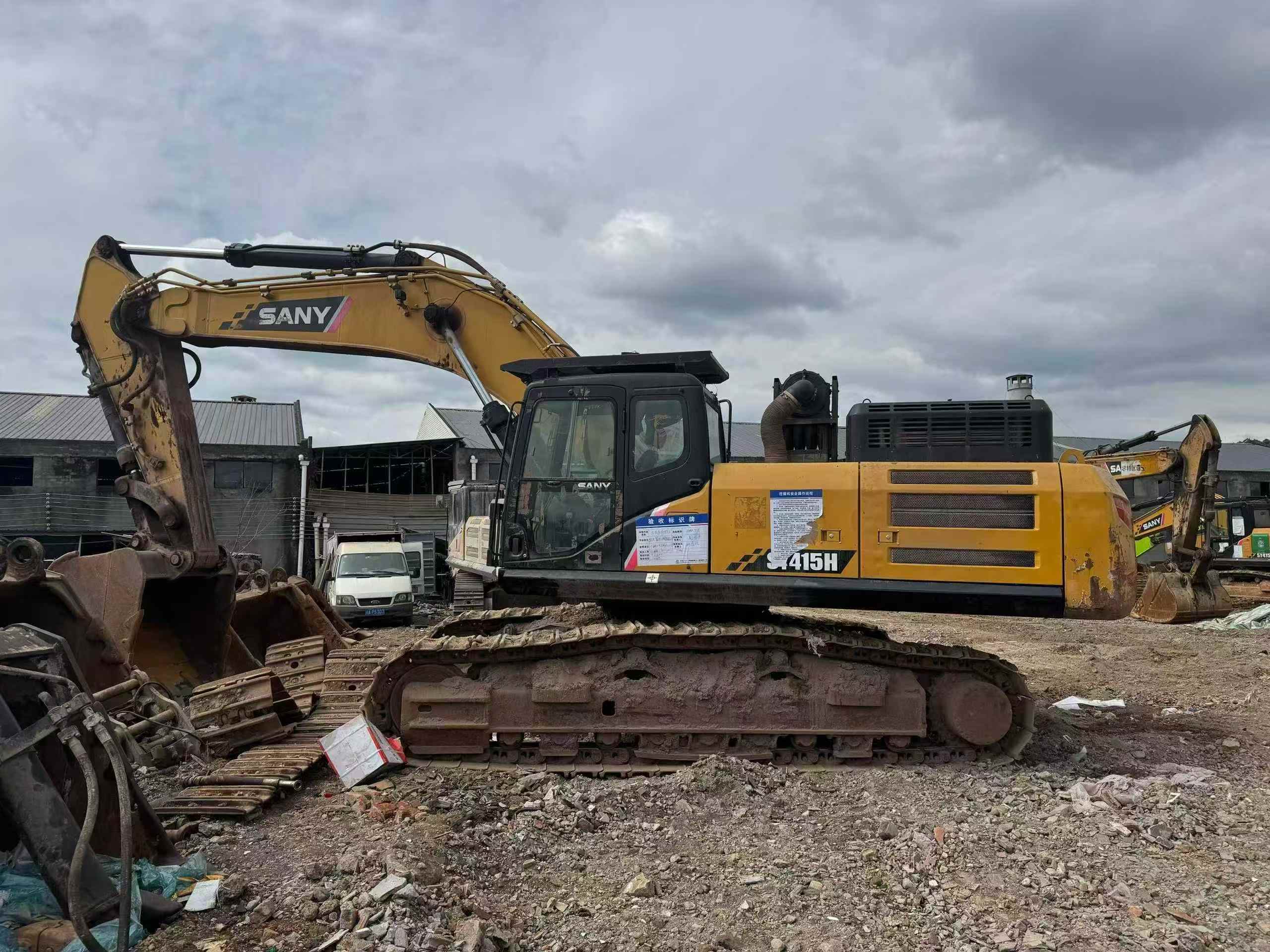

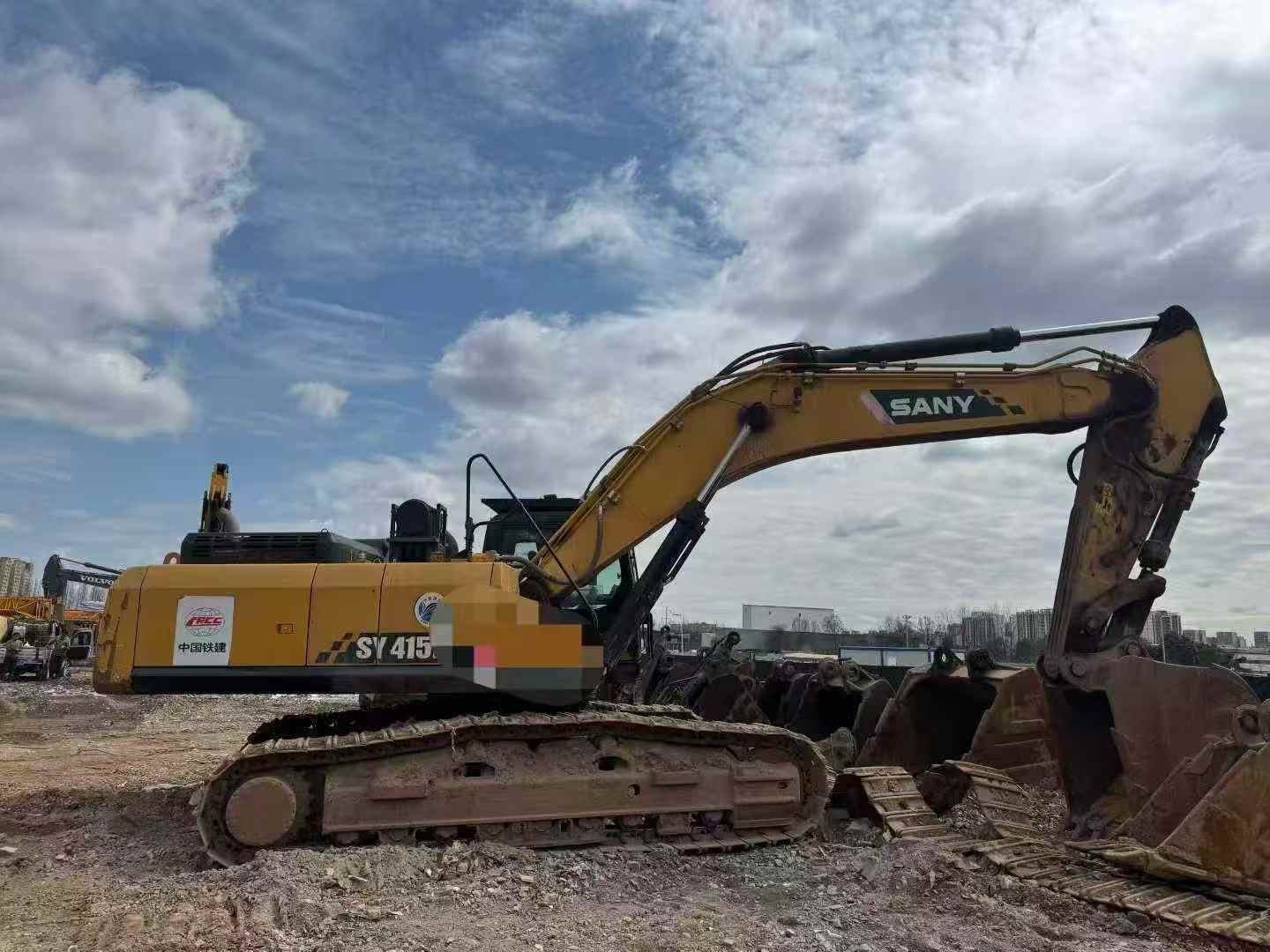

Engineered for heavy-duty performance, this 2019 Sany SY415H delivers 41 tons of precision excavation capability backed by robust hydraulic architecture. Powered by a 6-cylinder 6UZ1 engine generating 257 kW at 2000 rpm and 1363 N·m of maximum torque, this excavator combines raw power with intelligent cooling systems to maintain operational consistency across demanding jobsites. The turbocharged, water-cooled direct injection system ensures optimal fuel efficiency from its 9.839L displacement, while the 690L fuel tank extends operational range between refueling cycles.

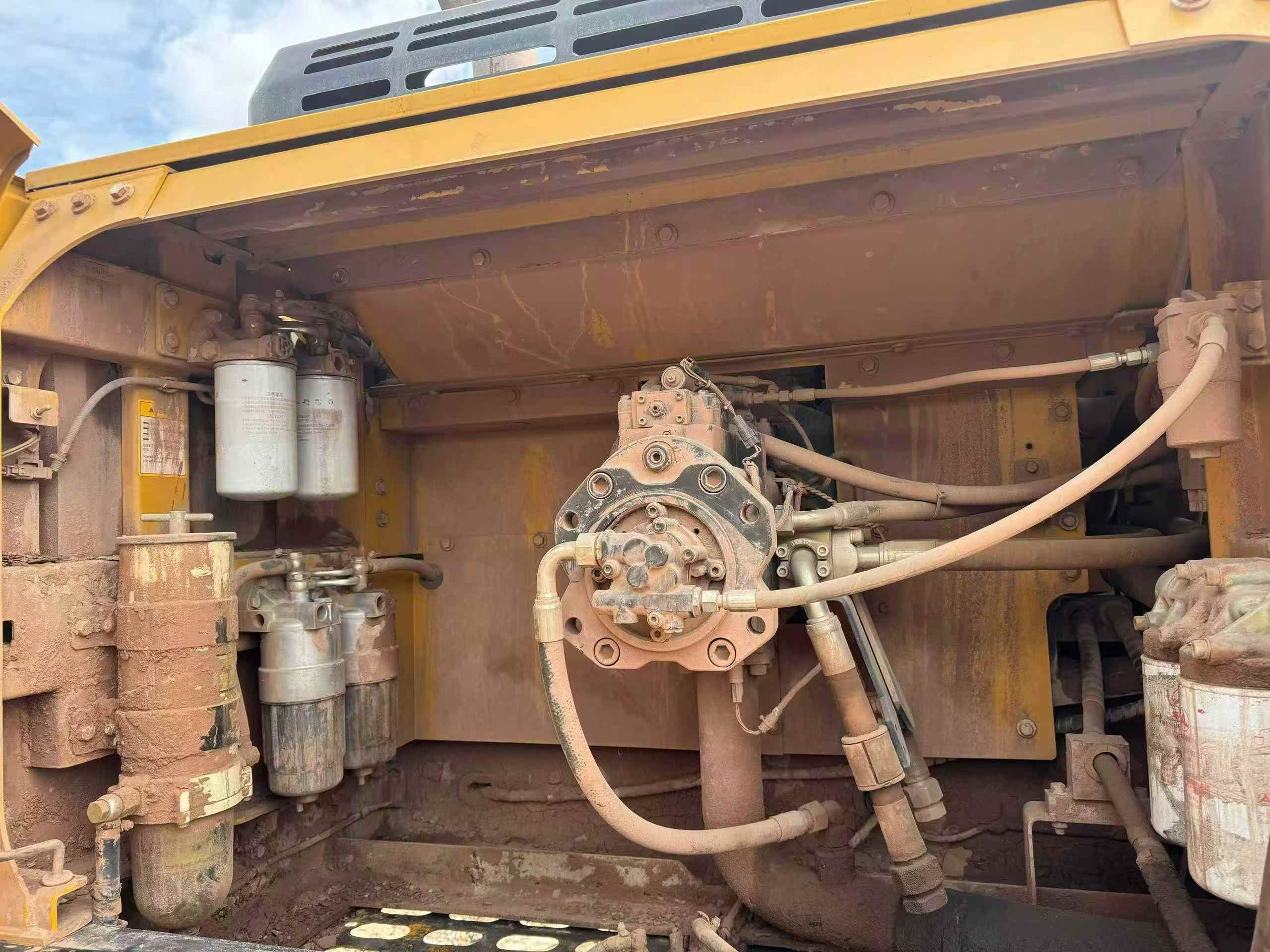

Hydraulic performance defines this model's technical edge:
- Bucket digging force: 247 kN with 1.9-2.2 m³ rock capacity
- Rod digging force: 218 kN for precise material handling
- Maximum digging reach: 10,920 mm with 7,045 mm depth capability
- 8.3 rpm rotation speed for efficient cycle times
- 70% (35°) climbing ability on challenging terrain
Currently located in Sichuan, China, this machine represents proven Sany engineering with comprehensive technical specifications documented for international export. Complete dimensional data available for transport planning and site integration requirements.
| Specifications | Value |
|---|---|
| No. | 1019807 |
| Tonnage (tons) | 41 |
| Working weight (kg) | 41500 |

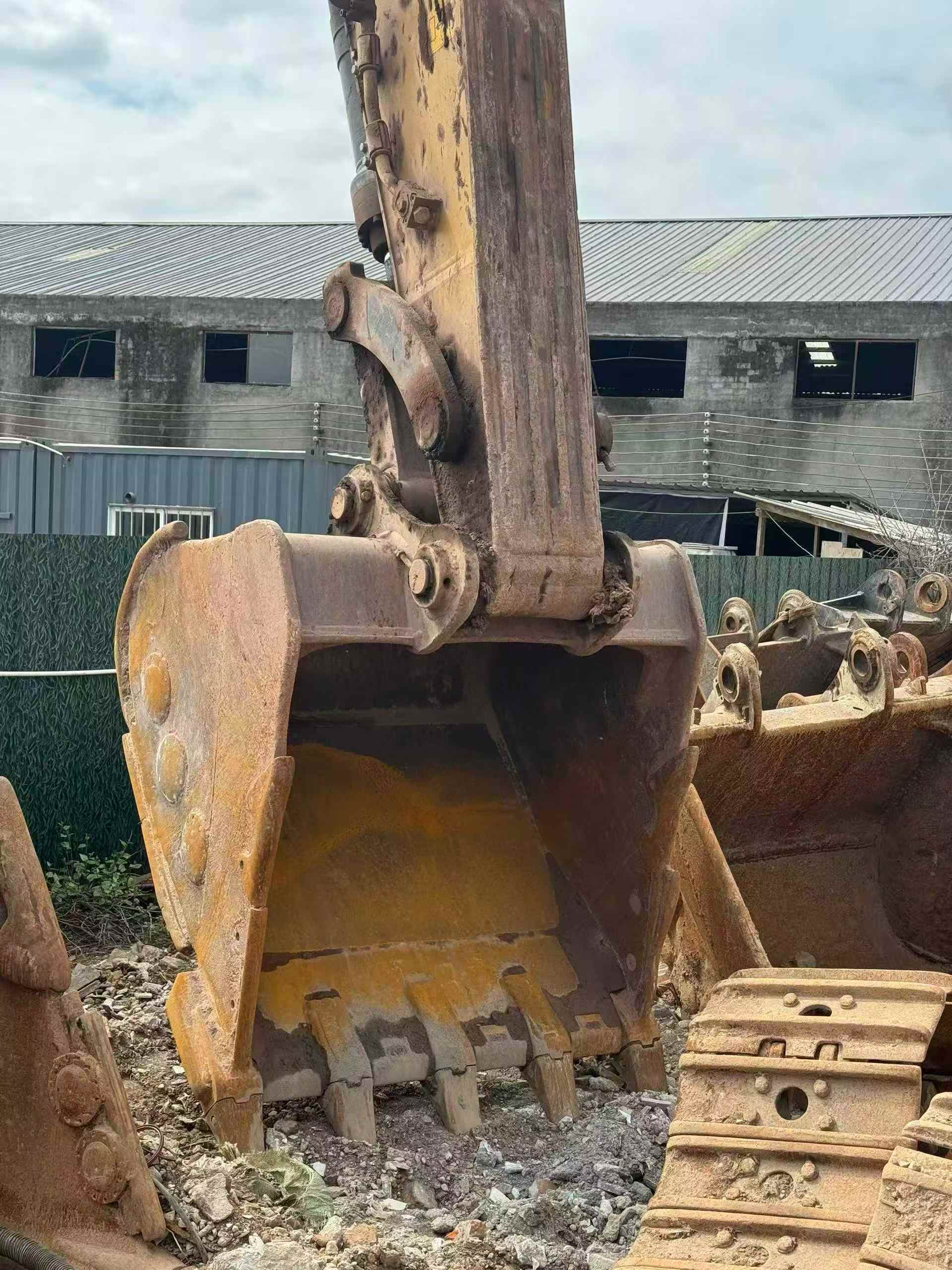

| Bucket capacity (m³) | 1.9/2.2 (Rock) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 6UZ1 |
| Rated power (kw/rpm) | 257/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1363/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 9.839 |
| Working form | Direct injection, 6 cylinders, 4 strokes, turbocharged, water cooled |
| Ground specific pressure (Kpa) | 75.3 |
| Rotation speed (rpm) | 8.3 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 247 |
| Rod digging force (kN) | 218 |
| Travel speed (km/h) | 5.3/3.2 |
| Fuel Tank (L) | 690 |
| Engine Oil changes (L) | 36 |
| Total transport length (mm) | 11700 |
| Total transport width (mm) | 3360 |
| Total transport height (mm) | 3740 |
| Full cab height (mm) | 3470 |
| Minimum ground clearance (mm) | 505 |
| Minimum turning radius of front working device (mm) | 4750 |
| Back end turning radius (mm) | 3740 |
| Onboard width (mm) | 3265 |

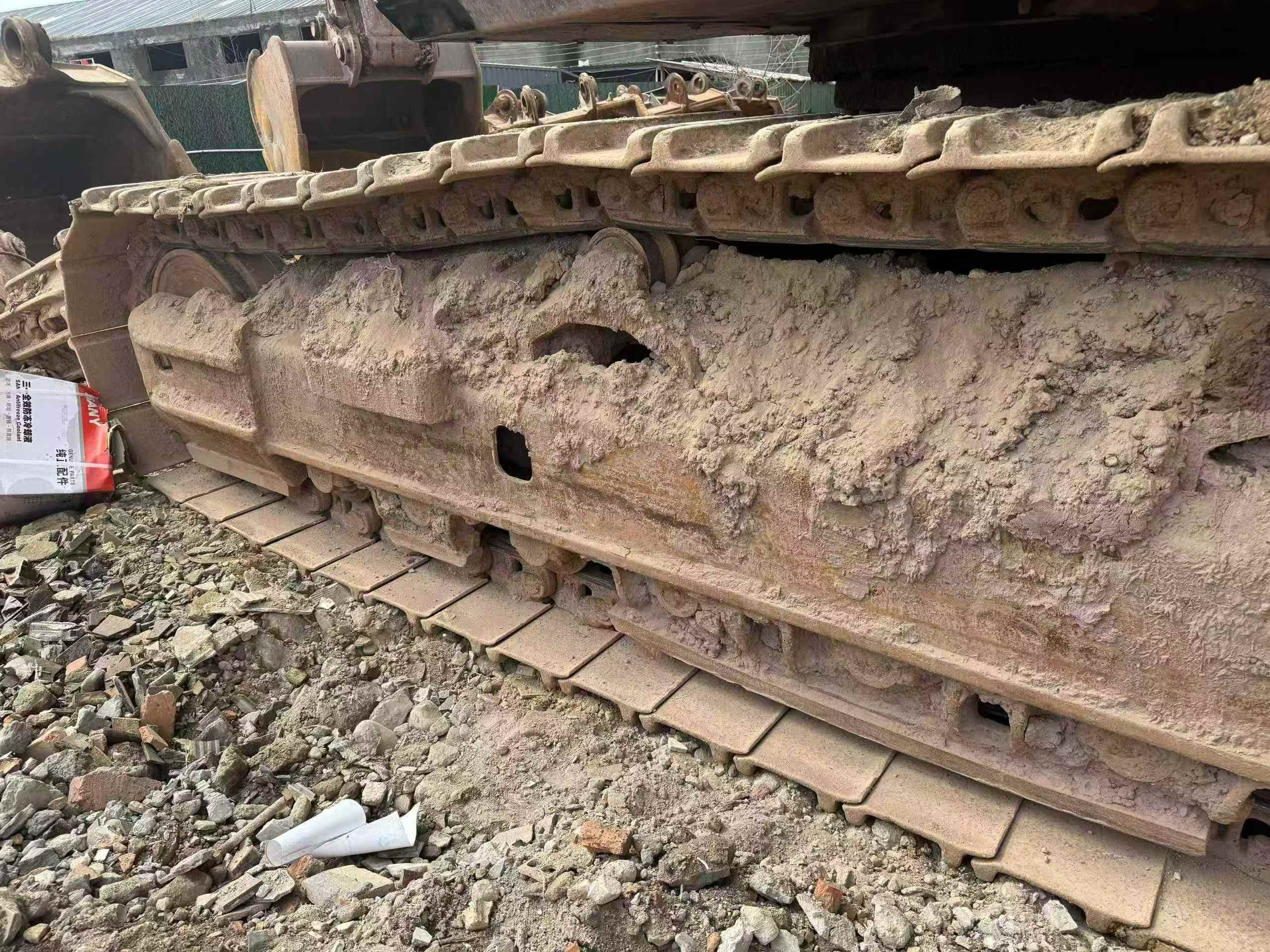

| Total track length (mm) | 5320 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4340 |
| Maximum height at minimum turning radius (mm) | 8785 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 51 |
| Maximum digging radius (mm) | 10920 |
| Maximum digging depth (mm) | 7045 |
| Maximum excavation height (mm) | 9980 |
| Maximum unloading height (mm) | 6960 |
| Maximum vertical digging depth (mm) | 4710 |
