Product Description
Discover the 2019 Sany SY415H, a robust and reliable excavator currently available in Fujian, China. This used heavy machine is offered at an attractive price, making it an economical choice for businesses looking to enhance their fleet without compromising on quality or performance. The Sany SY415H is known for its durability and efficiency, ideal for a variety of construction and excavation tasks. With its proven track record, this model ensures high productivity and low maintenance, providing a solid return on investment.
- Year: 2019
- Brand: Sany
- Model: SY415H
- Location: Fujian, China
| Specifications | Value |
|---|---|
| No. | 1165077 |
| Tonnage (tons) | 41 |
| Working weight (kg) | 41500 |
| Bucket capacity (m³) | 1.9/2.2 (Rock) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

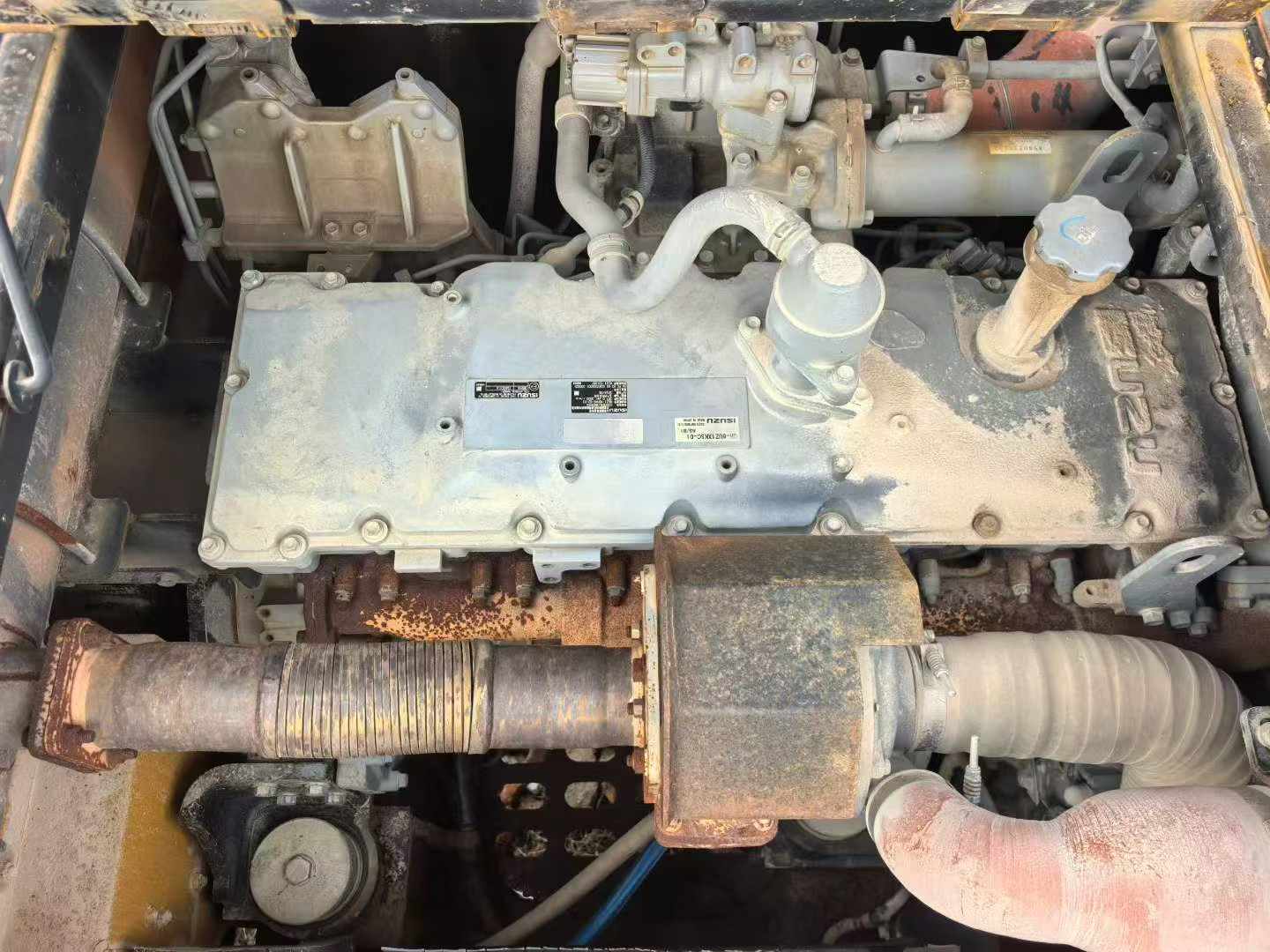

| Engine type | 6UZ1 |
| Rated power (kw/rpm) | 257/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1363/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 9.839 |
| Working form | Direct injection, 6 cylinders, 4 strokes, turbocharged, water cooled |
| Ground specific pressure (Kpa) | 75.3 |
| Rotation speed (rpm) | 8.3 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 247 |
| Rod digging force (kN) | 218 |
| Travel speed (km/h) | 5.3/3.2 |
| Fuel Tank (L) | 690 |
| Engine Oil changes (L) | 36 |
| Total transport length (mm) | 11700 |
| Total transport width (mm) | 3360 |
| Total transport height (mm) | 3740 |
| Full cab height (mm) | 3470 |
| Minimum ground clearance (mm) | 505 |
| Minimum turning radius of front working device (mm) | 4750 |
| Back end turning radius (mm) | 3740 |
| Onboard width (mm) | 3265 |
| Total track length (mm) | 5320 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4340 |
| Maximum height at minimum turning radius (mm) | 8785 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 51 |
| Maximum digging radius (mm) | 10920 |
| Maximum digging depth (mm) | 7045 |
| Maximum excavation height (mm) | 9980 |
| Maximum unloading height (mm) | 6960 |
| Maximum vertical digging depth (mm) | 4710 |
