Product Description

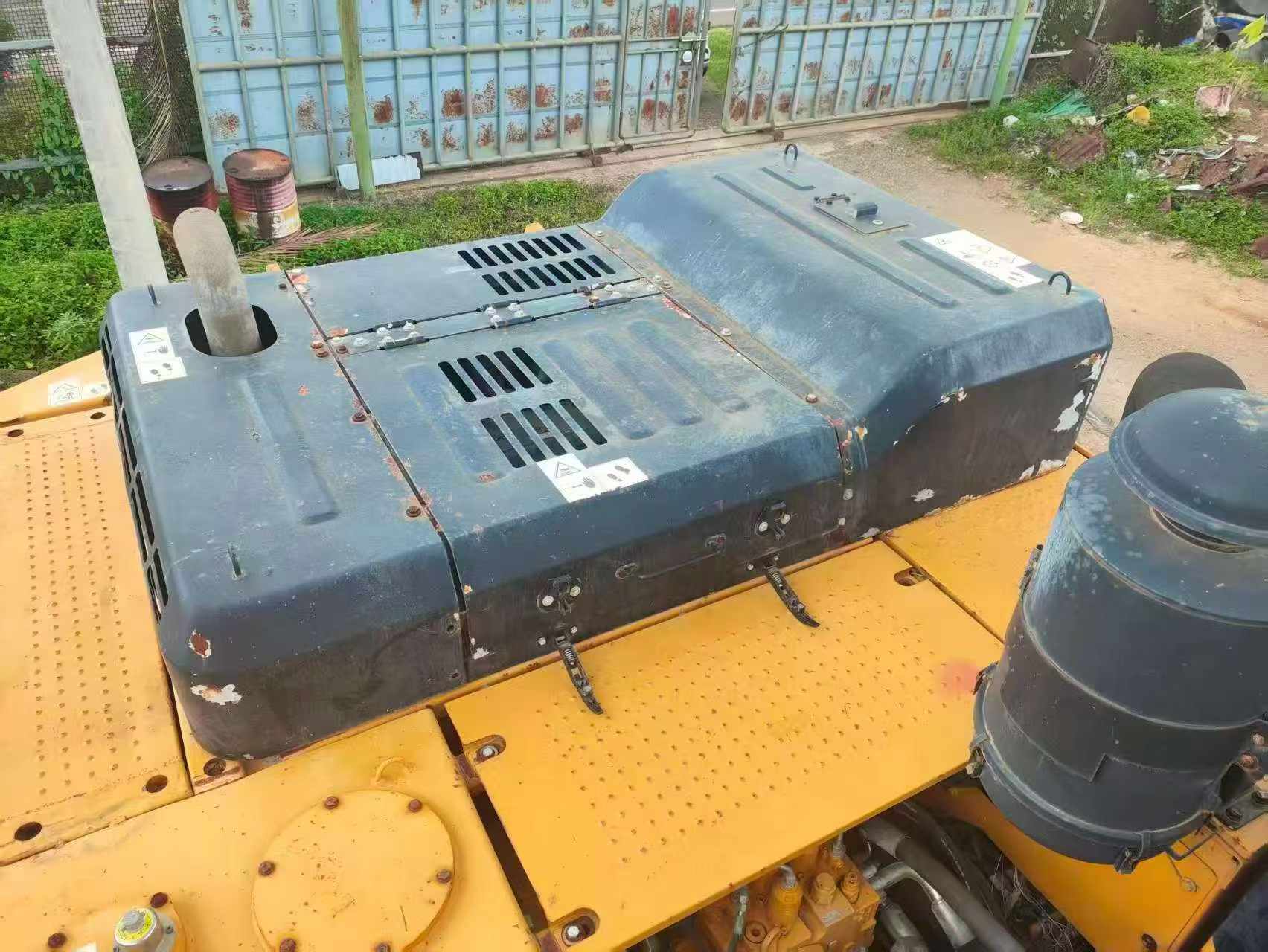

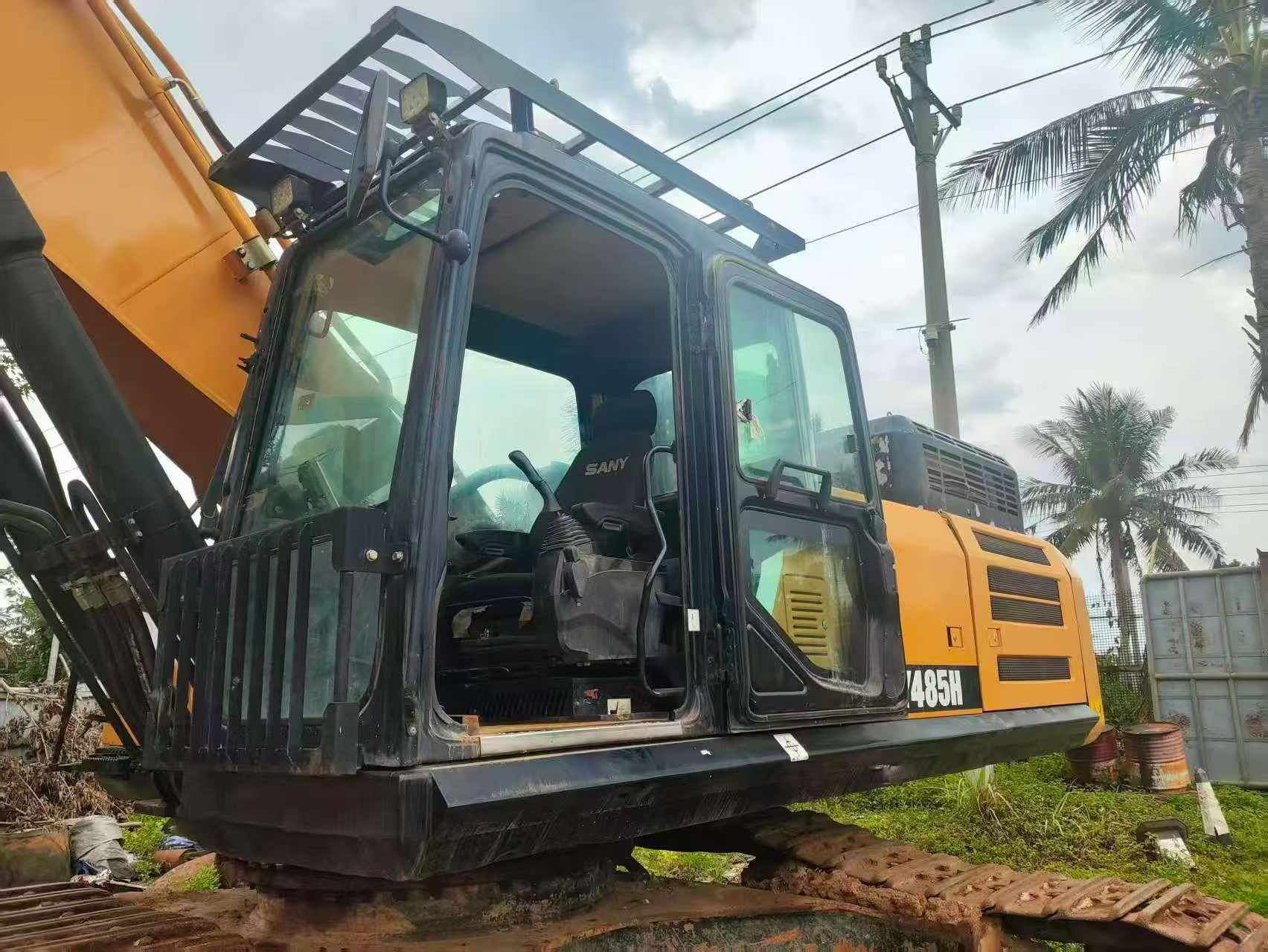

This 2020 Sany SY415H excavator offers reliable performance at a competitive price point. Currently located in Fujian, China, this unit represents a cost-effective solution for contractors seeking proven hydraulic excavator capability from a reputable manufacturer.
The SY415H is a mid-range hydraulic excavator designed for versatility across construction, earthmoving, and infrastructure projects. With approximately 4 years of service, this machine combines modern engineering with accessible pricing for budget-conscious operations.
- Year: 2020
- Make: Sany
- Model: SY415H
- Location: Fujian Province, China
- Condition: Used
- Pricing: Competitively priced for quick sale
Ideal for medium-duty applications including excavation, trenching, and material handling. Available for inspection in Fujian. Contact us for detailed specifications, current machine condition, and shipping arrangements to your location.
| Specifications | Value |
|---|---|
| No. | 1106380 |
| Tonnage (tons) | 41 |
| Working weight (kg) | 41500 |
| Bucket capacity (m³) | 1.9/2.2 (Rock) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 6UZ1 |
| Rated power (kw/rpm) | 257/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1363/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 9.839 |
| Working form | Direct injection, 6 cylinders, 4 strokes, turbocharged, water cooled |
| Ground specific pressure (Kpa) | 75.3 |
| Rotation speed (rpm) | 8.3 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 247 |
| Rod digging force (kN) | 218 |
| Travel speed (km/h) | 5.3/3.2 |
| Fuel Tank (L) | 690 |
| Engine Oil changes (L) | 36 |
| Total transport length (mm) | 11700 |
| Total transport width (mm) | 3360 |
| Total transport height (mm) | 3740 |
| Full cab height (mm) | 3470 |
| Minimum ground clearance (mm) | 505 |
| Minimum turning radius of front working device (mm) | 4750 |
| Back end turning radius (mm) | 3740 |
| Onboard width (mm) | 3265 |
| Total track length (mm) | 5320 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4340 |
| Maximum height at minimum turning radius (mm) | 8785 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 51 |
| Maximum digging radius (mm) | 10920 |
| Maximum digging depth (mm) | 7045 |
| Maximum excavation height (mm) | 9980 |
| Maximum unloading height (mm) | 6960 |
| Maximum vertical digging depth (mm) | 4710 |
