Product Description

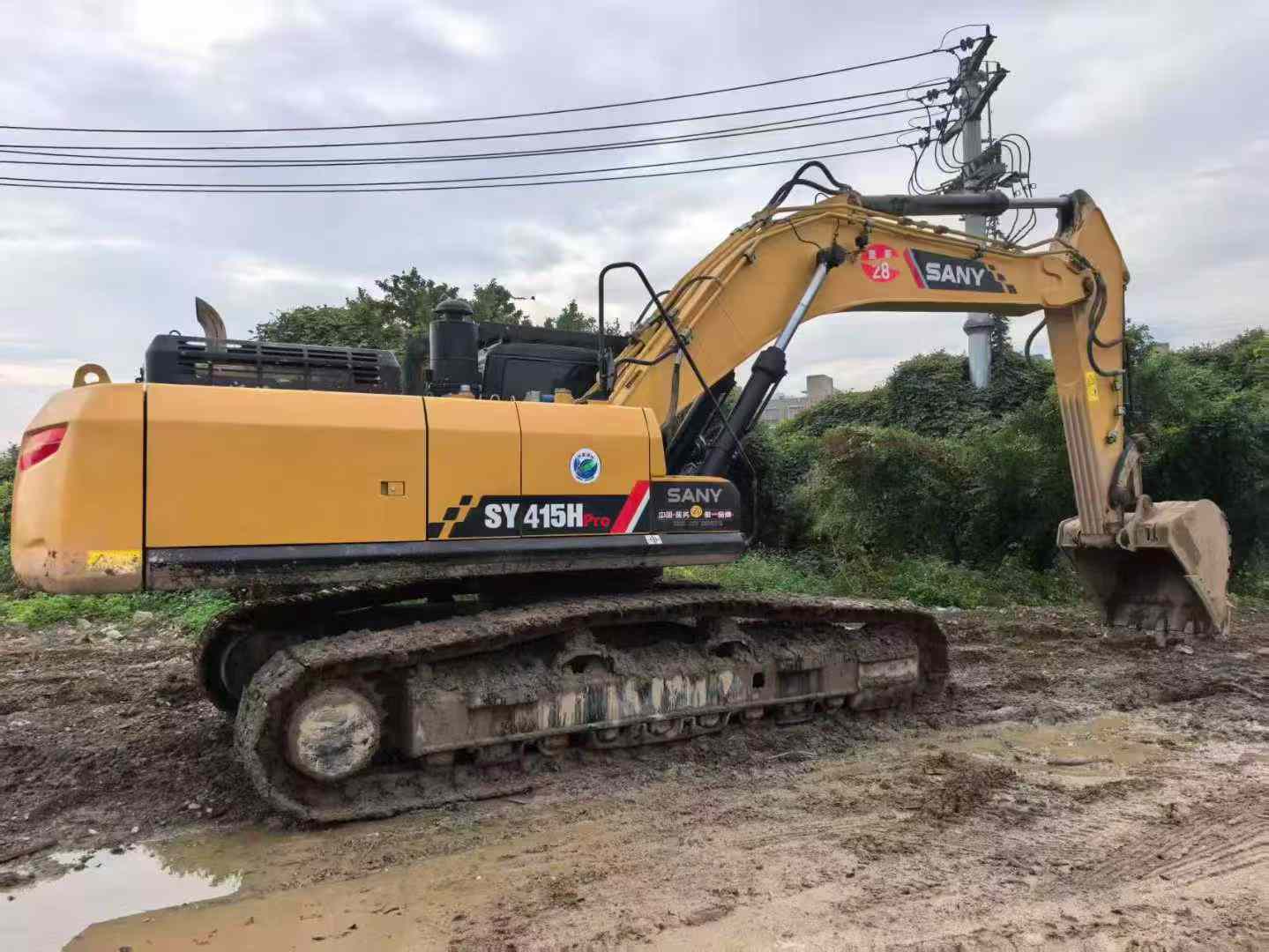

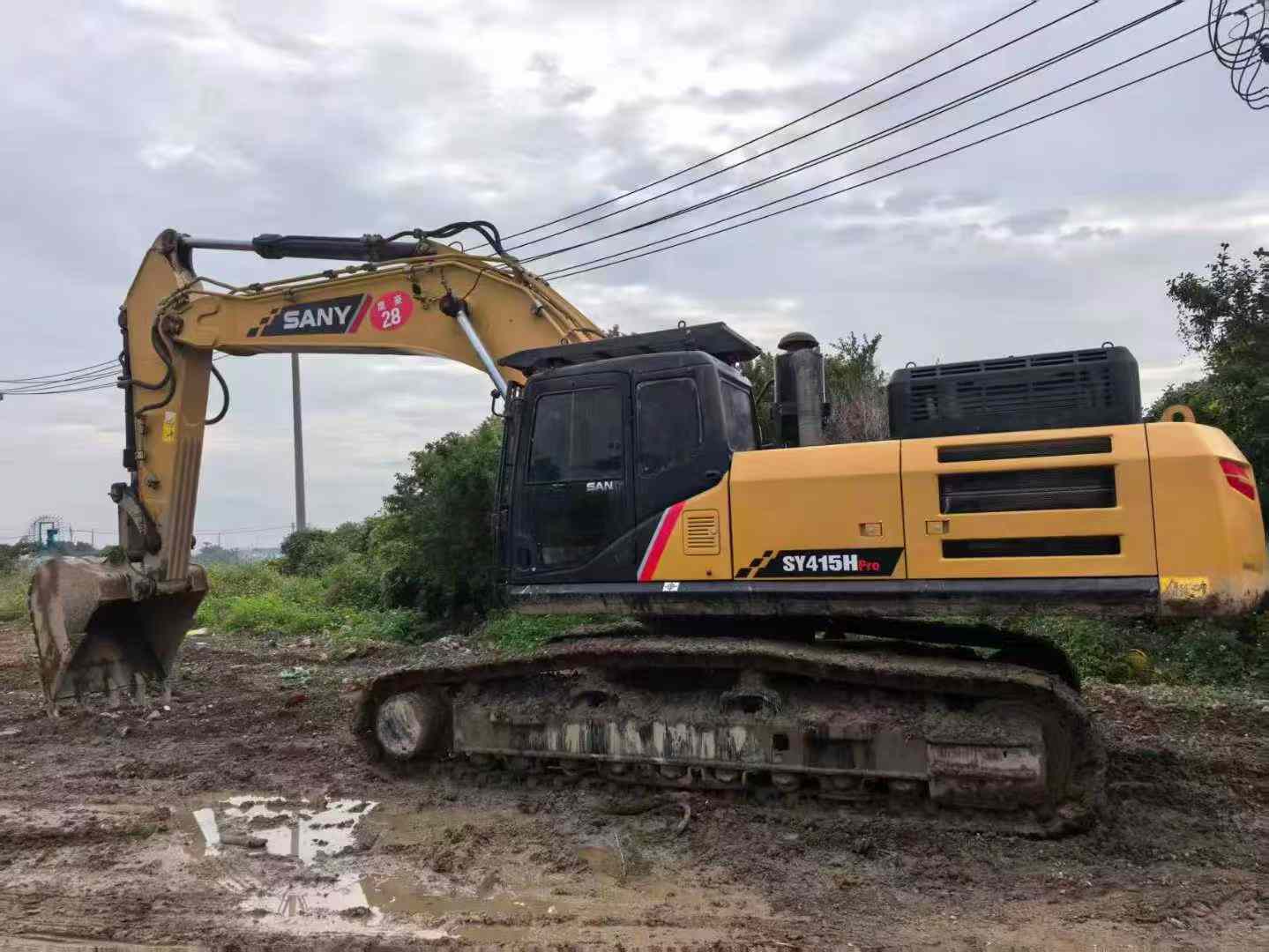

Powered by a robust 6UZ1 engine delivering 257kW at 2000rpm, this 2021 Sany SY415H excavator combines proven reliability with serious productivity for demanding jobsites. Operating at 41 tons with a maximum digging reach of 10,920mm and depth capacity of 7,045mm, this machine tackles heavy earthmoving, mining, and infrastructure projects with confidence. Sany's market dominance in China ensures exceptional parts availability and competitive service costs—critical advantages when purchasing used equipment. Rock bucket configurations up to 2.2m³ paired with 247kN bucket digging force handle tough materials efficiently.

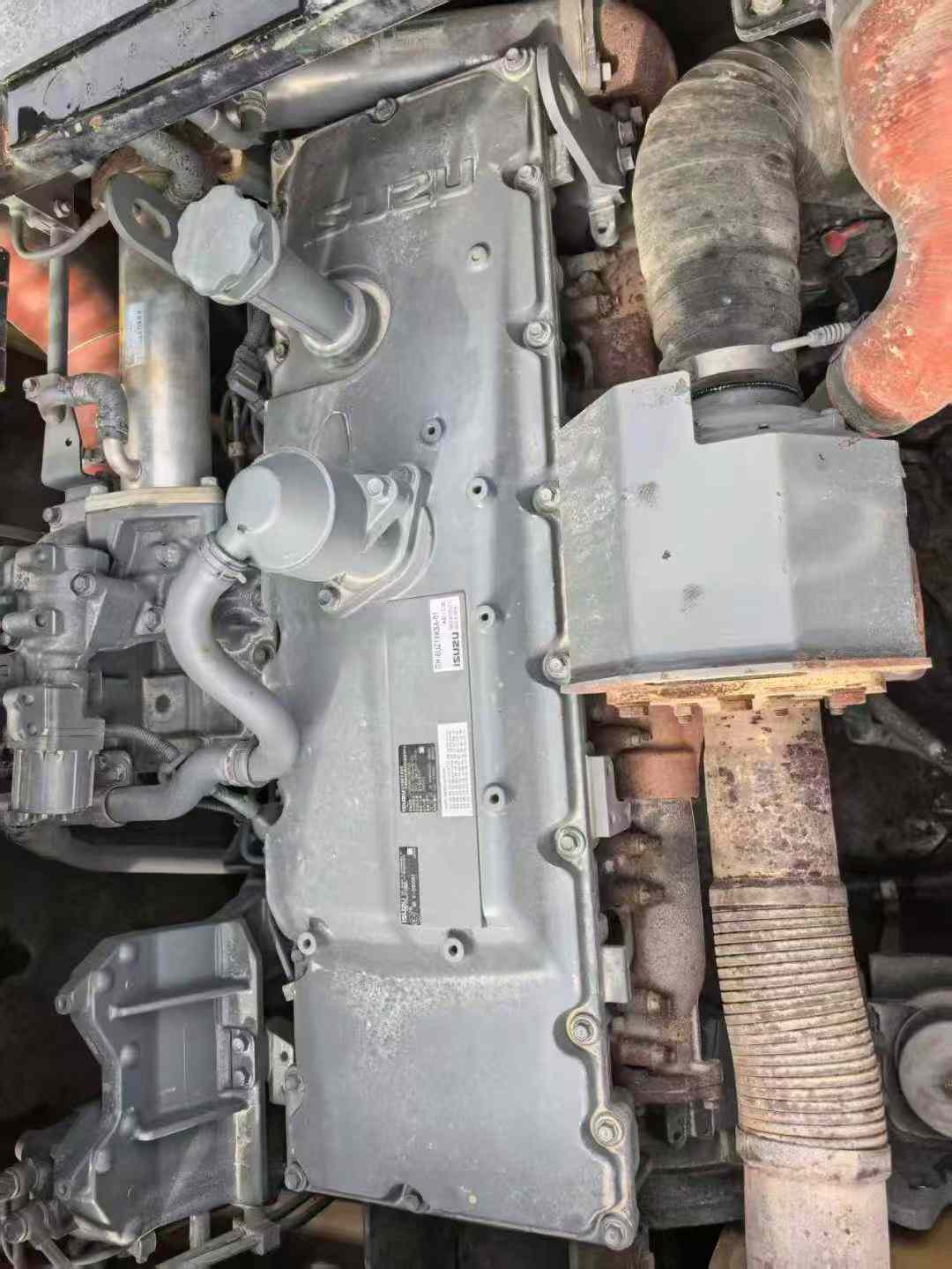

- Engine: 6UZ1, 257kW/2000rpm, water-cooled, turbocharged
- Operating Weight: 41,500kg

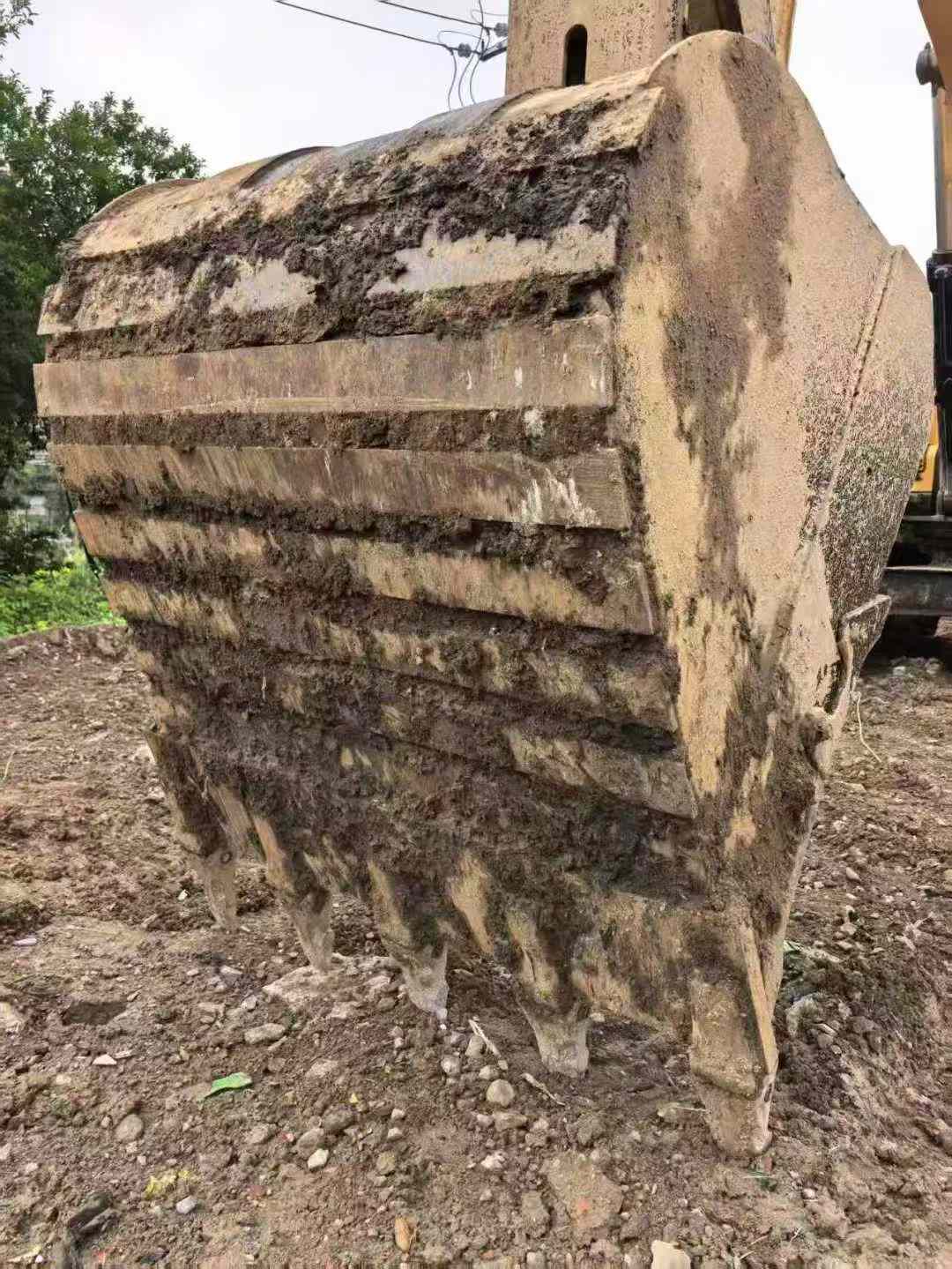

- Bucket Capacity: 1.9/2.2m³ (Rock)
- Max Digging Reach: 10,920mm
- Max Digging Depth: 7,045mm
- Travel Speed: 5.3/3.2km/h
- Fuel Capacity: 690L
- Location: Zhejiang Lishui, China
Strong resale values and widespread dealer networks make Sany excavators a smart investment for operators prioritizing long-term value and uptime.
| Specifications | Value |
|---|---|
| No. | 1024053 |
| Tonnage (tons) | 41 |
| Working weight (kg) | 41500 |
| Bucket capacity (m³) | 1.9/2.2 (Rock) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | 6UZ1 |
| Rated power (kw/rpm) | 257/2000 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 1363/1500 |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 9.839 |
| Working form | Direct injection, 6 cylinders, 4 strokes, turbocharged, water cooled |
| Ground specific pressure (Kpa) | 75.3 |
| Rotation speed (rpm) | 8.3 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 247 |
| Rod digging force (kN) | 218 |
| Travel speed (km/h) | 5.3/3.2 |
| Fuel Tank (L) | 690 |
| Engine Oil changes (L) | 36 |
| Total transport length (mm) | 11700 |
| Total transport width (mm) | 3360 |
| Total transport height (mm) | 3740 |
| Full cab height (mm) | 3470 |
| Minimum ground clearance (mm) | 505 |
| Minimum turning radius of front working device (mm) | 4750 |
| Back end turning radius (mm) | 3740 |
| Onboard width (mm) | 3265 |
| Total track length (mm) | 5320 |
| Track gauge (mm) | 2740 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 4340 |
| Maximum height at minimum turning radius (mm) | 8785 |
| Number of sprockets (single side) (each) | 2 |
| Number of wheels (single side) (each) | 9 |
| Number of track plates (single side) (PCS) | 51 |
| Maximum digging radius (mm) | 10920 |
| Maximum digging depth (mm) | 7045 |
| Maximum excavation height (mm) | 9980 |
| Maximum unloading height (mm) | 6960 |
| Maximum vertical digging depth (mm) | 4710 |
