2019 Sany SY485H

1/9
Buy Sany SY485H Used Excavator / 1
Buy Sany SY485H Used Excavator / 2

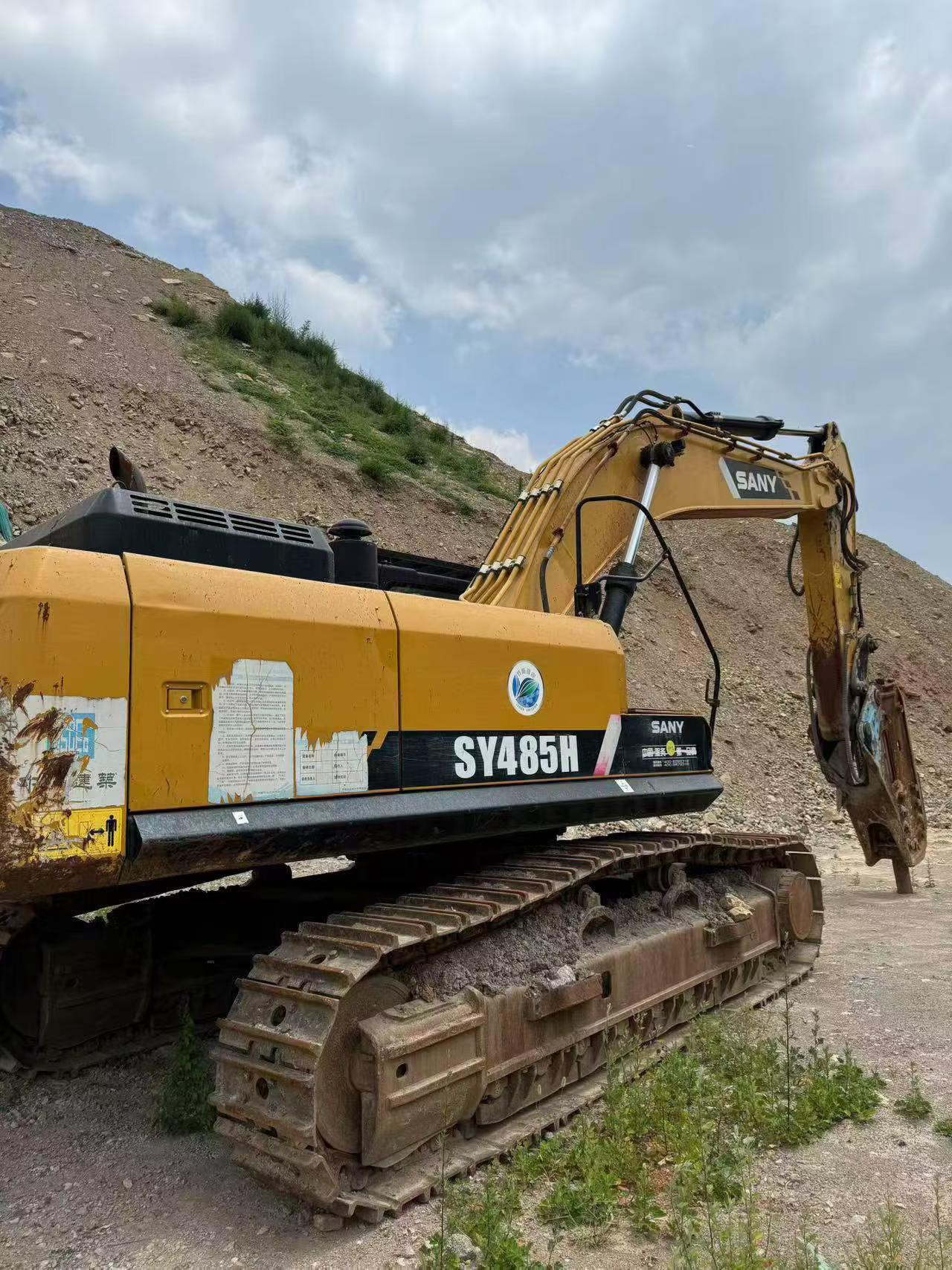

Buy Sany SY485H Used Excavator / 3
Buy Sany SY485H Used Excavator / 4
Buy Sany SY485H Used Excavator / 5
Buy Sany SY485H Used Excavator / 6
Buy Sany SY485H Used Excavator / 7
Buy Sany SY485H Used Excavator / 8
Buy Sany SY485H Used Excavator / 9

Product Description

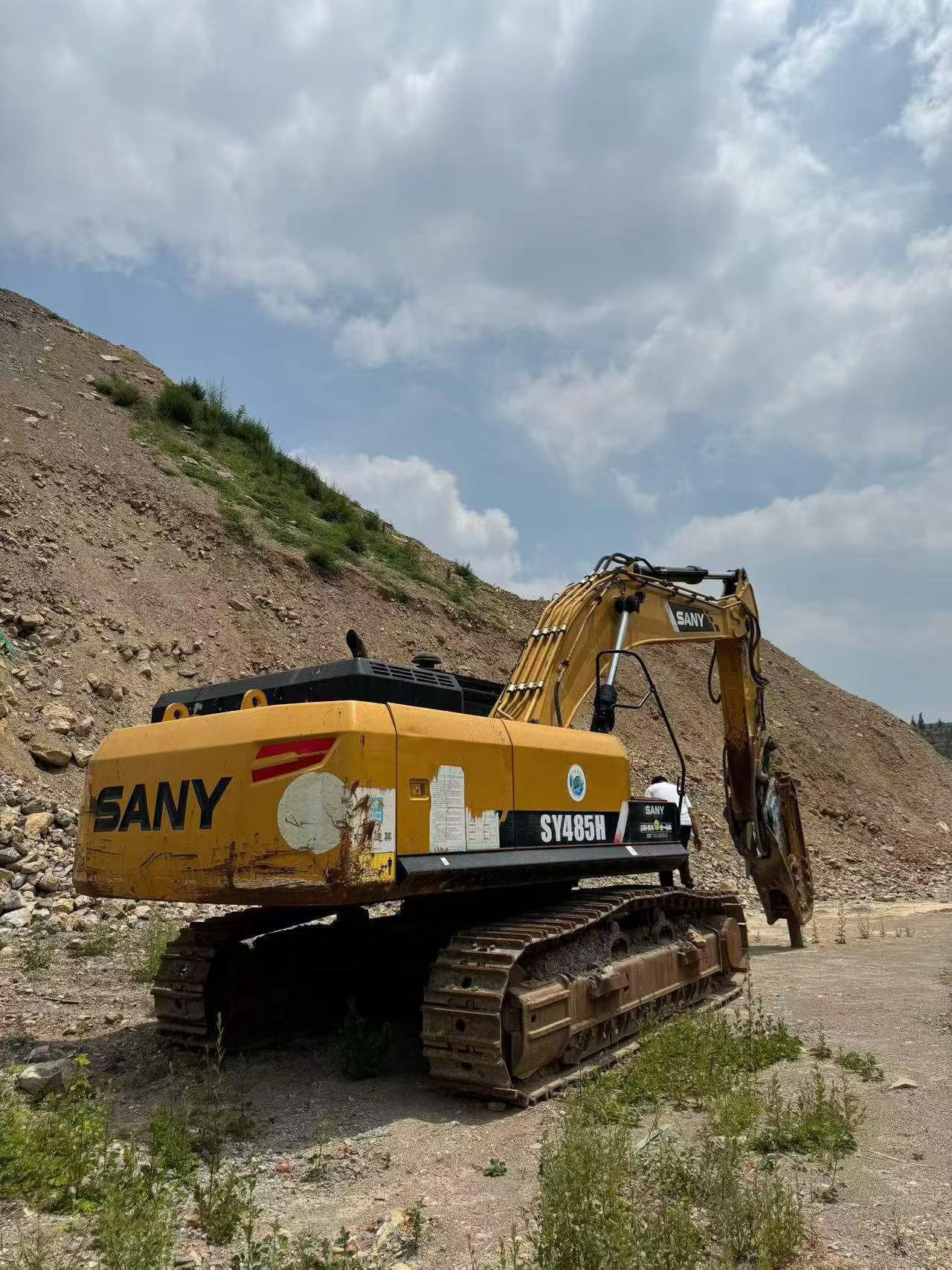

This 2019 Sany SY485H excavator is available for sale in Guangdong, China. With 6,500 actual operating hours recorded on the meter, this machine represents a reliable mid-life unit suitable for demanding construction and earthmoving applications. The excavator is equipped with a Bailitec 190 hydraulic breaker attachment, expanding its versatility for demolition and rock-breaking tasks.

Key features include:

  • Manufacturing year: 2019

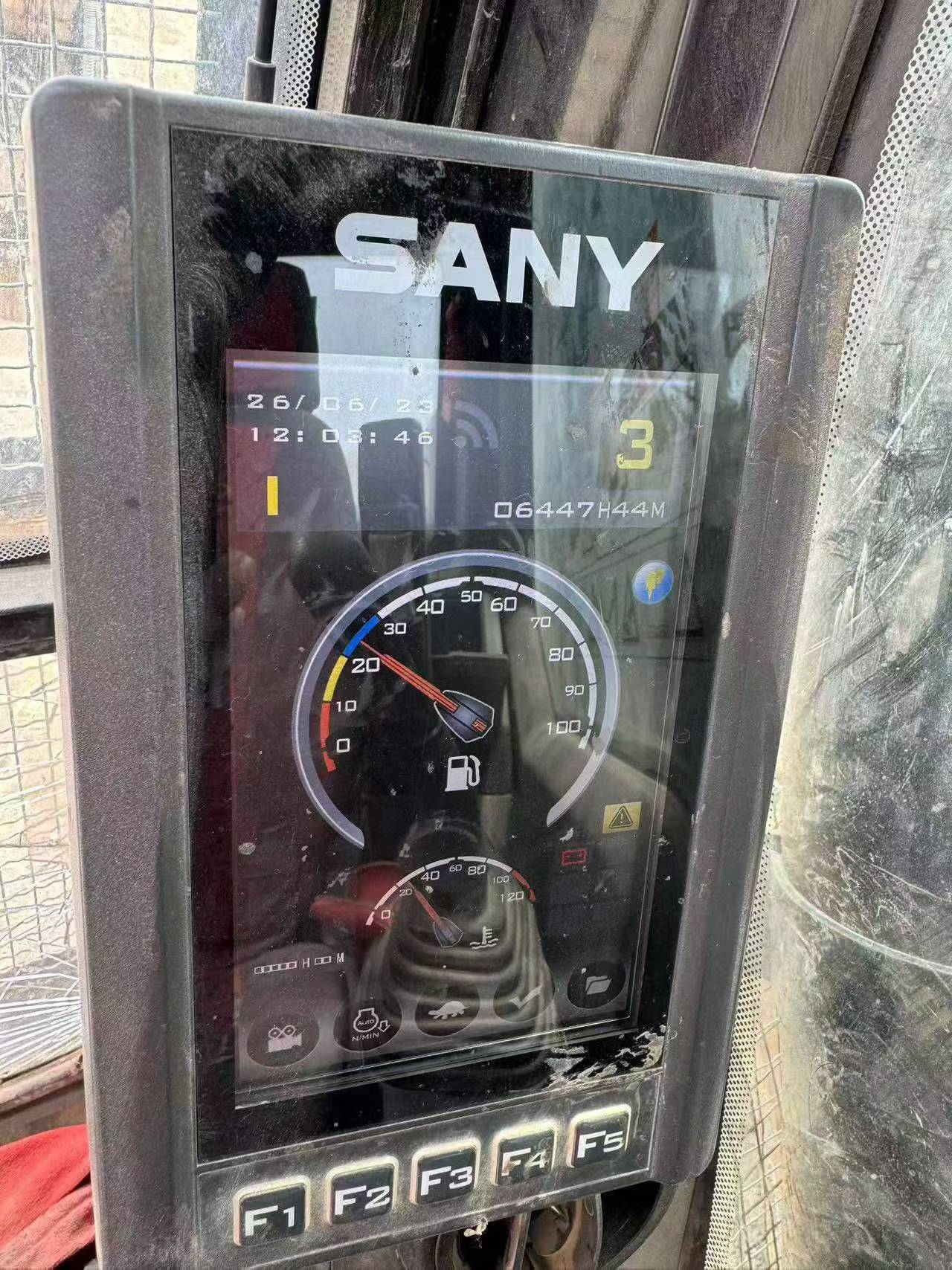

  • Actual meter reading: 6,500 hours

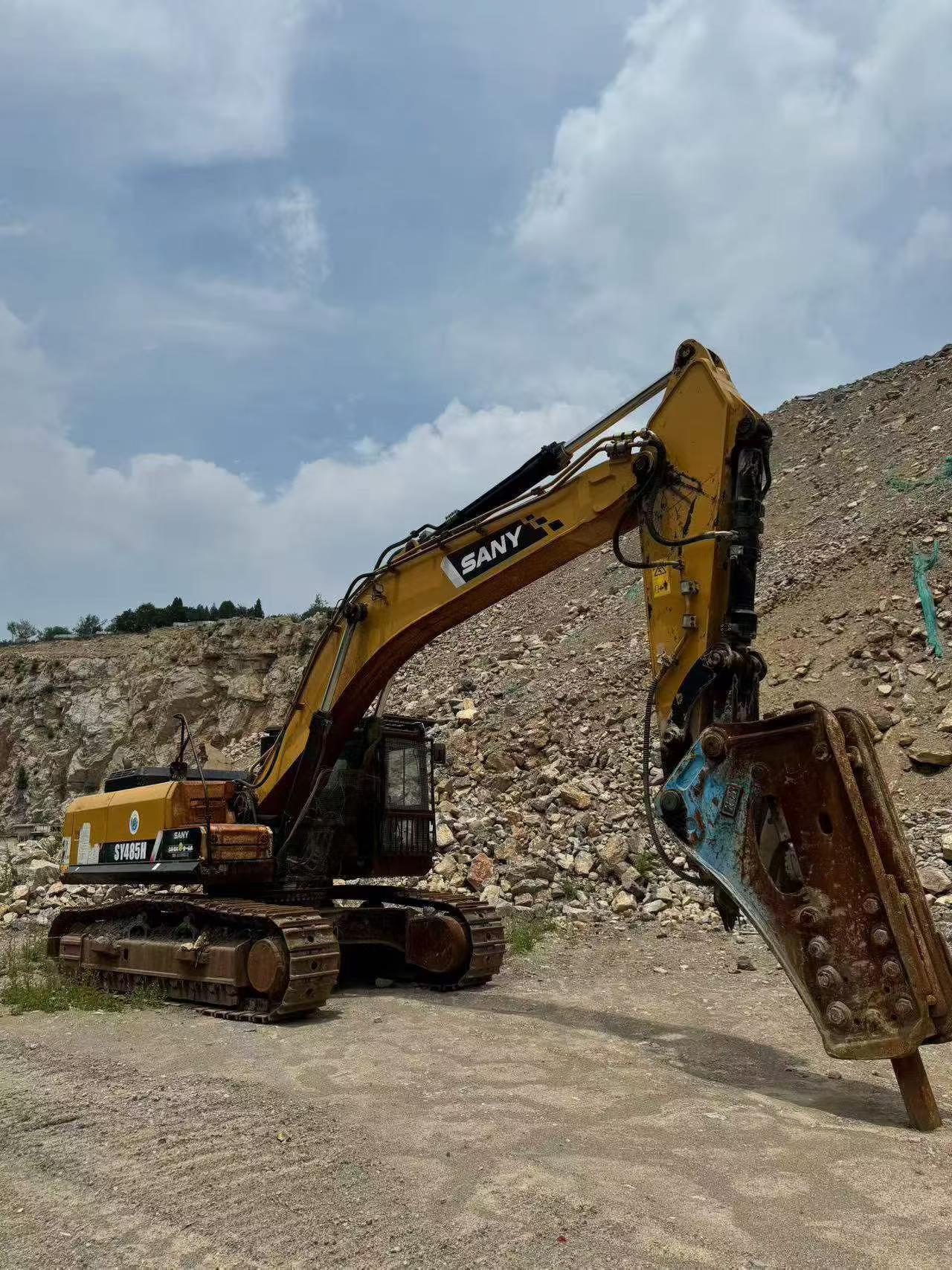

  • Equipped with Bailitec 190 breaker attachment
  • Located in Guangdong Province, China

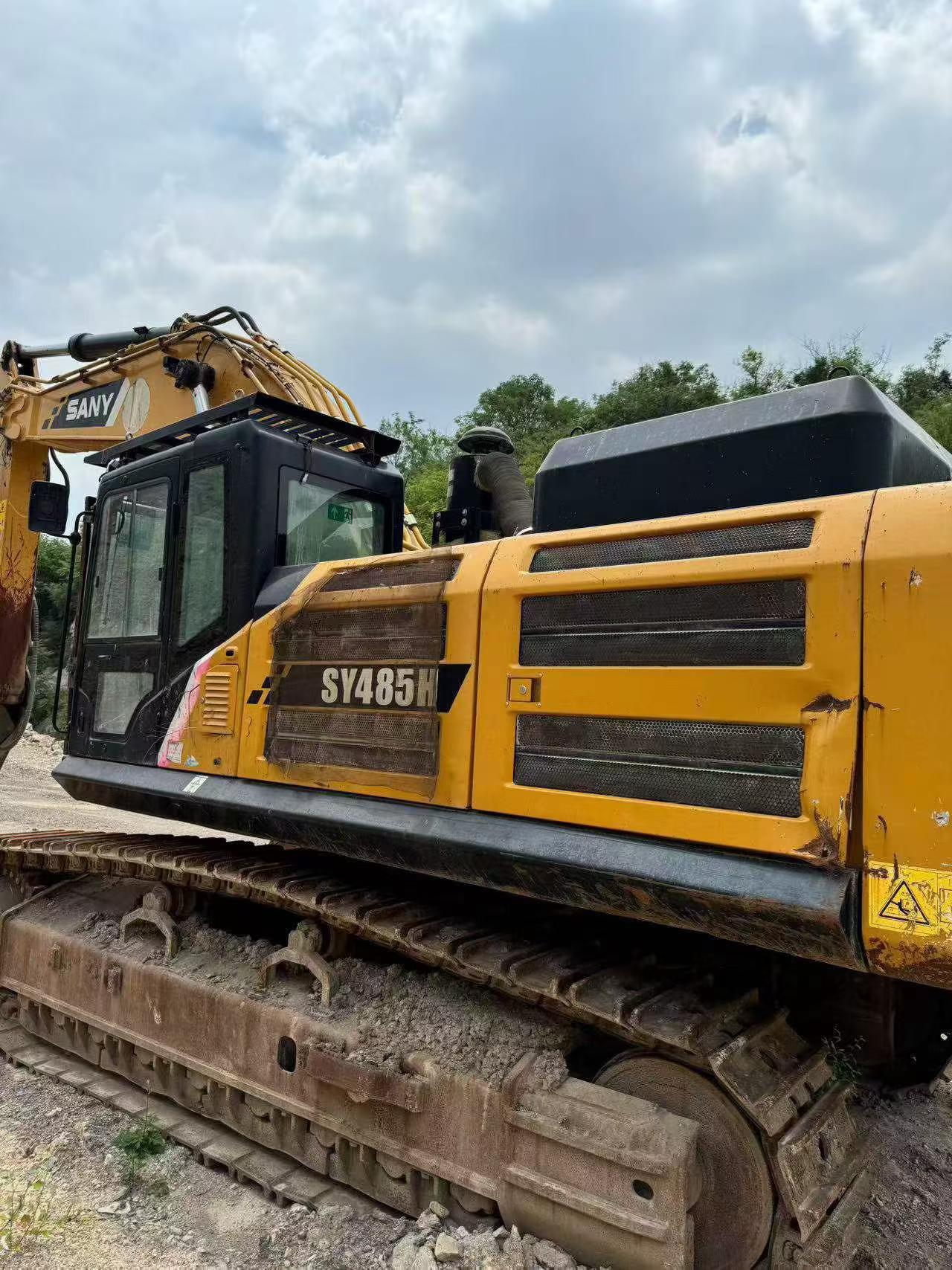

  • Sany SY485H model with proven performance in heavy-duty operations

This excavator offers a cost-effective solution for contractors seeking a well-maintained machine with moderate hours. The inclusion of the hydraulic breaker adds immediate value for projects requiring both excavation and breaking capabilities. Inspection available upon request.

SpecificationsValue
No.1140851
Tonnage (tons)48
Working weight (kg)49500
Bucket capacity (m³)2.2-3.1
powerTraditional power
manufacturerMade in China
bucketbackhoe

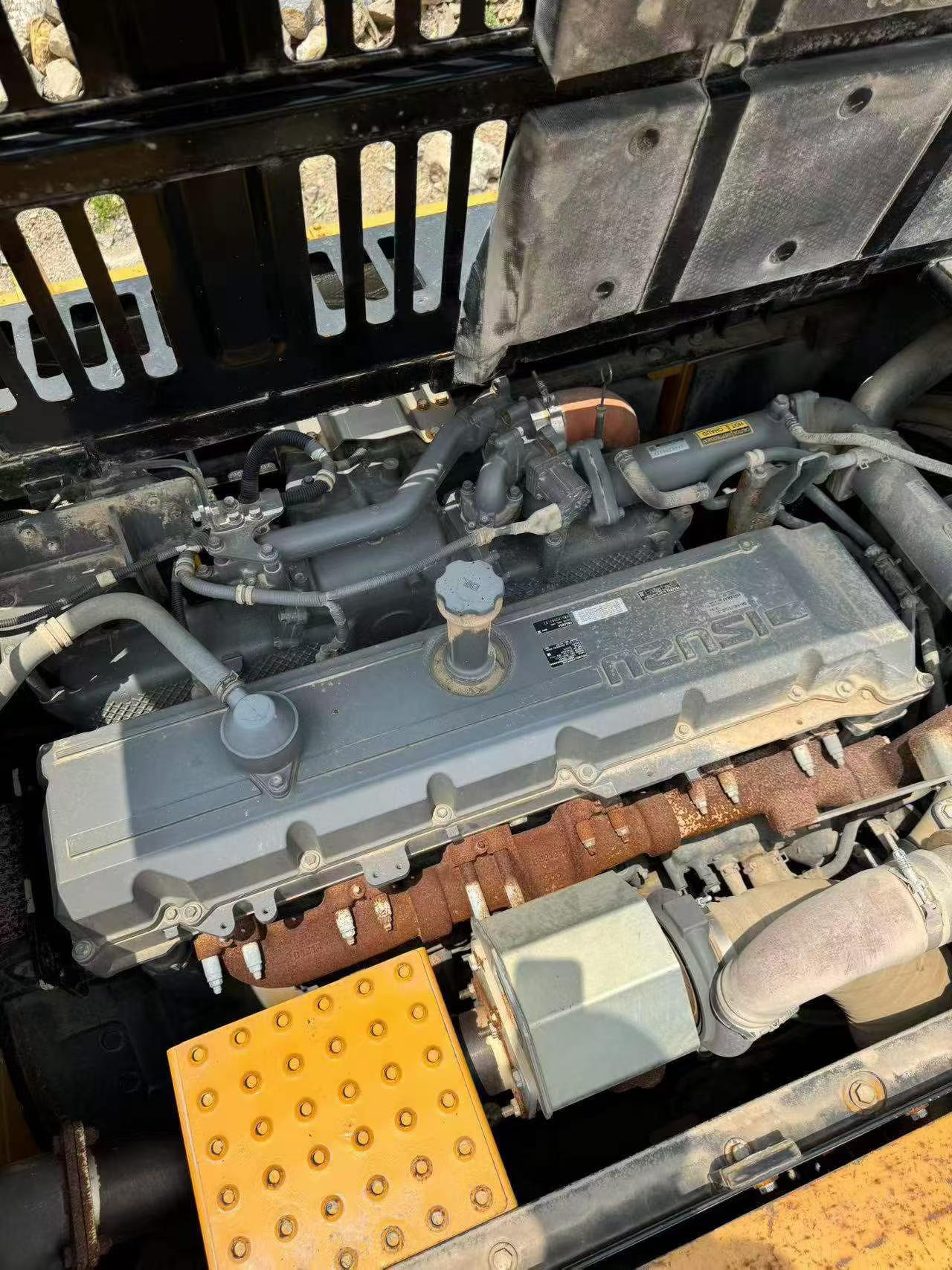

Engine type6WG1X
Rated power (kw/rpm)300/1800
Cooling modewater-cooling
Maximum torque (N.m)1950/1400
Number of cylinders (PCS)6
Displacement (L)15.681
Ground specific pressure (Kpa)87.1
Rotation speed (rpm)8
Climbing ability (%)70
Bucket digging force (kN)287
Rod digging force (kN)245
Travel speed (km/h)5.4/3.1
Fuel Tank (L)680
Hydraulic Tank (L)480
Engine Oil changes (L)50
Total transport length (mm)12095
Total transport width (mm)3360
Total transport height (mm)3790
Full cab height (mm)3470
Counterweight ground clearance (mm)1355
Minimum ground clearance (mm)560
Minimum turning radius of front working device (mm)5240
Back end turning radius (mm)3765
Onboard width (mm)3290
Total track length (mm)5440
Track gauge (mm)2740
Track plate width (mm)600
Track ground length (mm)4415
Maximum height at minimum turning radius (mm)9100
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)50
Maximum digging radius (mm)11860
Maximum digging depth (mm)7490
Maximum excavation height (mm)10950
Maximum unloading height (mm)7450
Maximum vertical digging depth (mm)5660
see more

Overview

No.1140851

Brand Name:

Sany

Model Number:

SY485H

Year:

2019

Location:

Guangdong China

Pub Date
