2020 Sany SY485H

1/9

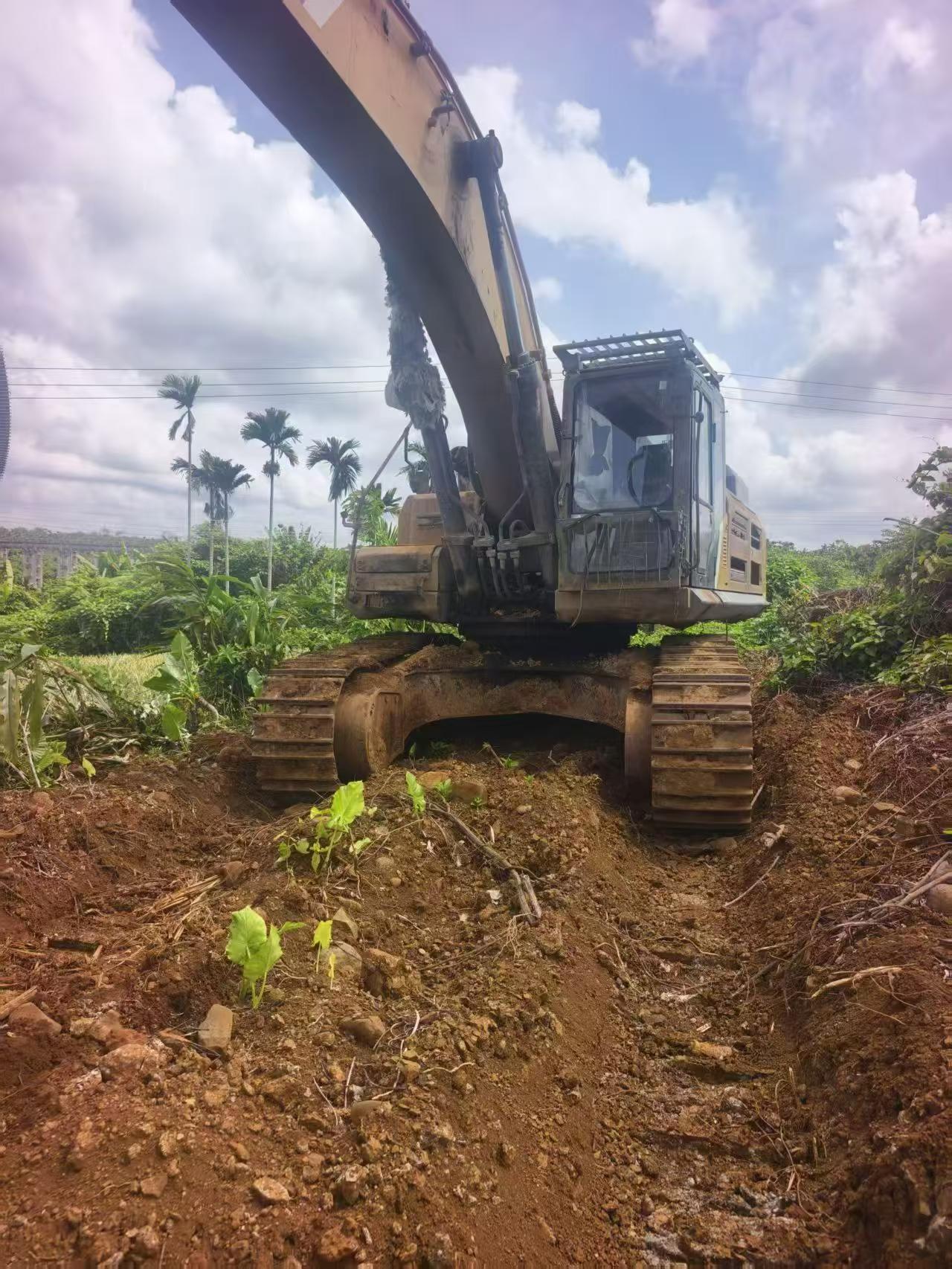

Buy Sany SY485H Used Excavator / 1

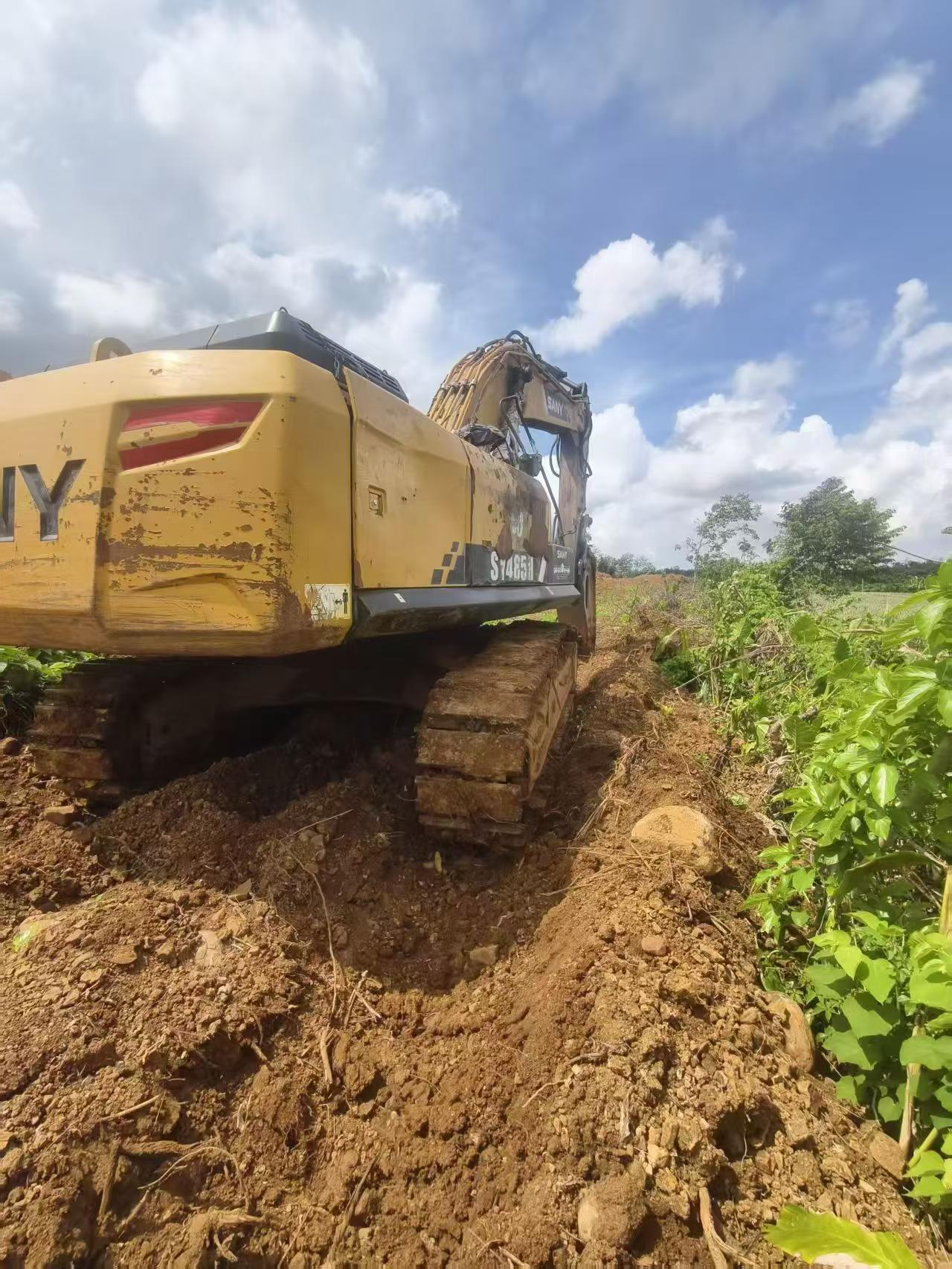

Buy Sany SY485H Used Excavator / 2

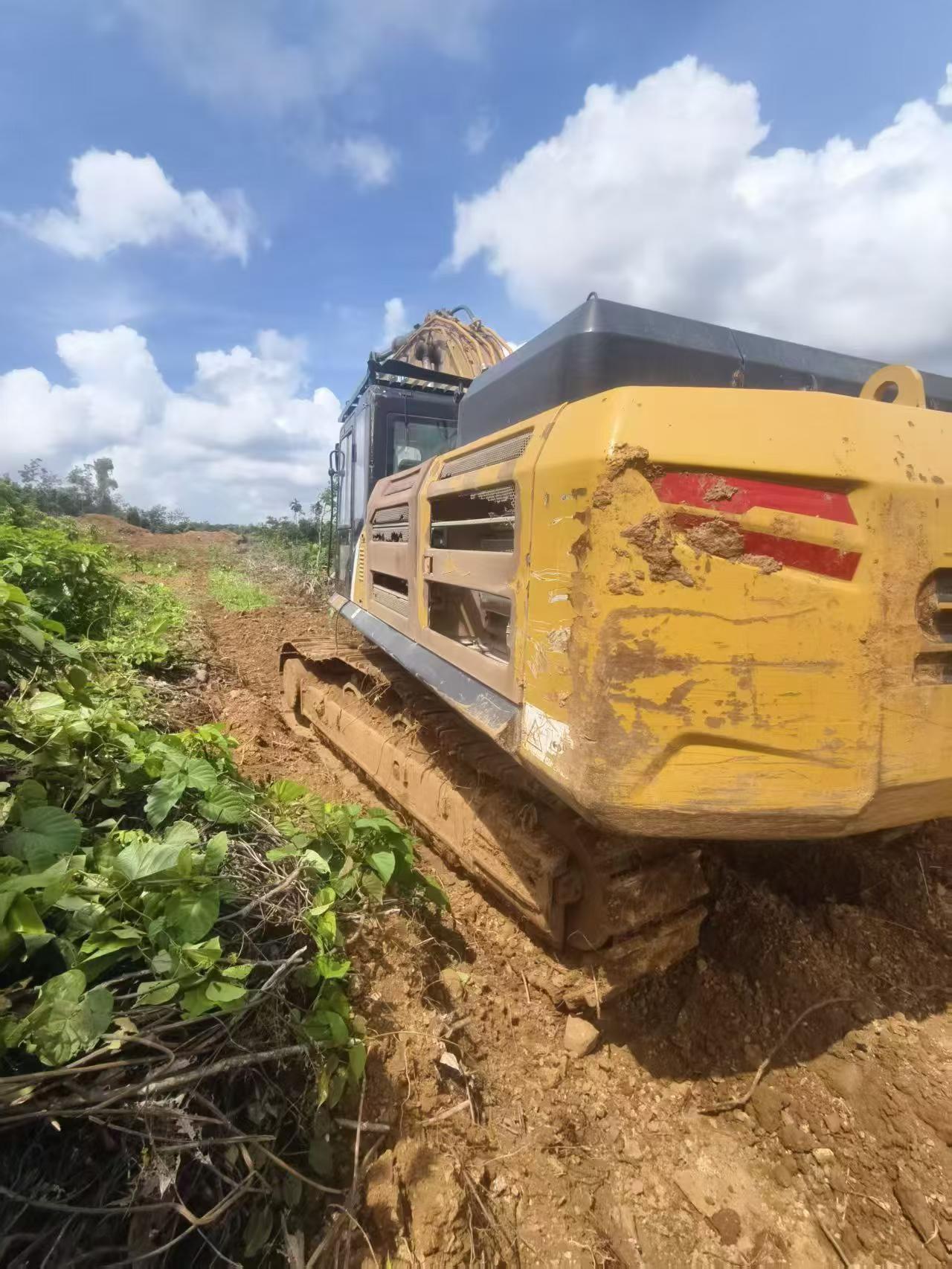

Buy Sany SY485H Used Excavator / 3

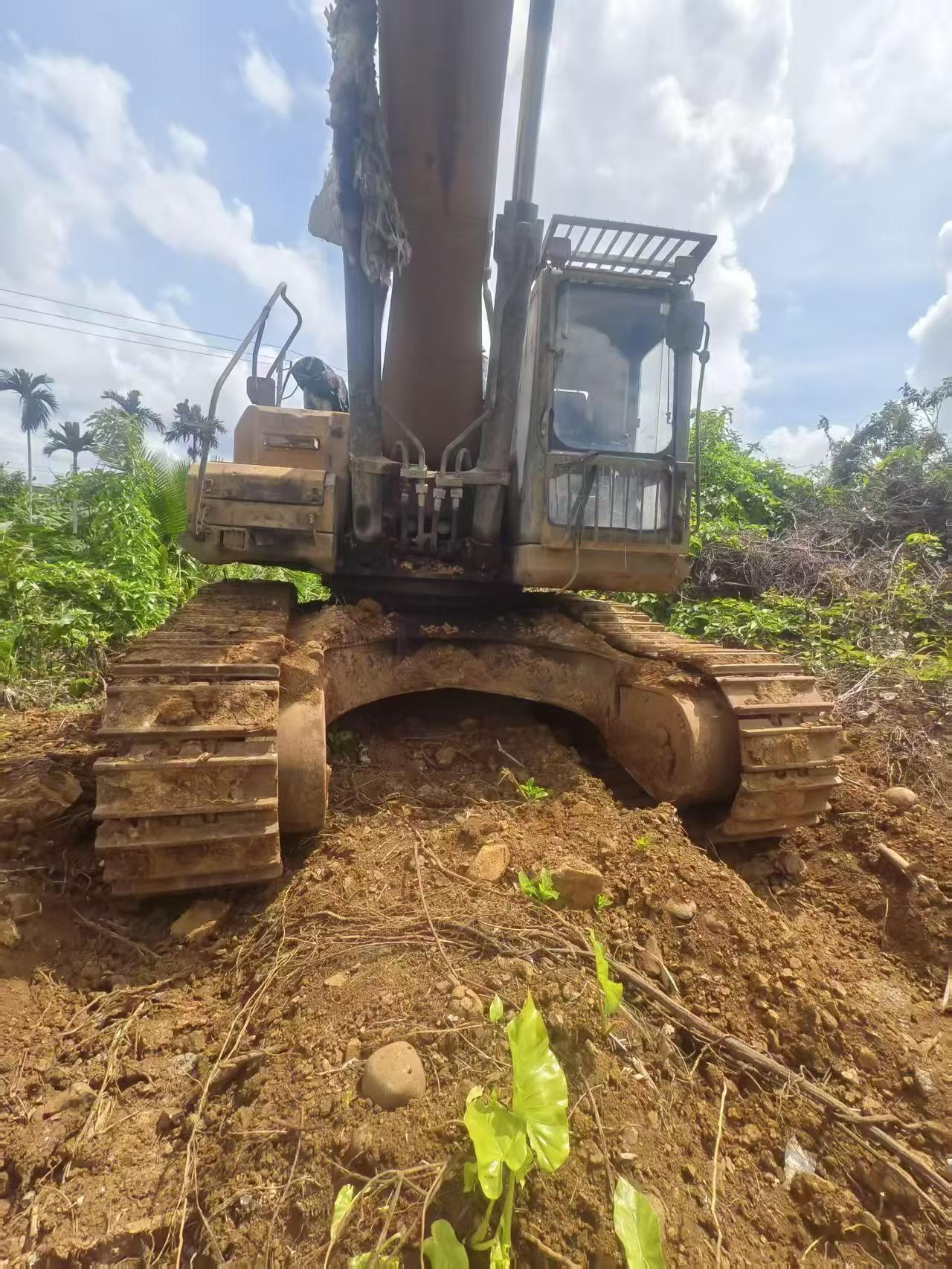

Buy Sany SY485H Used Excavator / 4

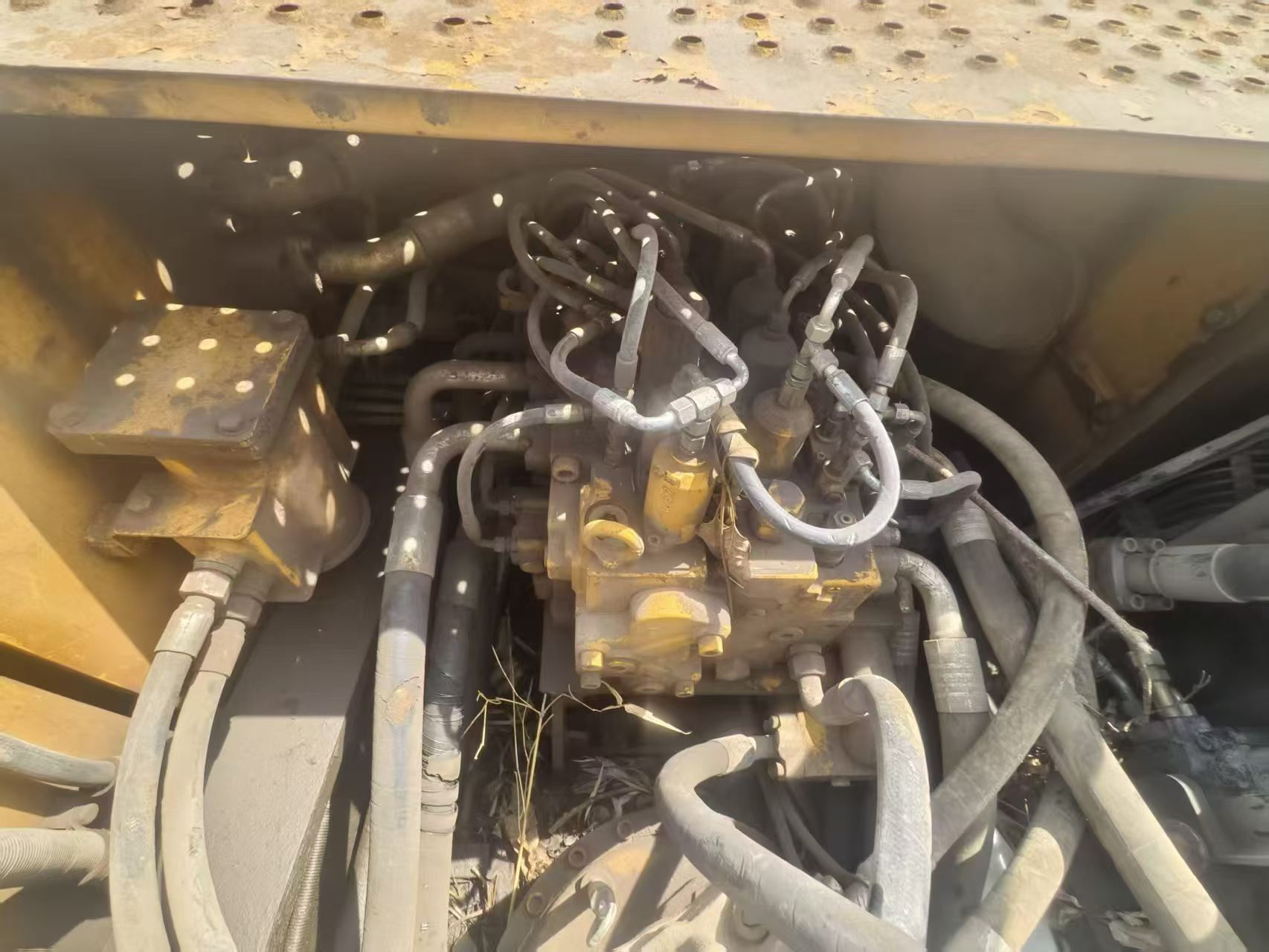

Buy Sany SY485H Used Excavator / 5

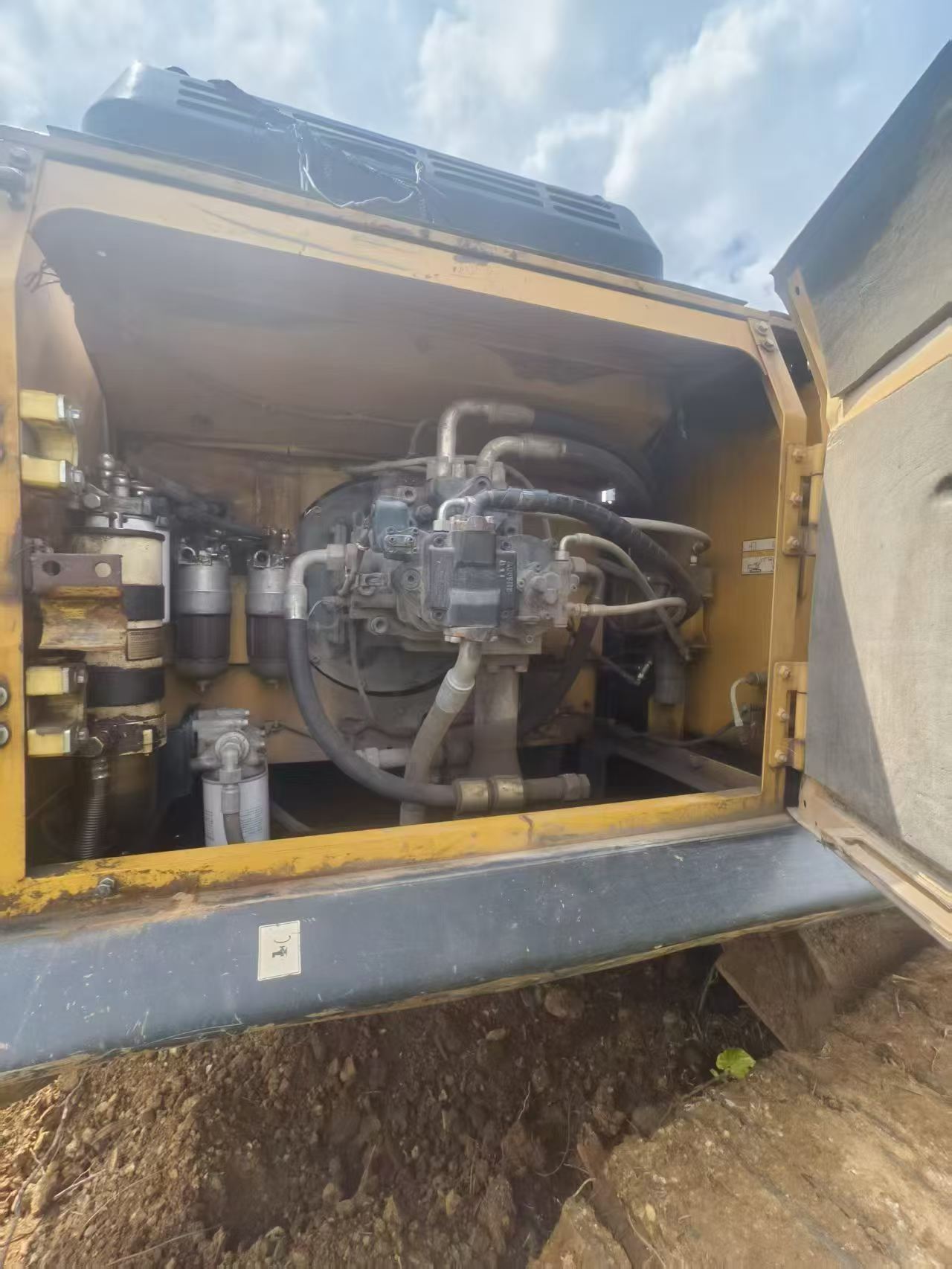

Buy Sany SY485H Used Excavator / 6

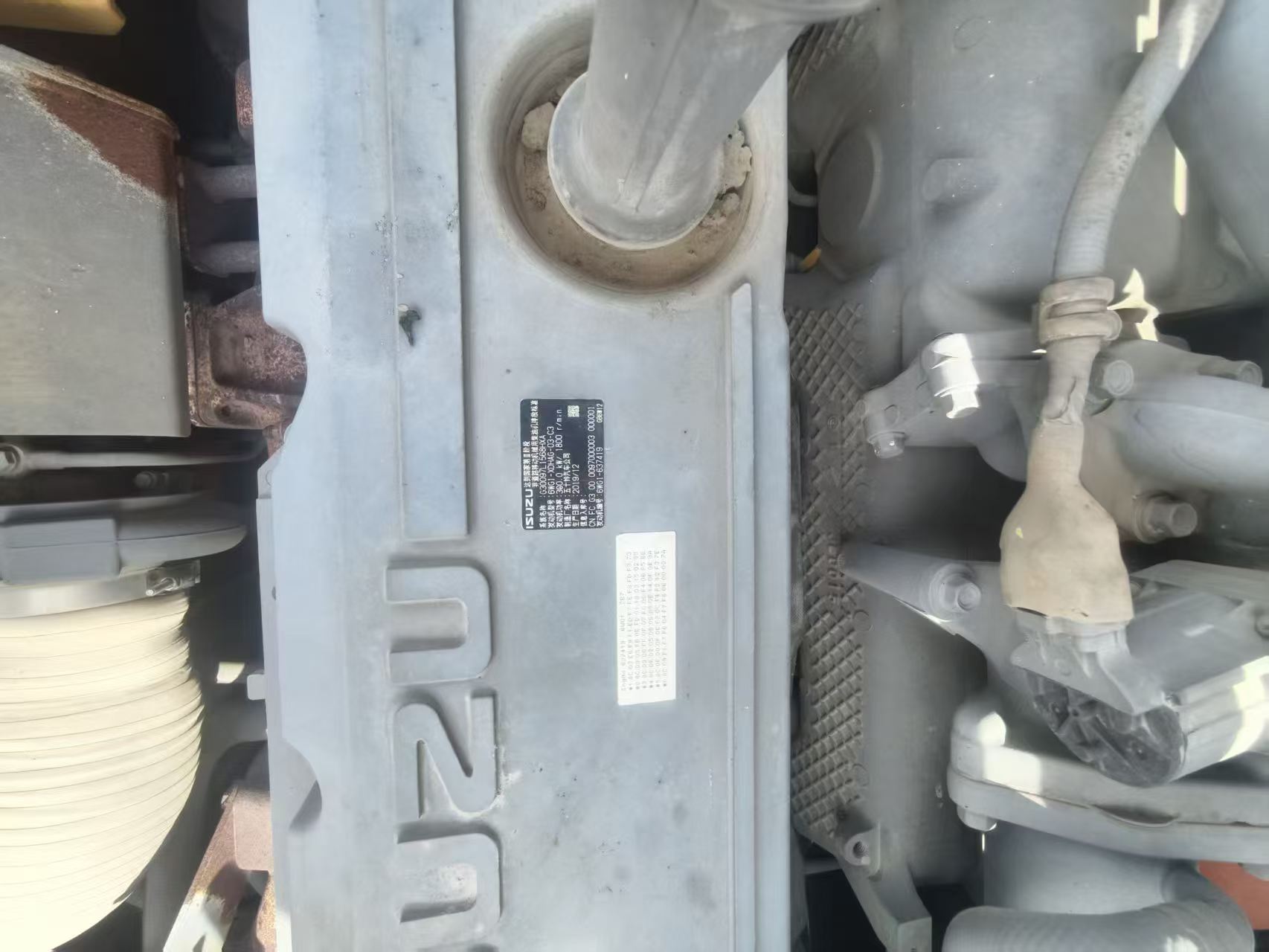

Buy Sany SY485H Used Excavator / 7

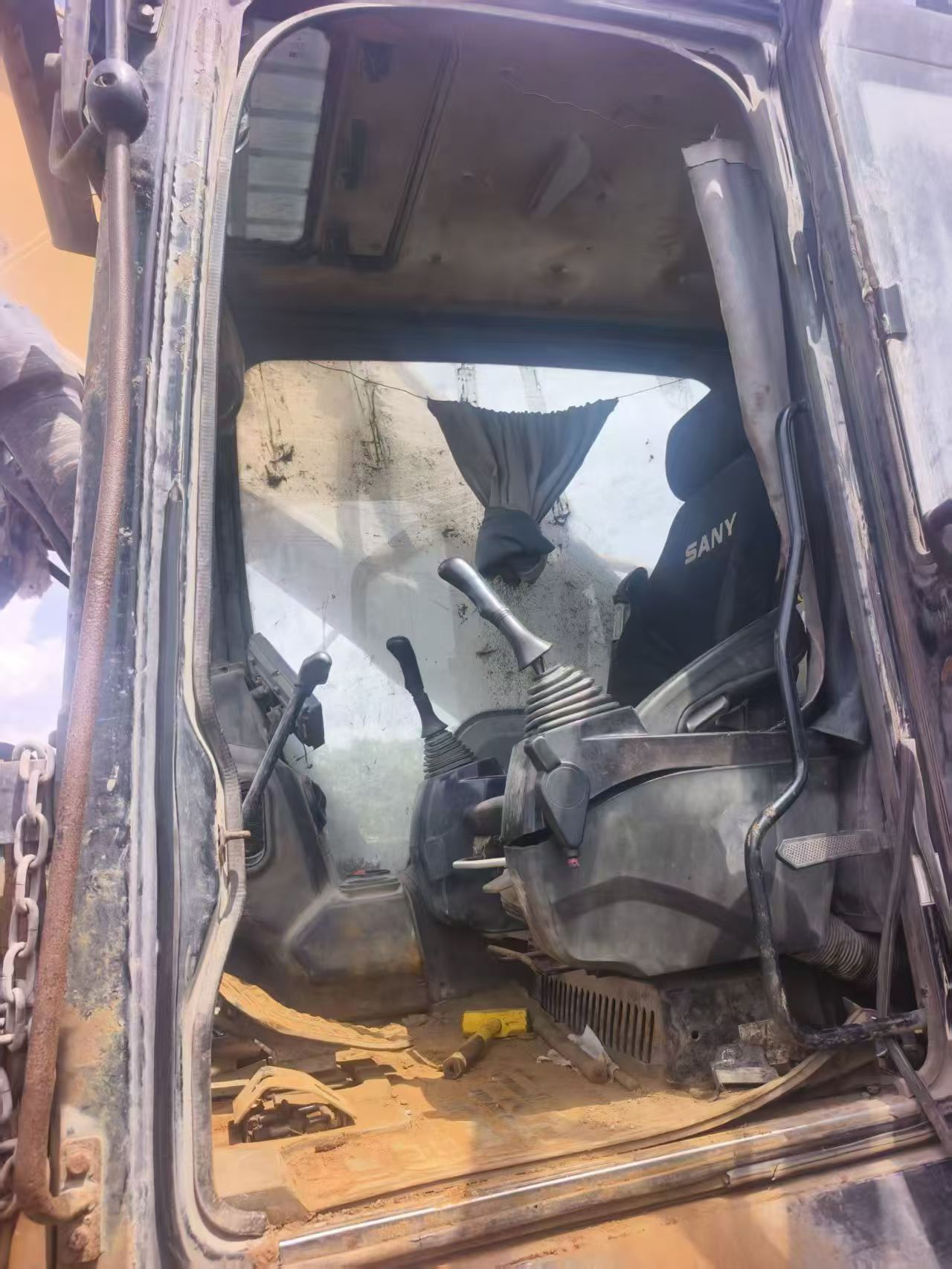

Buy Sany SY485H Used Excavator / 8
Buy Sany SY485H Used Excavator / 9

Product Description

This 2020 Sany SY485H hydraulic excavator offers reliable performance for demanding construction and earthmoving applications. With over 11,000 operating hours, this machine demonstrates proven durability in the field. The unit is equipped with a Best 195 hydraulic breaker attachment, enhancing its versatility for demolition and rock-breaking tasks. Located in Guangdong, China, this excavator is available for immediate inspection and purchase.

  • Year of Manufacture: 2020
  • Model: Sany SY485H
  • Operating Hours: 11,000+

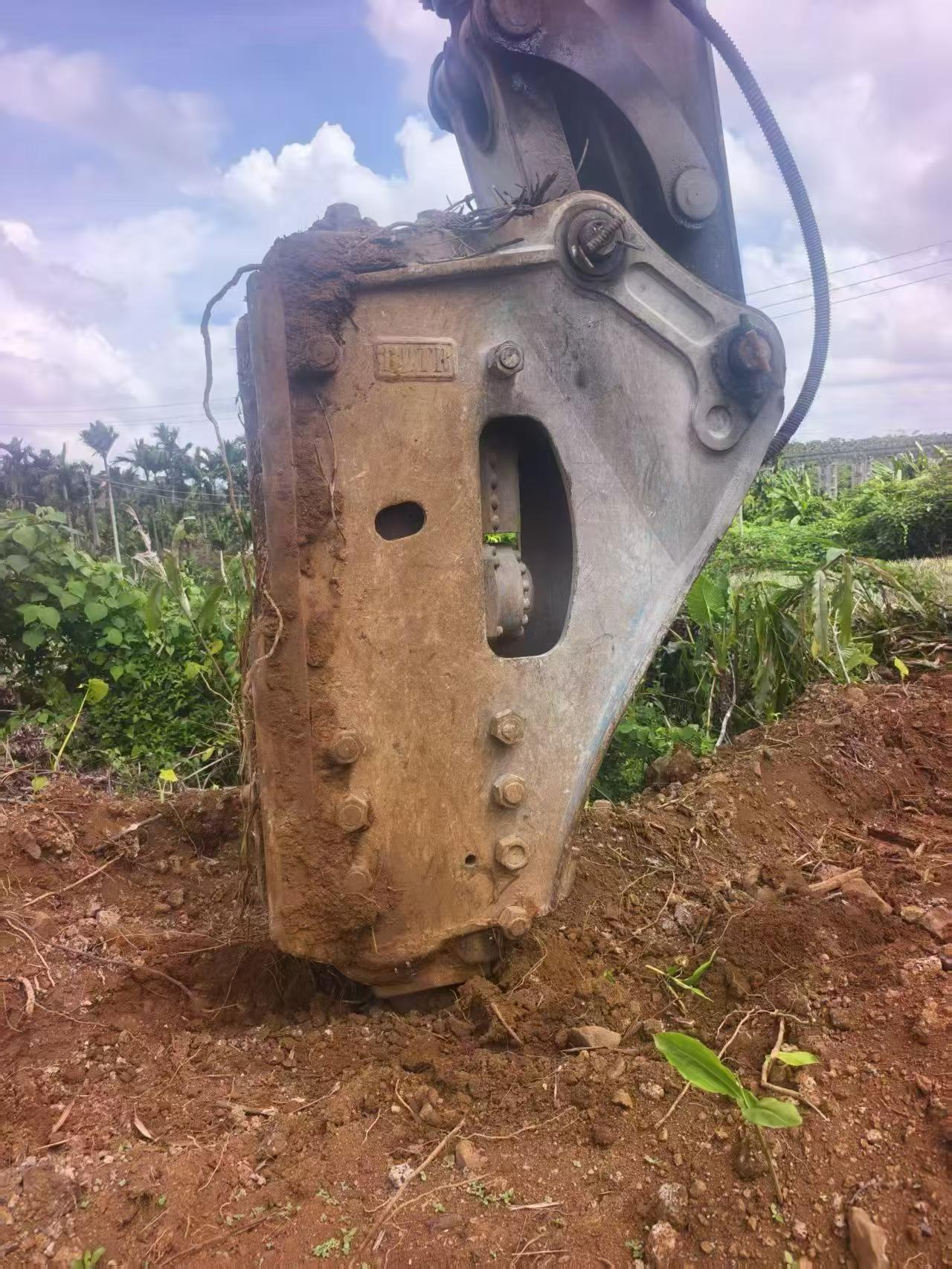

  • Included Attachment: Best 195 Hydraulic Breaker
  • Location: Guangdong Province, China
  • Condition: Used, operational

Ideal for contractors seeking a capable mid-size excavator with breaker capability. Contact us for detailed specifications, current condition assessment, and competitive export pricing.

SpecificationsValue
No.1157789
Tonnage (tons)48
Working weight (kg)49500
Bucket capacity (m³)2.2-3.1
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine type6WG1X
Rated power (kw/rpm)300/1800
Cooling modewater-cooling
Maximum torque (N.m)1950/1400
Number of cylinders (PCS)6
Displacement (L)15.681
Ground specific pressure (Kpa)87.1
Rotation speed (rpm)8
Climbing ability (%)70
Bucket digging force (kN)287
Rod digging force (kN)245
Travel speed (km/h)5.4/3.1
Fuel Tank (L)680
Hydraulic Tank (L)480
Engine Oil changes (L)50
Total transport length (mm)12095
Total transport width (mm)3360
Total transport height (mm)3790
Full cab height (mm)3470
Counterweight ground clearance (mm)1355
Minimum ground clearance (mm)560
Minimum turning radius of front working device (mm)5240
Back end turning radius (mm)3765
Onboard width (mm)3290
Total track length (mm)5440
Track gauge (mm)2740
Track plate width (mm)600
Track ground length (mm)4415
Maximum height at minimum turning radius (mm)9100
Number of sprockets (single side) (each)2
Number of wheels (single side) (each)9
Number of track plates (single side) (PCS)50
Maximum digging radius (mm)11860
Maximum digging depth (mm)7490
Maximum excavation height (mm)10950
Maximum unloading height (mm)7450
Maximum vertical digging depth (mm)5660
see more

Overview

No.1157789

Brand Name:

Sany

Model Number:

SY485H

Year:

2020

Location:

Guangdong China

Pub Date:
