2020 Sany SY55C-9

1/4
Buy Sany SY55C-9 Used Excavator / 1

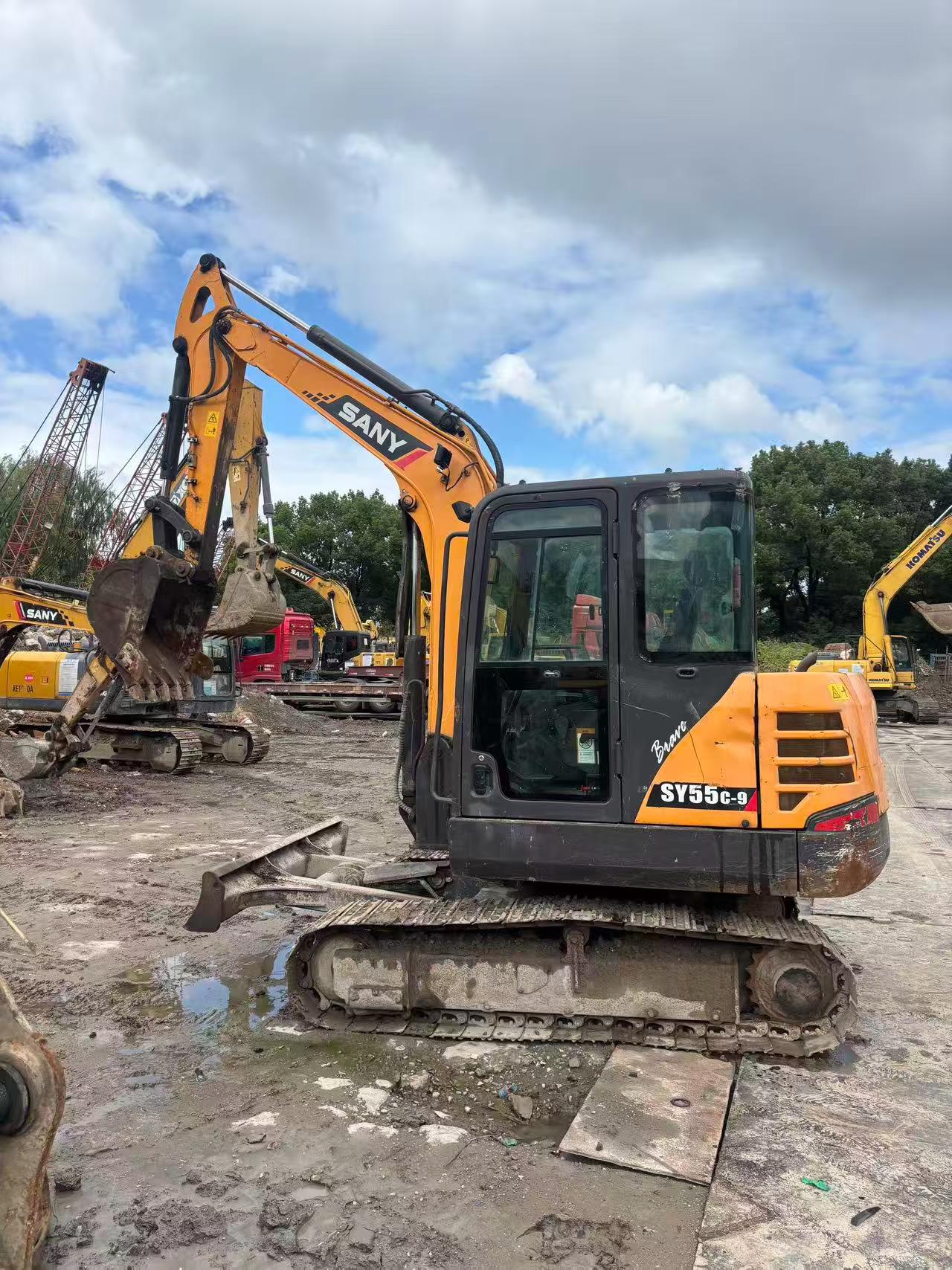

Buy Sany SY55C-9 Used Excavator / 2

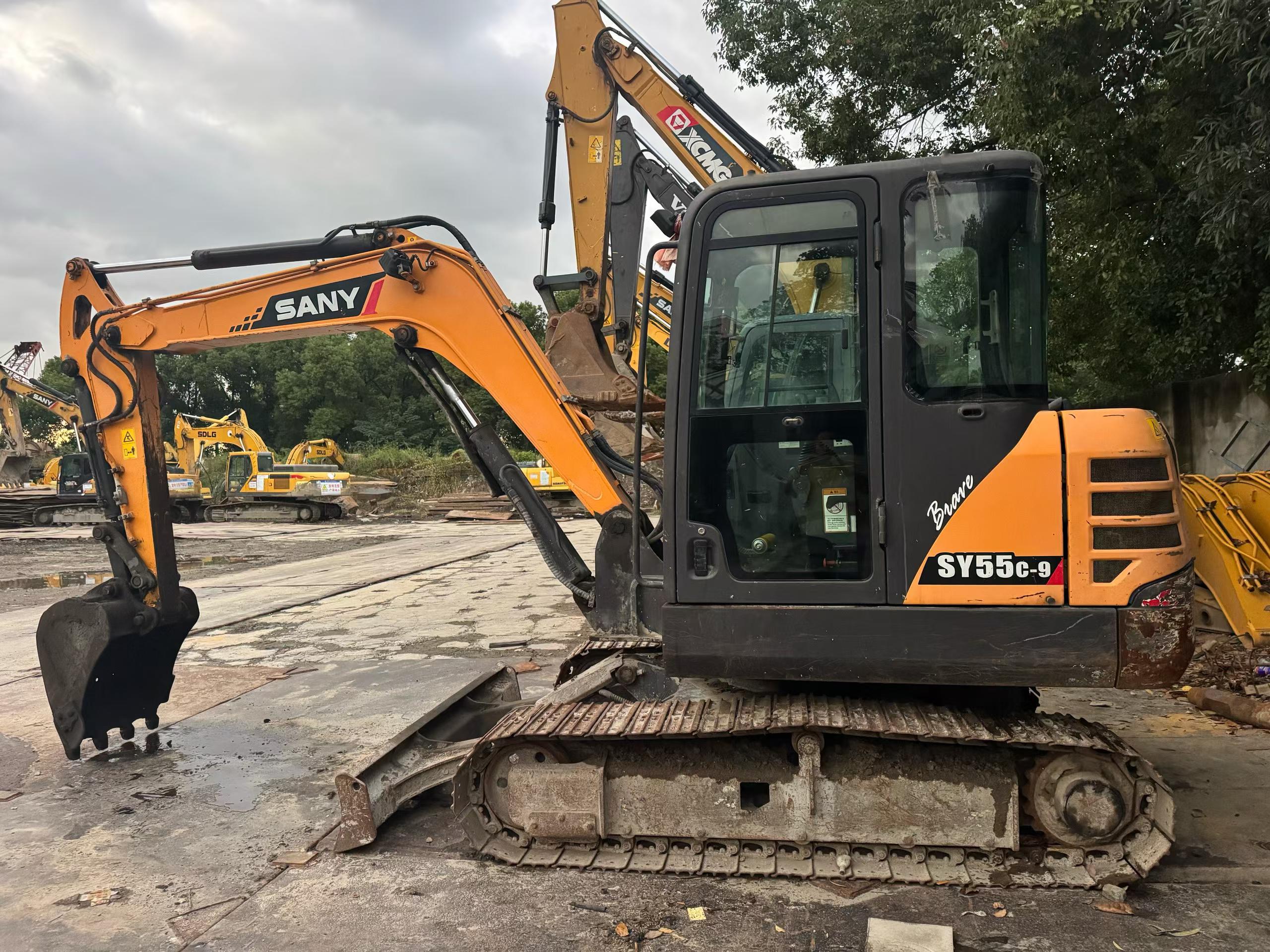

Buy Sany SY55C-9 Used Excavator / 3

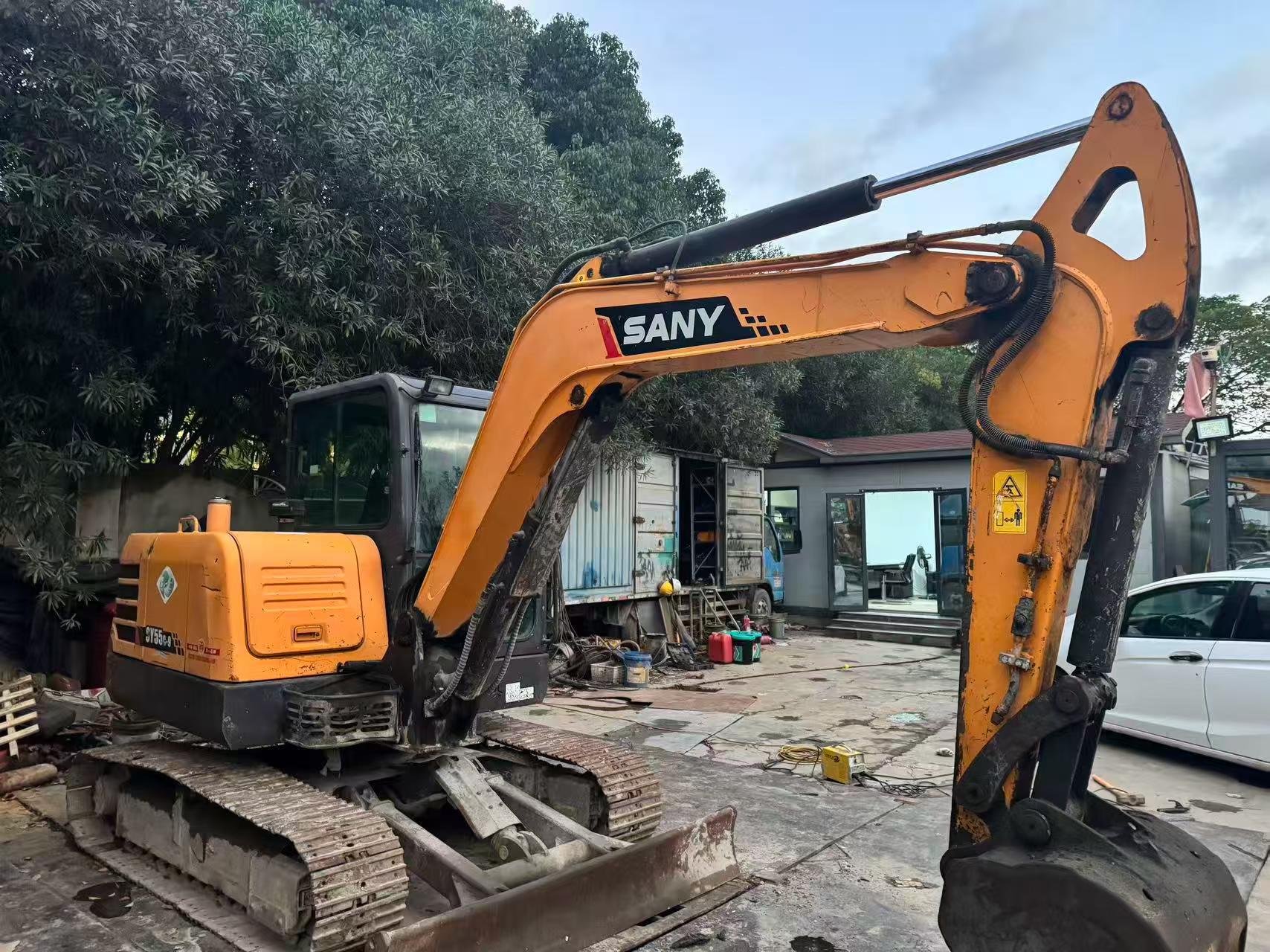

Buy Sany SY55C-9 Used Excavator / 4

Product Description

This 2020 Sany SY55C-9 mini excavator offers exceptional value for operations requiring reliable compact performance. With approximately 4,000 documented hours, this machine was previously operated by a municipal authority and has been professionally maintained in covered storage. The SY55C-9 combines Sany's proven hydraulic system with a compact footprint ideal for urban construction, utility installation, and landscaping projects.

  • Year: 2020
  • Operating Hours: ~4,000
  • Previous Use: Municipal operations
  • Storage: Indoor warehouse facility
  • Location: Shanghai, China
  • Condition: Well-maintained, proven operational history

Currently located in Shanghai, this unit represents an opportunity to acquire a low-hour mini excavator from a reputable manufacturer. The machine's service history with municipal use indicates consistent operation and proper maintenance protocols. Suitable for contractors seeking dependable equipment for tight-access projects and urban development work.

SpecificationsValue
No.1170911
Tonnage (tons)5
Working weight (kg)5780
Bucket capacity (m³)0.21 (optional 0.23)
Country of originChina
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeIsuzu 4JG1-NABGB-04-C2
Rated power (kw/rpm)40.9/2100
Cooling modewater-cooling
Maximum torque (N.m)191/1800
Number of cylinders (PCS)4-cylinder
Displacement (L)3.059
Working form4 cylinder, 4 stroke, water cooled, direct injection
Ground specific pressure (Kpa)32.75
Rotation speed (rpm)9.6
Climbing ability (%)70% / 35 °
Bucket digging force (kN)45
Rod digging force (kN)33
Travel speed (km/h)3.73/2.40
Fuel Tank (L)130
Hydraulic Tank (L)85
Engine Oil changes (L)9.63
Total transport length (mm)5925
Total transport width (mm)2005
Total transport height (mm)2595
Minimum ground clearance (mm)330
Minimum turning radius of front working device (mm)2555
Back end turning radius (mm)1640
Onboard width (mm)1860
Total track length (mm)2545
Track gauge (mm)1600
Track plate width (mm)400
Total track width (mm)2000
Maximum digging radius (mm)6090
Maximum digging depth (mm)3815
Maximum excavation height (mm)5690
Maximum unloading height (mm)3930
Maximum vertical digging depth (mm)3070
Bulldozer lift or depth (mm)Lift 435 and push 420
Dodging plate width × height (mm)Height 340
see more

Overview

No.1170911

Brand Name:

Sany

Model Number:

SY55C-9

Year:

2020

Location:

Shanghai China
