2022 Sany SY55C-9

1/7

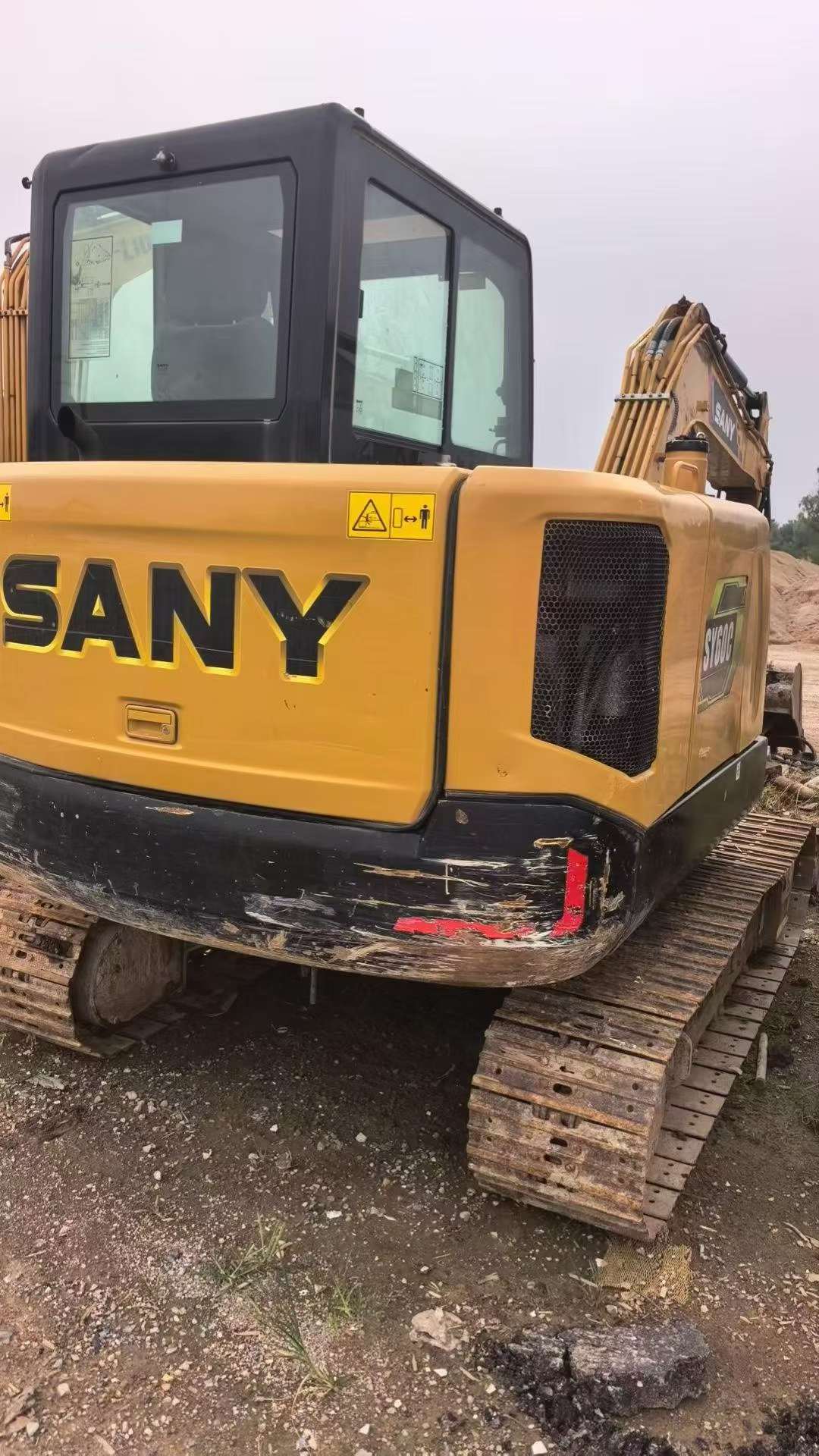

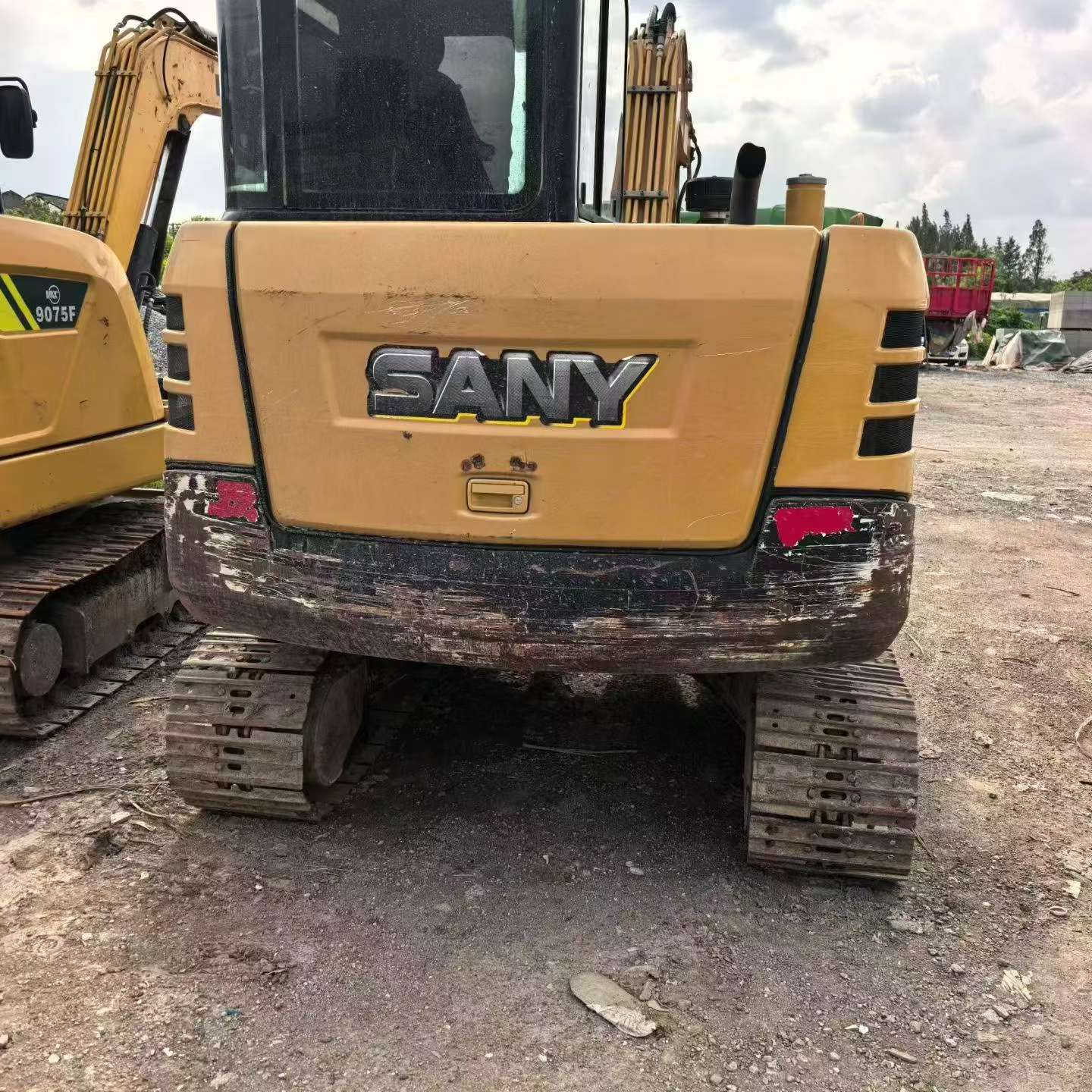

Buy Sany SY55C-9 Used Excavator / 1
Buy Sany SY55C-9 Used Excavator / 2
Buy Sany SY55C-9 Used Excavator / 3
Buy Sany SY55C-9 Used Excavator / 4
Buy Sany SY55C-9 Used Excavator / 5
Buy Sany SY55C-9 Used Excavator / 6
Buy Sany SY55C-9 Used Excavator / 7

Product Description

This 2022 Sany SY55C-9 mini excavator offers reliable performance for construction and earthmoving applications. With 2,900 operating hours, this machine demonstrates moderate use while maintaining operational readiness. Currently located in Zhejiang, China, it represents a cost-effective solution for contractors seeking proven equipment.

Key features include:

  • Compact 5.5-ton class design for versatility
  • Hydraulic breaker attachment included
  • Secondary bucket provided
  • Verified hour meter reading
  • Suitable for urban construction, landscaping, and utility work

The SY55C-9 combines maneuverability with adequate digging depth and reach for small to medium-scale projects. This unit is available for immediate inspection and purchase. All operational systems have been verified. Contact us for detailed specifications, current condition assessment, and export documentation assistance.

SpecificationsValue
No.1157557
Tonnage (tons)5
Working weight (kg)5780
Bucket capacity (m³)0.21 (optional 0.23)
Country of originChina
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeIsuzu 4JG1-NABGB-04-C2
Rated power (kw/rpm)40.9/2100
Cooling modewater-cooling
Maximum torque (N.m)191/1800
Number of cylinders (PCS)4-cylinder
Displacement (L)3.059
Working form4 cylinder, 4 stroke, water cooled, direct injection
Ground specific pressure (Kpa)32.75
Rotation speed (rpm)9.6
Climbing ability (%)70% / 35 °
Bucket digging force (kN)45
Rod digging force (kN)33
Travel speed (km/h)3.73/2.40
Fuel Tank (L)130
Hydraulic Tank (L)85
Engine Oil changes (L)9.63
Total transport length (mm)5925
Total transport width (mm)2005
Total transport height (mm)2595
Minimum ground clearance (mm)330
Minimum turning radius of front working device (mm)2555
Back end turning radius (mm)1640
Onboard width (mm)1860
Total track length (mm)2545
Track gauge (mm)1600
Track plate width (mm)400
Total track width (mm)2000
Maximum digging radius (mm)6090
Maximum digging depth (mm)3815
Maximum excavation height (mm)5690
Maximum unloading height (mm)3930
Maximum vertical digging depth (mm)3070
Bulldozer lift or depth (mm)Lift 435 and push 420
Dodging plate width × height (mm)Height 340
see more

Overview

No.1157557

Brand Name:

Sany

Model Number:

SY55C-9

Year:

2022

Location:

Zhejiang China

Pub Date:

Are you interested in this machine?

Please contact us
