2020 Sany SY65C

1/7
Buy Sany SY65C Used Excavator / 1
Buy Sany SY65C Used Excavator / 2
Buy Sany SY65C Used Excavator / 3
Buy Sany SY65C Used Excavator / 4
Buy Sany SY65C Used Excavator / 5
Buy Sany SY65C Used Excavator / 6
Buy Sany SY65C Used Excavator / 7

Product Description

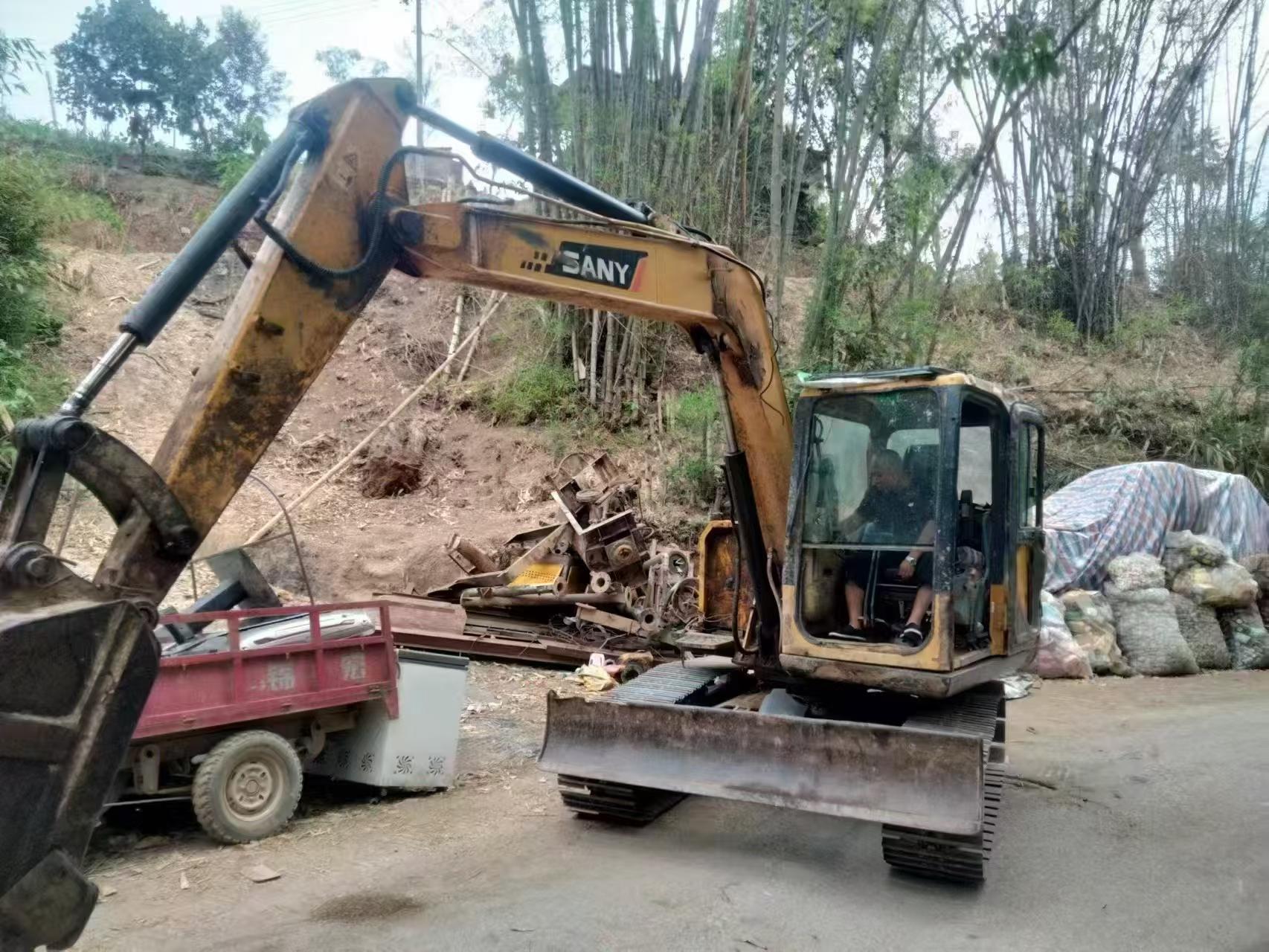

This used 2020 Sany SY65C hydraulic excavator is offered from stock in Yunnan, China. A 6.5-tonne class machine, it has been kept in active service and is presented as a running "working" unit rather than a restoration project — suitable for trenching, utility installation, rural roadworks, landscaping and general site duties.

  • Make and model: Sany SY65C
  • Year of manufacture: 2020
  • Operating class: approximately 6.5 t
  • Machine type: compact crawler excavator
  • Location: Yunnan, China
  • Condition: used, in working order
  • Hour meter: to be verified at inspection
  • Stated asking price: RMB 29,000

Buyers are welcome to arrange inspection or a third-party survey on site. Loading assistance can be discussed, and export documentation is handled by the seller where required. Hours, undercarriage condition and hydraulic performance should be confirmed directly before purchase or deposit. Contact us for current photographs, a walkaround video or freight quotations to your port.

SpecificationsValue
No.1156530
Tonnage (tons)6
Working weight (kg)6700
Bucket capacity (m³)0.12-0.32
Country of originKunshan in Jiangsu Province
powerTraditional power
manufacturerMade in China
bucketbackhoe

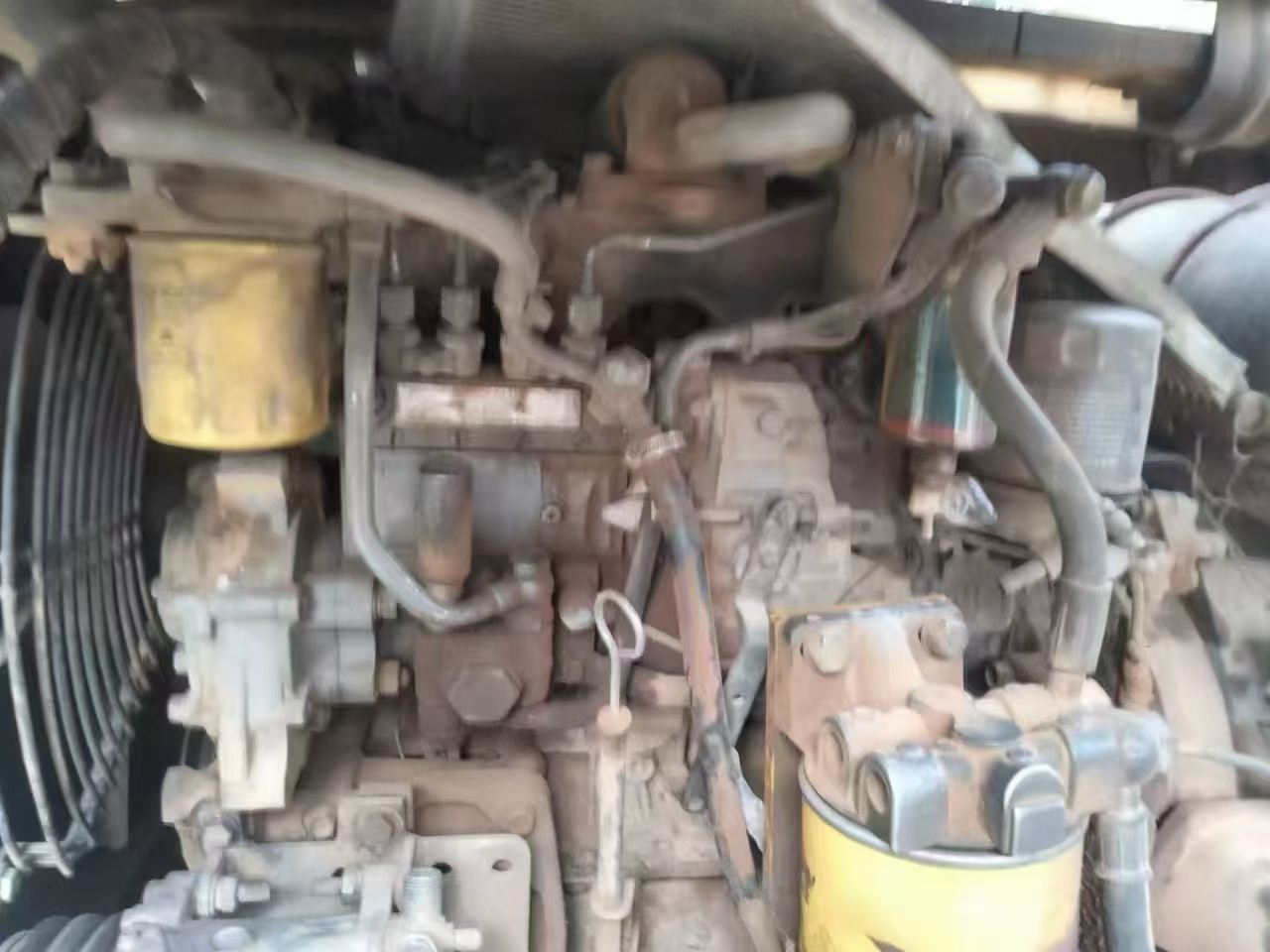

Engine typeSANY D03S3
Rated power (kw/rpm)42/2100
Cooling modewater-cooling
Maximum torque (N.m)1900/1600~2000
Number of cylinders (PCS)4
Displacement (L)2.77
Ground specific pressure (Kpa)33
Rotation speed (rpm)11.5
Climbing ability (%)70/35 °
Bucket digging force (kN)56
Rod digging force (kN)35.6
Travel speed (km/h)2.4/4.8
Main overflow set pressure (Mpa)26
Maximum flow of main pump (l/min)149
Traveling Hydraulic Circuit (Mpa)26
Rotary Hydraulic Circuit (Mpa)21.6
Control Hydraulic Circuit (Mpa)3.6
Hydraulic crushing pipeline is standardno
Main pump typeVariable swashplate plunger pump
Bucket cylinders - Number × diameter × stroke (mm)80 x 730
Bucket rod cylinders - Number × diameter × stroke (mm)90 x 900
Boom cylinders - Number × diameter × stroke (mm)110 x 885
Fuel Tank (L)145
Hydraulic Tank (L)120
Engine Oil changes (L)9
Coolant (L)12
Total transport length (mm)6000
Total transport width (mm)2160
Total transport height (mm)2560
Full cab height (mm)2560
Minimum ground clearance (mm)375
Back end turning radius (mm)1720
Total track length (mm)2710
Track gauge (mm)1680
Track plate width (mm)400
Total track width (mm)2160
Track ground length (mm)2180
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)42
Maximum digging radius (mm)6160
Maximum digging depth (mm)3985
Maximum excavation height (mm)6930
Maximum unloading height (mm)5145
Maximum vertical digging depth (mm)3470
Bulldozer lift or depth (mm)200/480
Dodging plate width × height (mm)460(dodging plate height)
see more

Overview

No.1156530

Brand Name:

Sany

Model Number:

SY65C

Year:

2020

Location:

Yunnan China

Pub Date:
