2020 Sany SY65C-9

1/5
Buy Sany SY65C-9 Used Excavator / 1

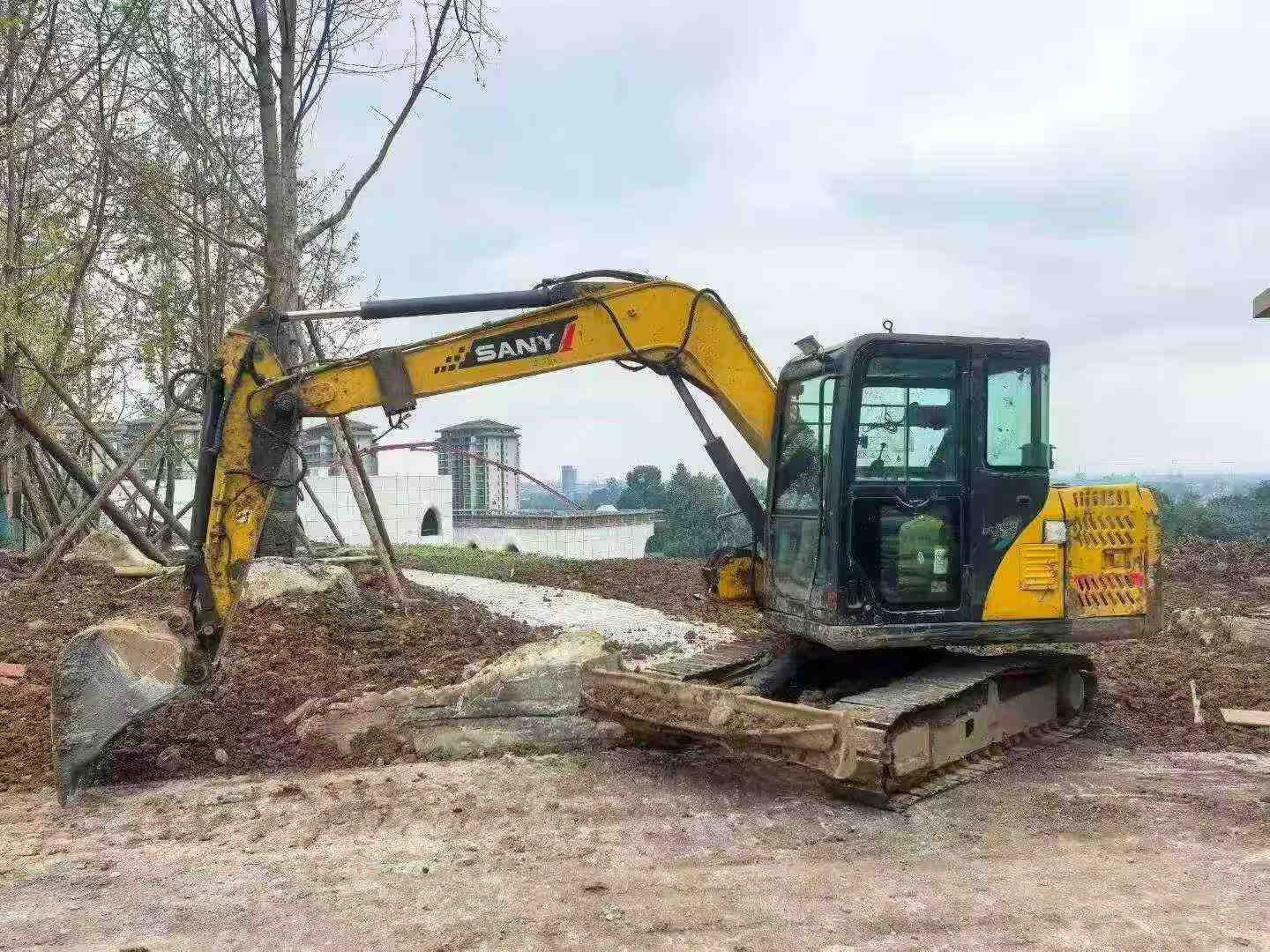

Buy Sany SY65C-9 Used Excavator / 2

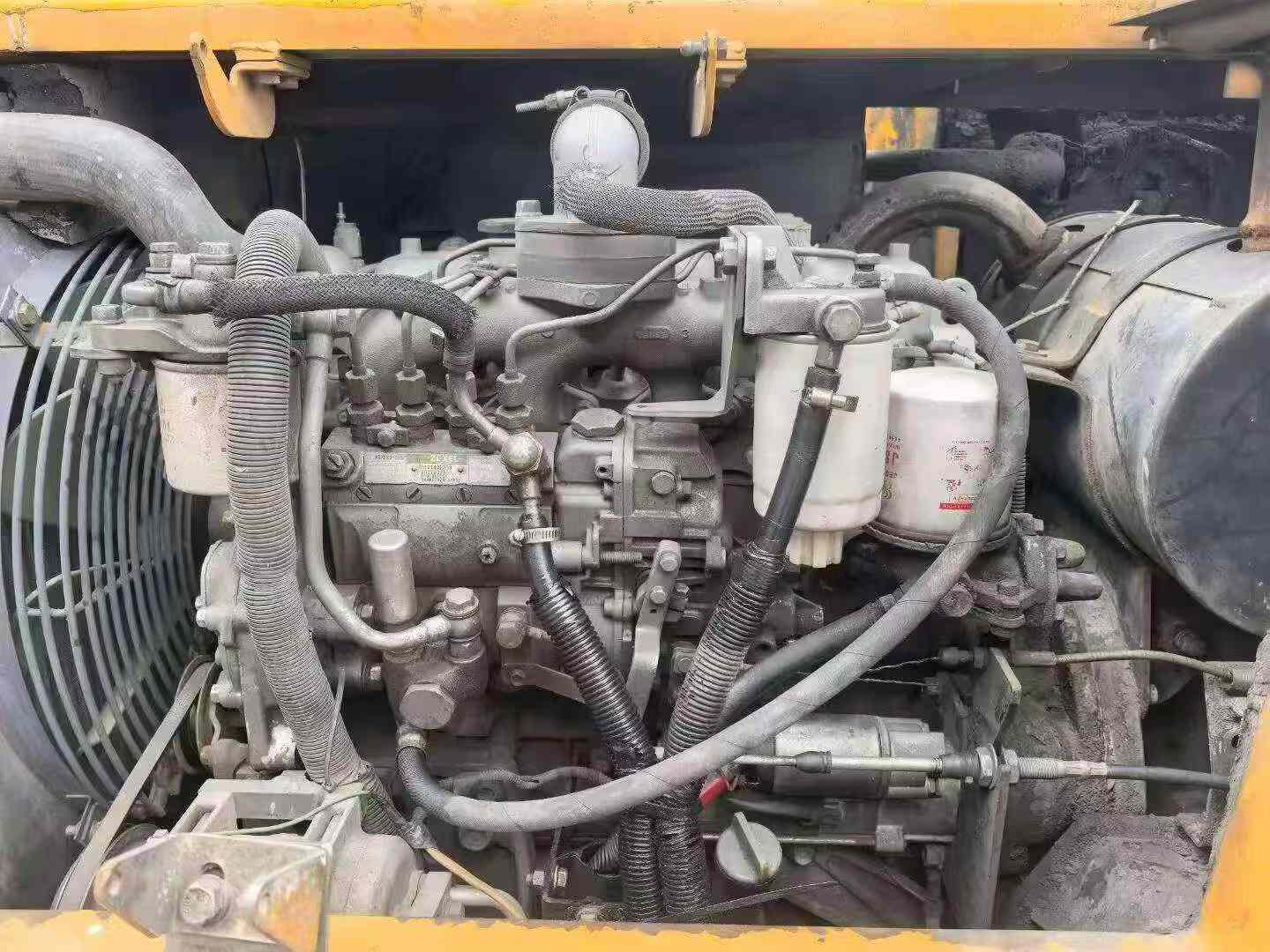

Buy Sany SY65C-9 Used Excavator / 3

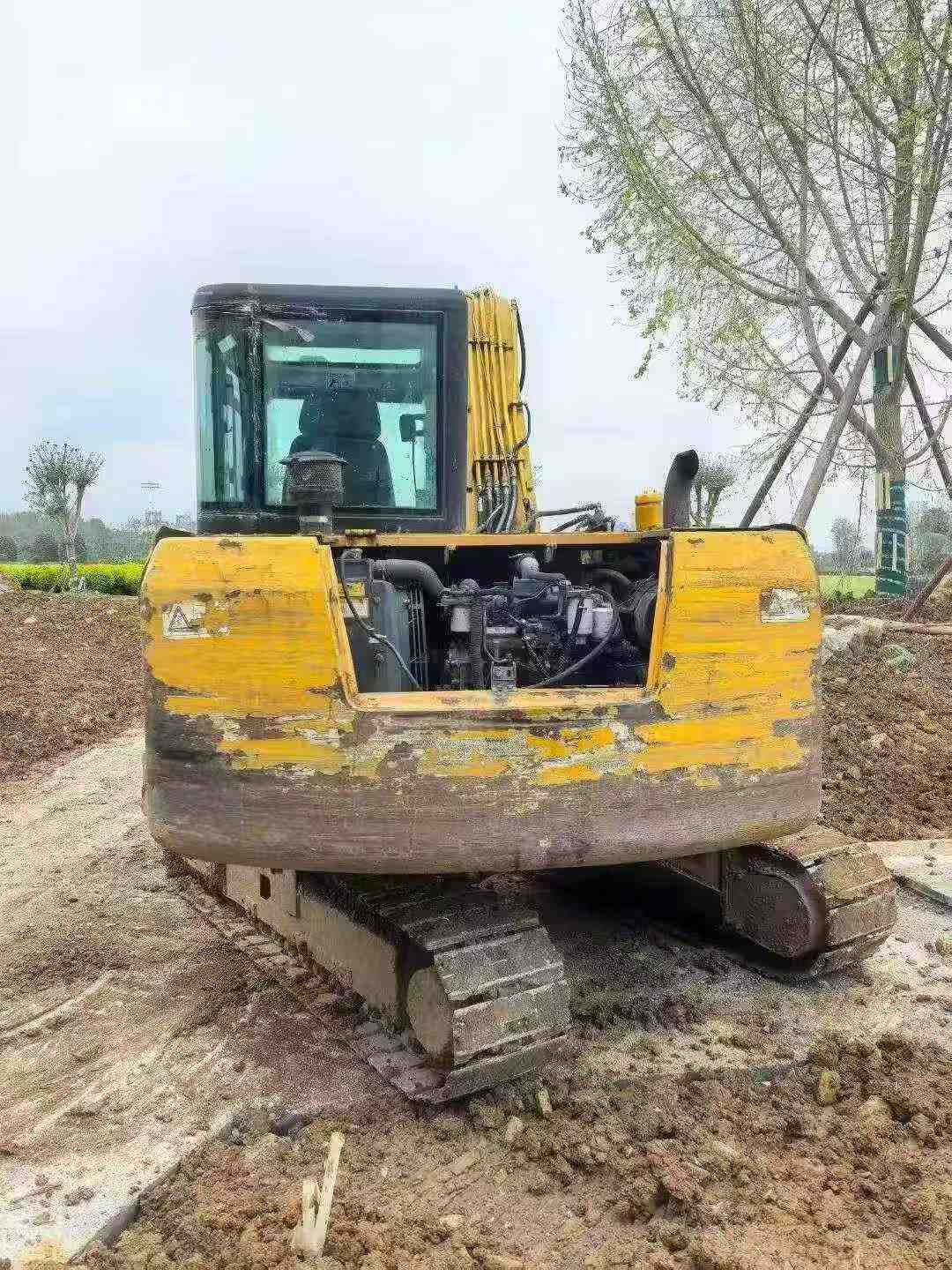

Buy Sany SY65C-9 Used Excavator / 4

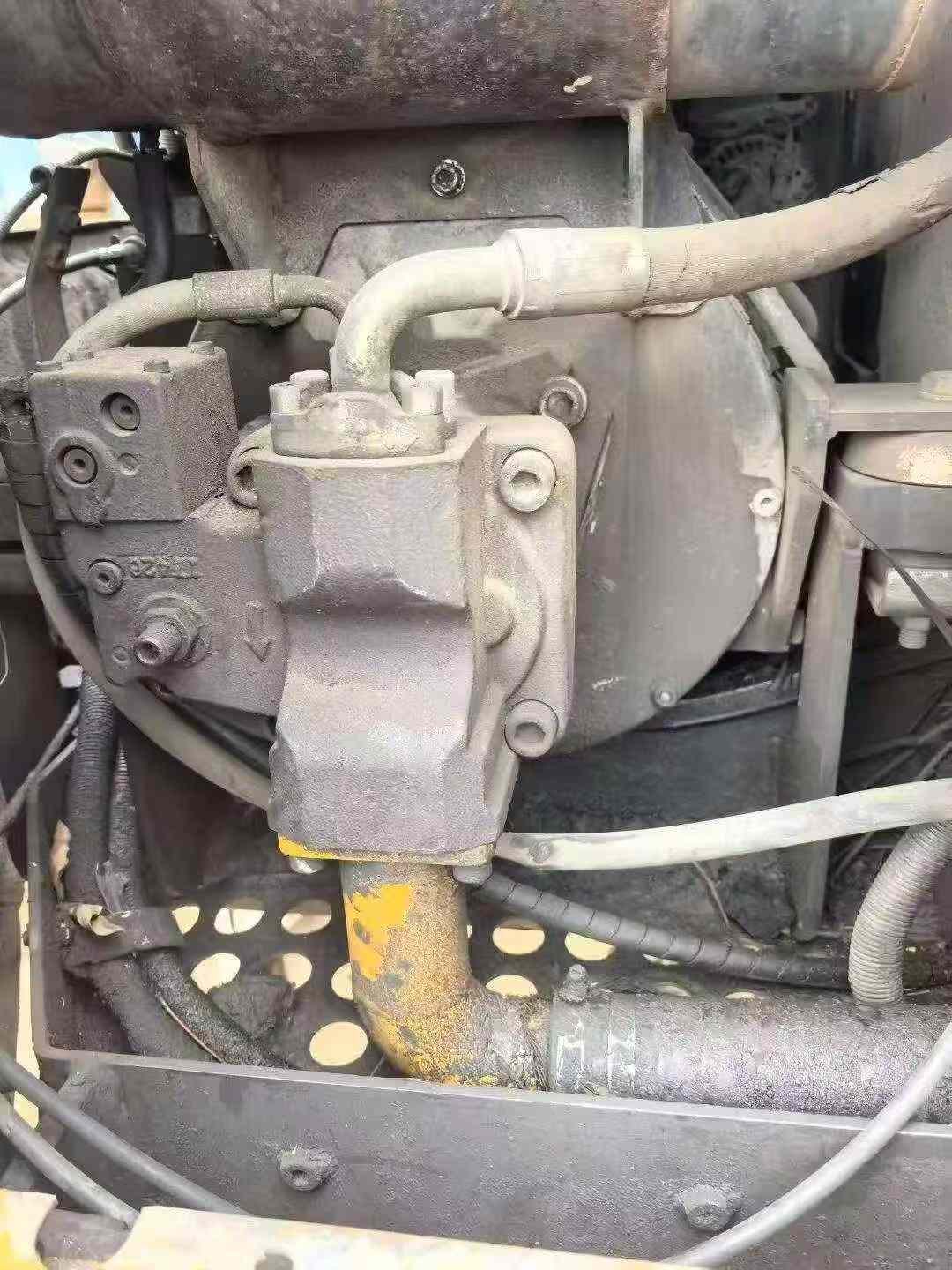

Buy Sany SY65C-9 Used Excavator / 5

Product Description

This 2020 Sany SY65C-9 mini excavator is currently available in Sichuan, China at a competitive price point. The SY65C-9 represents Sany's commitment to compact excavation equipment designed for urban construction, landscaping, and light demolition applications. With its 6-ton operating class, this machine offers a practical balance of maneuverability and digging capability for confined work sites.

Key features of the Sany SY65C-9 include:

  • Compact footprint suitable for tight job sites and urban environments
  • Reliable hydraulic system for efficient operation
  • Operator cabin designed for visibility and comfort
  • Low hour usage typical of 2020 model year equipment
  • Established Sany build quality and parts availability

This used excavator is ready for immediate deployment in excavation, trenching, and material handling operations. Available for inspection in Sichuan Province.

SpecificationsValue
No.1168261
Tonnage (tons)6
Working weight (kg)6700
Bucket capacity (m³)0.25 (optional 0.16 ~ 0.32)
Country of originShanghai
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeIsuzu AJ-4JG1
Rated power (kw/rpm)40.9/2100
Cooling modewater-cooling
Number of cylinders (PCS)4
Displacement (L)3.059
Ground specific pressure (Kpa)33
Rotation speed (rpm)11.5
Climbing ability (%)70/35 °
Bucket digging force (kN)51
Rod digging force (kN)35.6
Travel speed (km/h)4.2/2.4
Main overflow set pressure (Mpa)26
Maximum flow of main pump (l/min)149
Traveling Hydraulic Circuit (Mpa)26
Rotary Hydraulic Circuit (Mpa)21.6
Control Hydraulic Circuit (Mpa)3.6
Hydraulic crushing pipeline is standardno
Main pump typeVariable swashplate plunger pump
Bucket cylinders - Number × diameter × stroke (mm)80 x 730
Bucket rod cylinders - Number × diameter × stroke (mm)90 x 900
Boom cylinders - Number × diameter × stroke (mm)110 x 885
Fuel Tank (L)130
Hydraulic Tank (L)100
Engine Oil changes (L)10
Coolant (L)12
Total transport length (mm)6120
Total transport width (mm)2140
Total transport height (mm)2645
Minimum ground clearance (mm)370
Back end turning radius (mm)1800
Onboard width (mm)2040
Total track length (mm)2700
Track gauge (mm)1600
Track plate width (mm)400
Total track width (mm)2160
Track ground length (mm)2180
Maximum digging radius (mm)6235
Maximum digging depth (mm)4065
Maximum excavation height (mm)7010
Maximum unloading height (mm)5110
Maximum vertical digging depth (mm)3335
Bulldozer lift or depth (mm)Lift 300/ push 405
Dodging plate width × height (mm)Altitude 405
