Product Description

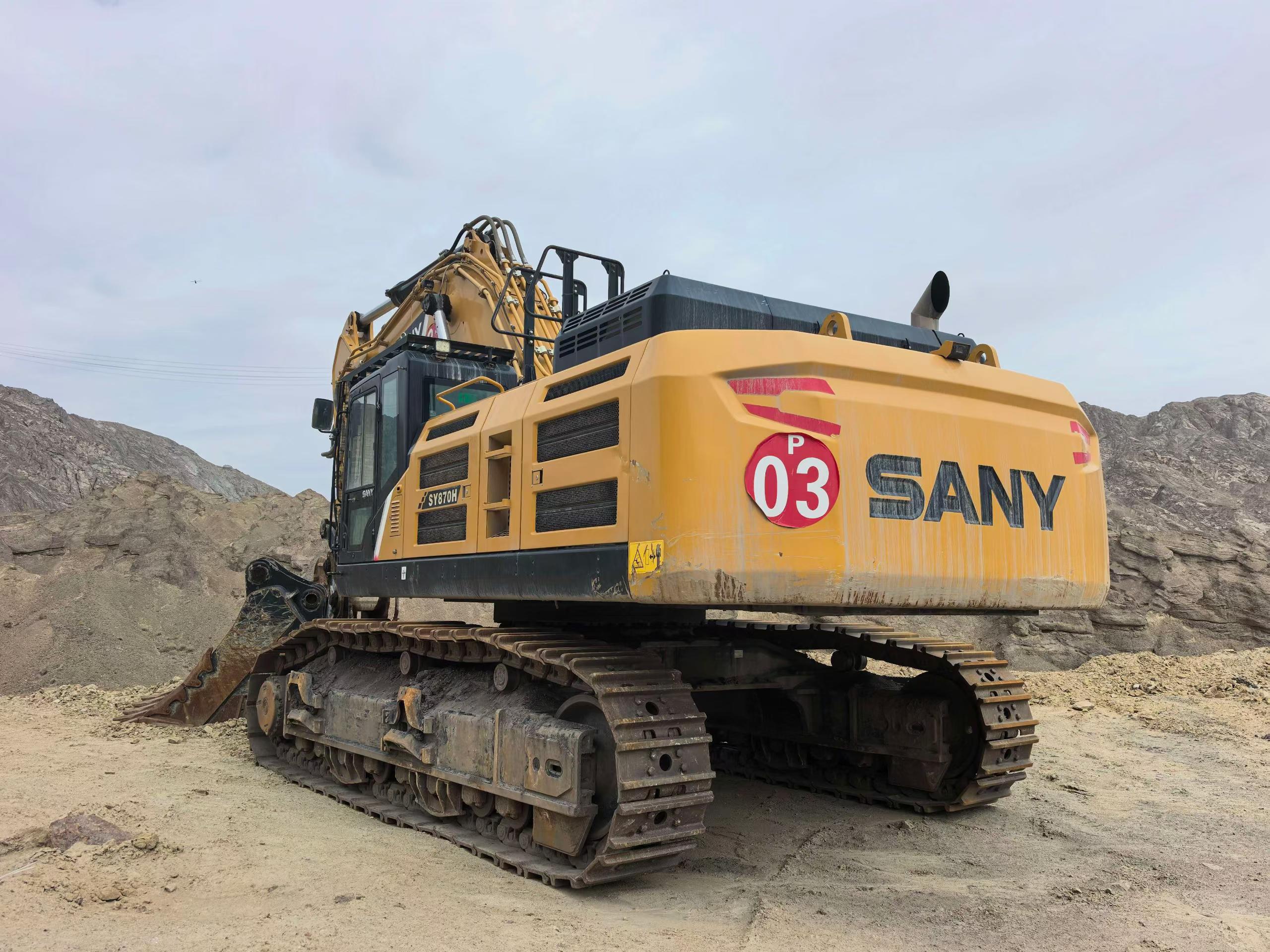

Discover the robust 2019 Sany SY750H, a powerful excavator designed for heavy-duty applications. Located in Shandong, China, this machine has accumulated over 2,000 operational hours, showcasing its durability and reliability in demanding environments. The SY750H is known for its exceptional performance, efficient fuel consumption, and advanced technology, making it a preferred choice for large-scale construction and mining projects. Built to last, this excavator ensures high productivity and low maintenance, offering a cost-effective solution for your industrial needs.
- Year: 2019
- Brand: Sany
- Model: SY750H
- Location: Shandong, China
- Operational Hours: Over 2,000
| Specifications | Value |
|---|---|
| No. | 1129512 |
| Tonnage (tons) | 75 |
| Working weight (kg) | 76200 |
| Bucket capacity (m³) | 4.6-5.6 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 377/1800 |
| Ground specific pressure (Kpa) | 110 |
| Rotation speed (rpm) | 7.3 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 402 |
| Rod digging force (kN) | 345 |
| Travel speed (km/h) | 4.5/2.9 |
| Total transport length (mm) | 12865 |
| Total transport width (mm) | 4320 |
| Total transport height (mm) | 4855 |
| Full cab height (mm) | 3800 |
| Minimum ground clearance (mm) | 880 |
| Minimum turning radius of front working device (mm) | 5520 |
| Back end turning radius (mm) | 4220 |
| Onboard width (mm) | 3460 |
| Total track length (mm) | 5865 |
| Track gauge (mm) | 3380/2780 |
| Track plate width (mm) | 650 |
| Track ground length (mm) | 4650 |
| Maximum height at minimum turning radius (mm) | 9780 |
| Maximum digging radius (mm) | 12050 |
| Maximum digging depth (mm) | 7620 |
| Maximum excavation height (mm) | 11200 |
| Maximum unloading height (mm) | 7250 |
| Maximum vertical digging depth (mm) | 4320 |
