2020 Sany SY750H

1/3
Buy Sany SY750H Used Excavator / 1

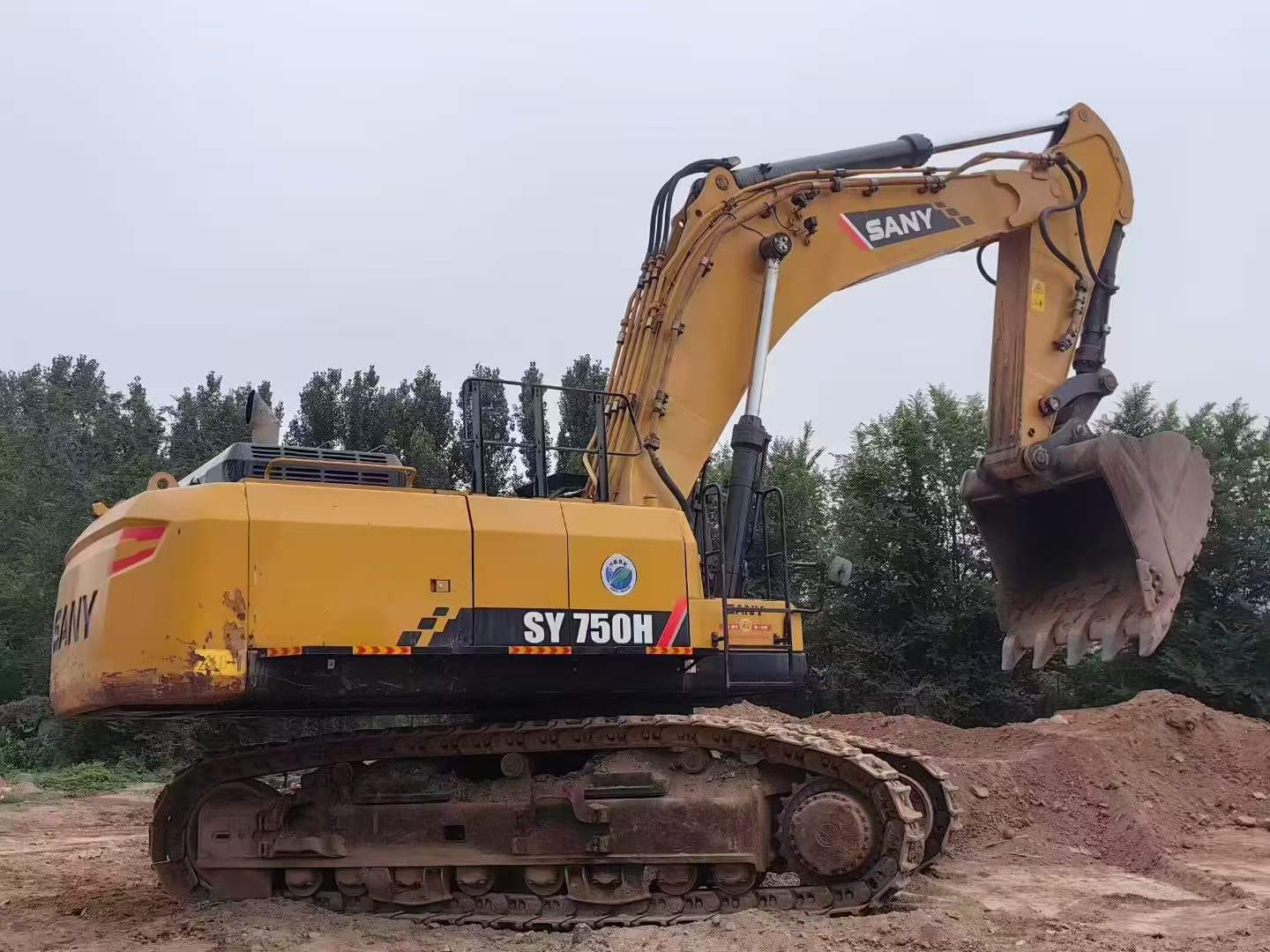

Buy Sany SY750H Used Excavator / 2

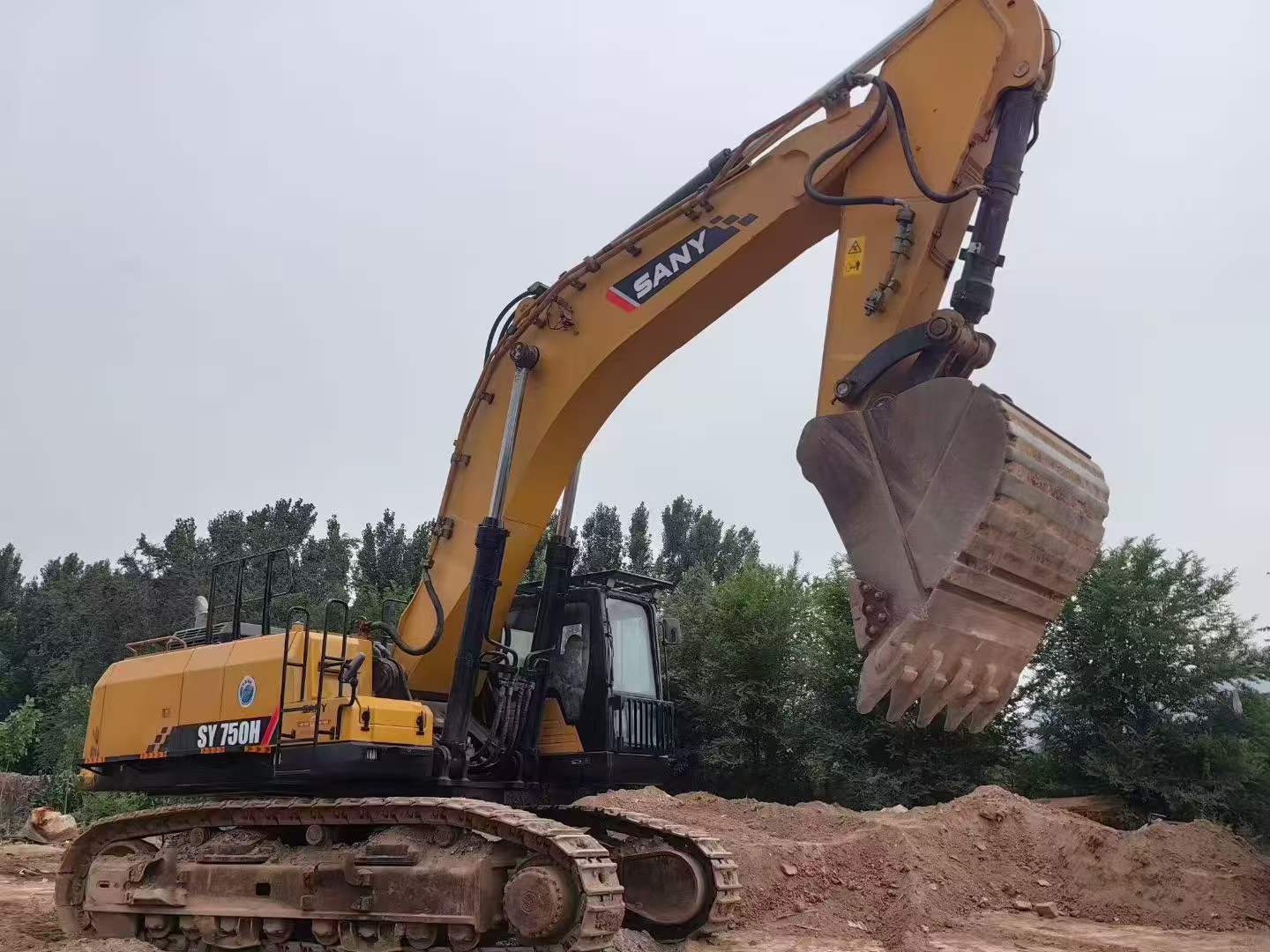

Buy Sany SY750H Used Excavator / 3

Product Description

This 2020 Sany SY750H excavator is available from our Peking, China location. The machine has been parked due to project completion and is offered at a competitive price point. The SY750H represents Sany's heavy-duty excavator class, designed for demanding earthmoving and mining applications.

Key features include:

  • Year of manufacture: 2020
  • Heavy-duty hydraulic system for high-volume material handling
  • Robust undercarriage designed for extended operational life
  • Spacious operator cabin with improved visibility
  • Suitable for mining, quarrying, and large-scale construction projects

This unit has been stored during project downtime. Inspection is recommended prior to purchase. Contact our team for detailed specifications, current condition assessment, and export documentation assistance.

SpecificationsValue
No.1174173
Tonnage (tons)75
Working weight (kg)76200
Bucket capacity (m³)4.6-5.6
powerTraditional power
manufacturerMade in China
bucketbackhoe
Rated power (kw/rpm)377/1800
Ground specific pressure (Kpa)110
Rotation speed (rpm)7.3
Climbing ability (%)70
Bucket digging force (kN)402
Rod digging force (kN)345
Travel speed (km/h)4.5/2.9
Total transport length (mm)12865
Total transport width (mm)4320
Total transport height (mm)4855
Full cab height (mm)3800
Minimum ground clearance (mm)880
Minimum turning radius of front working device (mm)5520
Back end turning radius (mm)4220
Onboard width (mm)3460
Total track length (mm)5865
Track gauge (mm)3380/2780
Track plate width (mm)650
Track ground length (mm)4650
Maximum height at minimum turning radius (mm)9780
Maximum digging radius (mm)12050
Maximum digging depth (mm)7620
Maximum excavation height (mm)11200
Maximum unloading height (mm)7250
Maximum vertical digging depth (mm)4320
see more

Overview

No.1174173

Brand Name:

Sany

Model Number:

SY750H

Year:

2020

Location:

Peking China

Pub Date:
