Product Description

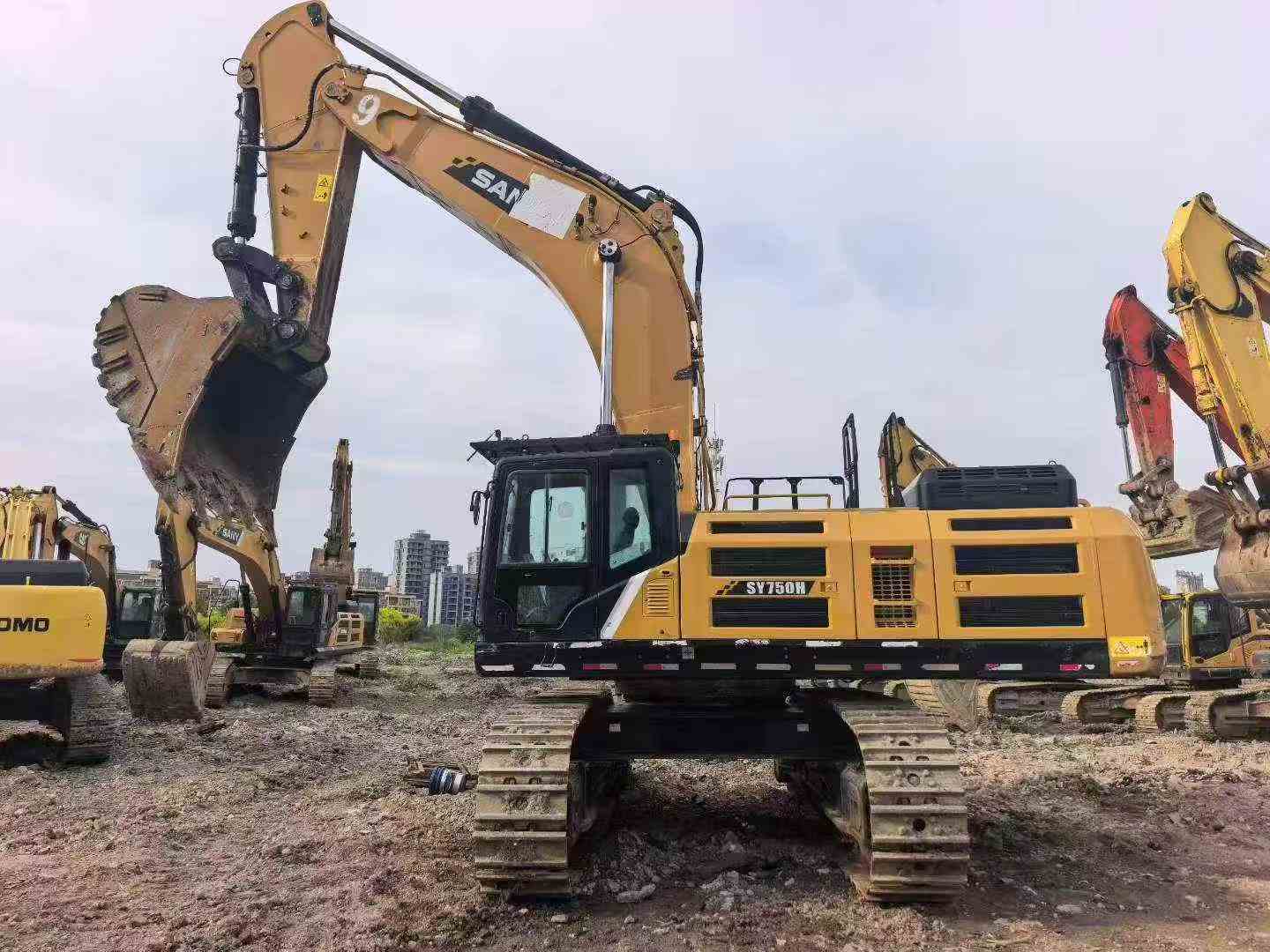

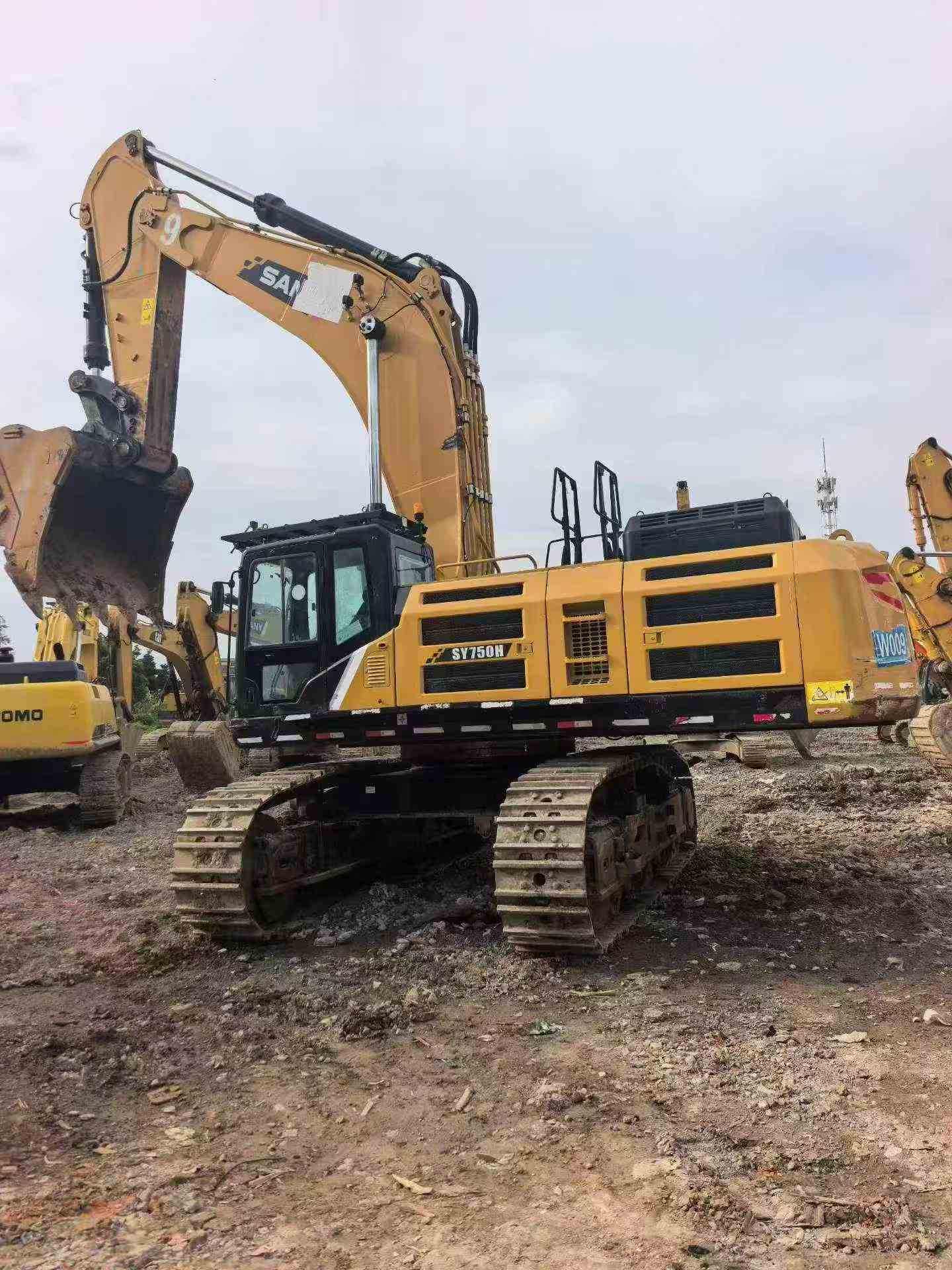

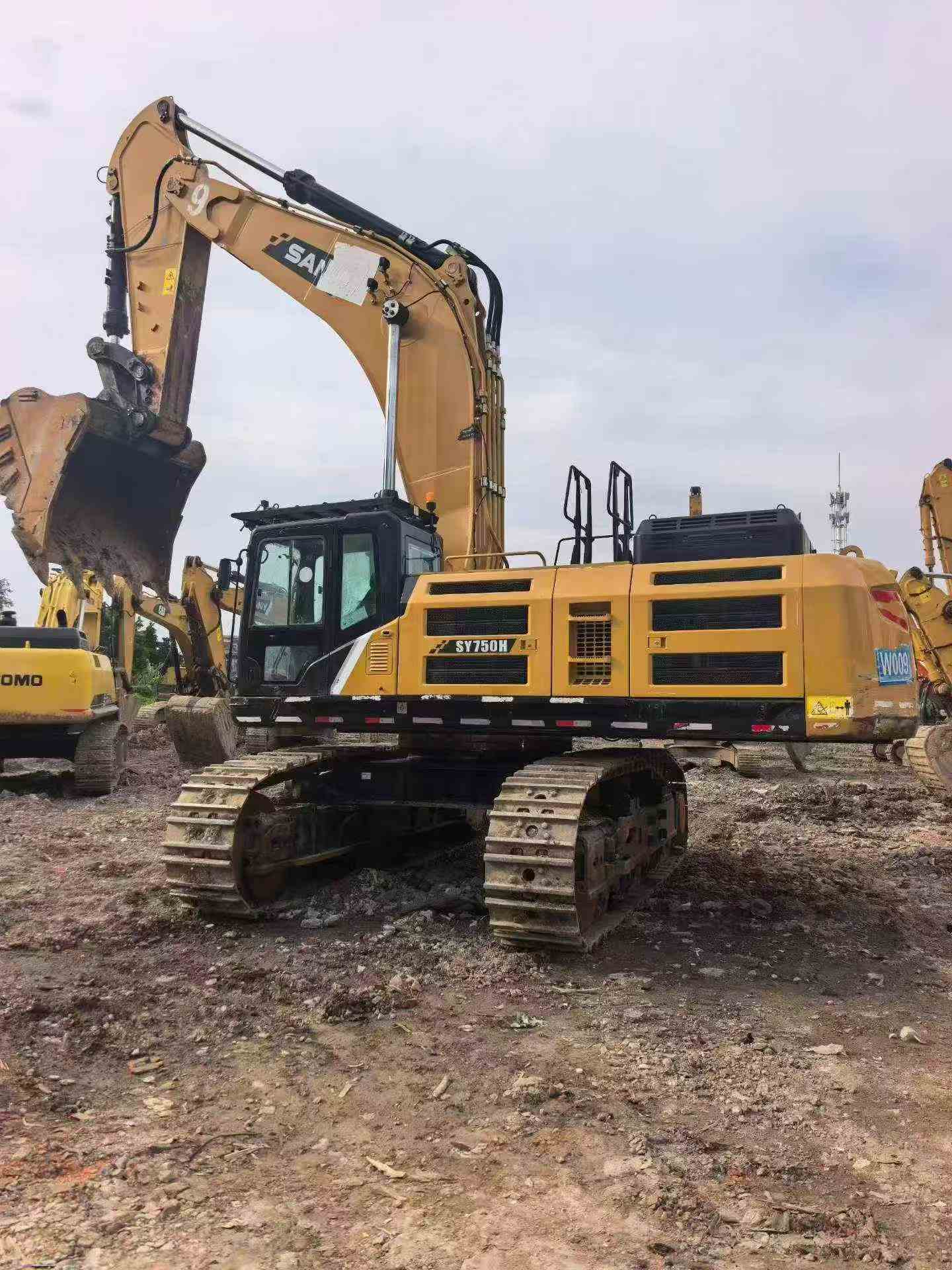

Discover the power and reliability of the 2021 Sany SY750H, a premium heavy machine currently available in Zhejiang, China. This excavator is designed for demanding industrial applications, offering robust performance and efficiency. Built with the high standards that Sany is known for, this model is ideal for large-scale construction, mining, and infrastructure projects. Its exceptional build quality and durability make it a standout choice for businesses looking to enhance their operational capabilities.
- Year: 2021
- Brand: Sany
- Model: SY750H
- Location: Zhejiang, China
| Specifications | Value |
|---|---|
| No. | 1056889 |
| Tonnage (tons) | 75 |
| Working weight (kg) | 76200 |
| Bucket capacity (m³) | 4.6-5.6 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 377/1800 |
| Ground specific pressure (Kpa) | 110 |
| Rotation speed (rpm) | 7.3 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 402 |
| Rod digging force (kN) | 345 |
| Travel speed (km/h) | 4.5/2.9 |
| Total transport length (mm) | 12865 |
| Total transport width (mm) | 4320 |
| Total transport height (mm) | 4855 |
| Full cab height (mm) | 3800 |
| Minimum ground clearance (mm) | 880 |
| Minimum turning radius of front working device (mm) | 5520 |
| Back end turning radius (mm) | 4220 |
| Onboard width (mm) | 3460 |
| Total track length (mm) | 5865 |
| Track gauge (mm) | 3380/2780 |
| Track plate width (mm) | 650 |
| Track ground length (mm) | 4650 |
| Maximum height at minimum turning radius (mm) | 9780 |
| Maximum digging radius (mm) | 12050 |
| Maximum digging depth (mm) | 7620 |
| Maximum excavation height (mm) | 11200 |
| Maximum unloading height (mm) | 7250 |
| Maximum vertical digging depth (mm) | 4320 |
