2021 Sany SY750H

1/9
Buy Sany SY750H Used Excavator / 1

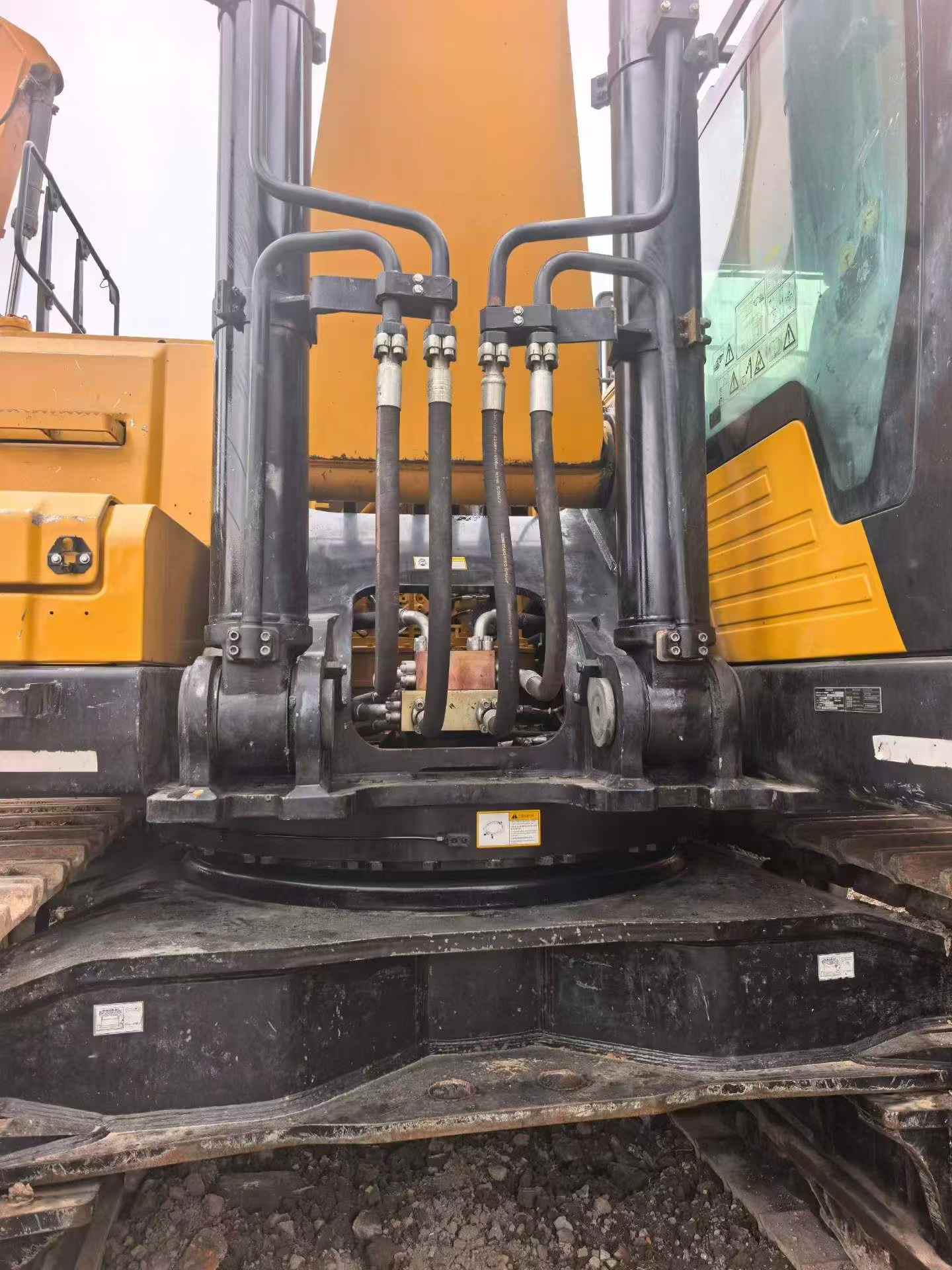

Buy Sany SY750H Used Excavator / 2

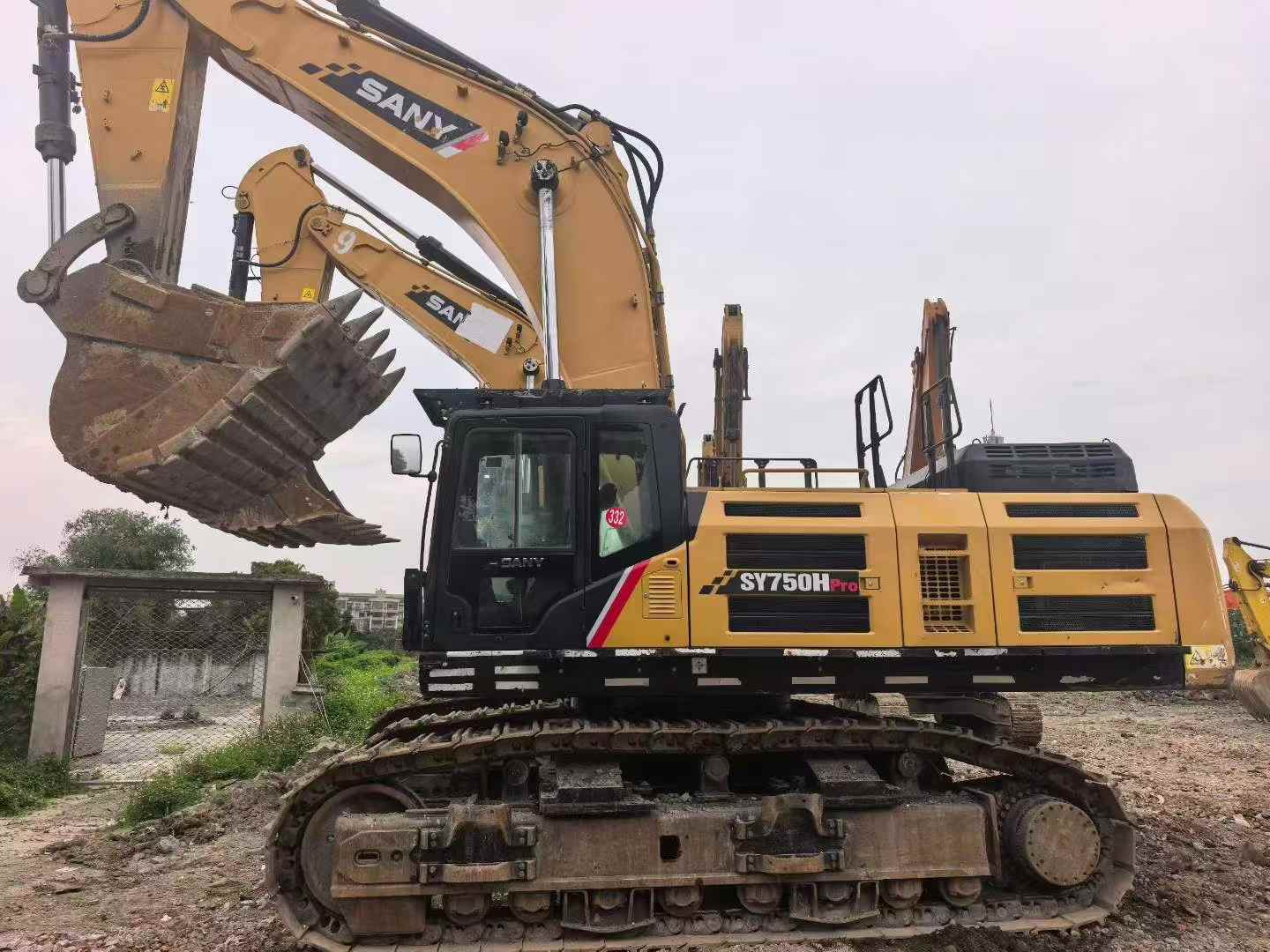

Buy Sany SY750H Used Excavator / 3

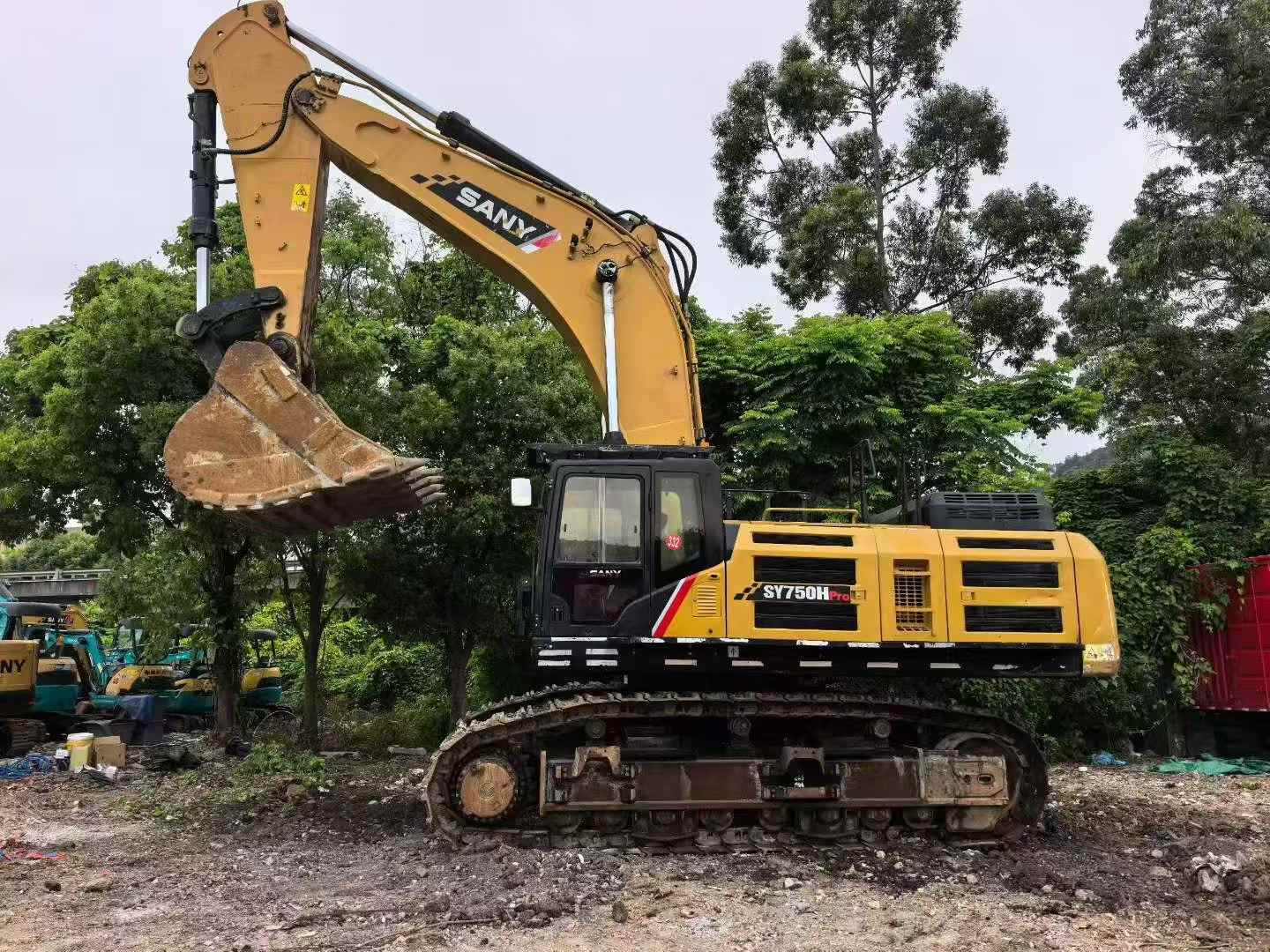

Buy Sany SY750H Used Excavator / 4

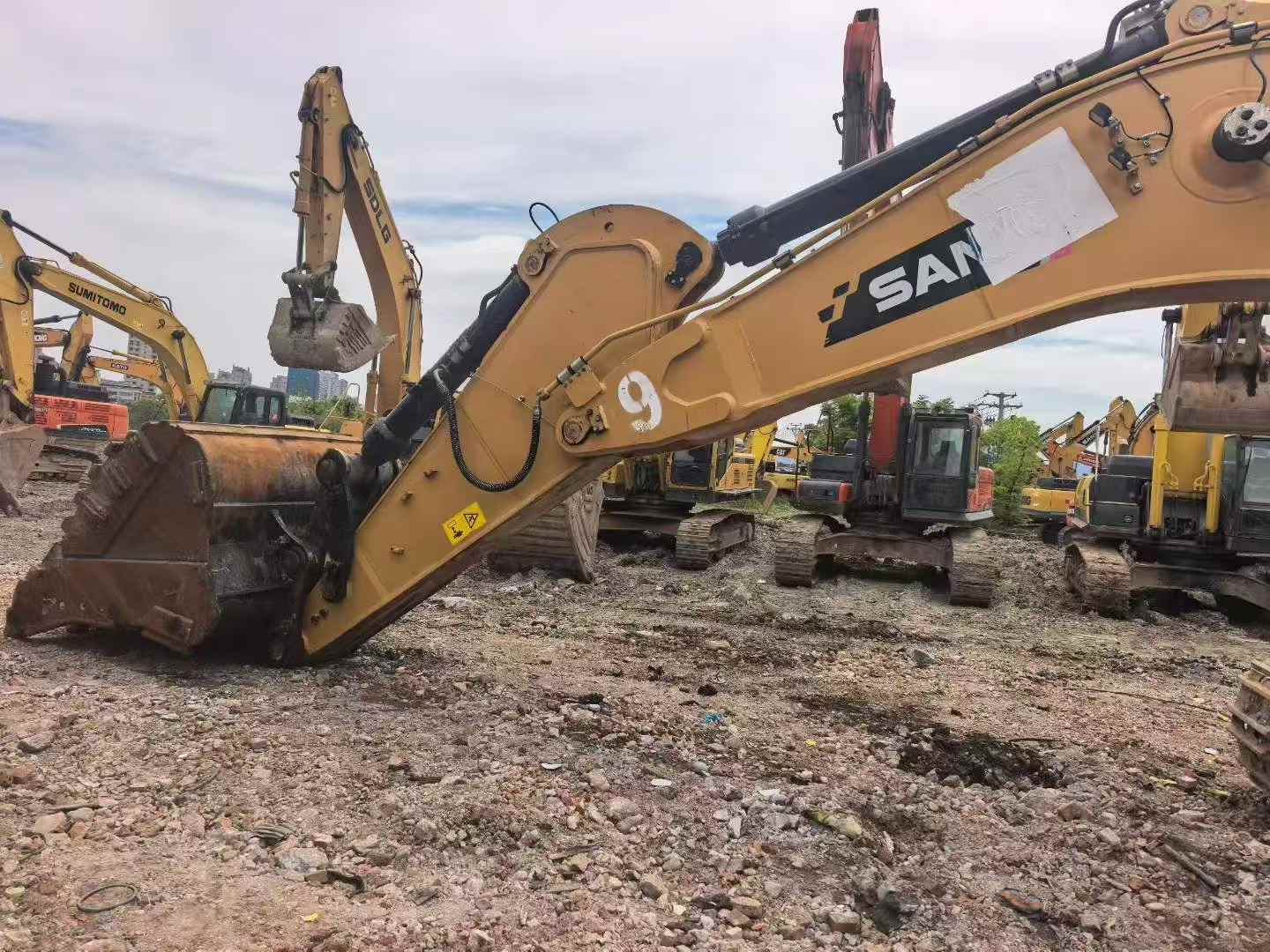

Buy Sany SY750H Used Excavator / 5

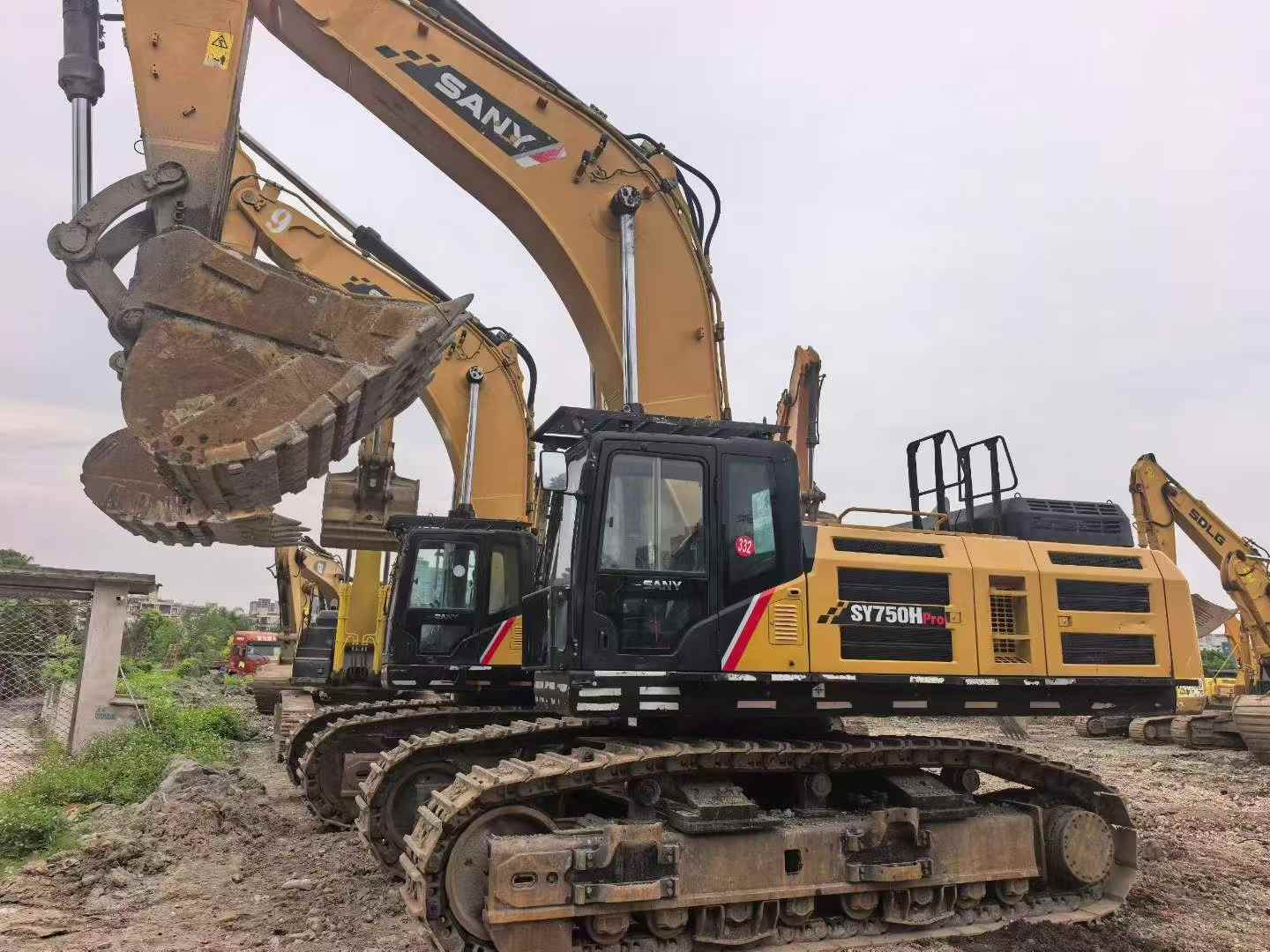

Buy Sany SY750H Used Excavator / 6

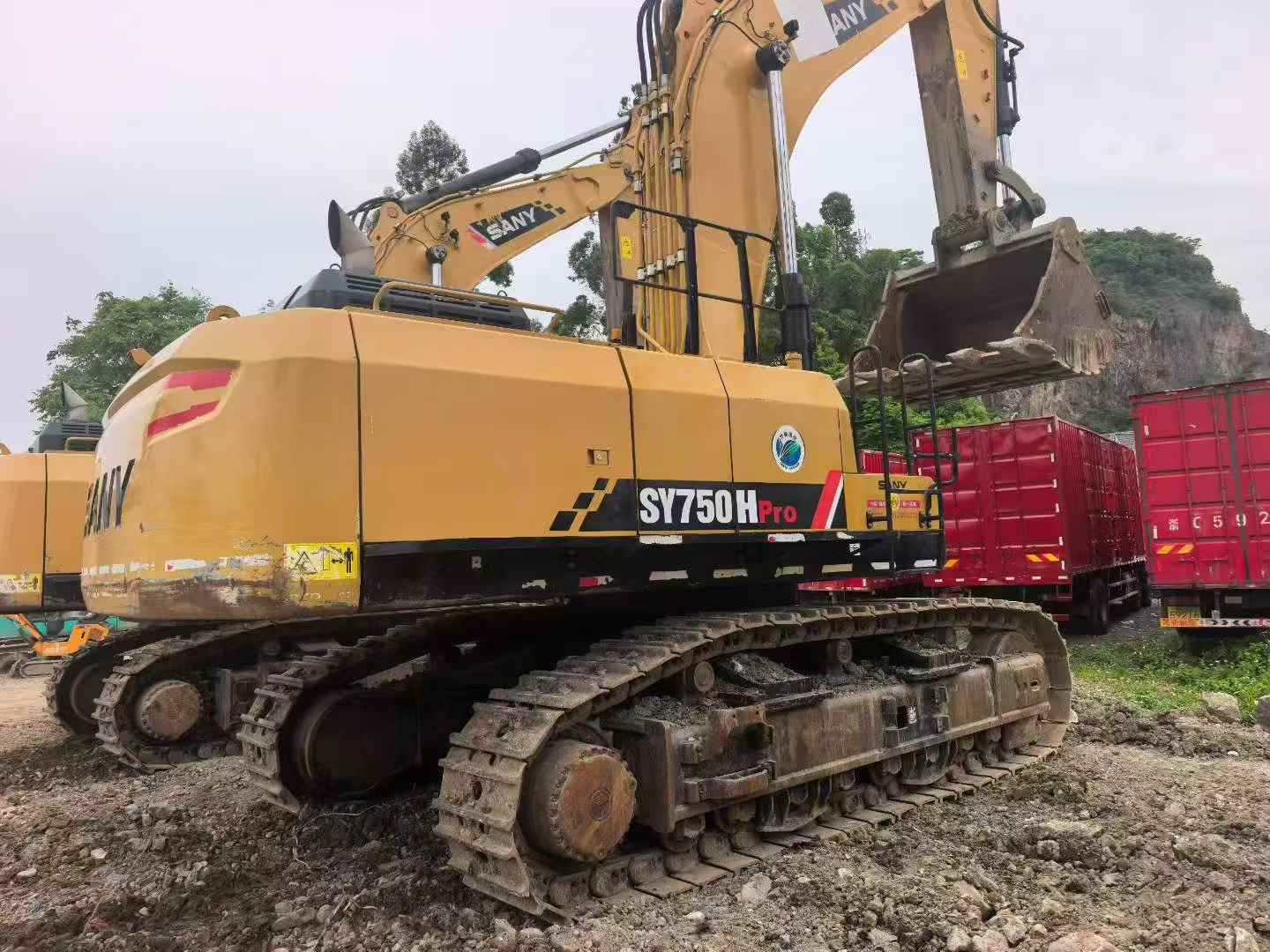

Buy Sany SY750H Used Excavator / 7

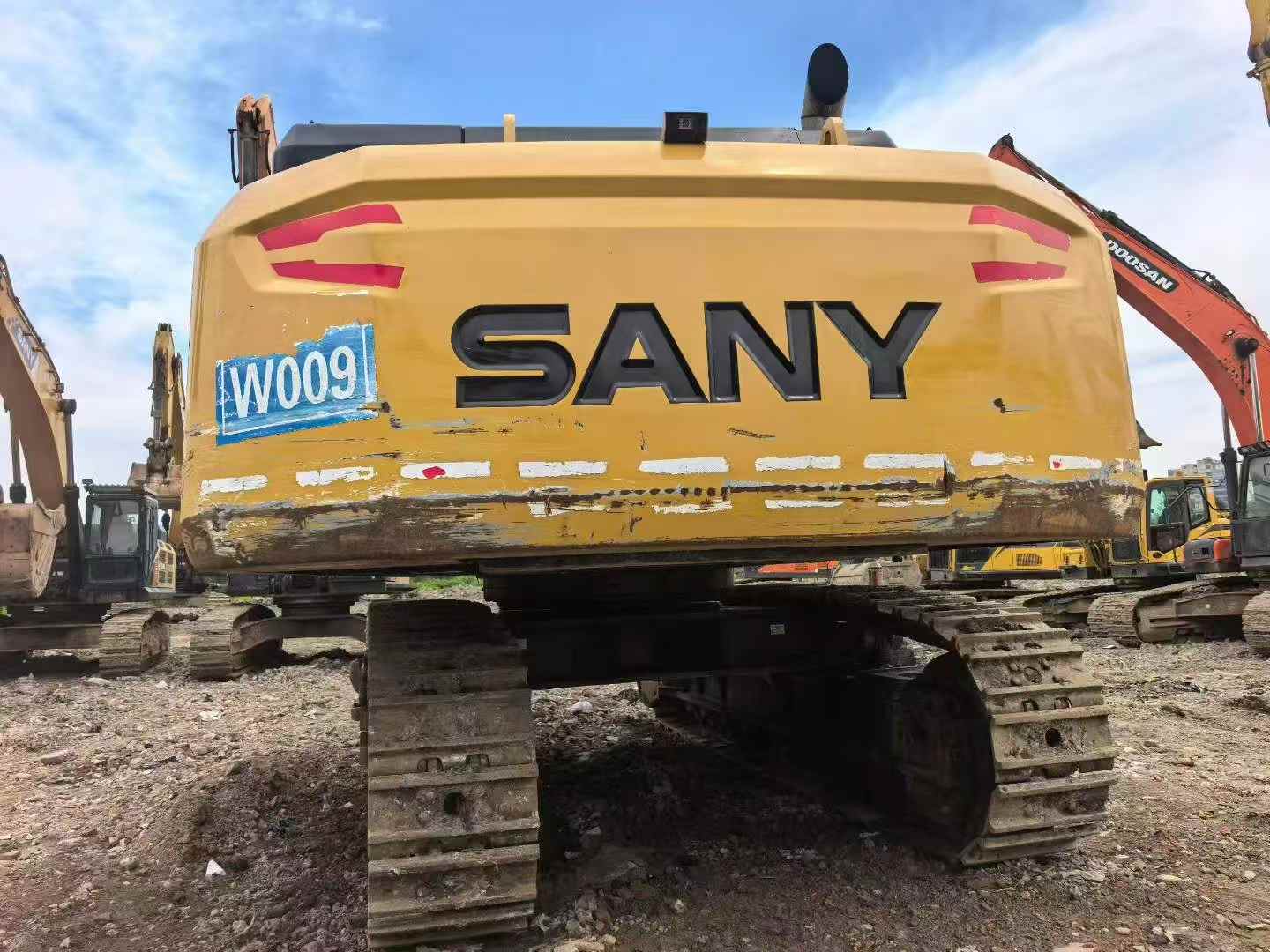

Buy Sany SY750H Used Excavator / 8

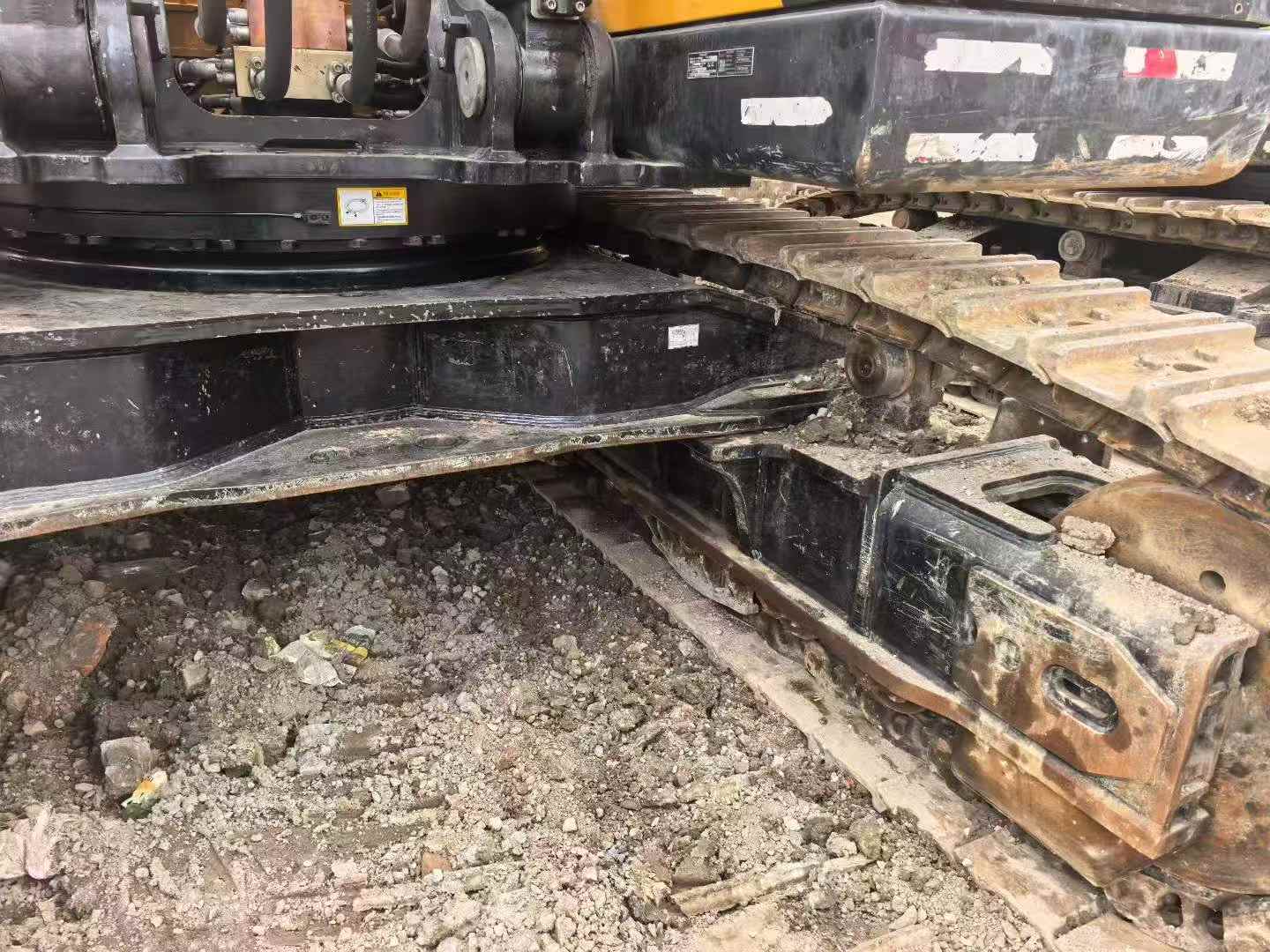

Buy Sany SY750H Used Excavator / 9

Product Description

Available now from Zhejiang, China—this 2021 Sany SY750H hydraulic excavator delivers 75 tons of working power without factory lead times. Equipped with a 377 kW engine and 4.6–5.6 m³ bucket capacity, this machine tackles large-scale earthmoving, mining, and infrastructure projects with a maximum digging depth of 7,620 mm and a digging radius reaching 12,050 mm. Skip months of waiting: this unit is ready for fast deployment to your site, backed by a proven track record in demanding conditions.

  • Power & Performance: 377 kW at 1,800 rpm; bucket digging force of 402 kN
  • Capacity: 76,200 kg operating weight; 4.6–5.6 m³ backhoe bucket
  • Reach & Depth: 12,050 mm max digging radius; 7,620 mm max digging depth
  • Mobility: 70% climbing ability; 4.5/2.9 km/h travel speed; 7.3 rpm rotation
  • Location: Zhejiang, China—immediate availability, rapid logistics to your operation
SpecificationsValue
No.1097421
Tonnage (tons)75
Working weight (kg)76200
Bucket capacity (m³)4.6-5.6
powerTraditional power
manufacturerMade in China
bucketbackhoe
Rated power (kw/rpm)377/1800
Ground specific pressure (Kpa)110
Rotation speed (rpm)7.3
Climbing ability (%)70
Bucket digging force (kN)402
Rod digging force (kN)345
Travel speed (km/h)4.5/2.9
Total transport length (mm)12865
Total transport width (mm)4320
Total transport height (mm)4855
Full cab height (mm)3800
Minimum ground clearance (mm)880
Minimum turning radius of front working device (mm)5520
Back end turning radius (mm)4220
Onboard width (mm)3460
Total track length (mm)5865
Track gauge (mm)3380/2780
Track plate width (mm)650
Track ground length (mm)4650
Maximum height at minimum turning radius (mm)9780
Maximum digging radius (mm)12050
Maximum digging depth (mm)7620
Maximum excavation height (mm)11200
Maximum unloading height (mm)7250
Maximum vertical digging depth (mm)4320
see more

Overview

No.1097421

Brand Name:

Sany

Model Number:

SY750H

Year:

2021

Location:

Zhejiang China

Pub Date
