Product Description

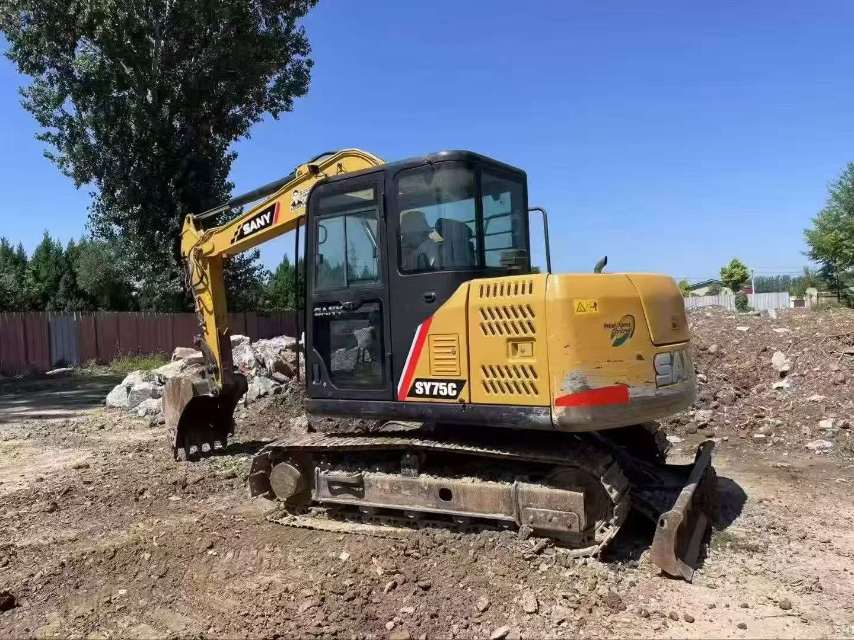

Discover the 2017 Sany SY75C, a robust and reliable excavator currently available in Peking, China. This machine has been meticulously maintained, ensuring that it remains in exceptional condition both inside and out. The Sany SY75C features all-original components, with the major parts untouched, providing assurance of its reliability and durability. The undercarriage is in nearly new condition, rated at 90% new, which is a testament to its minimal wear and excellent maintenance. Comprehensive detailed photos and videos are available upon request, allowing you to fully assess the machine's outstanding condition. Ideal for construction and excavation projects, this excavator is ready to meet your industrial needs.
- Year: 2017
- Brand: Sany
- Model: SY75C
- Location: Peking, China
- Condition: Excellent, with original parts and minimal wear
| Specifications | Value |
|---|---|
| No. | 1132044 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7280 |
| Bucket capacity (m³) | 0.12~0.32 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu AU-4LE2X |
| Rated power (kw/rpm) | 43/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 200/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 38 |
| Travel speed (km/h) | 4.4/2.4 |
| Fuel Tank (L) | 150 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 9.5 |
| Total transport length (mm) | 6120 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2720 |
| Minimum ground clearance (mm) | 380 |
| Back end turning radius (mm) | 1800 |
| Total track length (mm) | 2820 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2195 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 39 |
| Maximum digging radius (mm) | 6240 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7060 |
| Maximum unloading height (mm) | 5155 |
| Maximum vertical digging depth (mm) | 3290 |
| Bulldozer lift or depth (mm) | 350/360 |
