Product Description

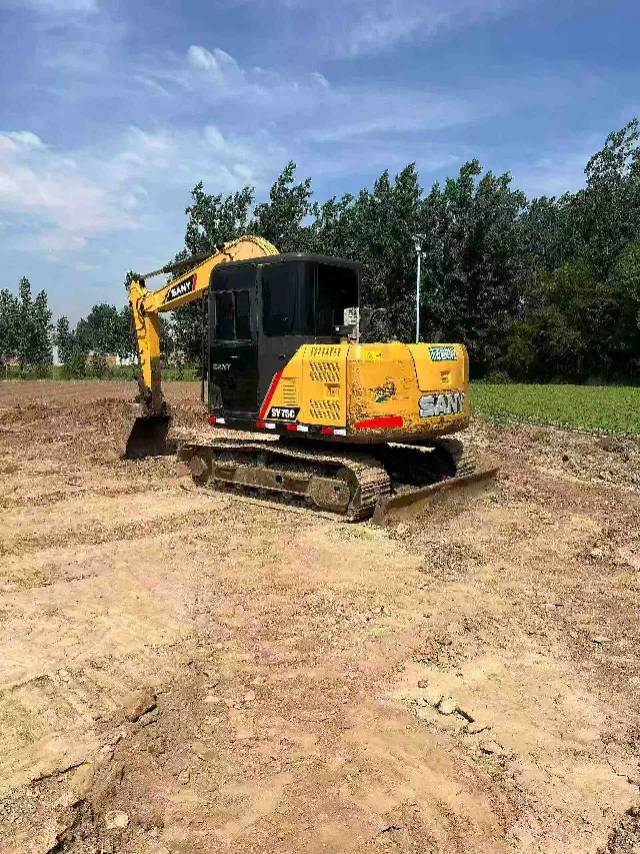

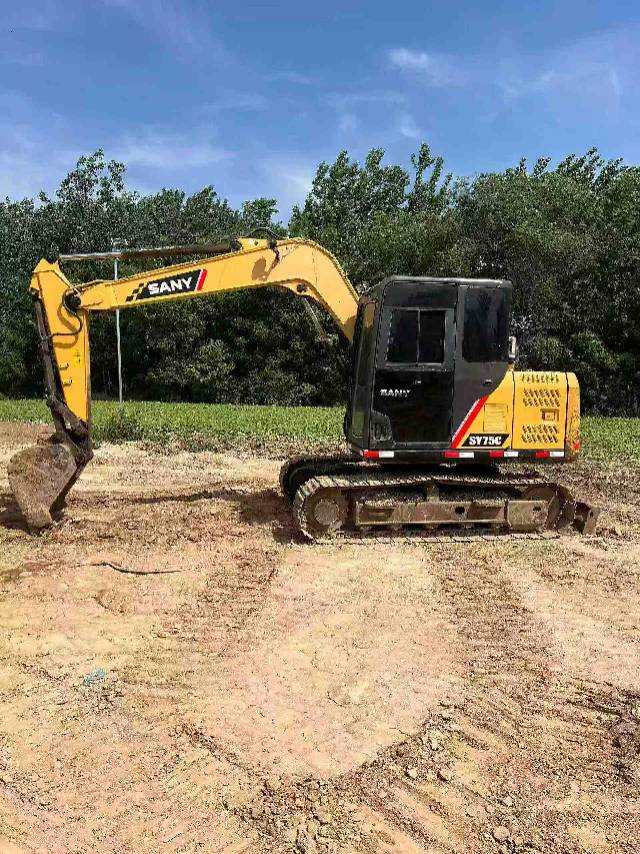

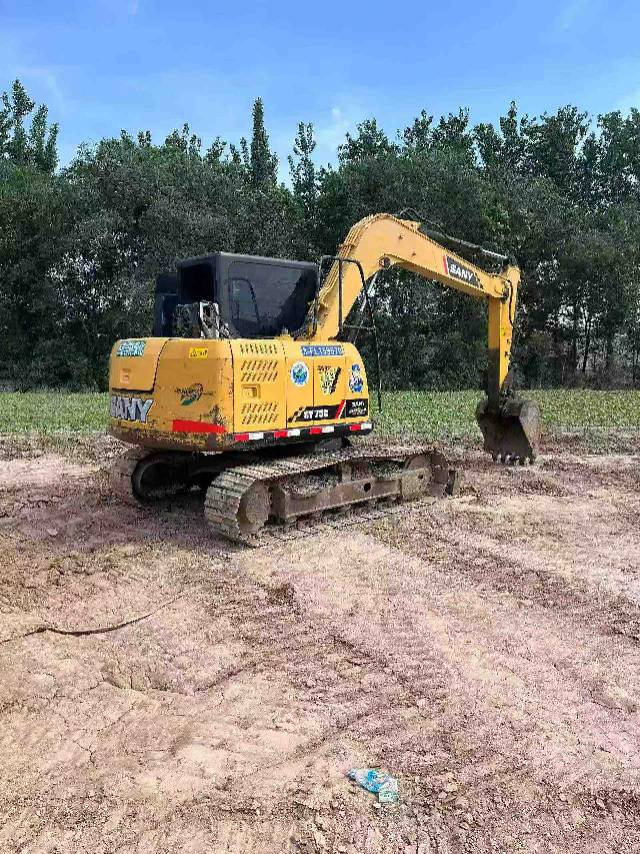

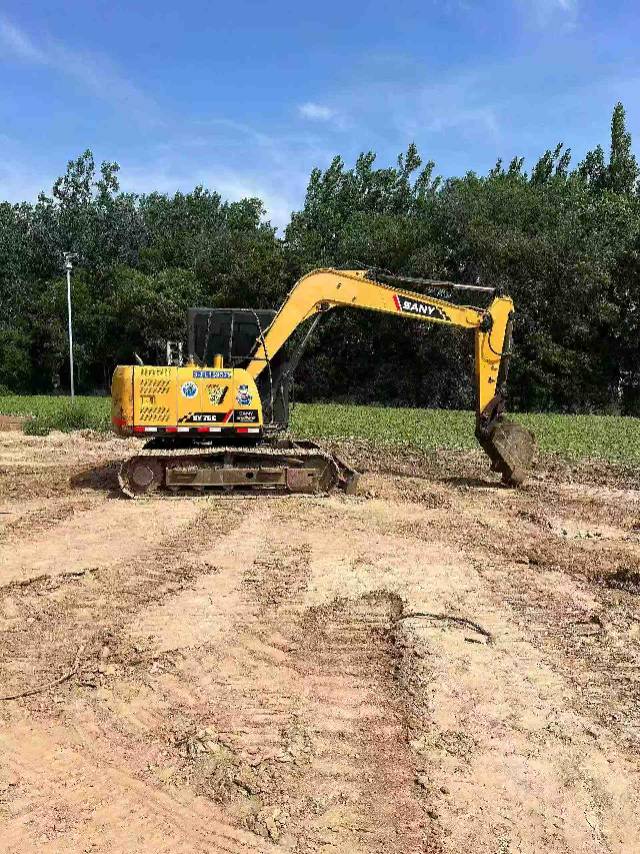

This 2020 Sany SY75C compact excavator represents proven mid-size performance for demanding job sites. As part of Sany's successful 7-ton class, the SY75C delivers reliable hydraulic power and operational efficiency suitable for construction, landscaping, and utility applications. Currently located in Beijing, China, this unit offers excellent value for buyers seeking dependable used equipment from a leading Chinese manufacturer.
The SY75C features a robust design with efficient fuel consumption and straightforward maintenance access. Its compact footprint enables work in confined urban environments while maintaining productive digging force and reach for its weight class.
- Year of Manufacture: 2020
- Model: Sany SY75C
- Operating Weight Class: Approximately 7 tons
- Location: Beijing, China
- Suitable for: Construction, excavation, and utility work
Contact us for current condition reports, available documentation, and export assistance to your destination.
| Specifications | Value |
|---|---|
| No. | 1095918 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7280 |
| Bucket capacity (m³) | 0.12~0.32 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

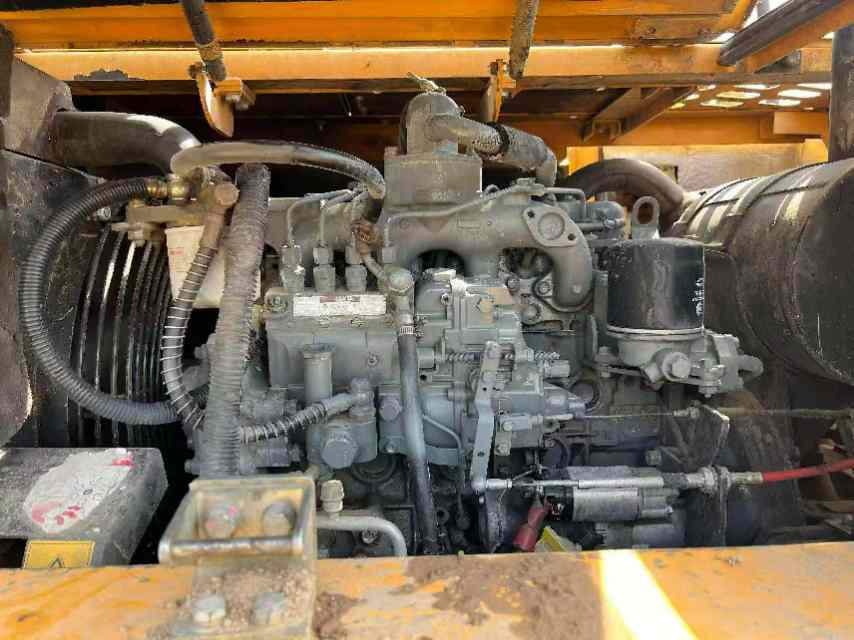

| Engine type | Isuzu AU-4LE2X |
| Rated power (kw/rpm) | 43/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 200/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 38 |
| Travel speed (km/h) | 4.4/2.4 |
| Fuel Tank (L) | 150 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 9.5 |
| Total transport length (mm) | 6120 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2720 |
| Minimum ground clearance (mm) | 380 |
| Back end turning radius (mm) | 1800 |
| Total track length (mm) | 2820 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2195 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 39 |
| Maximum digging radius (mm) | 6240 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7060 |
| Maximum unloading height (mm) | 5155 |
| Maximum vertical digging depth (mm) | 3290 |
| Bulldozer lift or depth (mm) | 350/360 |
