Product Description

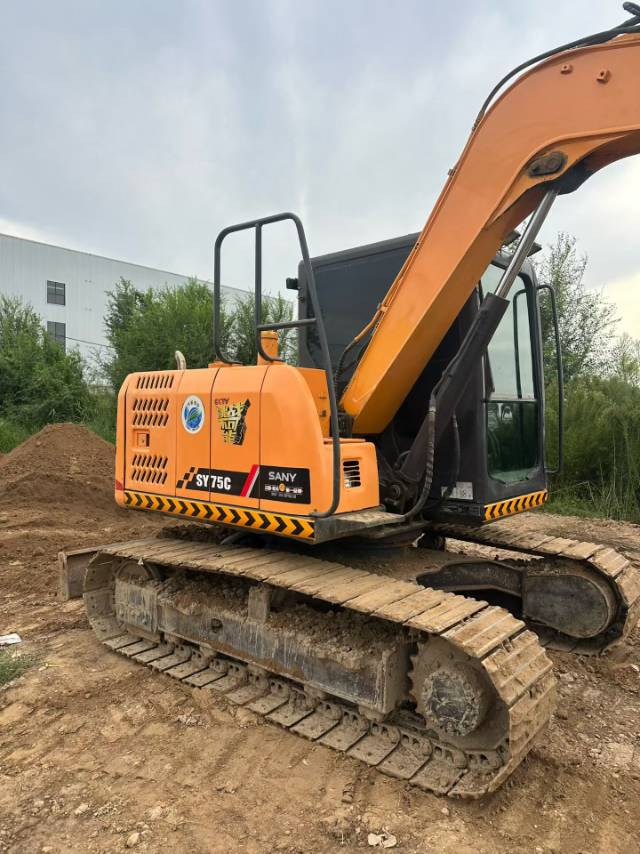

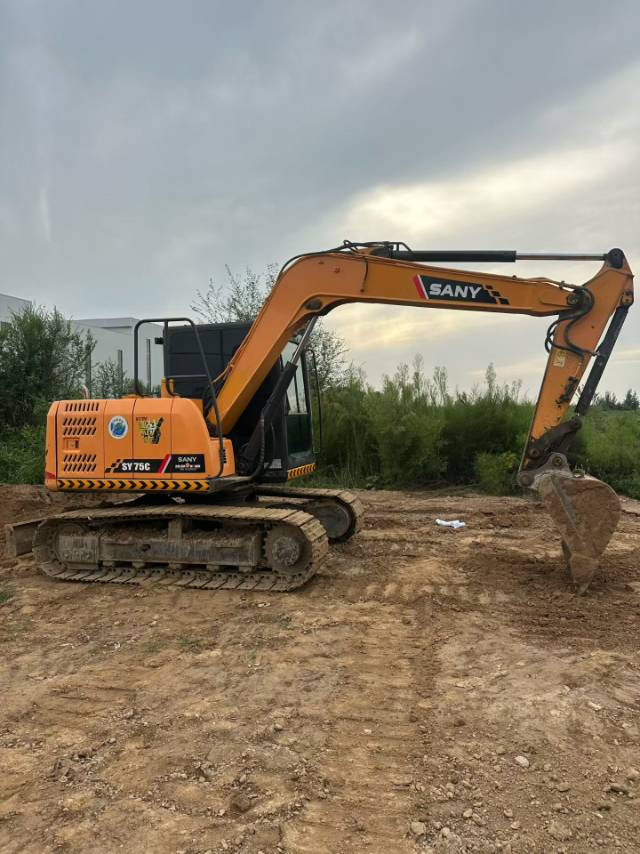

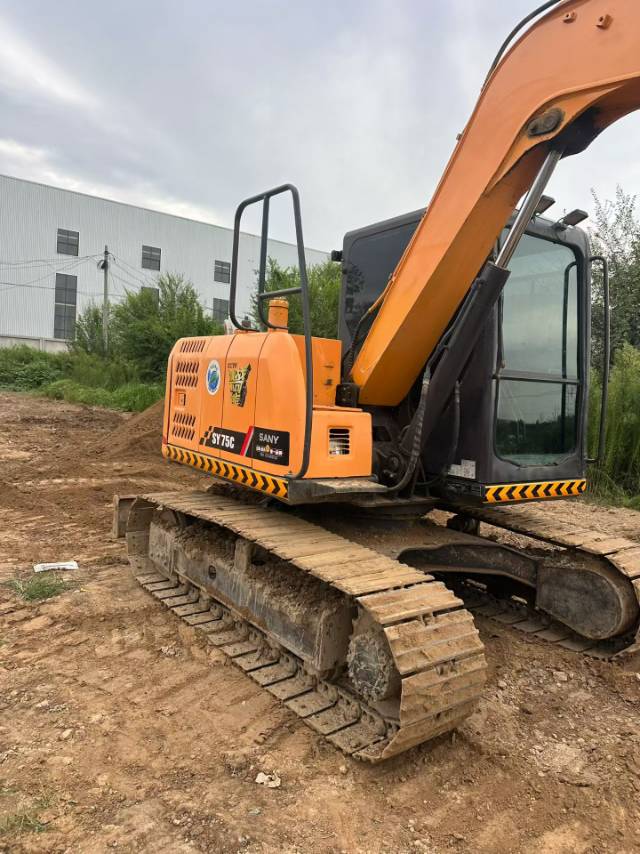

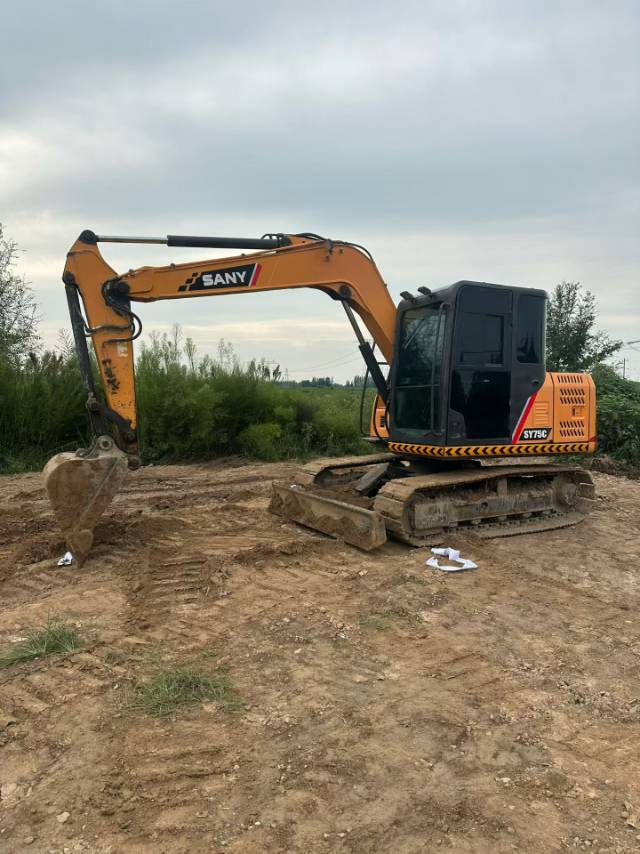

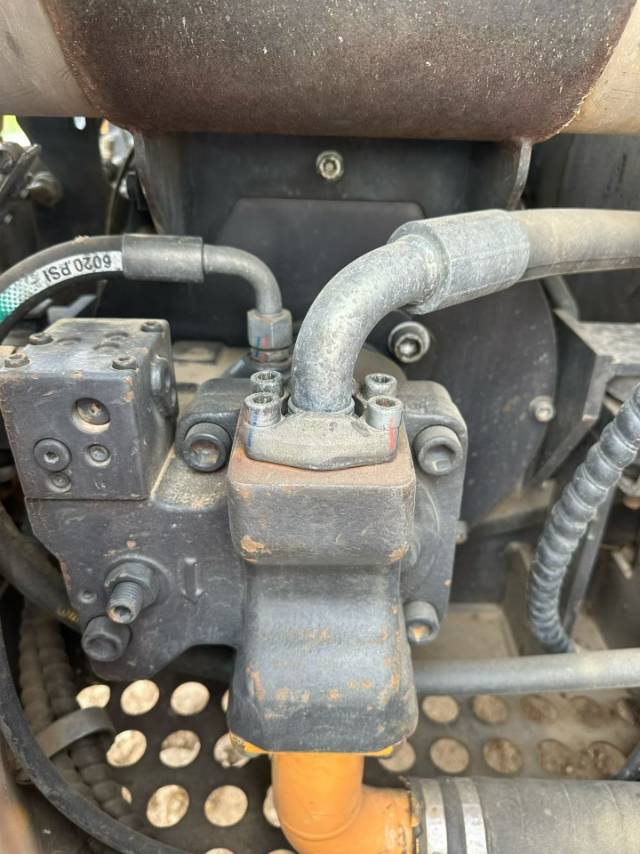

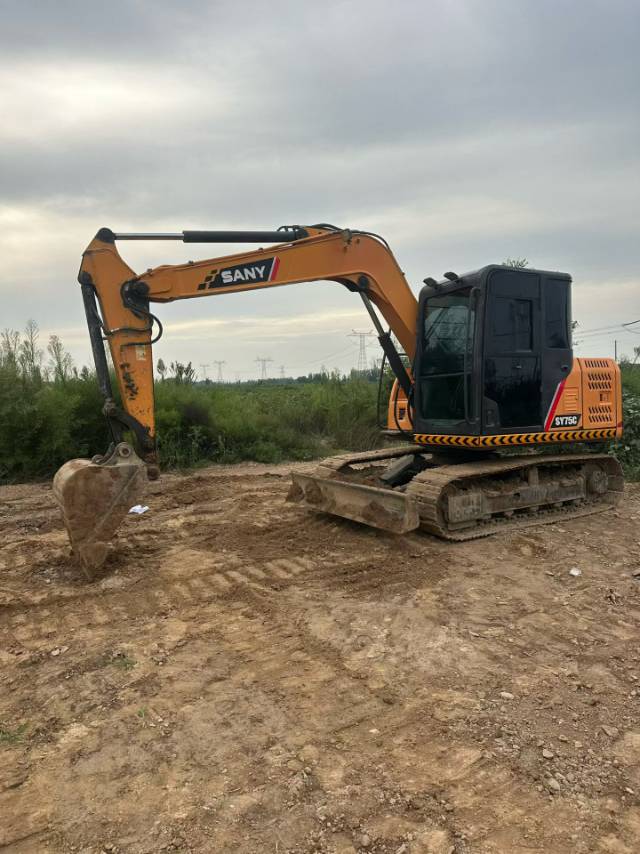

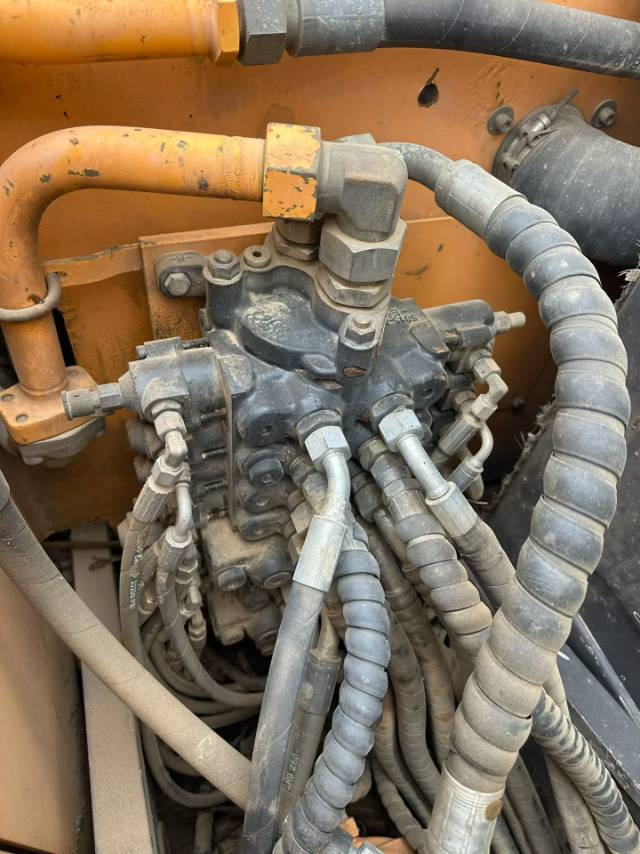

For sale is a 2020 Sany SY75C excavator, located in Hebei, China. This machine has been meticulously maintained and recently serviced to ensure peak performance. The operator's comfort has been significantly enhanced with the addition of an upgraded, electrically adjustable, large sofa seat, making long hours on the job less tiring. The core components of this excavator, including the engine, hydraulic system, and undercarriage, are in excellent condition, delivering outstanding performance and reliability. Ideal for construction, excavation, and demolition tasks, this Sany SY75C is ready to meet the demands of your next project.
- Year: 2020
- Brand: Sany
- Model: SY75C
- Location: Hebei, China
- Recently serviced

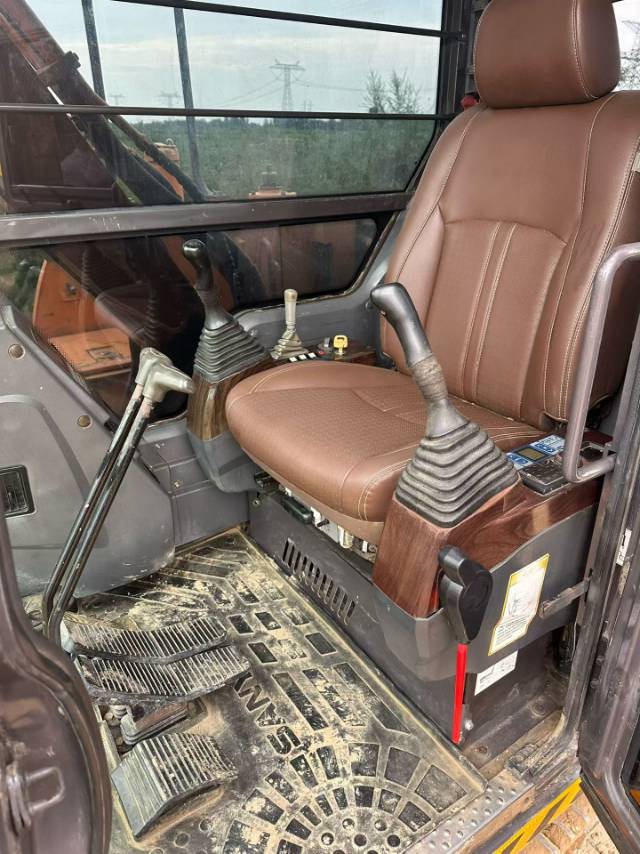

- Upgraded operator seat for enhanced comfort
| Specifications | Value |
|---|---|
| No. | 1135146 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7280 |
| Bucket capacity (m³) | 0.12~0.32 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

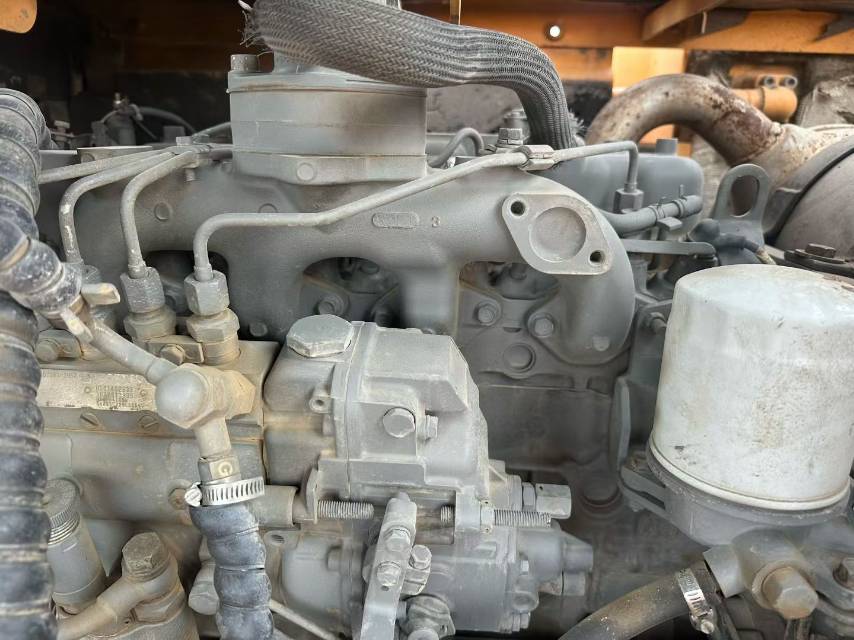

| Engine type | Isuzu AU-4LE2X |
| Rated power (kw/rpm) | 43/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 200/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 38 |
| Travel speed (km/h) | 4.4/2.4 |
| Fuel Tank (L) | 150 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 9.5 |
| Total transport length (mm) | 6120 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2720 |
| Minimum ground clearance (mm) | 380 |
| Back end turning radius (mm) | 1800 |
| Total track length (mm) | 2820 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2195 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 39 |
| Maximum digging radius (mm) | 6240 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7060 |
| Maximum unloading height (mm) | 5155 |
| Maximum vertical digging depth (mm) | 3290 |
| Bulldozer lift or depth (mm) | 350/360 |
