Product Description

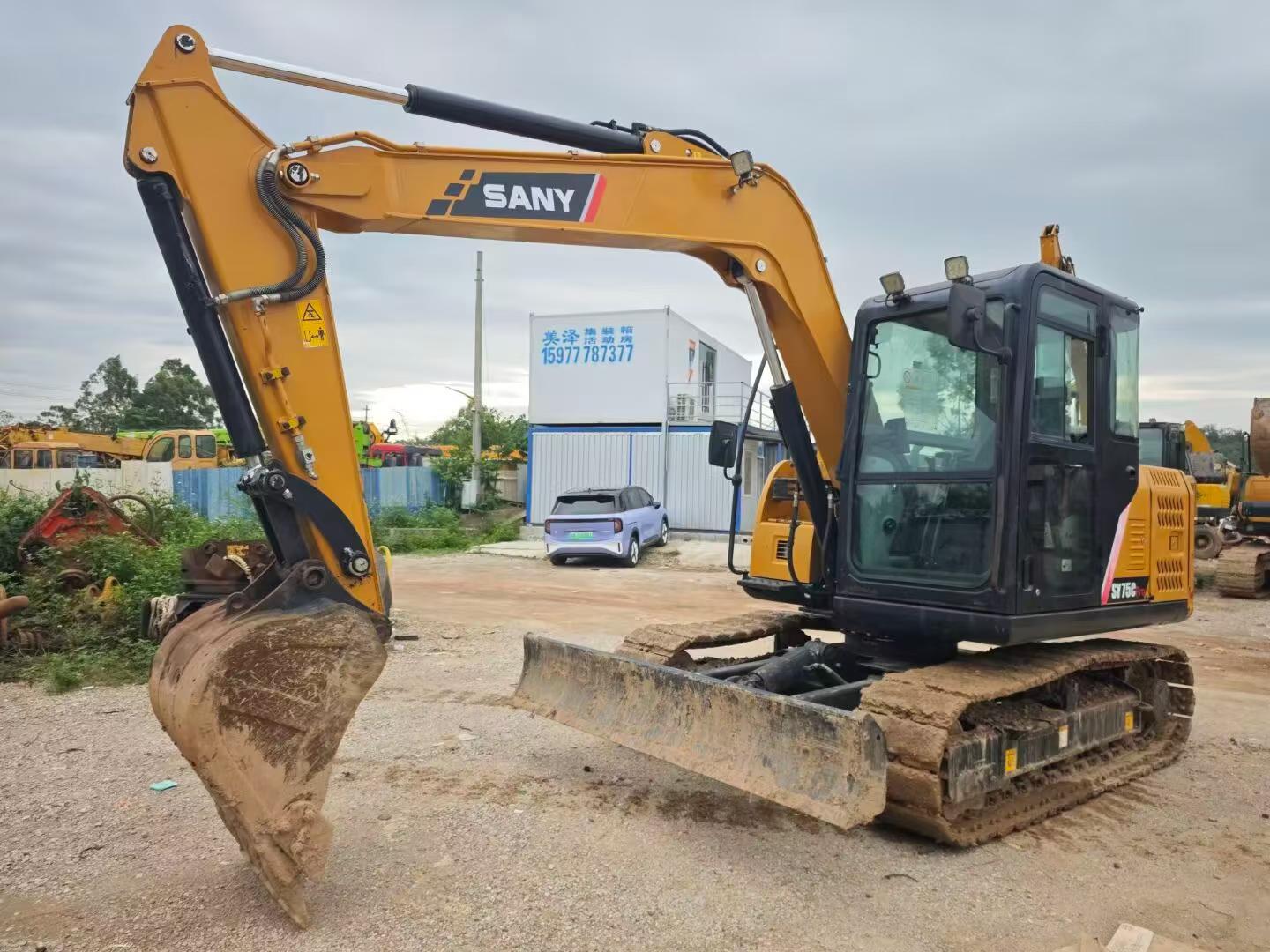

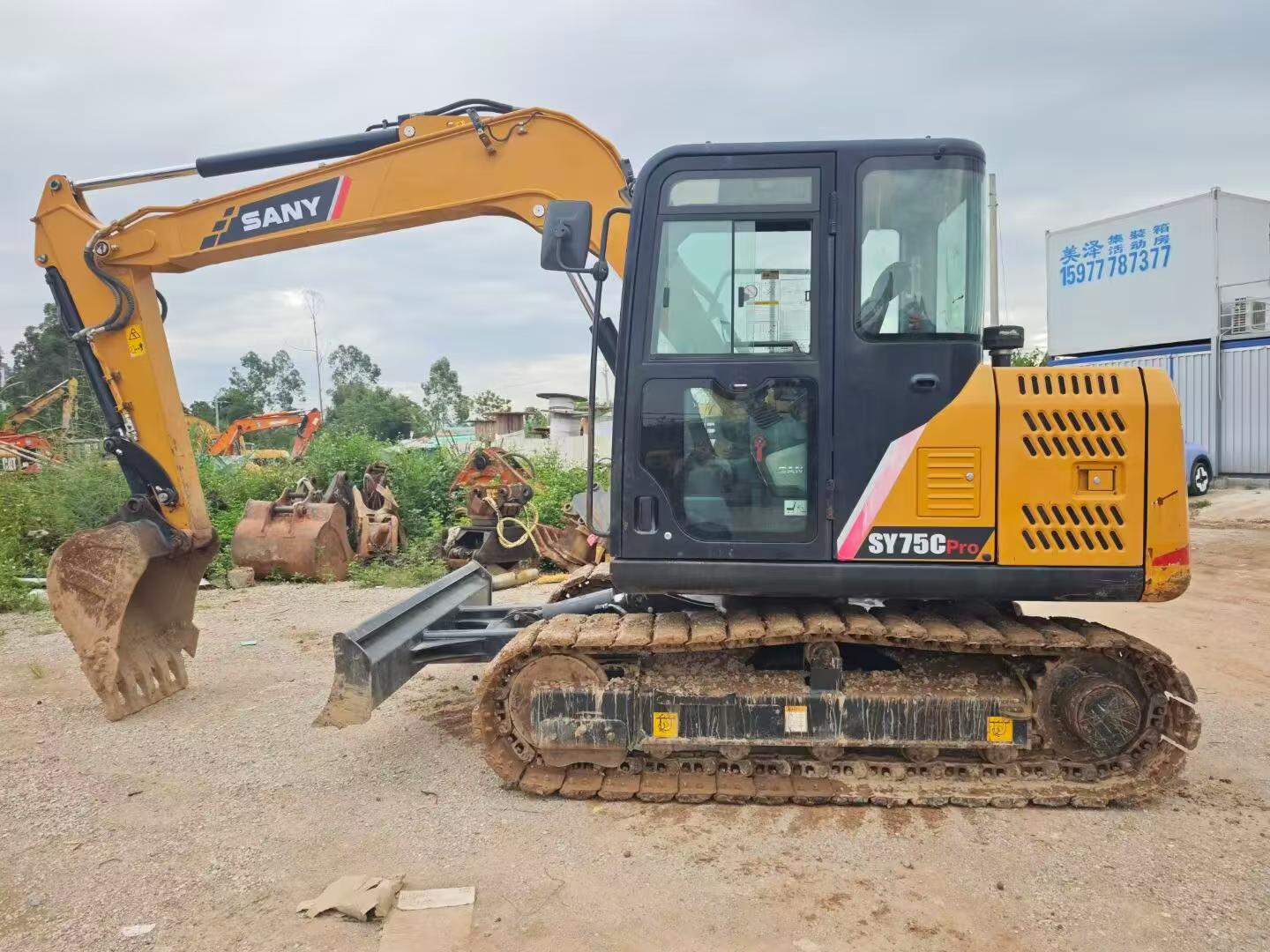

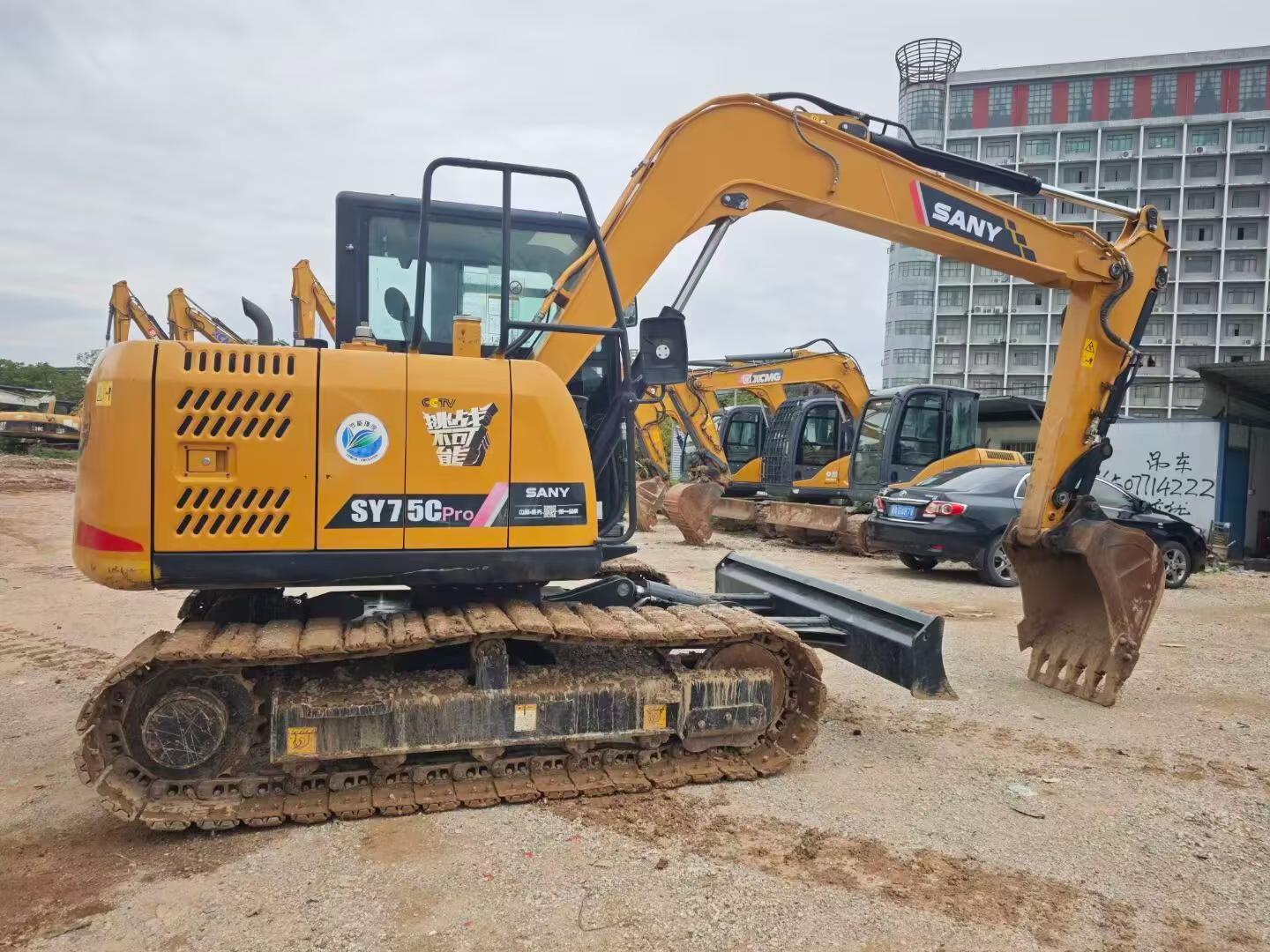

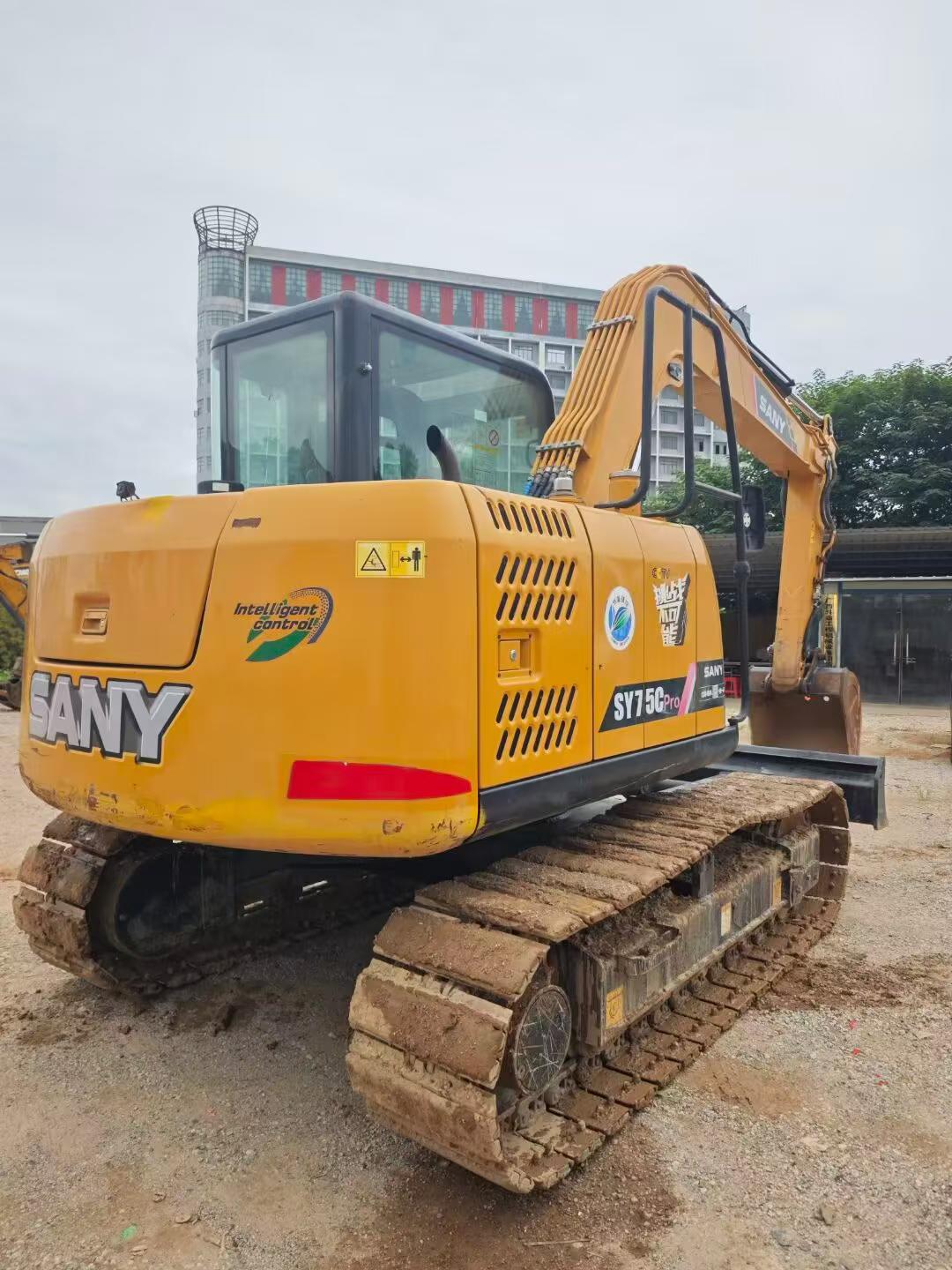

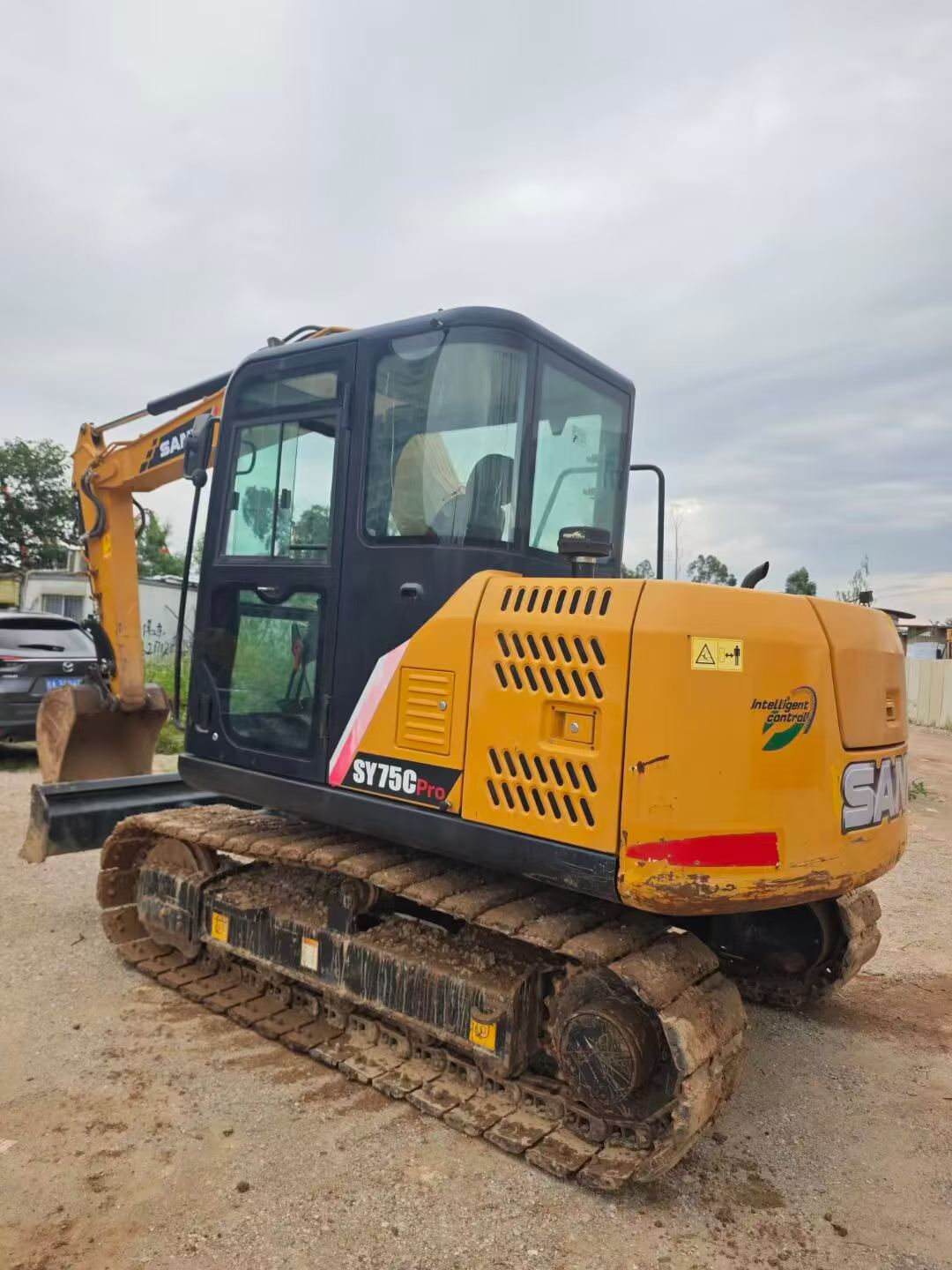

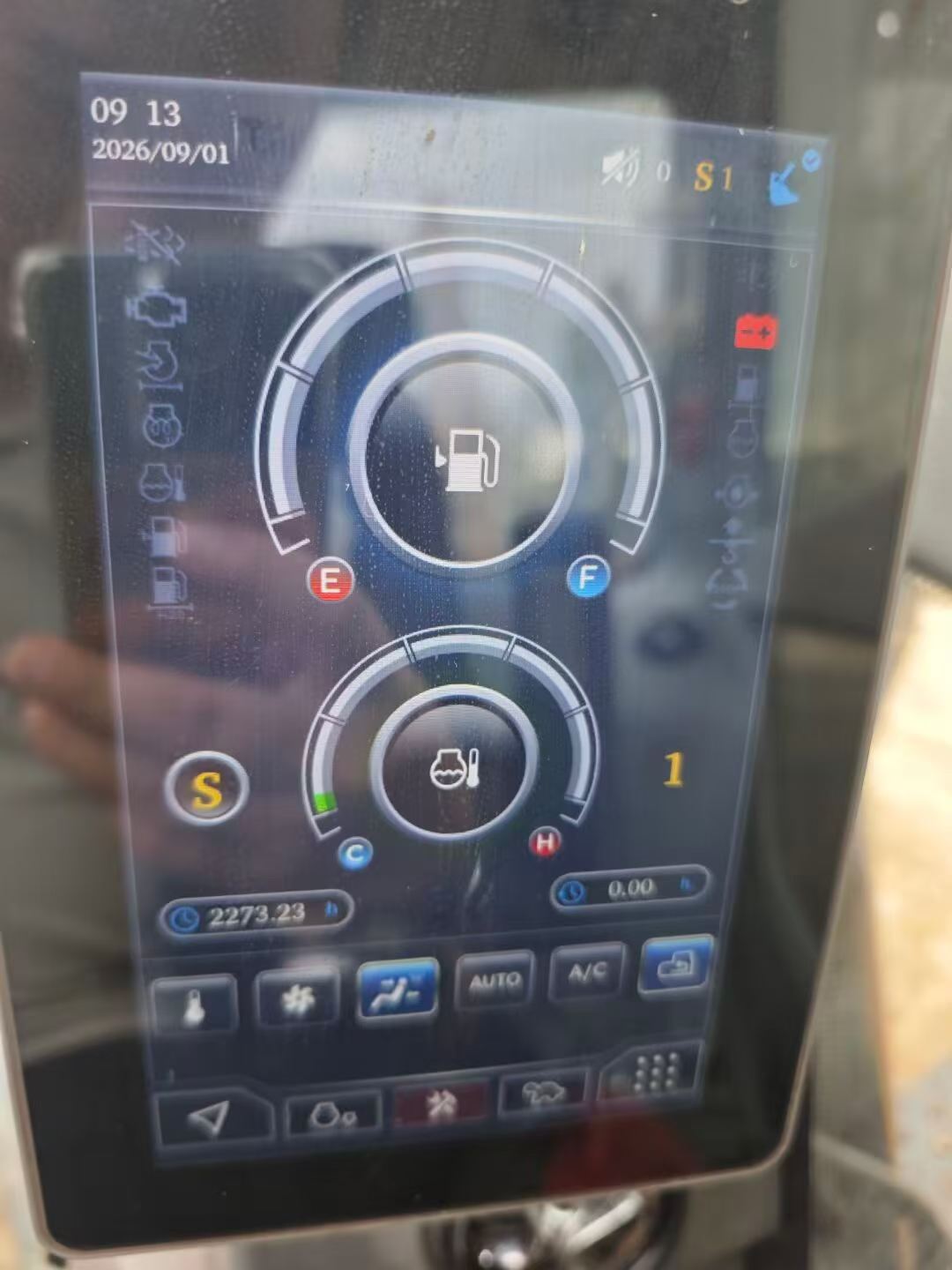

2020 Sany SY75C mini excavator with verified 2,200 operating hours. This 7.5-ton class machine features the proven China III emission standard engine, delivering reliable performance across demolition, trenching, and site preparation applications. Meter reading authenticated. Unit shows consistent maintenance and operational care throughout its service life.
Key attributes:
- Compact footprint ideal for confined jobsites and urban projects

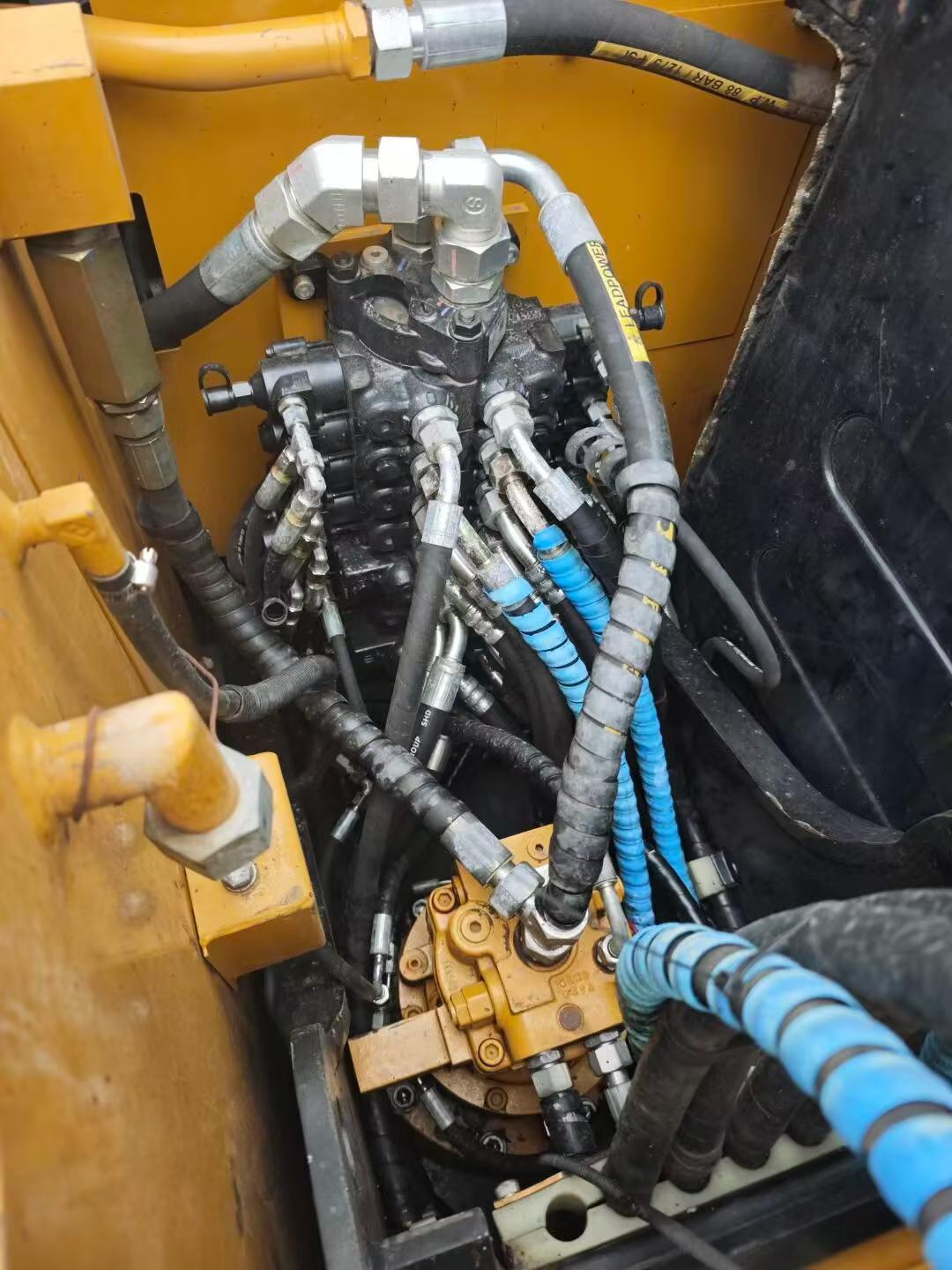

- Hydraulic system designed for precision grading and material handling
- Operator station configured for extended shift comfort
- Currently located in Guangxi, China—available for inspection
The SY75C remains a field-proven choice for contractors seeking dependable auxiliary capacity. This unit demonstrates the low-hour profile and operational readiness expected in the pre-owned equipment market. Suitable for immediate deployment.
| Specifications | Value |
|---|---|
| No. | 1137239 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 7280 |
| Bucket capacity (m³) | 0.12~0.32 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

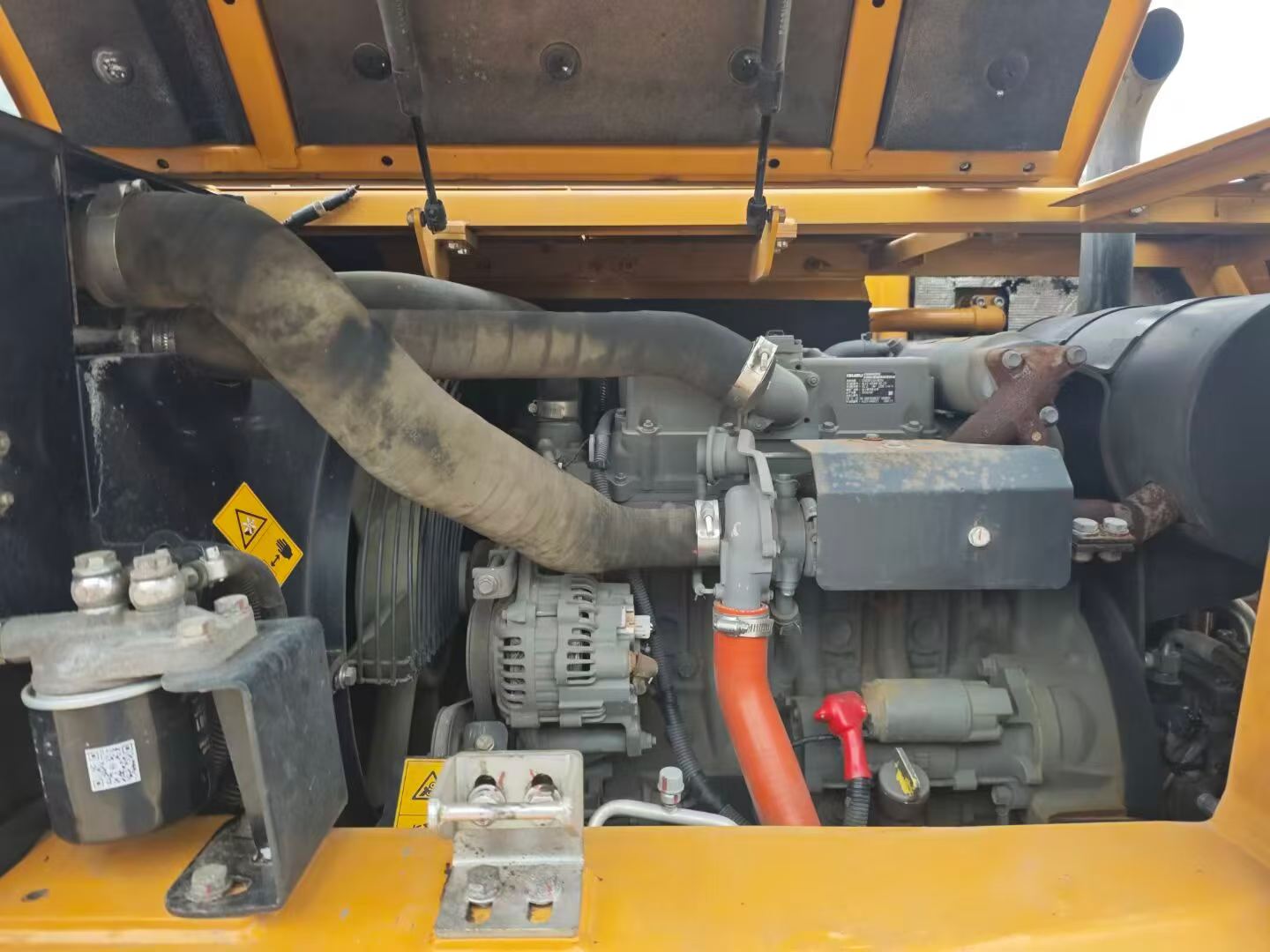

| Engine type | Isuzu AU-4LE2X |
| Rated power (kw/rpm) | 43/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 200/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.179 |
| Ground specific pressure (Kpa) | 33 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 56 |
| Rod digging force (kN) | 38 |
| Travel speed (km/h) | 4.4/2.4 |
| Fuel Tank (L) | 150 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 9.5 |
| Total transport length (mm) | 6120 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2720 |
| Minimum ground clearance (mm) | 380 |
| Back end turning radius (mm) | 1800 |
| Total track length (mm) | 2820 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Track ground length (mm) | 2195 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 39 |
| Maximum digging radius (mm) | 6240 |
| Maximum digging depth (mm) | 4020 |
| Maximum excavation height (mm) | 7060 |
| Maximum unloading height (mm) | 5155 |
| Maximum vertical digging depth (mm) | 3290 |
| Bulldozer lift or depth (mm) | 350/360 |
