Product Description

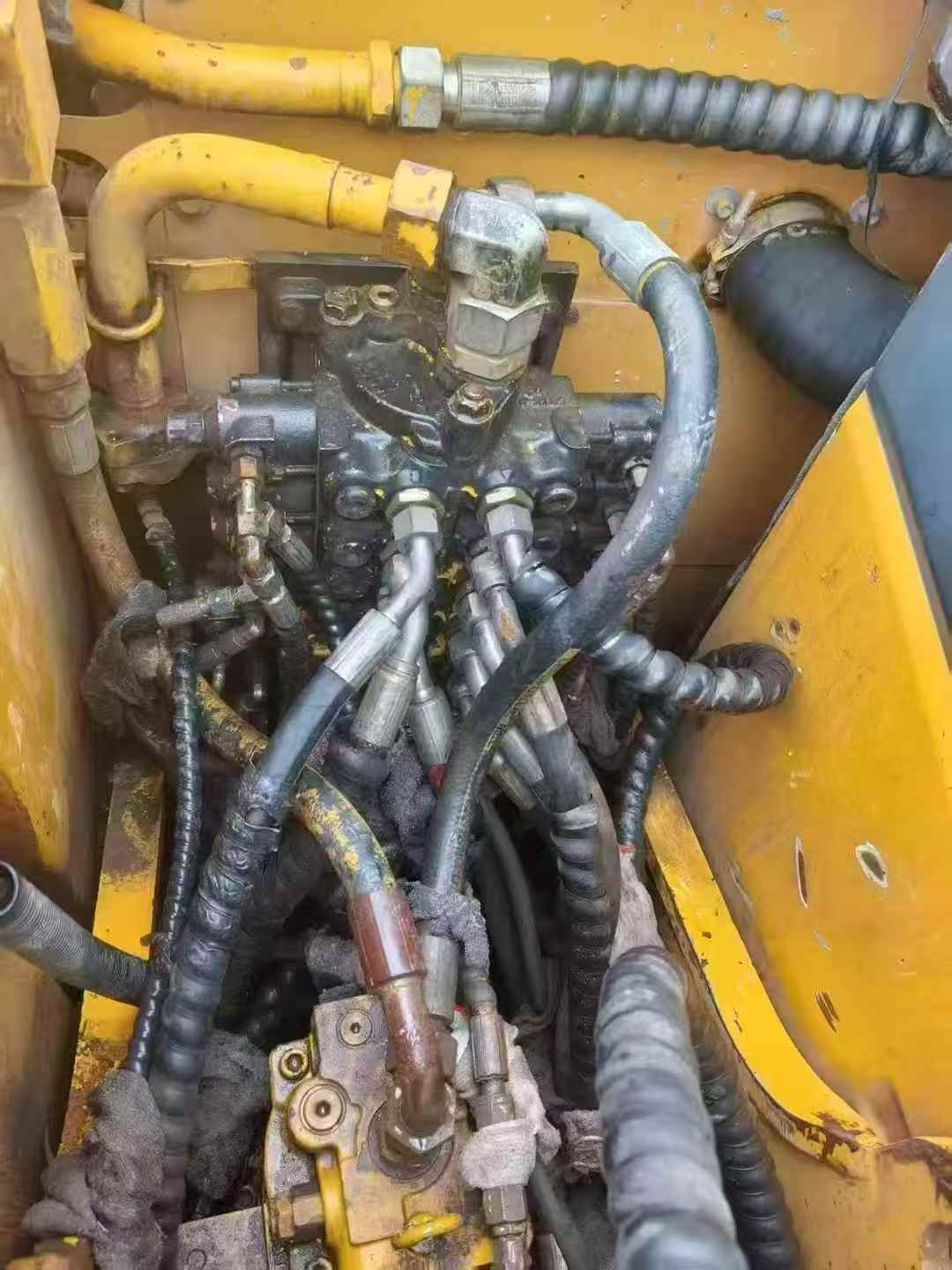

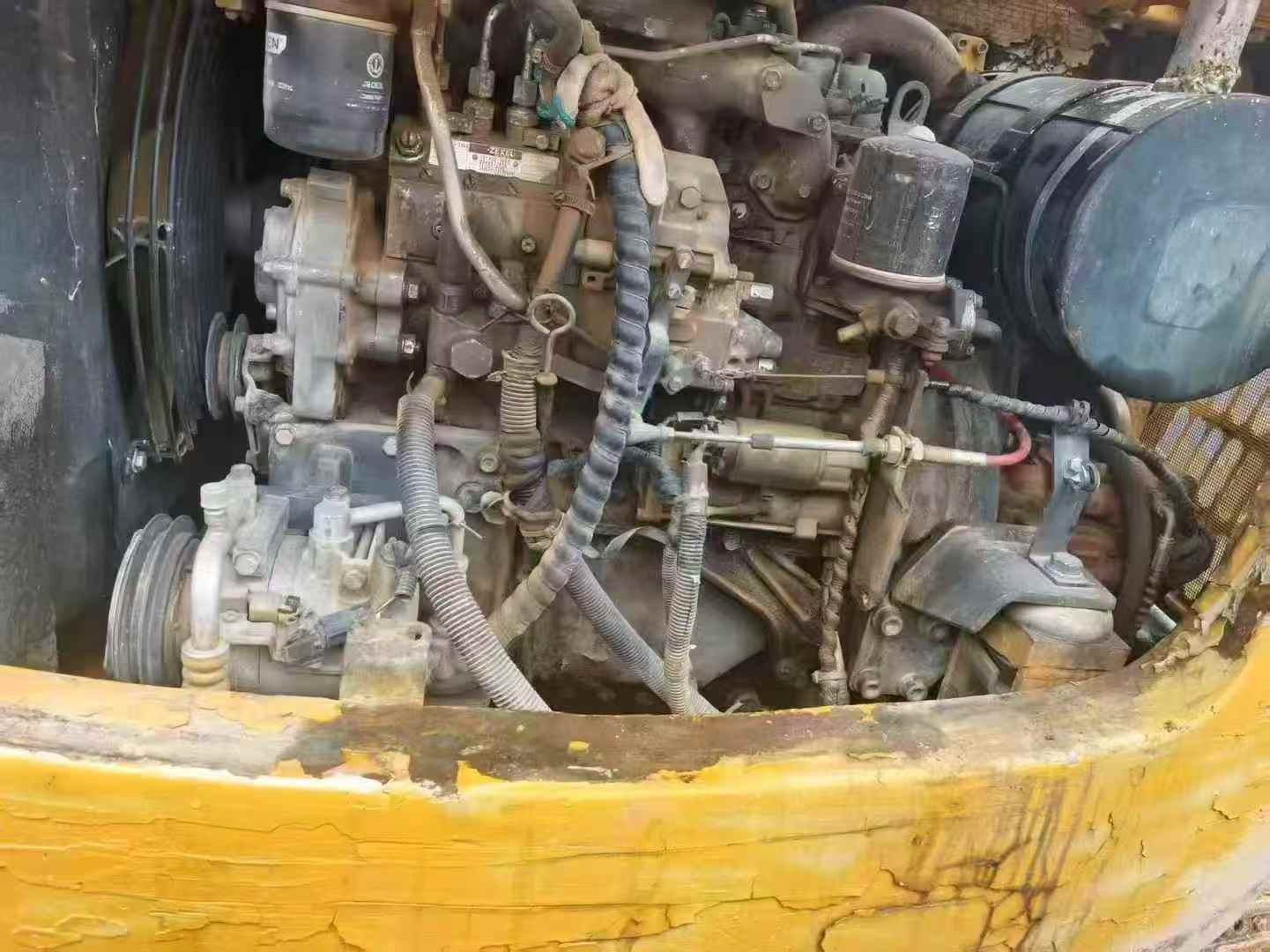

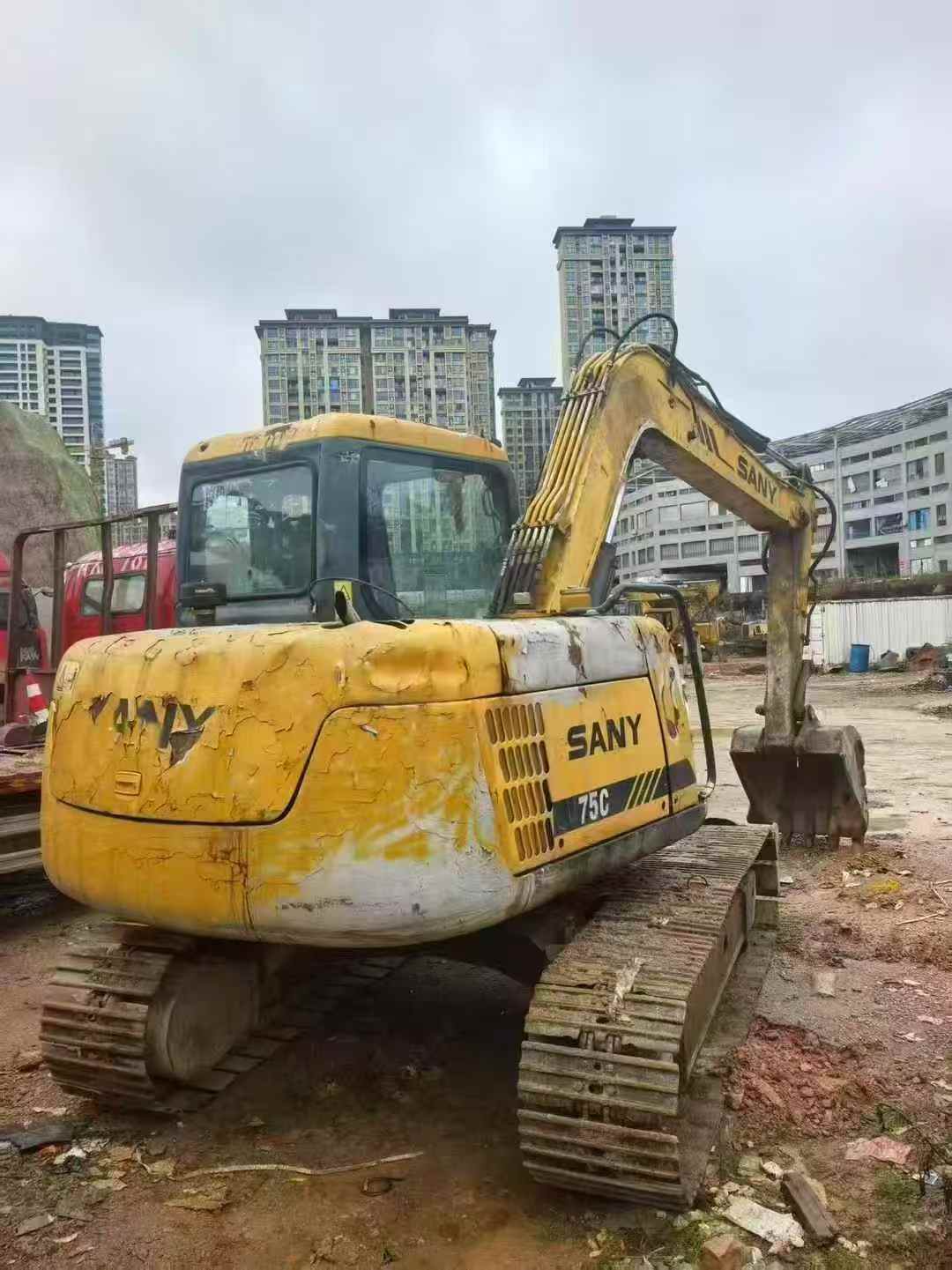

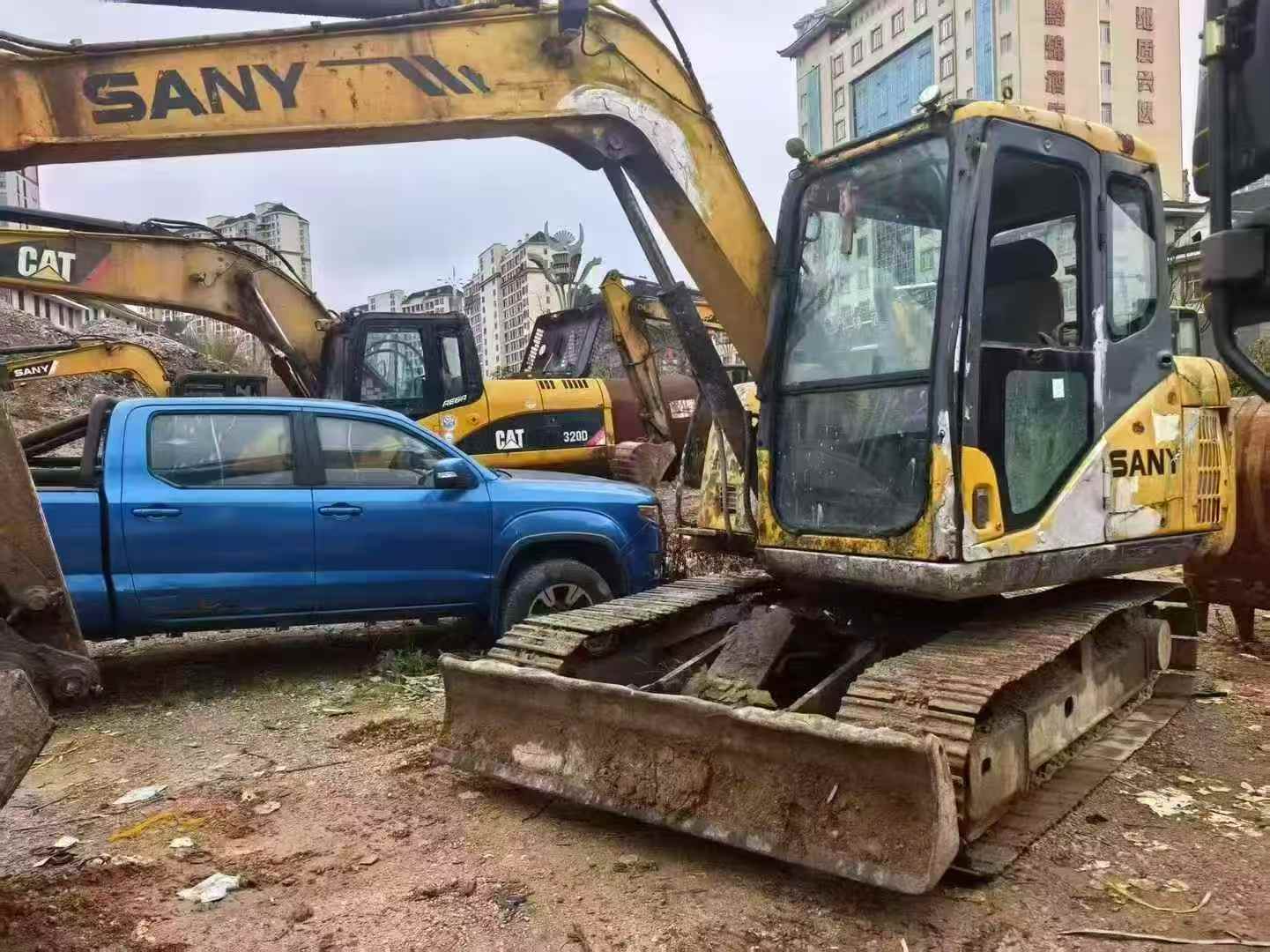

Powered by an Isuzu CC-4JG1PAC engine, delivering 40 kW at 2100 rpm, the Sany SY75C-8 offers reliable performance and efficiency. Equipped with a water-cooling system, this 7-ton excavator ensures optimal operation in various conditions. The hydraulic system features a maximum flow of 149 l/min from the main pump, with traveling, rotary, and control circuits operating at 26 Mpa, 21.6 Mpa, and 3.6 Mpa, respectively. This setup provides robust digging forces of 49 kN for the bucket and 35 kN for the rod, enhancing productivity on any job site.
- Working weight: 6800 kg
- Bucket capacity: 0.28 m³
- Travel speed: 2.6-4.2 km/h
- Maximum digging depth: 4060 mm
- Climbing ability: 70% / 35°
With a total transport length of 6000 mm and a width of 2220 mm, the SY75C-8 is designed for easy mobility and maneuverability. Its backhoe bucket and robust engineering make it a standout choice for demanding construction and excavation tasks. Located in 贵州, this model is ready to meet your project's needs with precision and power.
| Specifications | Value |
|---|---|
| No. | 1020281 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6800 |
| Bucket capacity (m³) | 0.28 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu CC-4JG1PAC |
| Rated power (kw/rpm) | 40/2100 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 28 |
| Rotation speed (rpm) | 10.9 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 49 |
| Rod digging force (kN) | 35 |
| Travel speed (km/h) | 2.6-4.2 |
| Maximum flow of main pump (l/min) | 149 |
| Traveling Hydraulic Circuit (Mpa) | 26 |
| Rotary Hydraulic Circuit (Mpa) | 21.6 |
| Control Hydraulic Circuit (Mpa) | 3.6 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2620 |
| Full cab height (mm) | 2620 |
| Minimum ground clearance (mm) | 355 |
| Back end turning radius (mm) | 1720 |
| Total track length (mm) | 2710 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2220 |
| Track ground length (mm) | 2170 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 4060 |
| Maximum excavation height (mm) | 7070 |
| Maximum unloading height (mm) | 5110 |
| Maximum vertical digging depth (mm) | 3410 |
| Bulldozer lift or depth (mm) | 390 |
