Product Description

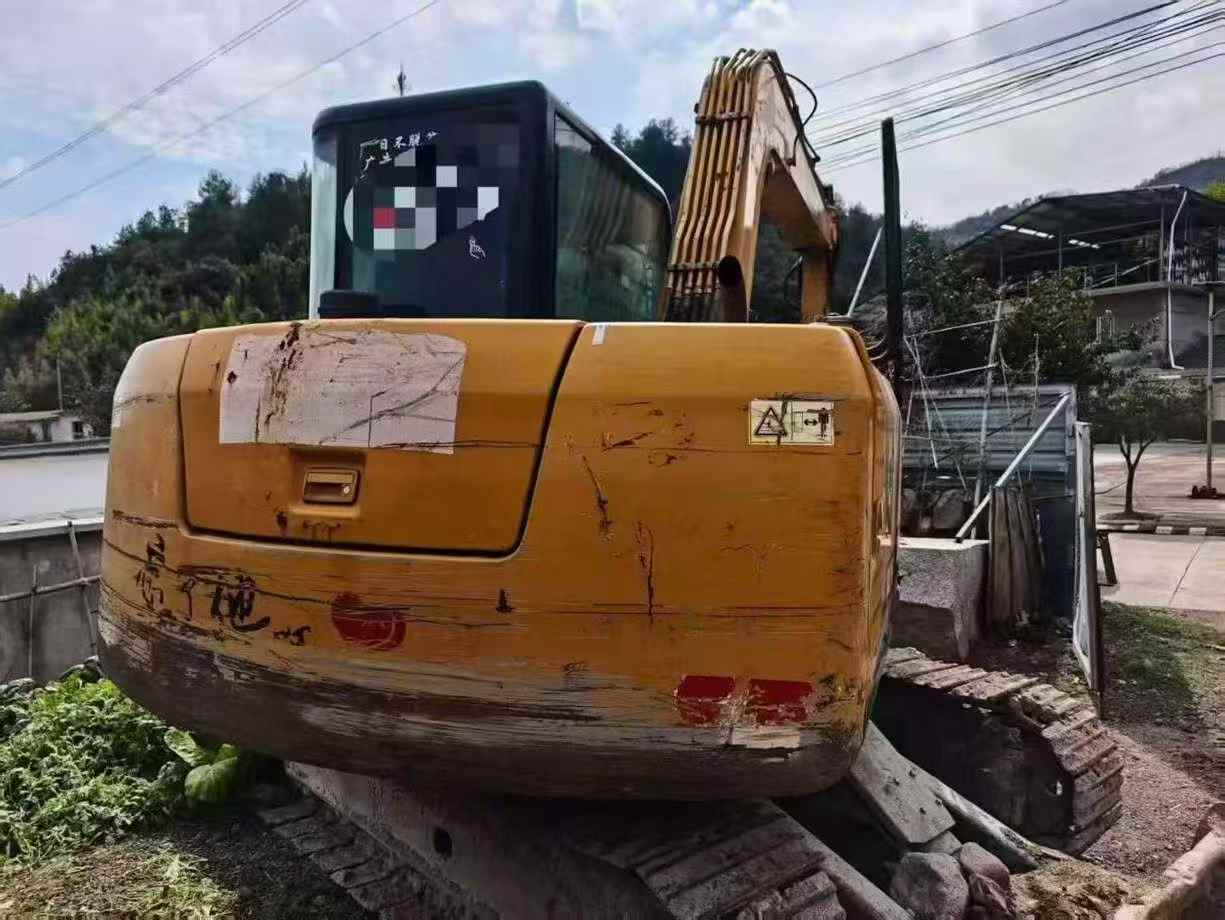

Proven reliability meets practical performance in this 2017 Sany SY75C-8 mini excavator, currently located in Guizhou. Powered by a robust Isuzu CC-4JG1PAC engine delivering 40kW at 2100rpm, this 7-ton machine combines dependable engineering with the accessibility that makes Sany a smart choice in the used equipment market. With a 0.28m³ bucket capacity, 4060mm maximum digging depth, and 6250mm working radius, this compact excavator handles urban construction, utility work, and landscaping projects with confidence.
Sany's global parts network ensures downtime stays minimal, while strong resale values protect your investment long-term. The water-cooled engine, 149 l/min hydraulic flow, and 49kN bucket digging force deliver consistent productivity shift after shift. At 6000mm transport length and 2220mm width, road transport remains straightforward.
- Operating weight: 6,800kg with 450mm track plates

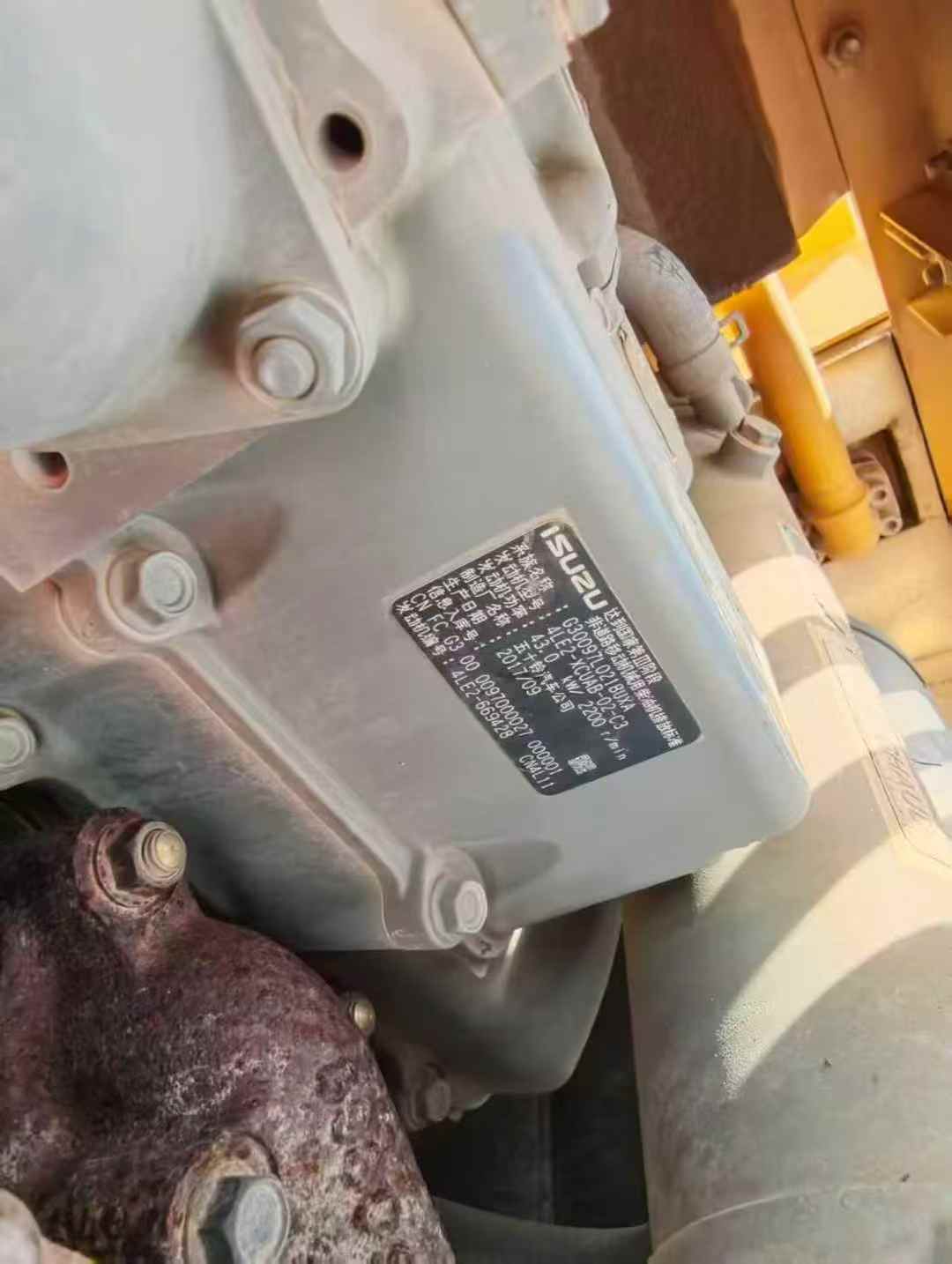

- Isuzu engine with proven durability in demanding conditions
- 70% grading ability (35°) for versatile terrain capability
- Comprehensive parts availability through established dealer networks
- 1720mm rear swing radius for confined workspace efficiency
| Specifications | Value |
|---|---|
| No. | 1027653 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6800 |
| Bucket capacity (m³) | 0.28 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu CC-4JG1PAC |
| Rated power (kw/rpm) | 40/2100 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 28 |
| Rotation speed (rpm) | 10.9 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 49 |
| Rod digging force (kN) | 35 |
| Travel speed (km/h) | 2.6-4.2 |
| Maximum flow of main pump (l/min) | 149 |
| Traveling Hydraulic Circuit (Mpa) | 26 |
| Rotary Hydraulic Circuit (Mpa) | 21.6 |
| Control Hydraulic Circuit (Mpa) | 3.6 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2620 |
| Full cab height (mm) | 2620 |
| Minimum ground clearance (mm) | 355 |
| Back end turning radius (mm) | 1720 |
| Total track length (mm) | 2710 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2220 |
| Track ground length (mm) | 2170 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 4060 |
| Maximum excavation height (mm) | 7070 |
| Maximum unloading height (mm) | 5110 |
| Maximum vertical digging depth (mm) | 3410 |
| Bulldozer lift or depth (mm) | 390 |
