Product Description

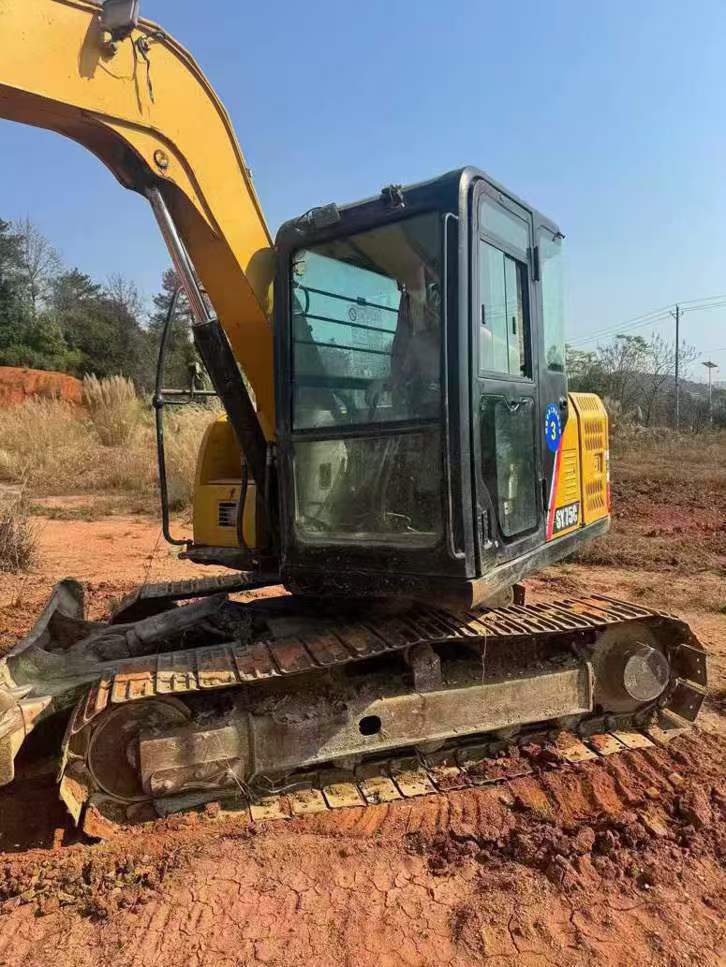

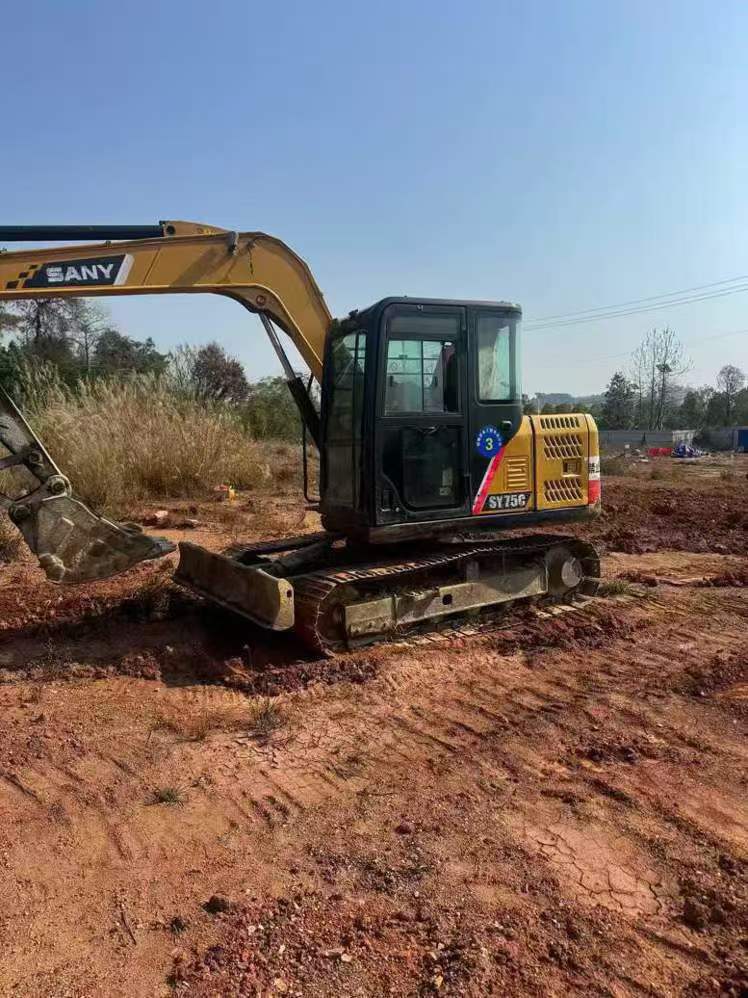

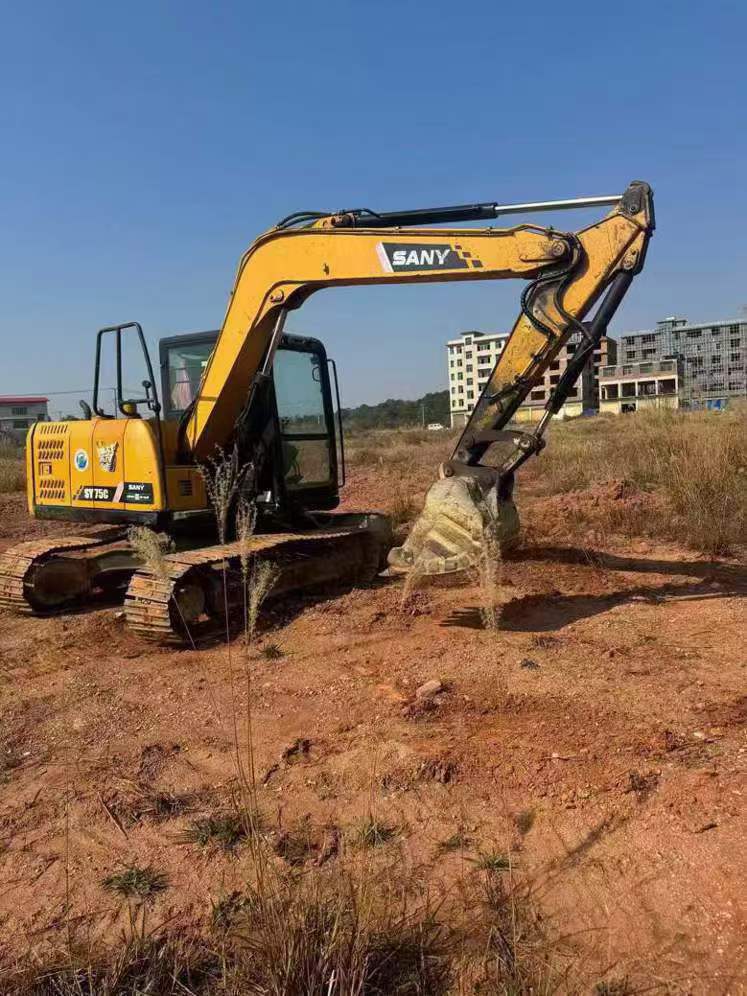

With a working weight of 6800 kg and a bucket capacity of 0.28 m³, the Sany SY75C-8 excavator, manufactured in 2020, offers robust performance for a variety of construction tasks. Equipped with an Isuzu CC-4JG1PAC engine, this model delivers a rated power of 40 kW at 2100 rpm, ensuring reliable and efficient operation. Sany's reputation for durability and parts availability makes it a solid choice in the used market, enhancing its resale value. The SY75C-8 features a backhoe bucket, providing a digging force of 49 kN, and a maximum digging depth of 4060 mm, making it ideal for demanding excavation projects.
- Engine: Isuzu CC-4JG1PAC, 40 kW/2100 rpm
- Bucket capacity: 0.28 m³
- Maximum digging depth: 4060 mm
- Travel speed: 2.6-4.2 km/h
- Location: 湖南
| Specifications | Value |
|---|---|
| No. | 1020493 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6800 |
| Bucket capacity (m³) | 0.28 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |

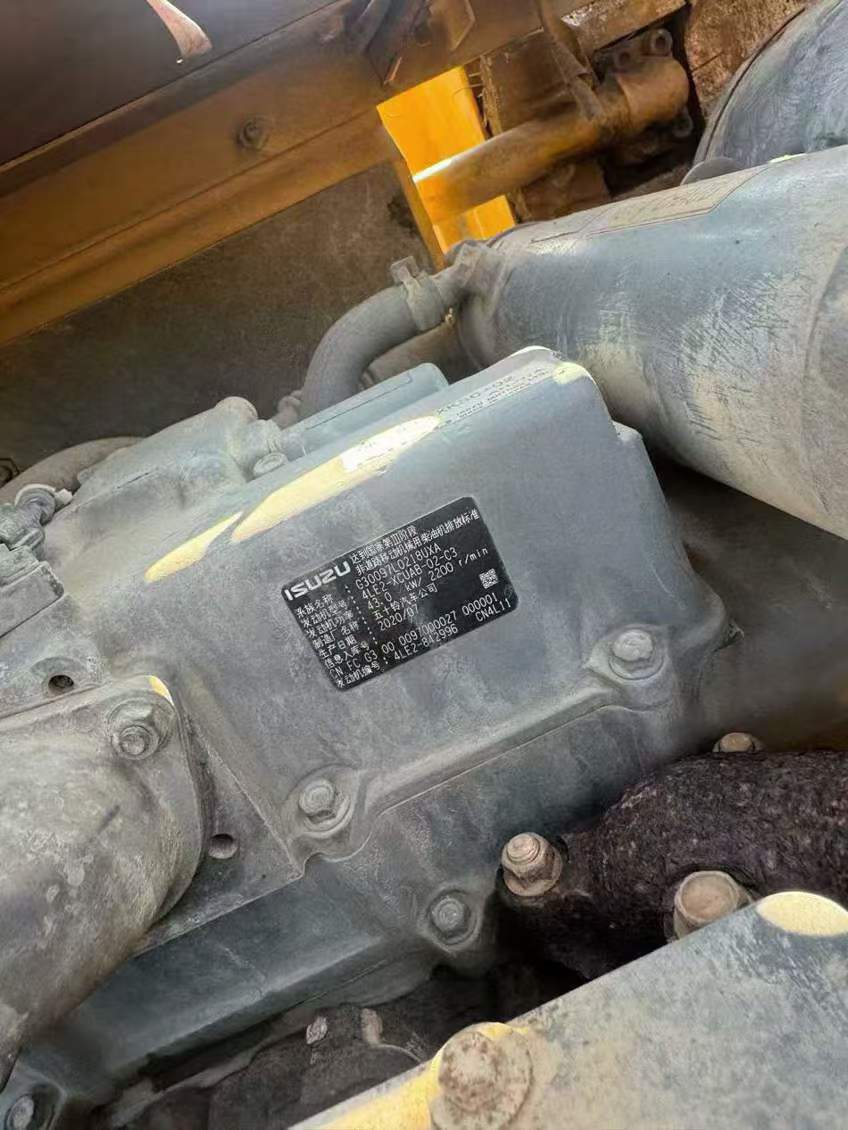

| Engine type | Isuzu CC-4JG1PAC |
| Rated power (kw/rpm) | 40/2100 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 28 |
| Rotation speed (rpm) | 10.9 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 49 |
| Rod digging force (kN) | 35 |
| Travel speed (km/h) | 2.6-4.2 |
| Maximum flow of main pump (l/min) | 149 |
| Traveling Hydraulic Circuit (Mpa) | 26 |
| Rotary Hydraulic Circuit (Mpa) | 21.6 |
| Control Hydraulic Circuit (Mpa) | 3.6 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2620 |
| Full cab height (mm) | 2620 |
| Minimum ground clearance (mm) | 355 |
| Back end turning radius (mm) | 1720 |
| Total track length (mm) | 2710 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2220 |
| Track ground length (mm) | 2170 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 4060 |
| Maximum excavation height (mm) | 7070 |
| Maximum unloading height (mm) | 5110 |
| Maximum vertical digging depth (mm) | 3410 |
| Bulldozer lift or depth (mm) | 390 |
