2015 Sumitomo SH350-5

1/9
Buy Sumitomo SH350-5 Used Excavator / 1

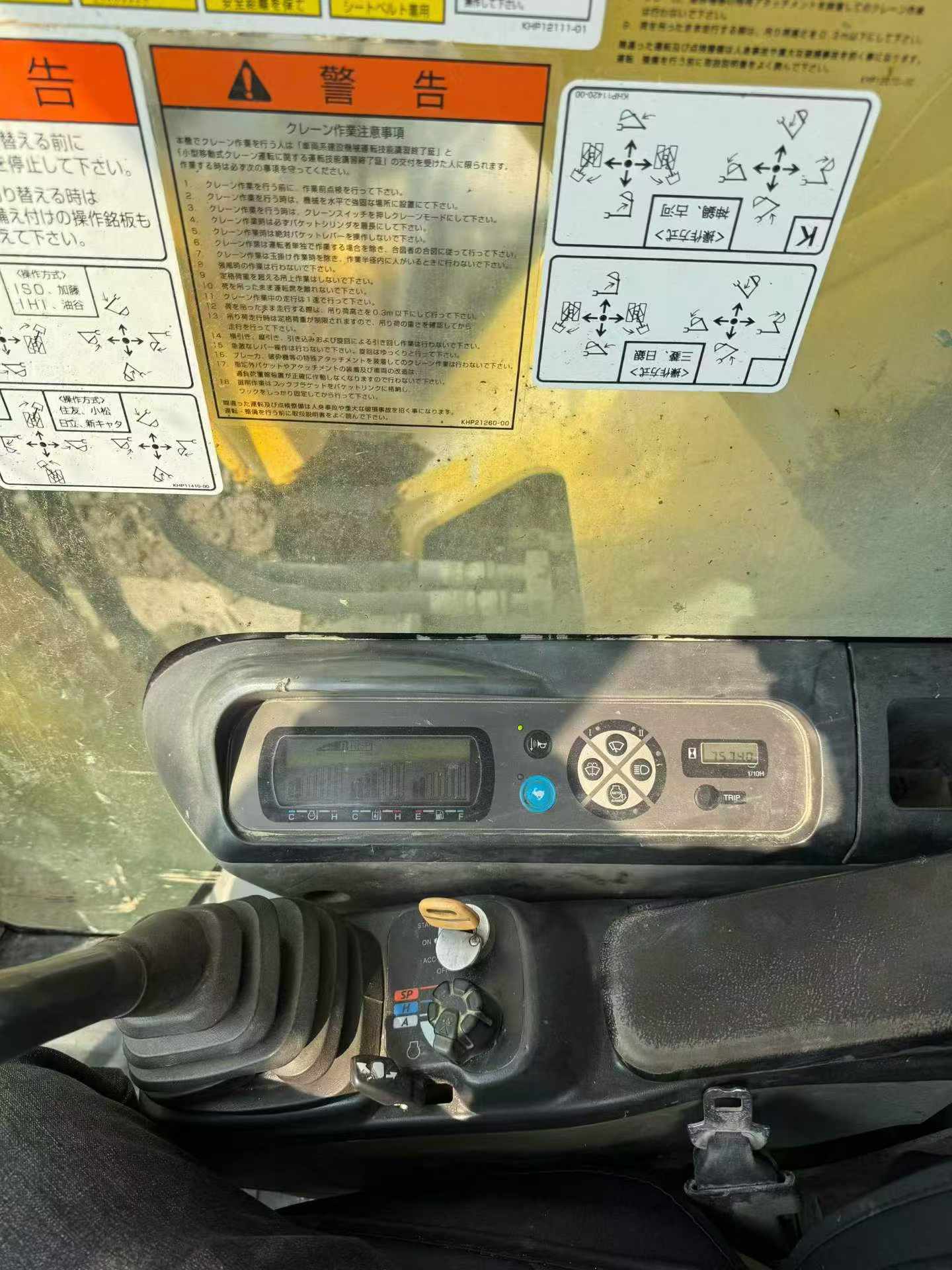

Buy Sumitomo SH350-5 Used Excavator / 2

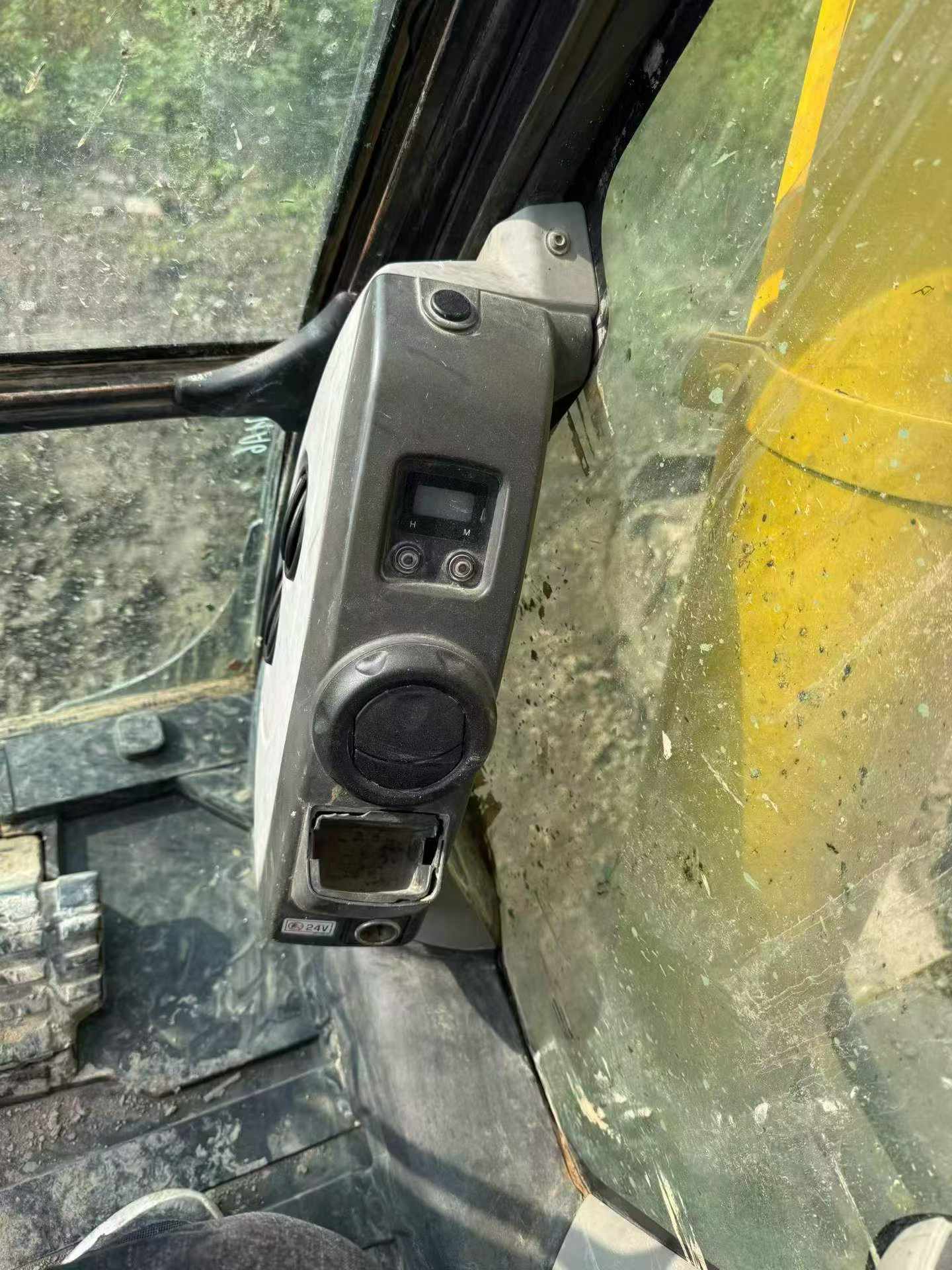

Buy Sumitomo SH350-5 Used Excavator / 3

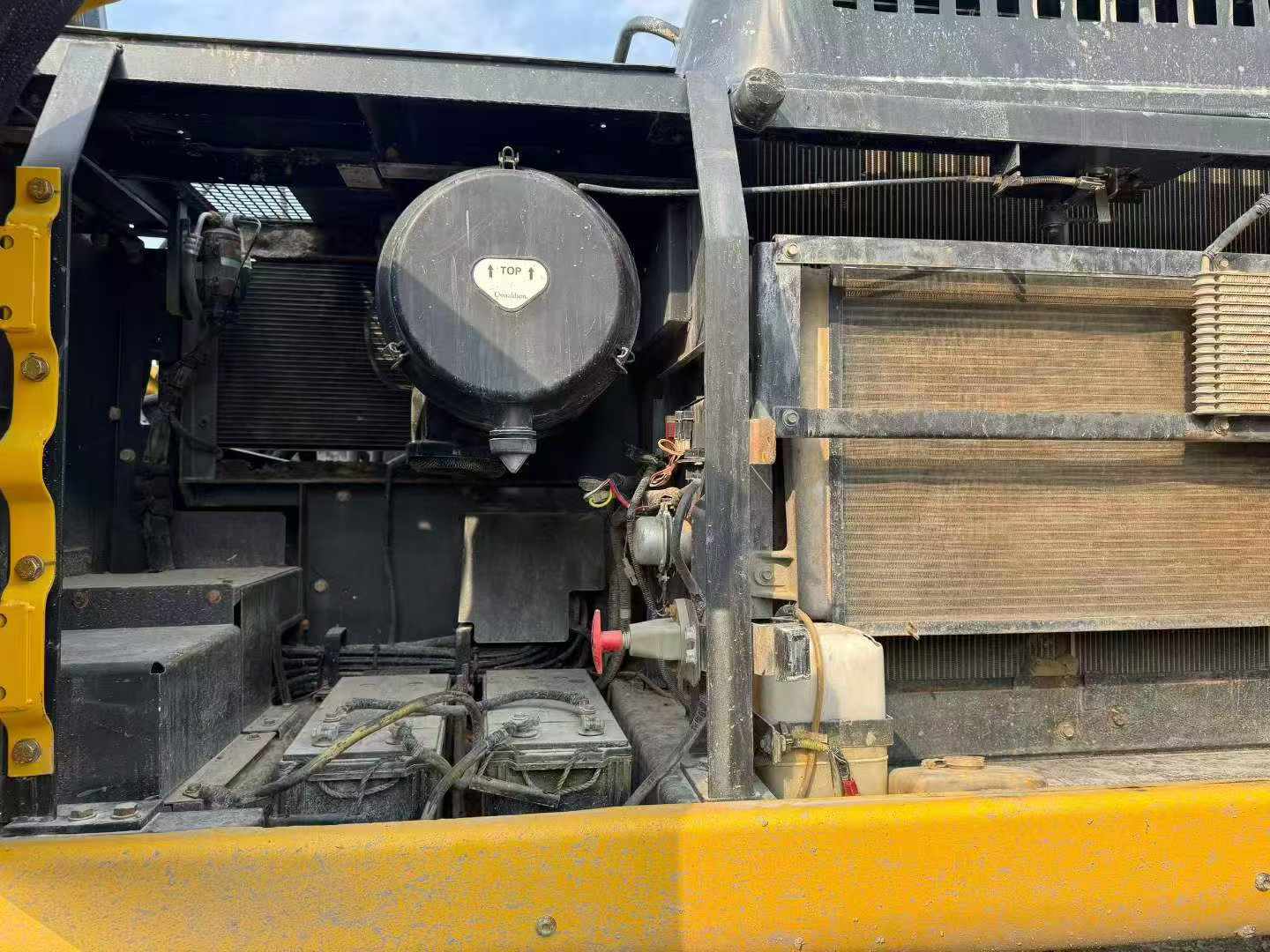

Buy Sumitomo SH350-5 Used Excavator / 4

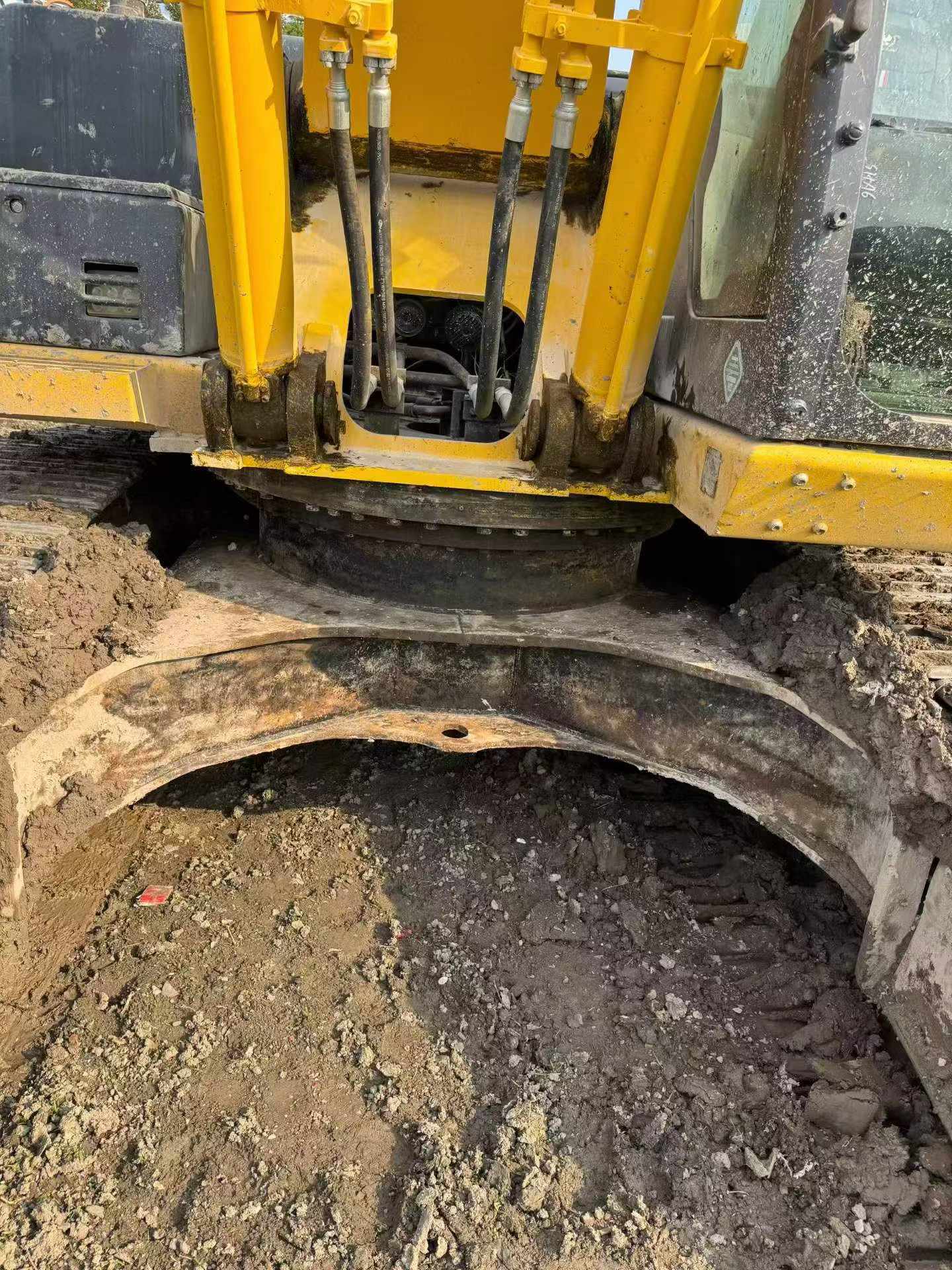

Buy Sumitomo SH350-5 Used Excavator / 5

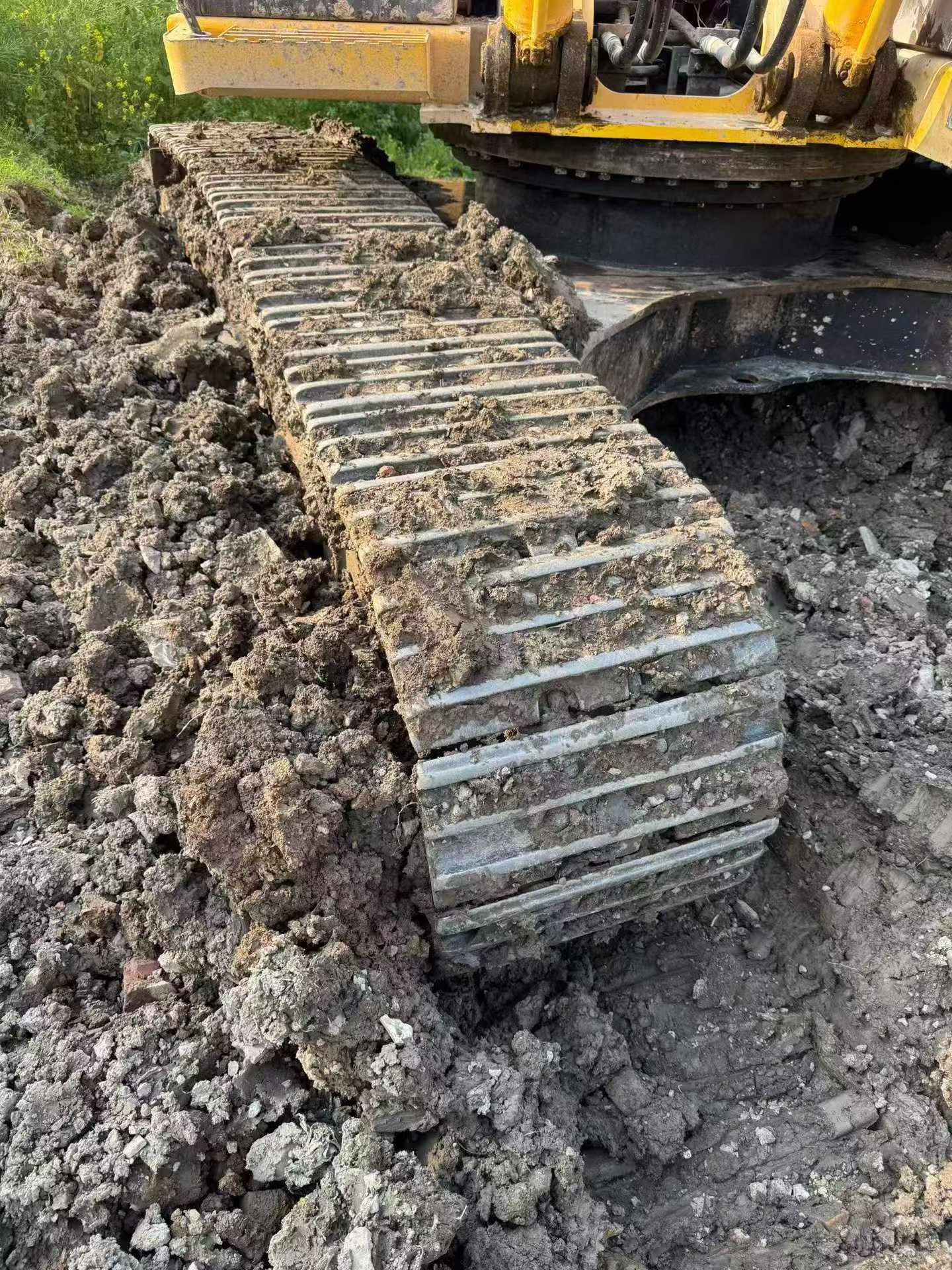

Buy Sumitomo SH350-5 Used Excavator / 6

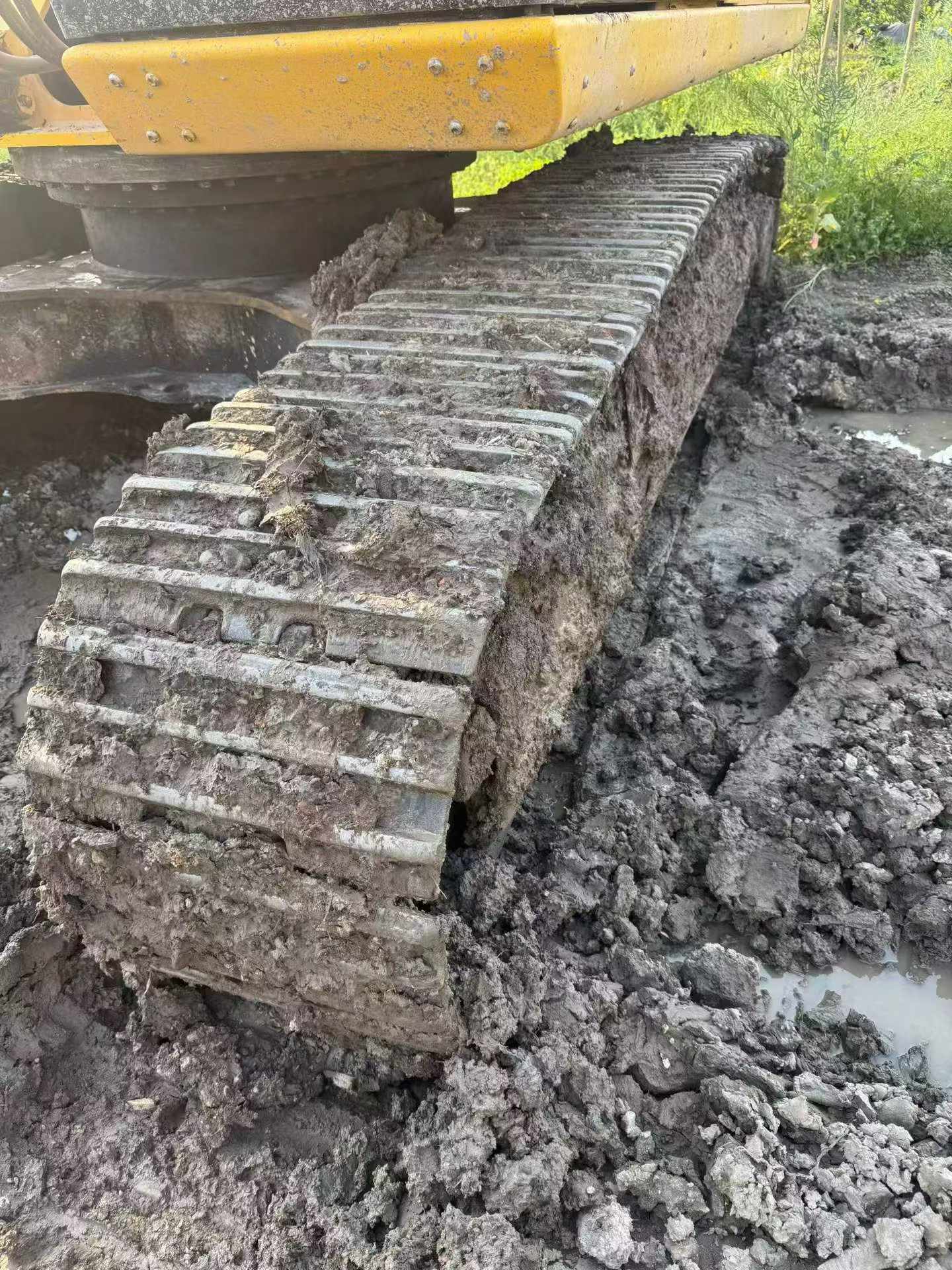

Buy Sumitomo SH350-5 Used Excavator / 7

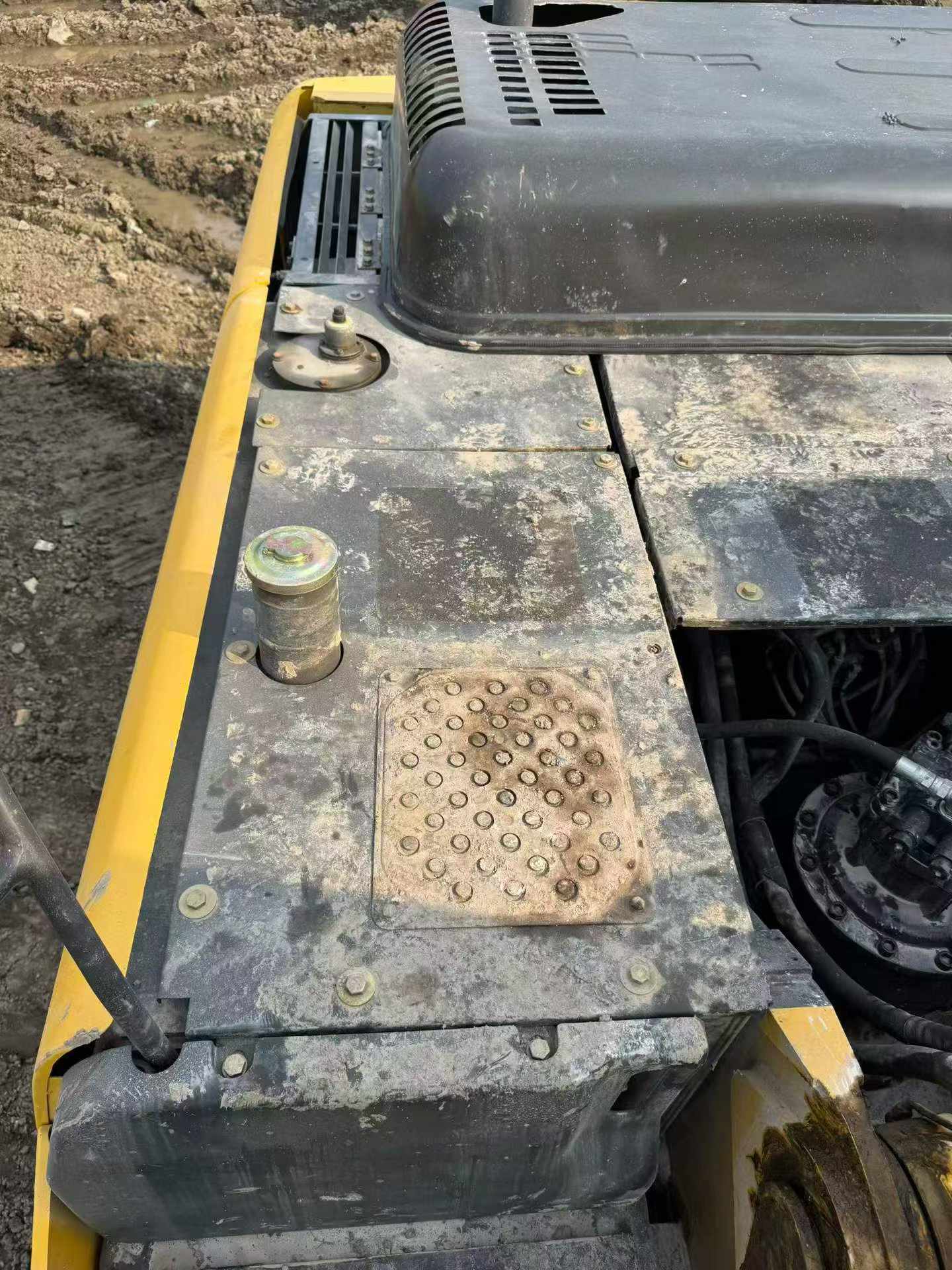

Buy Sumitomo SH350-5 Used Excavator / 8

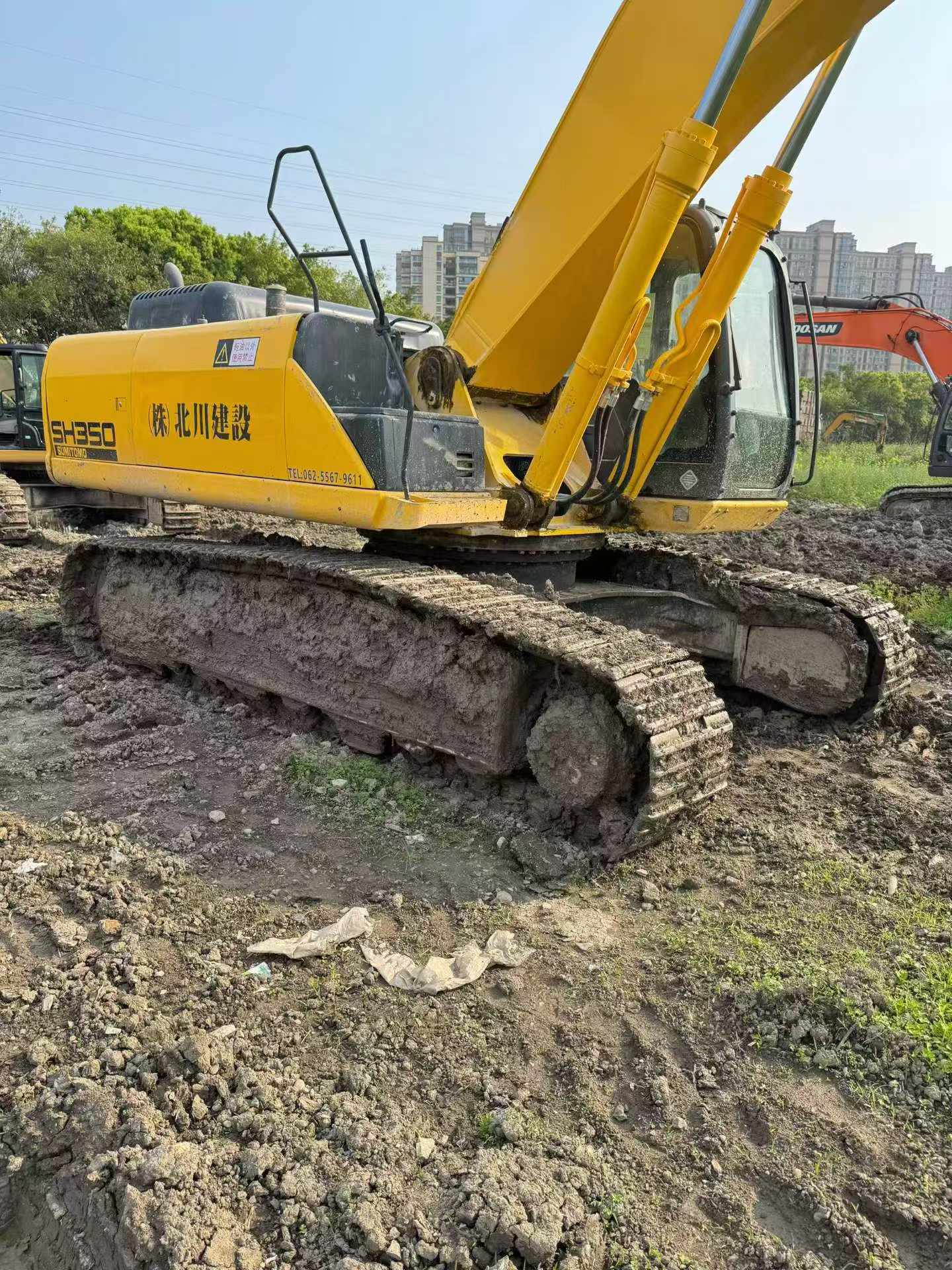

Buy Sumitomo SH350-5 Used Excavator / 9

Product Description

Built to endure, the Sumitomo SH350-5 has proven its worth on job sites worldwide since 2015 — and this 35-ton workhorse from Zhejiang, China shows what genuine build quality looks like after years of real-world operation. Powered by an Isuzu AH-6HK1XYSS engine producing 202 kW at 2000 rpm across a 7.79L displacement, this machine delivers consistent, reliable performance without compromise.

With a bucket digging force of 229 kN and a maximum digging depth of 7,340 mm, it handles demanding excavation with authority. A 580L fuel tank and 350L hydraulic tank keep downtime low on extended shifts, while a 70% climbing ability confirms it performs where conditions get tough.

  • Working weight: 35,200 kg | Bucket capacity: 1.2–1.8 m³
  • Rated power: 202 kW / 2000 rpm | Engine: AH-6HK1XYSS (7.79L)
  • Max digging radius: 11,170 mm | Max digging depth: 7,340 mm
  • Max excavation height: 10,370 mm | Max unloading height: 7,230 mm
  • Bucket digging force: 229 kN | Rod digging force: 164 kN
  • Max tractive force: 264 kN | Travel speed: 5.5 / 3.5 km/h
  • Fuel tank: 580L | Hydraulic tank: 350L
  • Transport dimensions: 11,050 × 3,200 × 3,260 mm
SpecificationsValue
No.1071108
Tonnage (tons)35
Working weight (kg)35200
Bucket capacity (m³)1.2-1.8
powerTraditional power
manufacturerJoint venture/Import
bucketbackhoe
Engine typeAH-6HK1XYSS
Rated power (kw/rpm)202/2000
Displacement (L)7.79
Ground specific pressure (Kpa)71
Rotation speed (rpm)9.8
Climbing ability (%)70
Bucket digging force (kN)229
Rod digging force (kN)164
Maximum tractive force (kN)264
Travel speed (km/h)5.5/3.5
Main overflow set pressure (Mpa)34.3/37.3
Fuel Tank (L)580
Hydraulic Tank (L)350
Total transport length (mm)11050
Total transport width (mm)3200
Total transport height (mm)3260
Minimum ground clearance (mm)480
Minimum turning radius of front working device (mm)4500
Back end turning radius (mm)3450
Total track length (mm)4650
Track gauge (mm)2600
Track plate width (mm)600
Total track width (mm)3200
Maximum digging radius (mm)11170
Maximum digging depth (mm)7340
Maximum excavation height (mm)10370
Maximum unloading height (mm)7230
Maximum vertical digging depth (mm)6350
see more

Overview

No.1071108

Brand Name:

Sumitomo

Model Number:

SH350-5

Year:

2015

Location:

Zhejiang China
