Product Description

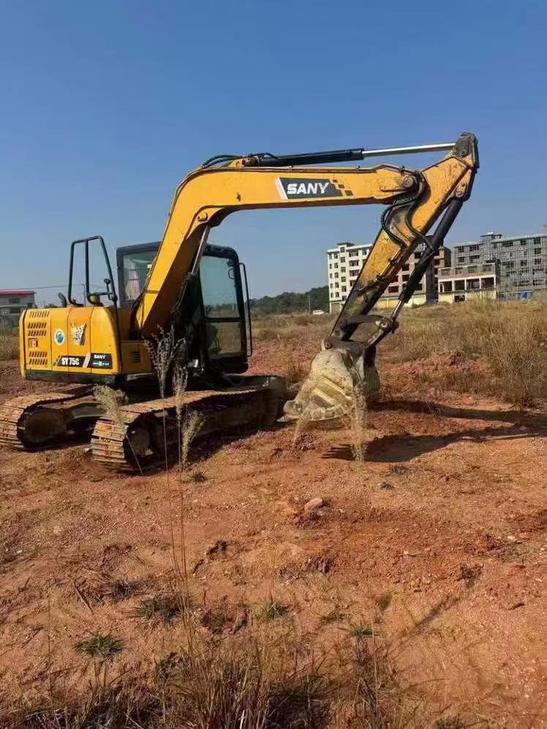

With a working weight of 6800 kg and a bucket capacity of 0.28 m³, this 2020 Sany SY75C-8 excavator, located in Hunan, China, offers high performance at a fraction of the cost of new machinery. Powered by an Isuzu CC-4JG1PAC engine with a rated power of 40 kW at 2100 rpm, it ensures reliable and efficient operation. Ideal for various construction and excavation tasks, it boasts a maximum digging depth of 4060 mm and a maximum unloading height of 5110 mm. The machine's robust design, including a backhoe bucket and water-cooling system, makes it a smart investment for projects requiring precision and durability. Its compact size, with a total transport length of 6000 mm and width of 2220 mm, facilitates easy transportation and maneuverability on site.
- 7-ton class, ideal for medium to small-scale construction and excavation tasks
- High digging force: 49 kN for the bucket and 35 kN for the rod
- Travel speed of 2.6-4.2 km/h, enhancing job site mobility
- Maximum flow of main pump: 149 l/min, ensuring powerful hydraulic performance
- Compact dimensions for easy transportation and maneuverability
| Specifications | Value |
|---|---|
| No. | 1021194 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6800 |
| Bucket capacity (m³) | 0.28 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu CC-4JG1PAC |
| Rated power (kw/rpm) | 40/2100 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 28 |
| Rotation speed (rpm) | 10.9 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 49 |
| Rod digging force (kN) | 35 |
| Travel speed (km/h) | 2.6-4.2 |
| Maximum flow of main pump (l/min) | 149 |
| Traveling Hydraulic Circuit (Mpa) | 26 |
| Rotary Hydraulic Circuit (Mpa) | 21.6 |
| Control Hydraulic Circuit (Mpa) | 3.6 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2620 |
| Full cab height (mm) | 2620 |
| Minimum ground clearance (mm) | 355 |
| Back end turning radius (mm) | 1720 |
| Total track length (mm) | 2710 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2220 |
| Track ground length (mm) | 2170 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 4060 |
| Maximum excavation height (mm) | 7070 |
| Maximum unloading height (mm) | 5110 |
| Maximum vertical digging depth (mm) | 3410 |
| Bulldozer lift or depth (mm) | 390 |
