2020 Sany SY75C-8

1/9

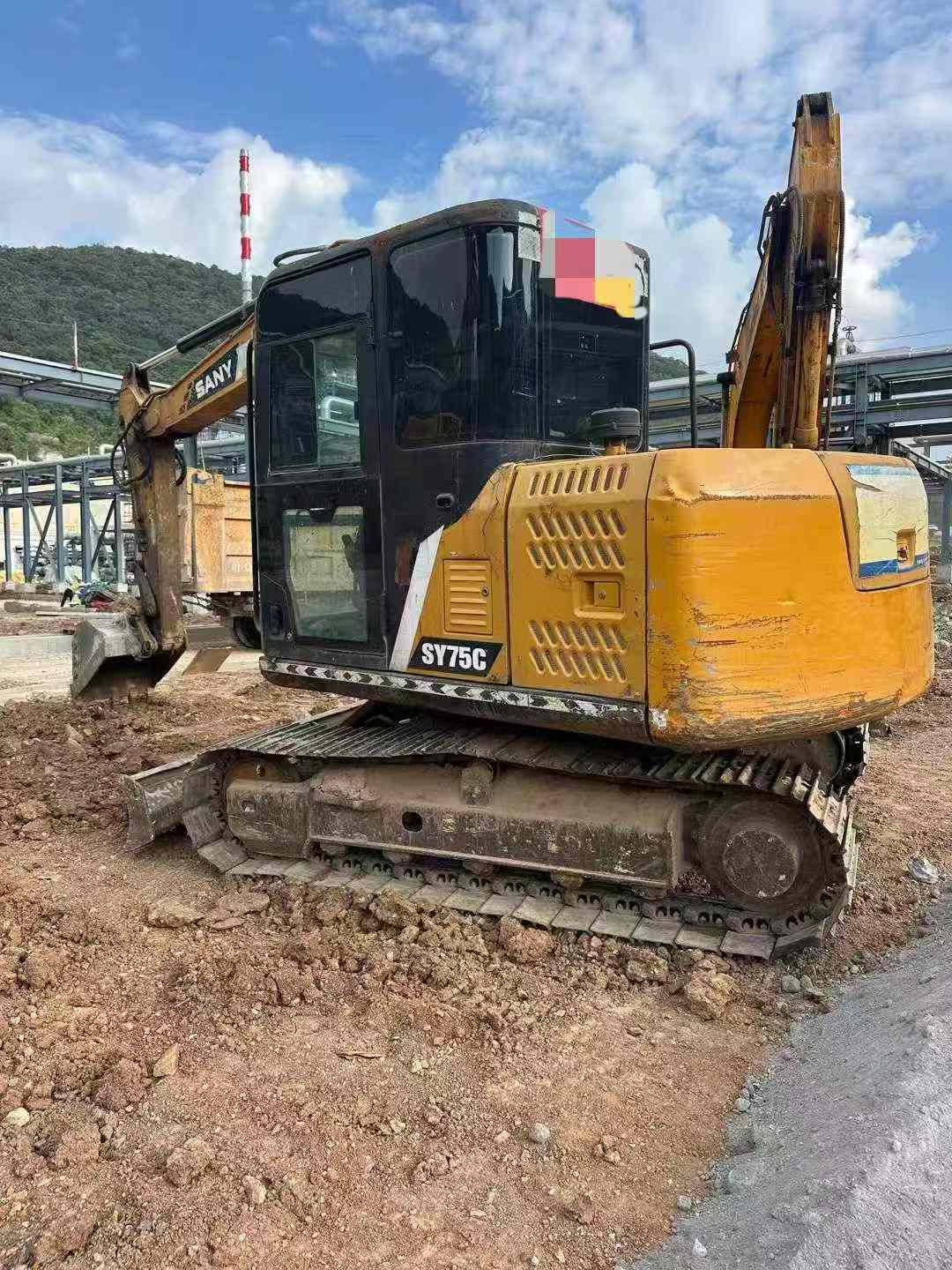

Buy Sany SY75C-8 Used Excavator / 1

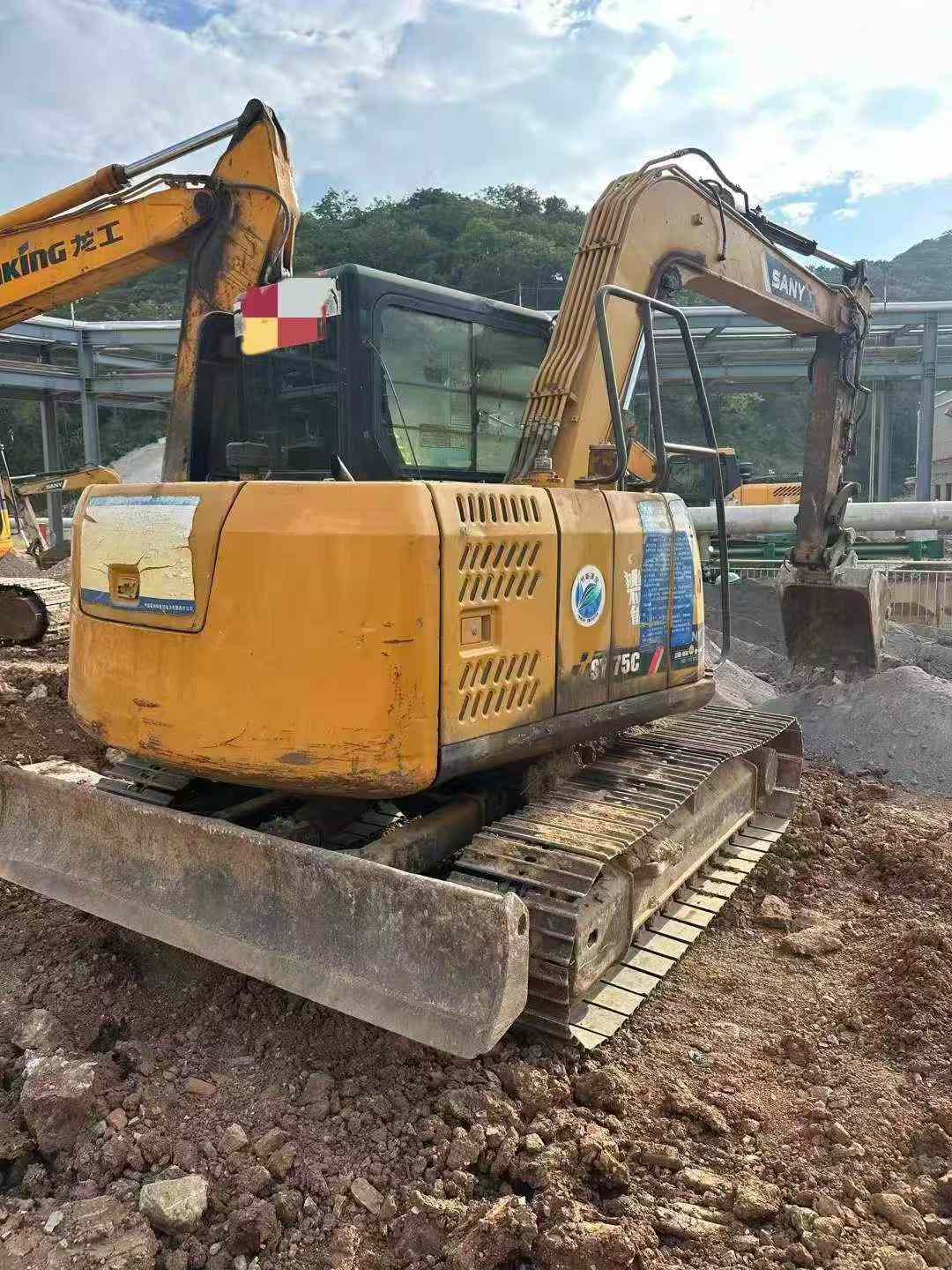

Buy Sany SY75C-8 Used Excavator / 2

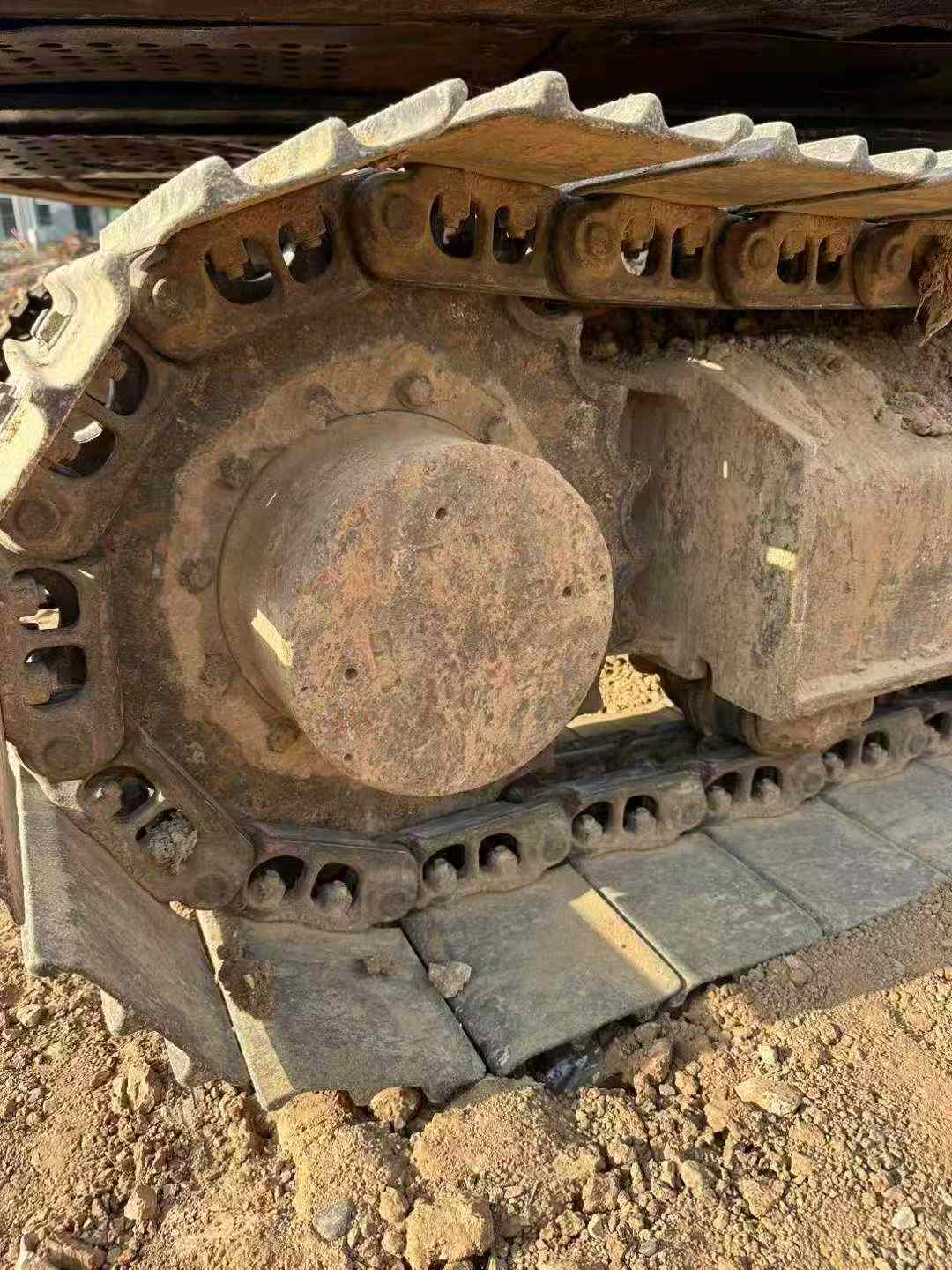

Buy Sany SY75C-8 Used Excavator / 3

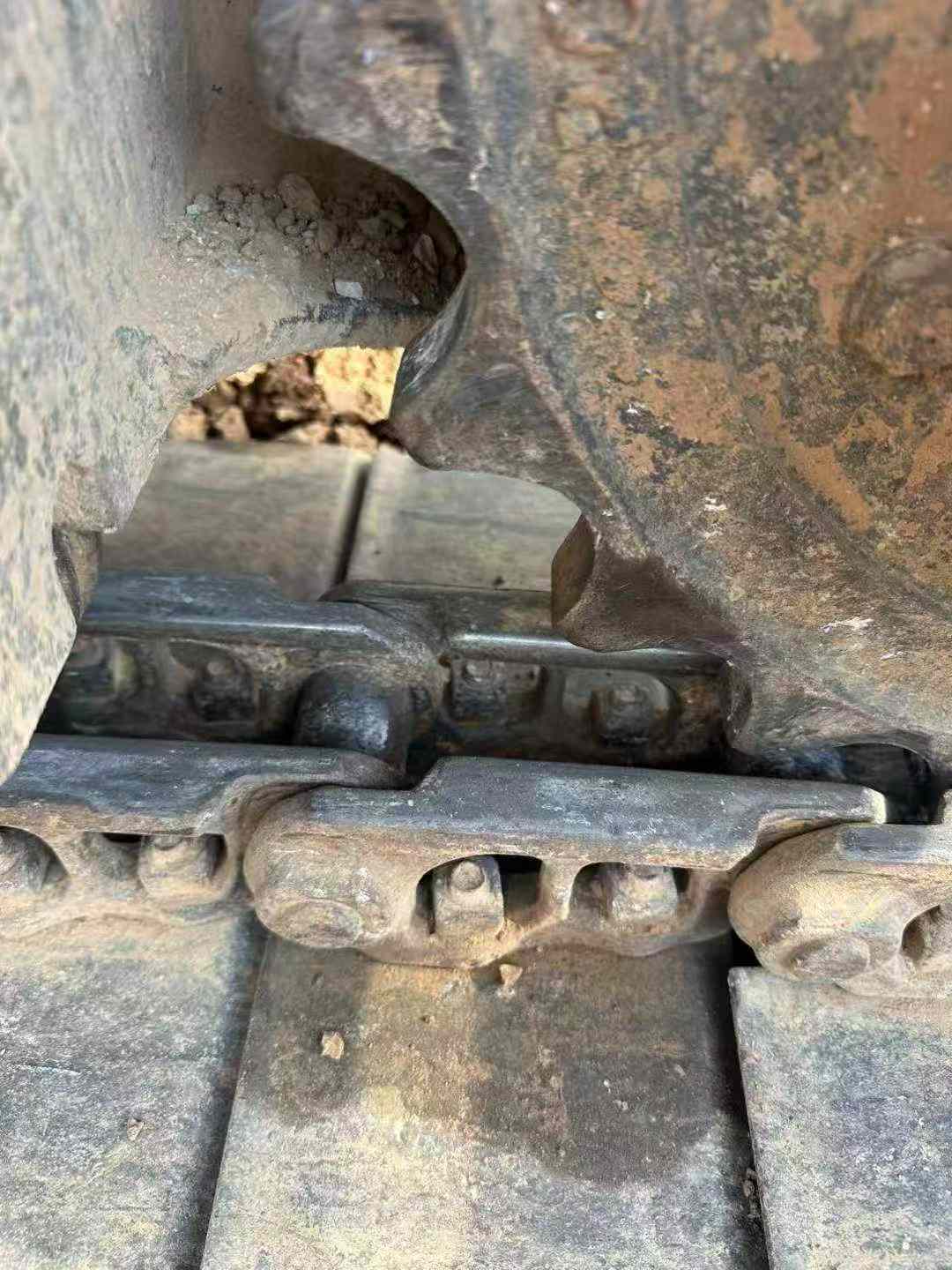

Buy Sany SY75C-8 Used Excavator / 4

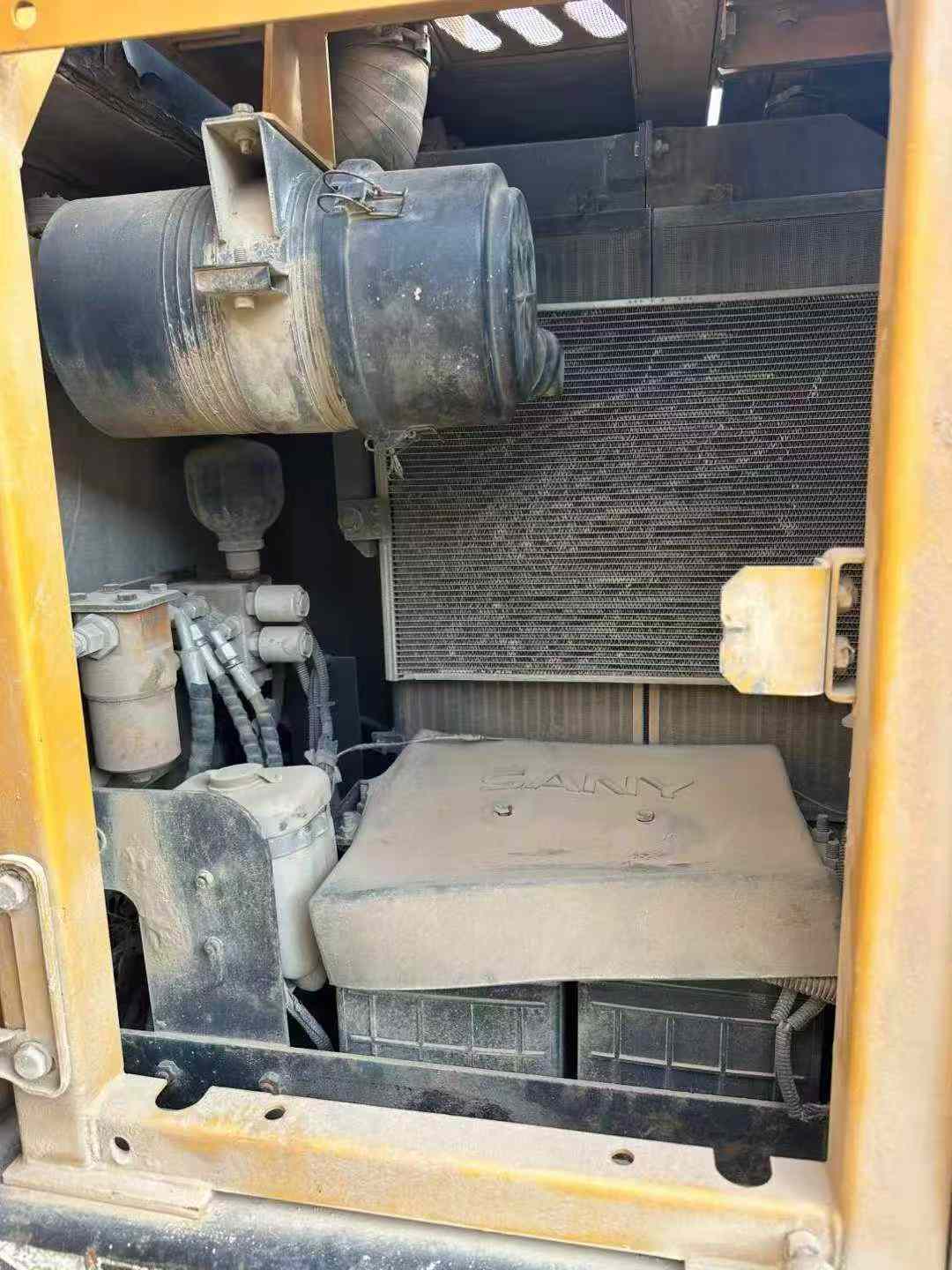

Buy Sany SY75C-8 Used Excavator / 5

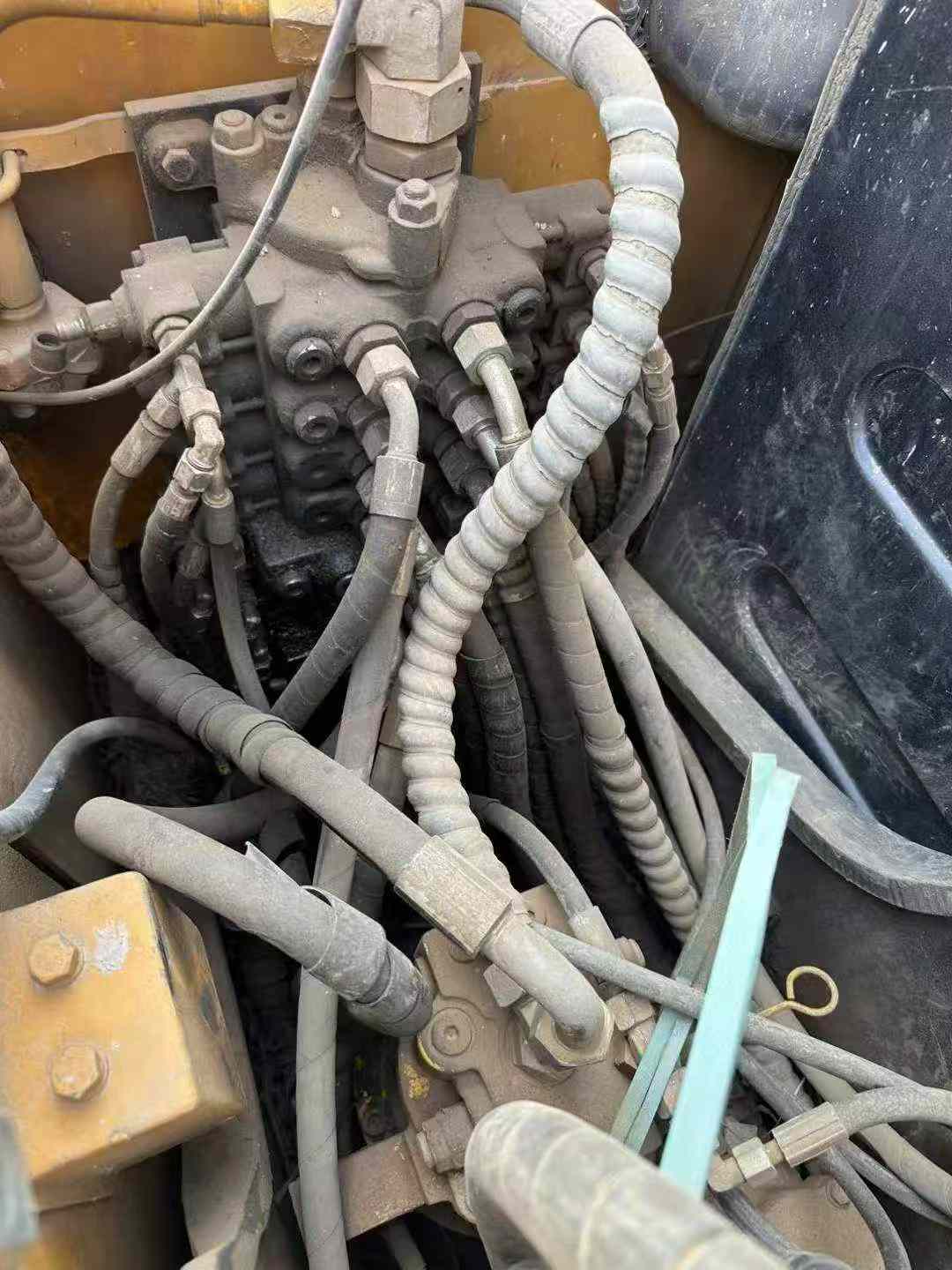

Buy Sany SY75C-8 Used Excavator / 6

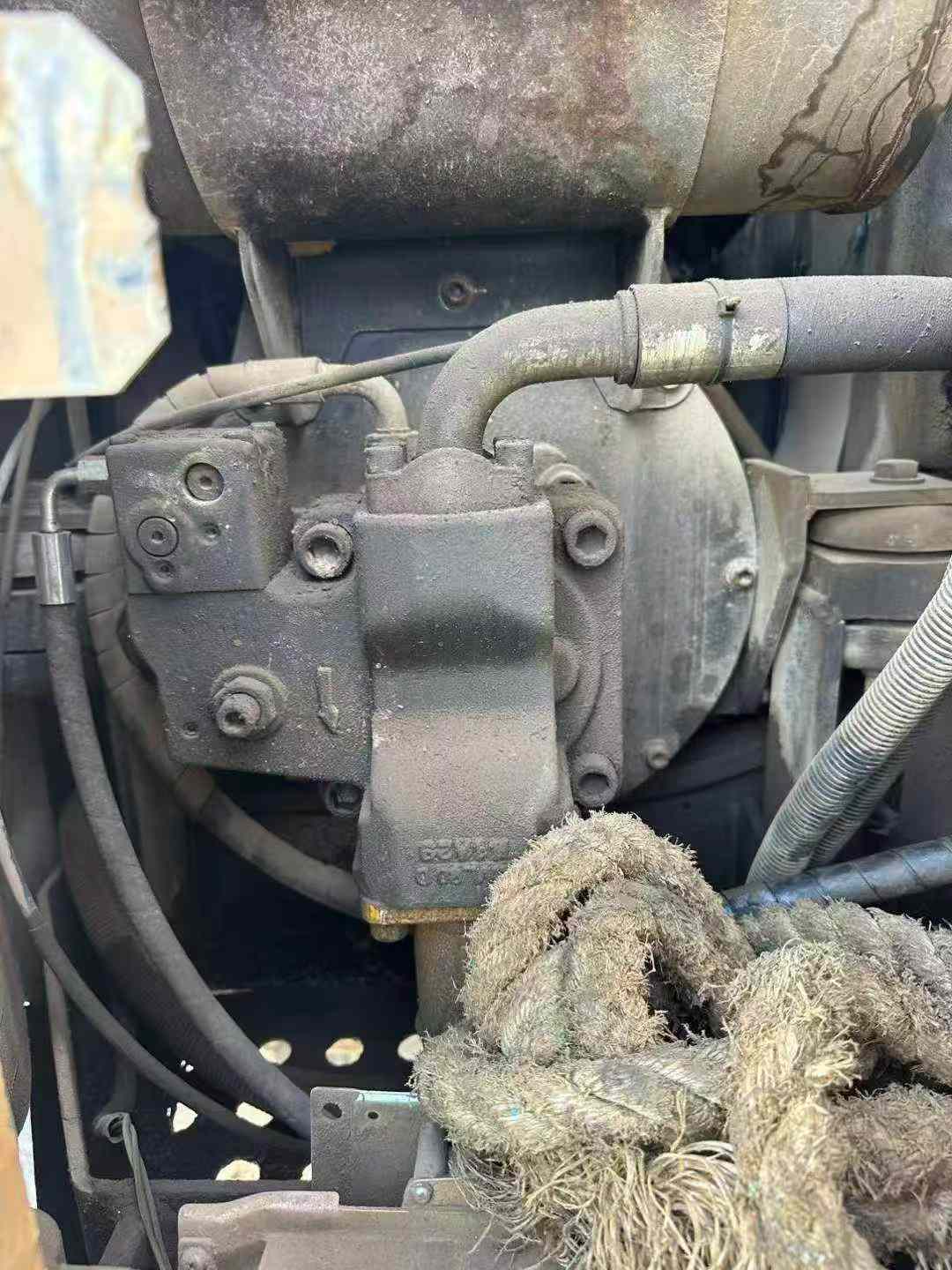

Buy Sany SY75C-8 Used Excavator / 7

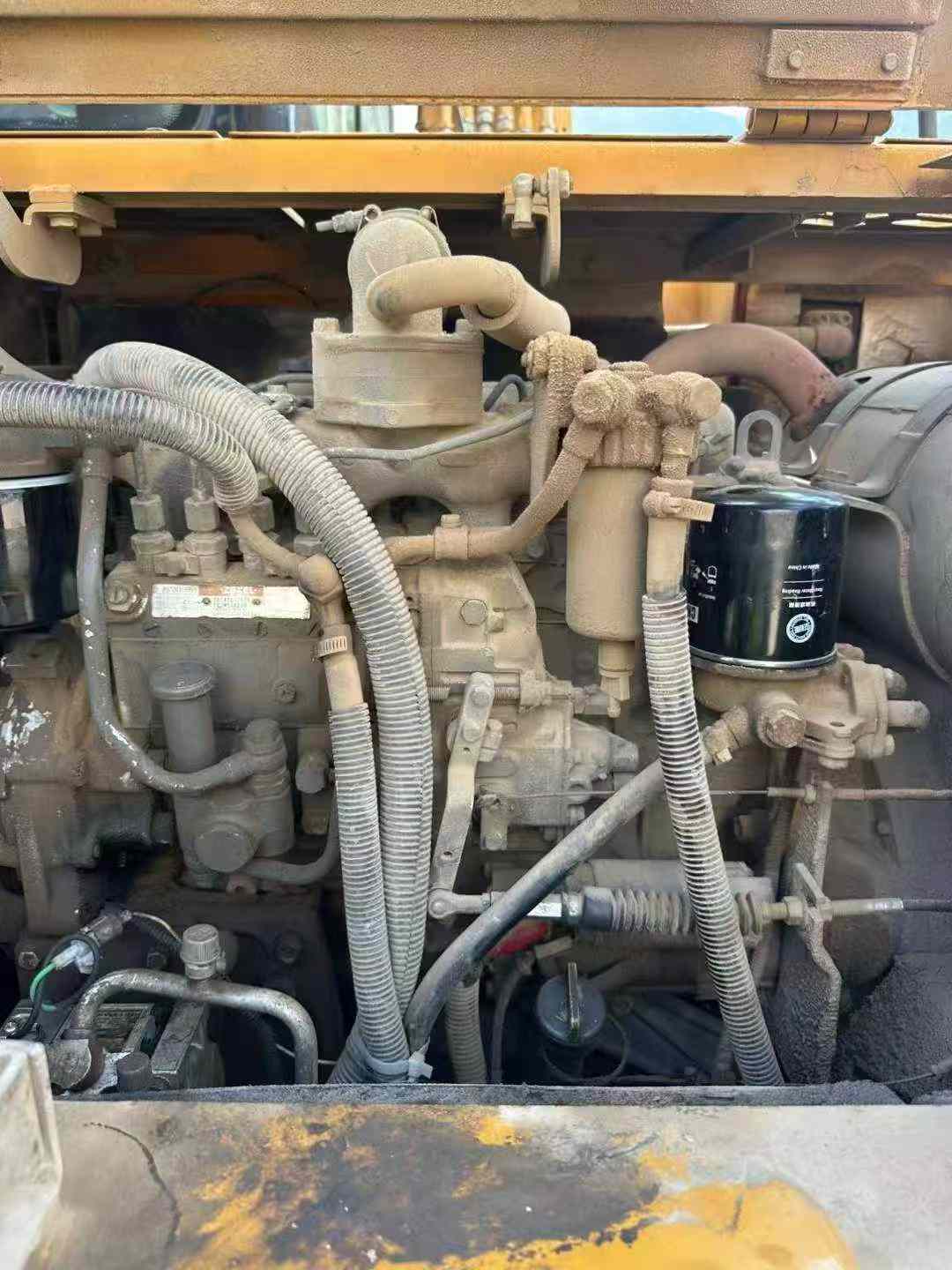

Buy Sany SY75C-8 Used Excavator / 8

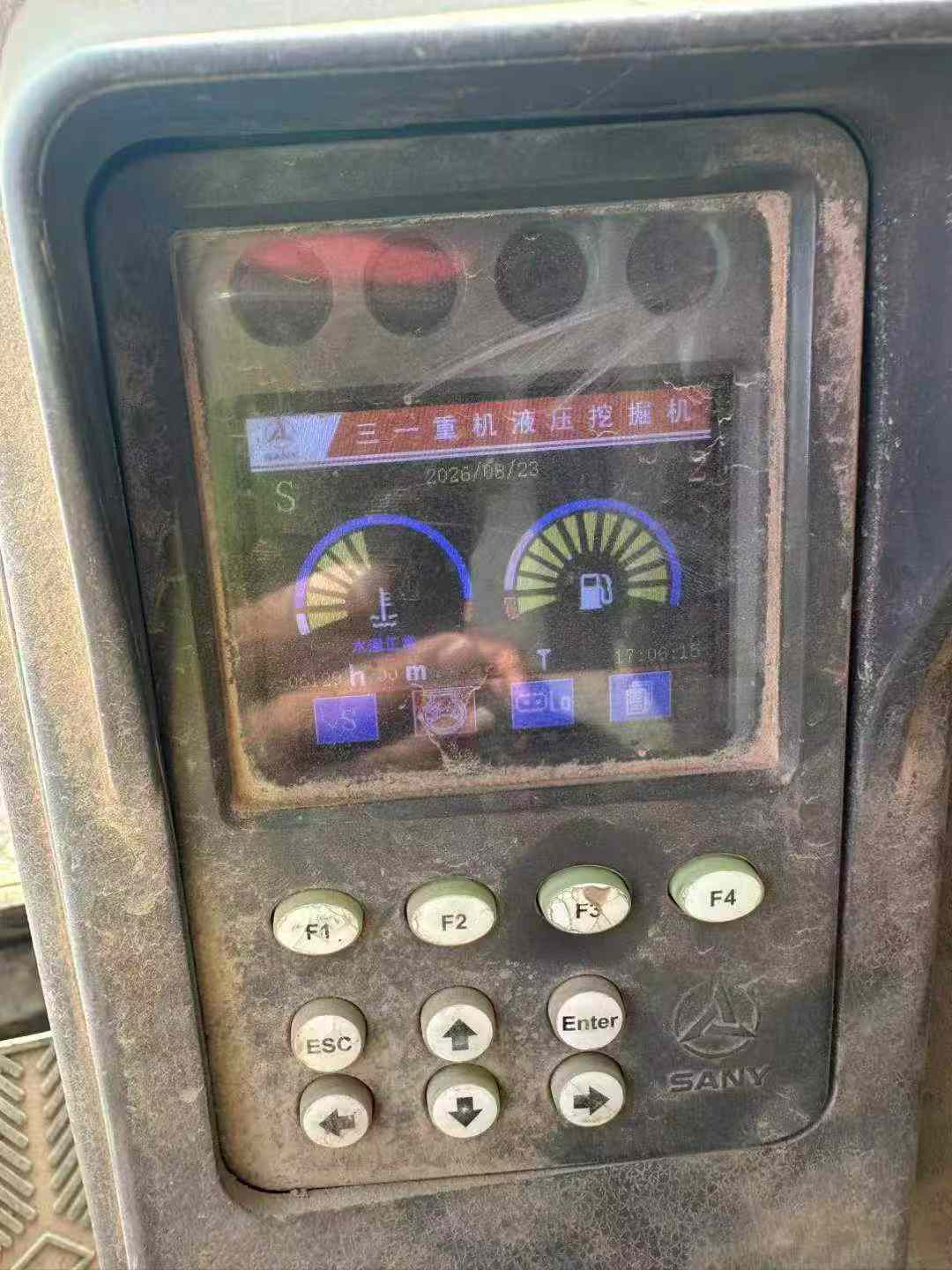

Buy Sany SY75C-8 Used Excavator / 9

Product Description

Discover the reliability and performance of the 2020 Sany SY75C-8, now available for immediate shipment from Zhejiang, China. This compact excavator is designed to meet the rigorous demands of various construction and excavation projects, offering a blend of power, efficiency, and durability. Ideal for contractors and industrial operators, the SY75C-8 features enhanced digging force and improved fuel economy, ensuring cost-effective operation. With its robust build and user-friendly controls, this machine is ready to tackle tough jobs while maintaining ease of use.

  • Year: 2020
  • Brand: Sany
  • Model: SY75C-8
  • Location: Zhejiang, China
  • Condition: Used, in excellent working condition
SpecificationsValue
No.1132114
Tonnage (tons)7
Working weight (kg)6800
Bucket capacity (m³)0.28
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeIsuzu CC-4JG1PAC
Rated power (kw/rpm)40/2100
Cooling modewater-cooling
Ground specific pressure (Kpa)28
Rotation speed (rpm)10.9
Climbing ability (%)70% / 35 °
Bucket digging force (kN)49
Rod digging force (kN)35
Travel speed (km/h)2.6-4.2
Maximum flow of main pump (l/min)149
Traveling Hydraulic Circuit (Mpa)26
Rotary Hydraulic Circuit (Mpa)21.6
Control Hydraulic Circuit (Mpa)3.6
Hydraulic crushing pipeline is standardno
Total transport length (mm)6000
Total transport width (mm)2220
Total transport height (mm)2620
Full cab height (mm)2620
Minimum ground clearance (mm)355
Back end turning radius (mm)1720
Total track length (mm)2710
Track gauge (mm)1750
Track plate width (mm)450
Total track width (mm)2220
Track ground length (mm)2170
Maximum digging radius (mm)6250
Maximum digging depth (mm)4060
Maximum excavation height (mm)7070
Maximum unloading height (mm)5110
Maximum vertical digging depth (mm)3410
Bulldozer lift or depth (mm)390
see more

Overview

No.1132114

Brand Name:

Sany

Model Number:

SY75C-8

Year:

2020

Location:

Zhejiang China

Pub Date
