Product Description

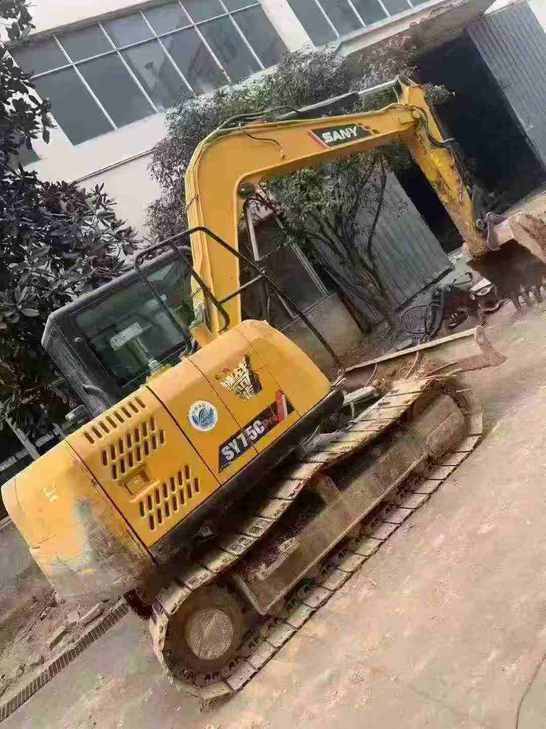

Powered by the Isuzu CC-4JG1PAC engine, delivering 40 kW at 2100 rpm, the Sany SY75C-8 ensures robust performance and reliability. Equipped with a water-cooling system, this 7-ton excavator maintains optimal operating temperatures even under heavy loads. The hydraulic system, featuring a maximum flow of 149 l/min from the main pump, provides precise control and efficiency. With a bucket capacity of 0.28 m³ and a digging force of 49 kN, it excels in demanding excavation tasks.
- Engine: Isuzu CC-4JG1PAC, 40 kW/2100 rpm
- Hydraulics: Main pump flow 149 l/min, traveling circuit 26 Mpa, rotary circuit 21.6 Mpa
- Bucket: 0.28 m³ backhoe, 49 kN digging force
- Dimensions: Total transport length 6000 mm, width 2220 mm, height 2620 mm
- Performance: Maximum digging radius 6250 mm, depth 4060 mm, unloading height 5110 mm
Designed for durability and precision, the SY75C-8 is a testament to Sany's engineering excellence, offering a versatile solution for various construction and excavation needs.
| Specifications | Value |
|---|---|
| No. | 1020618 |
| Tonnage (tons) | 7 |
| Working weight (kg) | 6800 |
| Bucket capacity (m³) | 0.28 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Isuzu CC-4JG1PAC |
| Rated power (kw/rpm) | 40/2100 |
| Cooling mode | water-cooling |
| Ground specific pressure (Kpa) | 28 |
| Rotation speed (rpm) | 10.9 |
| Climbing ability (%) | 70% / 35 ° |
| Bucket digging force (kN) | 49 |
| Rod digging force (kN) | 35 |
| Travel speed (km/h) | 2.6-4.2 |
| Maximum flow of main pump (l/min) | 149 |
| Traveling Hydraulic Circuit (Mpa) | 26 |
| Rotary Hydraulic Circuit (Mpa) | 21.6 |
| Control Hydraulic Circuit (Mpa) | 3.6 |
| Hydraulic crushing pipeline is standard | no |
| Total transport length (mm) | 6000 |
| Total transport width (mm) | 2220 |
| Total transport height (mm) | 2620 |
| Full cab height (mm) | 2620 |
| Minimum ground clearance (mm) | 355 |
| Back end turning radius (mm) | 1720 |
| Total track length (mm) | 2710 |
| Track gauge (mm) | 1750 |
| Track plate width (mm) | 450 |
| Total track width (mm) | 2220 |
| Track ground length (mm) | 2170 |
| Maximum digging radius (mm) | 6250 |
| Maximum digging depth (mm) | 4060 |
| Maximum excavation height (mm) | 7070 |
| Maximum unloading height (mm) | 5110 |
| Maximum vertical digging depth (mm) | 3410 |
| Bulldozer lift or depth (mm) | 390 |
