2020 Sany SY870H

1/9
Buy Sany SY870H Used Excavator / 1
Buy Sany SY870H Used Excavator / 2
Buy Sany SY870H Used Excavator / 3
Buy Sany SY870H Used Excavator / 4
Buy Sany SY870H Used Excavator / 5
Buy Sany SY870H Used Excavator / 6
Buy Sany SY870H Used Excavator / 7
Buy Sany SY870H Used Excavator / 8
Buy Sany SY870H Used Excavator / 9

Product Description

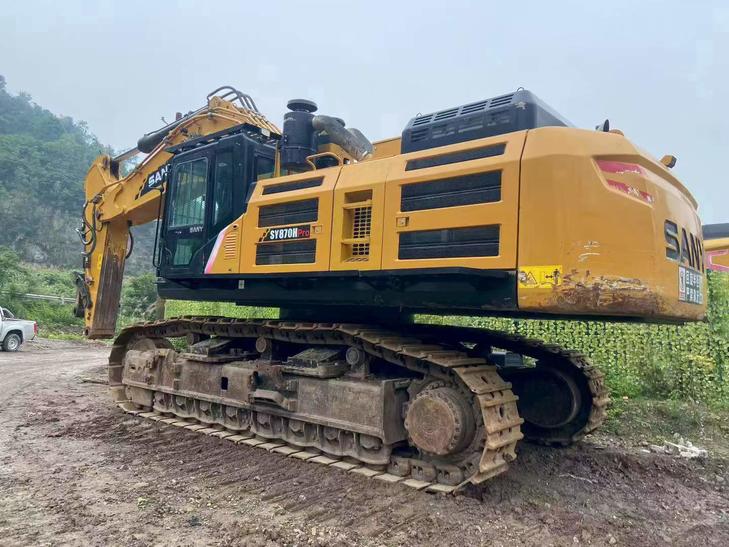

This 2020 Sany SY870H hydraulic excavator represents a well-maintained example of Sany's heavy-duty mining and quarry class equipment. With approximately 5,000 operating hours, this machine has been carefully operated and remains in excellent working condition. The excavator retains its original factory components throughout, with the undercarriage track shoes showing minimal wear at approximately 90% remaining life.

  • Year: 2020
  • Model: Sany SY870H
  • Operating Hours: ~5,000
  • Condition: Original factory configuration, well-maintained

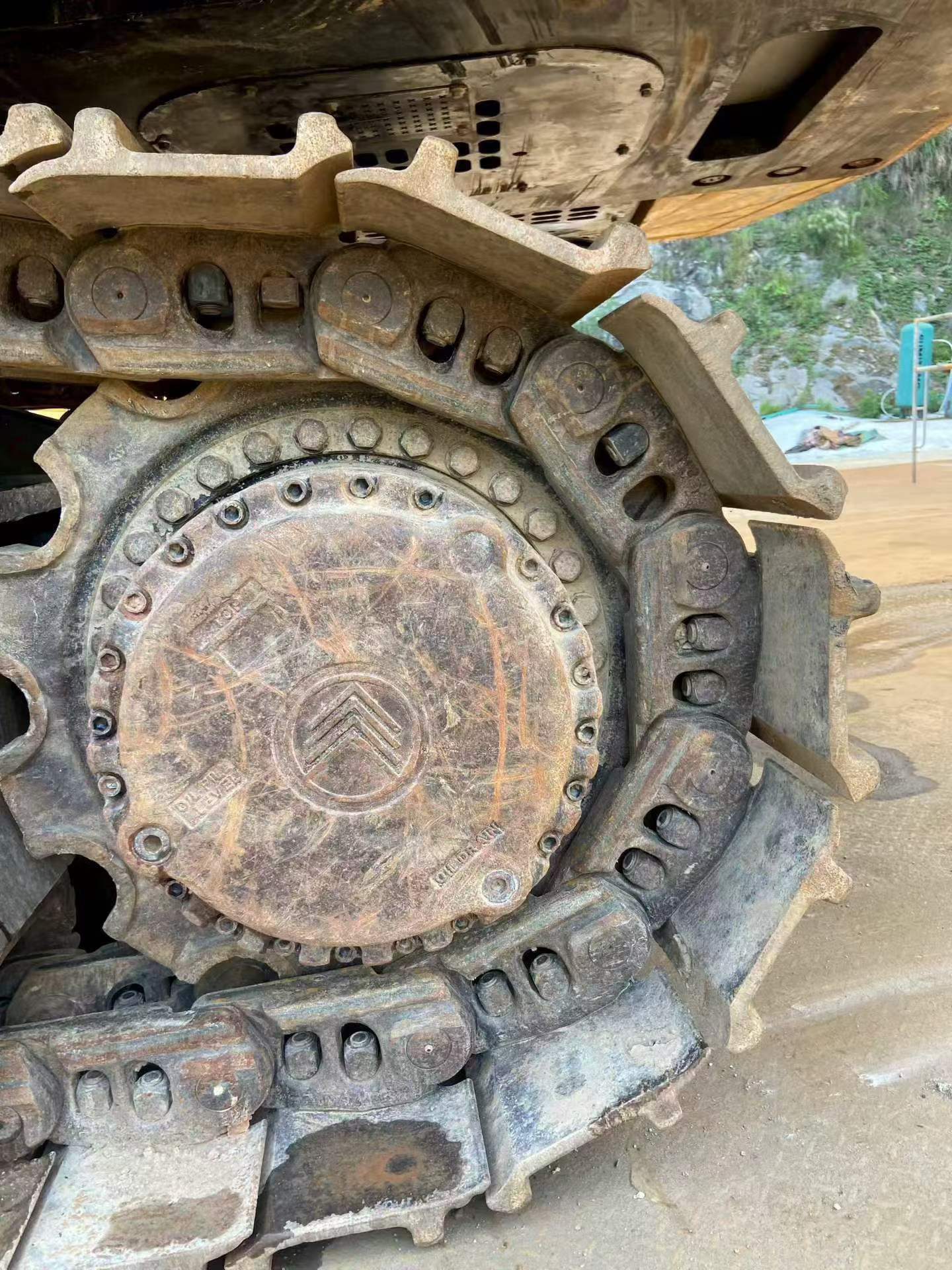

  • Undercarriage: 90% remaining track shoe life
  • Location: Zhejiang Province, China

The SY870H delivers reliable performance for large-scale earthmoving, mining, and infrastructure projects. All major systems are operational and performing to specification. Available for inspection in Zhejiang, China.

SpecificationsValue
No.1076801
Tonnage (tons)87
Working weight (kg)78600
Bucket capacity (m³)5.0-6.5
powerTraditional power
manufacturerMade in China
bucketbackhoe
Rated power (kw/rpm)377/1800
Ground specific pressure (Kpa)114
Rotation speed (rpm)7.7
Climbing ability (%)70
Bucket digging force (kN)432/469
Rod digging force (kN)370/402
Travel speed (km/h)4.5/2.9
Total transport length (mm)13002
Total transport width (mm)4320
Total transport height (mm)4742
Full cab height (mm)3795
Minimum ground clearance (mm)880
Minimum turning radius of front working device (mm)5586
Back end turning radius (mm)4220
Onboard width (mm)3460
Total track length (mm)5946
Track gauge (mm)3380 (Operation) /2780 (Transportation)
Track plate width (mm)650
Track ground length (mm)4770
Maximum height at minimum turning radius (mm)9802
Maximum digging radius (mm)11703
Maximum digging depth (mm)7247
Maximum excavation height (mm)10910
Maximum unloading height (mm)7047
Maximum vertical digging depth (mm)6792
see more

Overview

No.1076801

Brand Name:

Sany

Model Number:

SY870H

Year:

2020

Location:

Zhejiang China

Pub Date
