Product Description

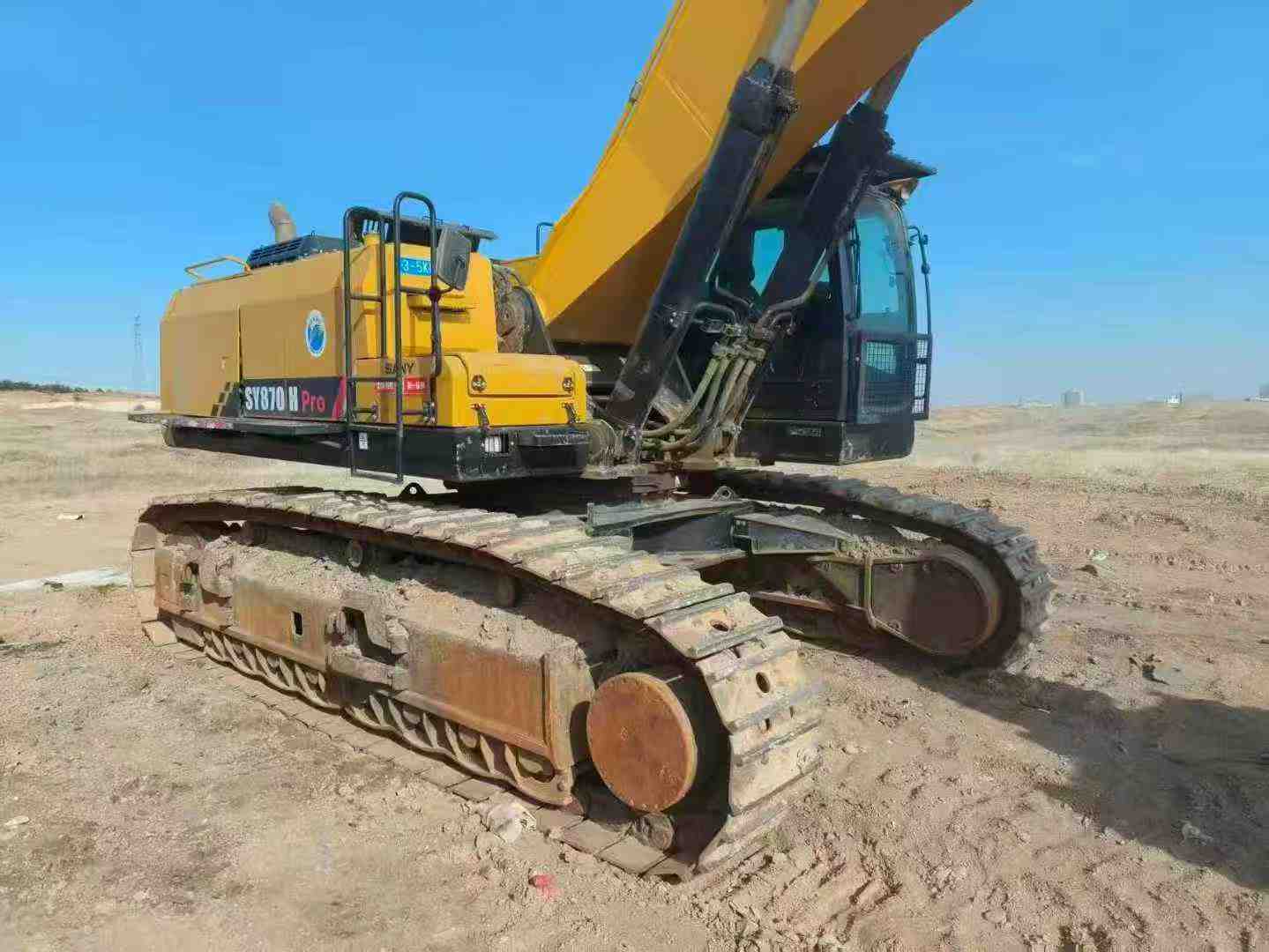

With a working weight of 78,600 kg and a bucket capacity ranging from 5.0 to 6.5 m³, the Sany SY870H excavator, available now in 广东惠州, is designed for rapid deployment and efficient operation. Skip the factory lead times and get your project moving with this powerful machine, boasting a rated power of 377 kW at 1800 rpm. Its travel speed of up to 4.5 km/h and climbing ability of 70% ensure that it can handle tough terrains with ease. The SY870H is built for fast and reliable performance, making it an ideal choice for demanding construction sites. Contact us today to arrange quick delivery and start benefiting from its robust capabilities.
| Specifications | Value |
|---|---|
| No. | 1001005 |
| Tonnage (tons) | 87 |
| Working weight (kg) | 78600 |
| Bucket capacity (m³) | 5.0-6.5 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 377/1800 |
| Ground specific pressure (Kpa) | 114 |
| Rotation speed (rpm) | 7.7 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 432/469 |
| Rod digging force (kN) | 370/402 |
| Travel speed (km/h) | 4.5/2.9 |
| Total transport length (mm) | 13002 |
| Total transport width (mm) | 4320 |
| Total transport height (mm) | 4742 |
| Full cab height (mm) | 3795 |
| Minimum ground clearance (mm) | 880 |
| Minimum turning radius of front working device (mm) | 5586 |
| Back end turning radius (mm) | 4220 |
| Onboard width (mm) | 3460 |
| Total track length (mm) | 5946 |
| Track gauge (mm) | 3380 (Operation) /2780 (Transportation) |
| Track plate width (mm) | 650 |
| Track ground length (mm) | 4770 |
| Maximum height at minimum turning radius (mm) | 9802 |
| Maximum digging radius (mm) | 11703 |
| Maximum digging depth (mm) | 7247 |
| Maximum excavation height (mm) | 10910 |
| Maximum unloading height (mm) | 7047 |
| Maximum vertical digging depth (mm) | 6792 |
