HOME>>Sany>>Sany SY870H

2021 Sany SY870H

1/4
Buy Sany SY870H Used Excavator / 1
Buy Sany SY870H Used Excavator / 2
Buy Sany SY870H Used Excavator / 3
Buy Sany SY870H Used Excavator / 4

Product Description

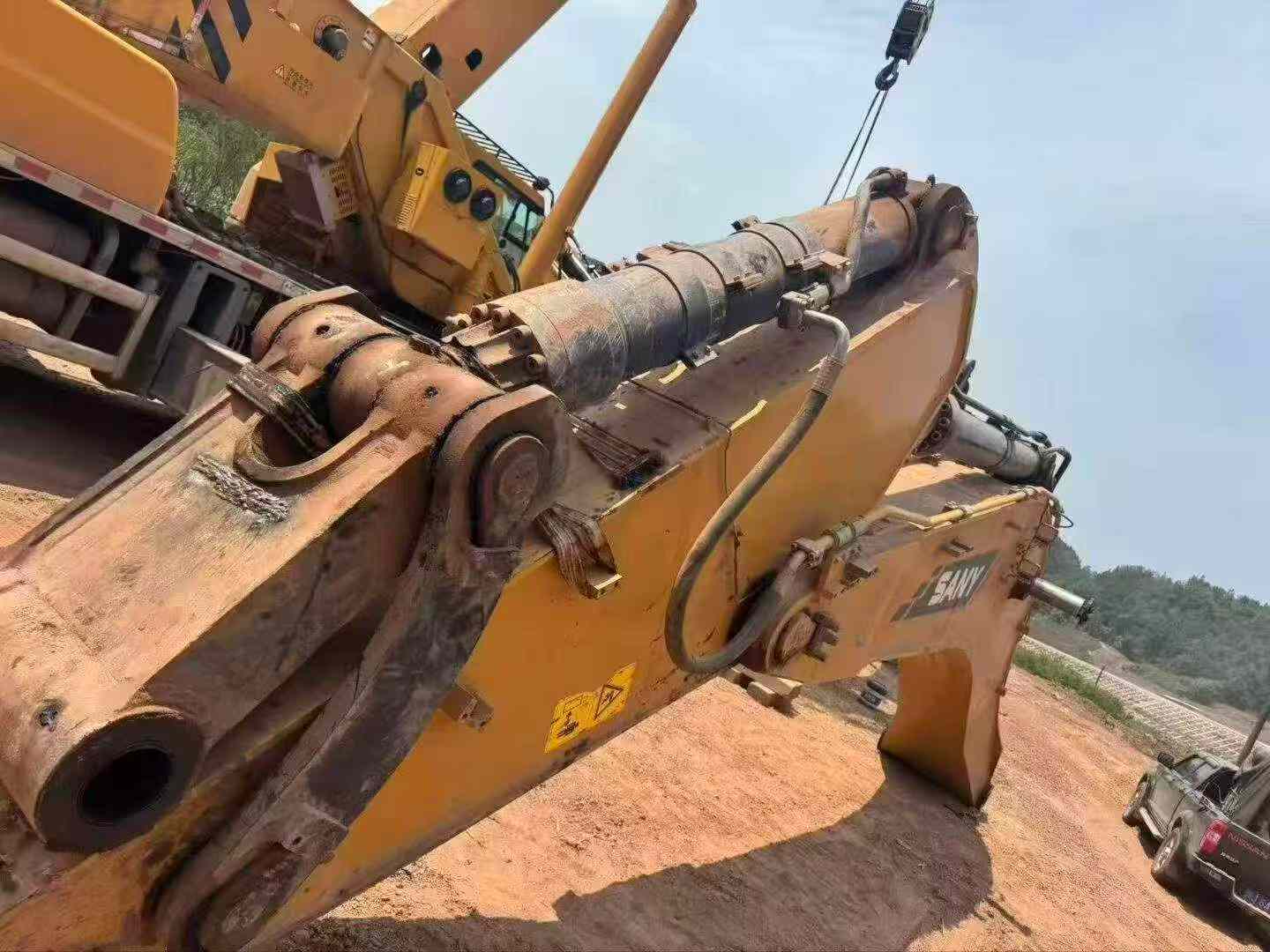

This 2021 Sany SY870H hydraulic excavator represents a cost-effective solution for heavy earthmoving operations. Currently located in Sichuan, China, this machine comes equipped with boom, arm, and bucket assembly ready for immediate deployment. The SY870H is engineered for demanding construction, mining, and infrastructure projects where performance and reliability are essential.

Key features include:

  • 2021 model year with documented service history

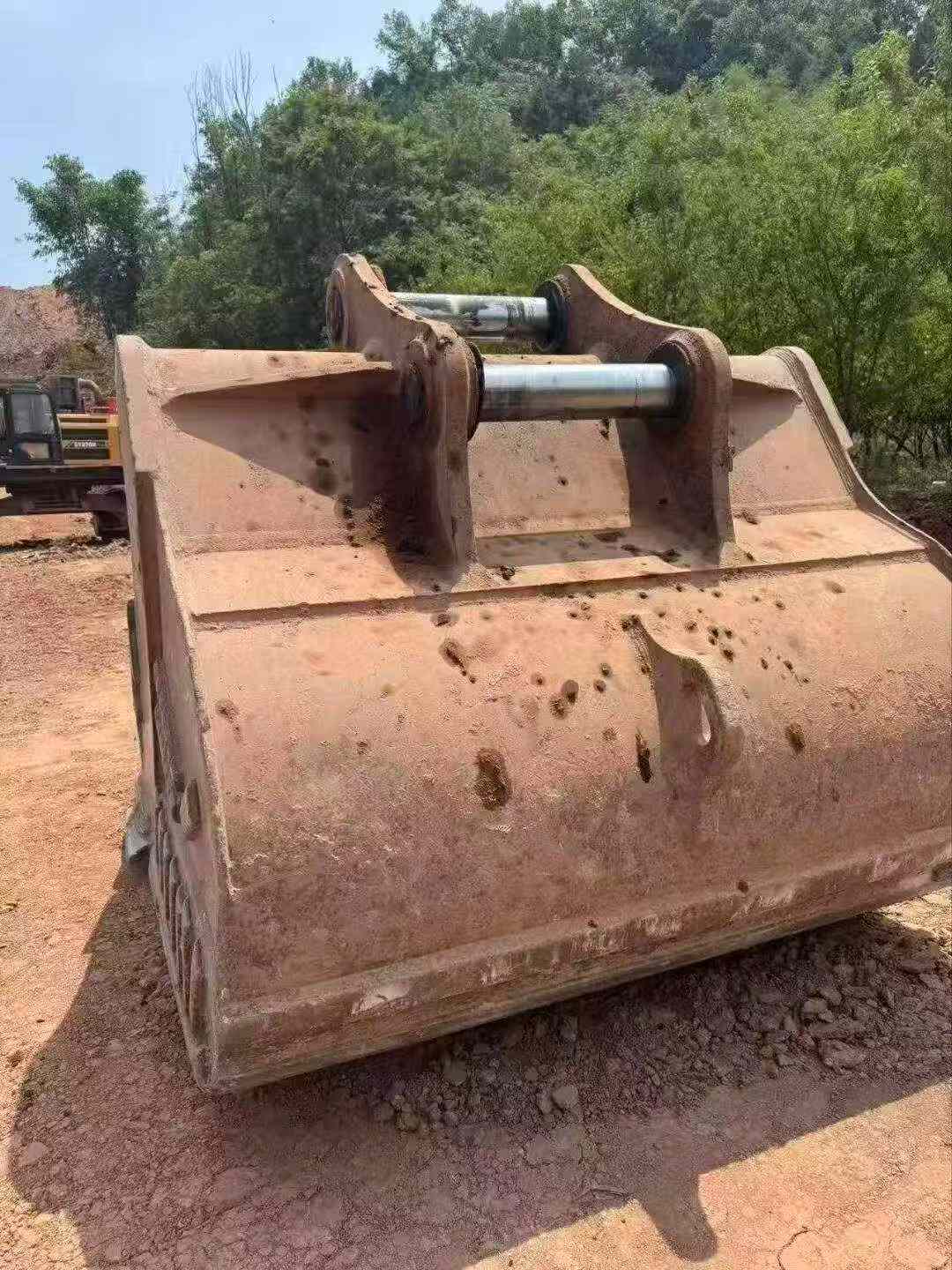

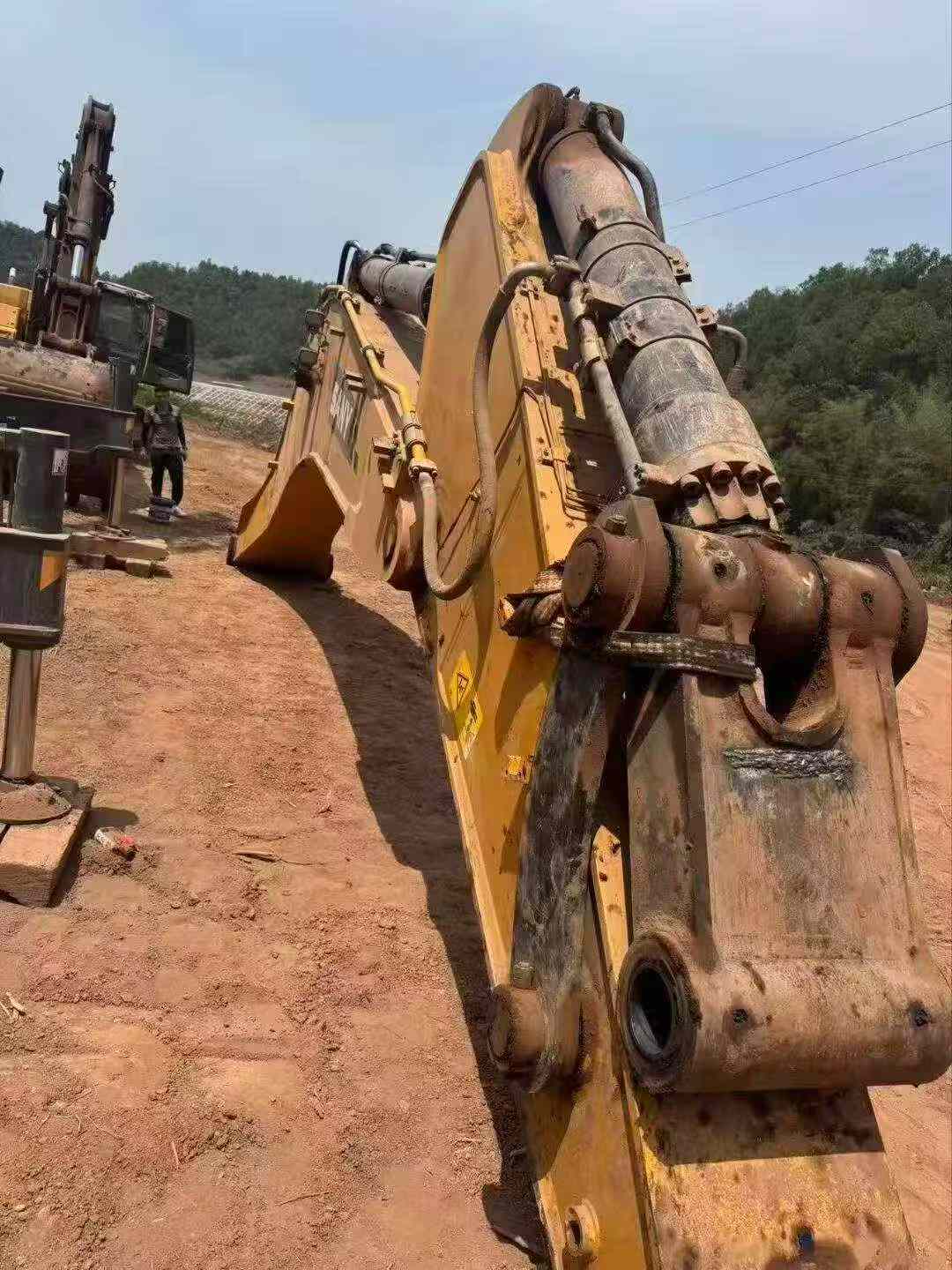

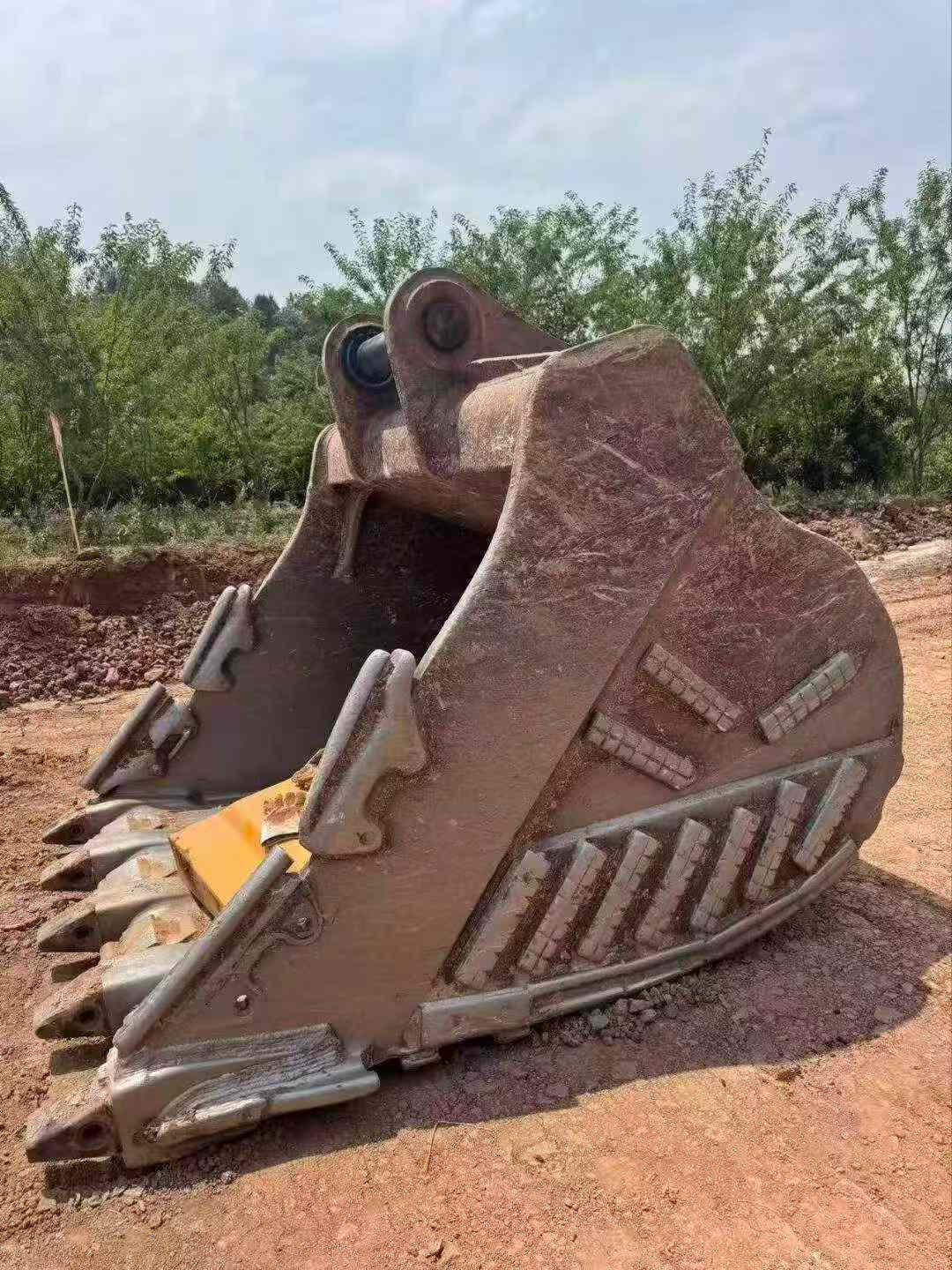

  • Complete boom and arm configuration with operational bucket
  • Sany's proven hydraulic system for consistent power delivery
  • Suitable for large-scale excavation and material handling
  • Competitive pricing for the Chinese market

This used excavator offers contractors and mining operations an opportunity to acquire heavy equipment at attractive pricing while maintaining the build quality associated with Sany's manufacturing standards. Available for inspection in Sichuan province.

SpecificationsValue
No.1170077
Tonnage (tons)87
Working weight (kg)78600
Bucket capacity (m³)5.0-6.5
powerTraditional power
manufacturerMade in China
bucketbackhoe
Rated power (kw/rpm)377/1800
Ground specific pressure (Kpa)114
Rotation speed (rpm)7.7
Climbing ability (%)70
Bucket digging force (kN)432/469
Rod digging force (kN)370/402
Travel speed (km/h)4.5/2.9
Total transport length (mm)13002
Total transport width (mm)4320
Total transport height (mm)4742
Full cab height (mm)3795
Minimum ground clearance (mm)880
Minimum turning radius of front working device (mm)5586
Back end turning radius (mm)4220
Onboard width (mm)3460
Total track length (mm)5946
Track gauge (mm)3380 (Operation) /2780 (Transportation)
Track plate width (mm)650
Track ground length (mm)4770
Maximum height at minimum turning radius (mm)9802
Maximum digging radius (mm)11703
Maximum digging depth (mm)7247
Maximum excavation height (mm)10910
Maximum unloading height (mm)7047
Maximum vertical digging depth (mm)6792
see more

Overview

No.1170077

Brand Name:

Sany

Model Number:

SY870H

Year:

2021

Location:

Sichuan China

Pub Date:
