Product Description

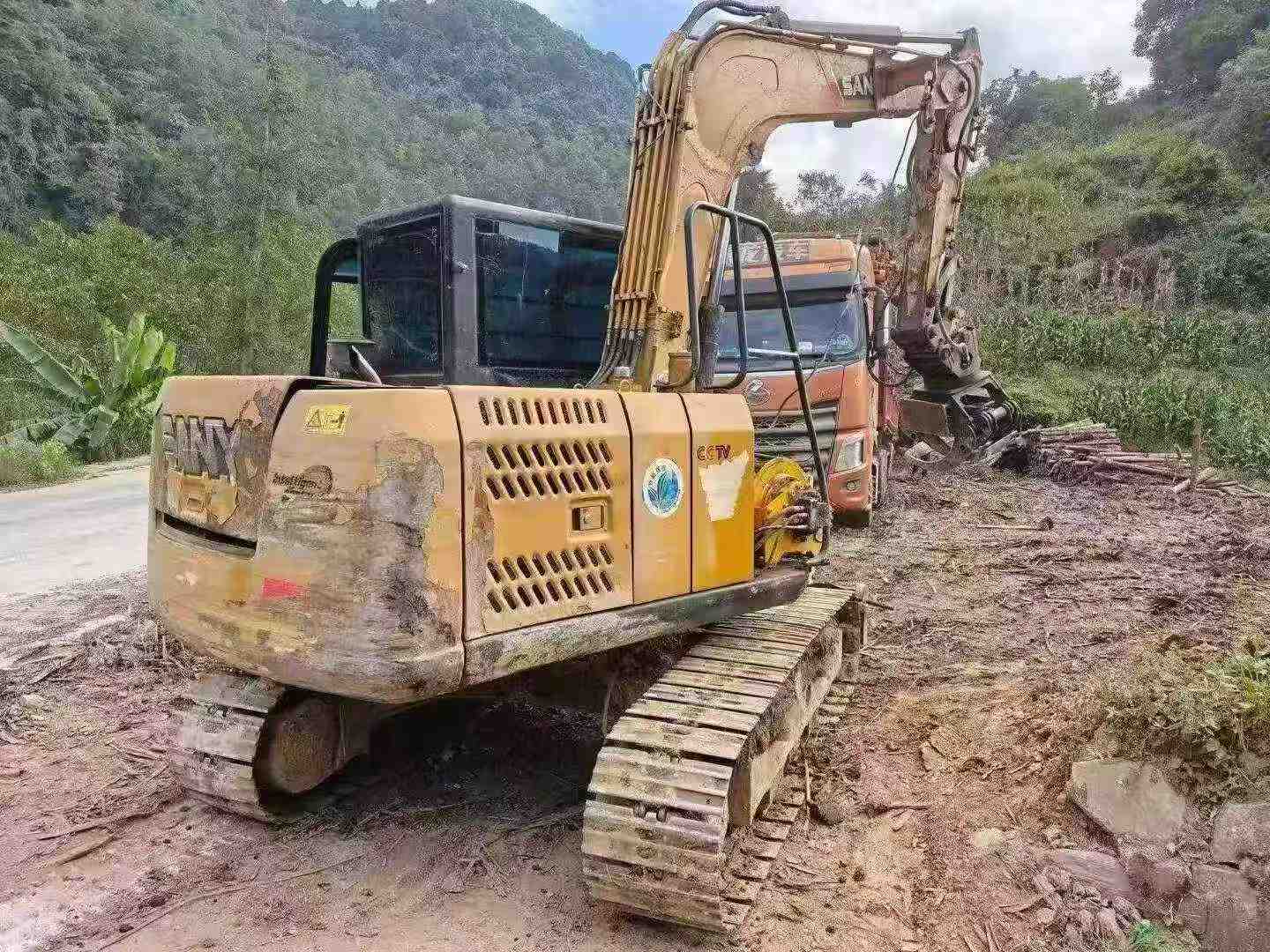

This 2016 Sany SY95C excavator is available from Sichuan, China. The machine comes equipped with a grapple bucket attachment, expanding operational versatility for material handling and sorting applications. With approximately eight years of field service, this unit represents a cost-effective entry point for contractors seeking proven Sany reliability in the 9-ton class.
Key features include:
- Grapple bucket attachment included
- Sany SY95C platform with established parts availability
- Suitable for demolition, scrap handling, and forestry work
- Located in Sichuan province for regional delivery
The SY95C offers a balance of digging performance and transportability. This used unit provides an economical alternative to new equipment while maintaining the operational capabilities required for demanding jobsites. Inspection welcomed. Contact for detailed equipment history and current operational status.
| Specifications | Value |
|---|---|
| No. | 1137634 |
| Tonnage (tons) | 9 |
| Working weight (kg) | 9180 |
| Bucket capacity (m³) | 0.2-0.45 (0.39) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Kubota V3800DI-T-E3B |
| Rated power (kw/rpm) | 60.7/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 305.4/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.769 |
| Ground specific pressure (Kpa) | 38.6 |
| Rotation speed (rpm) | 11.2 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 63.6 |
| Rod digging force (kN) | 46.8 |
| Travel speed (km/h) | 5.0/2.9 |
| Fuel Tank (L) | 160 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6560 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2650 |
| Minimum ground clearance (mm) | 360 |
| Minimum turning radius of front working device (mm) | 1990 |
| Back end turning radius (mm) | 1885 |
| Onboard width (mm) | 2160 |
| Total track length (mm) | 2980 |
| Track gauge (mm) | 1810 |
| Track plate width (mm) | 450 |
| Maximum height at minimum turning radius (mm) | 5700 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 41 |
| Maximum digging radius (mm) | 6660 |
| Maximum digging depth (mm) | 4330 |
| Maximum excavation height (mm) | 7260 |
| Maximum unloading height (mm) | 5210 |
| Maximum vertical digging depth (mm) | 3080 |
| Bulldozer lift or depth (mm) | 330/330 |
| Dodging plate width × height (mm) | 420 (height) |
