2016 Sany SY95C

1/8
Buy Sany SY95C Used Excavator / 1
Buy Sany SY95C Used Excavator / 2
Buy Sany SY95C Used Excavator / 3
Buy Sany SY95C Used Excavator / 4
Buy Sany SY95C Used Excavator / 5
Buy Sany SY95C Used Excavator / 6
Buy Sany SY95C Used Excavator / 7
Buy Sany SY95C Used Excavator / 8

Product Description

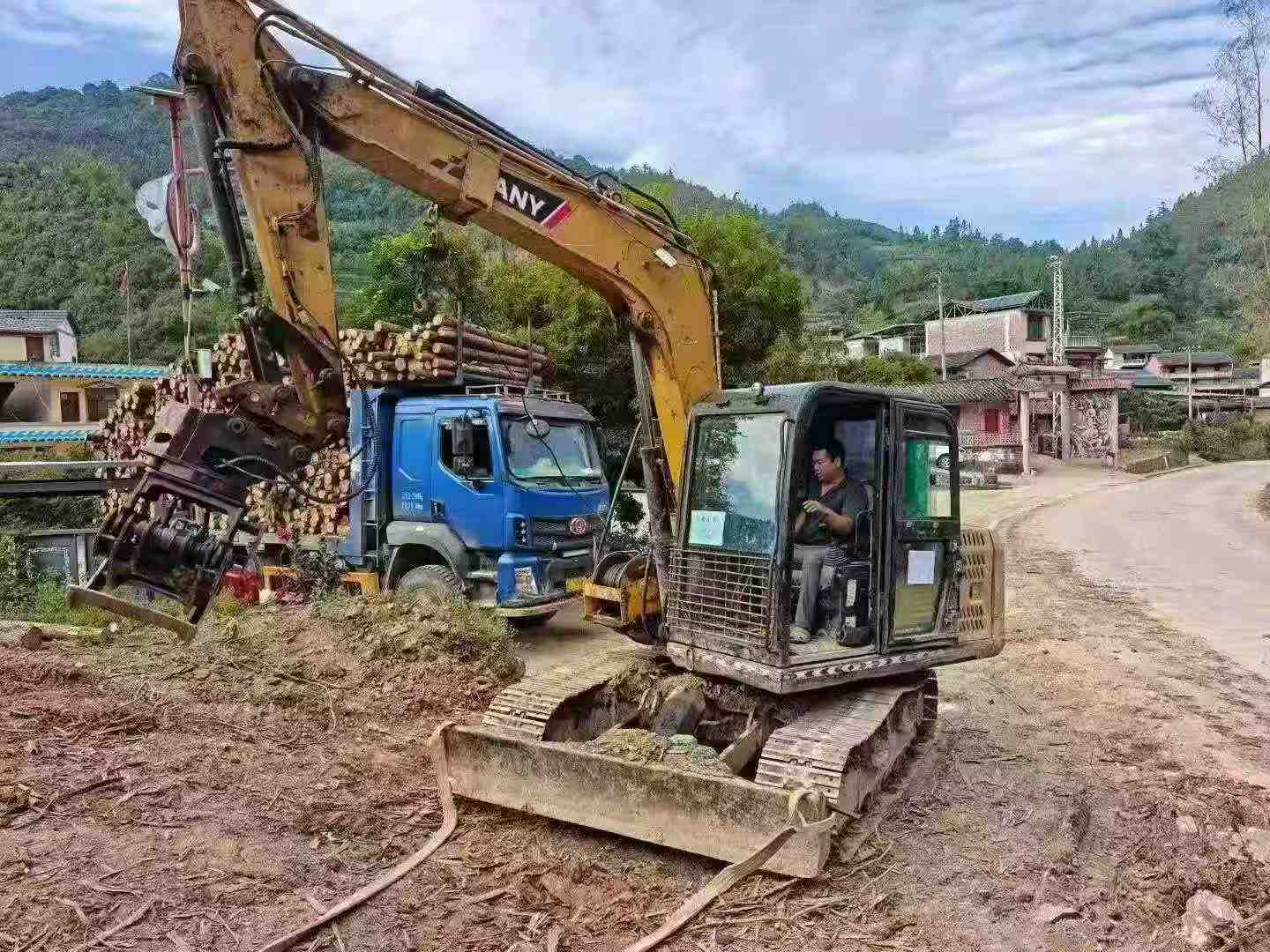

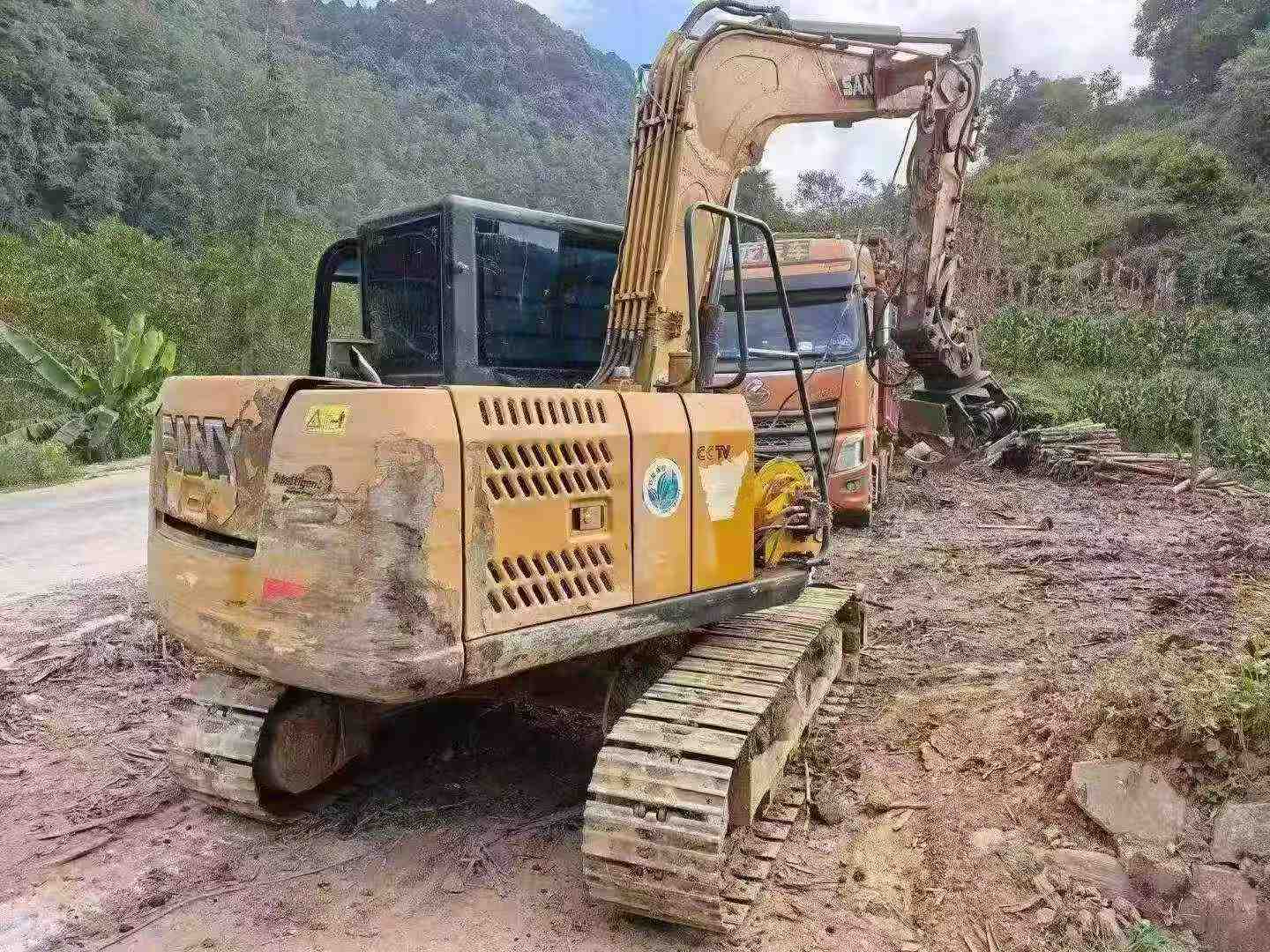

This 2016 Sany SY95C midi excavator offers proven performance for contractors and rental operations. Located in Sichuan, China, this 9.5-ton class machine features a compact footprint ideal for urban construction, utility work, and landscaping projects. The unit comes equipped with hydraulic attachments including a grapple system, expanding versatility for material handling and demolition tasks.

Sany's SY95C delivers reliable hydraulics and efficient fuel consumption in a design built for the Asian market. With over seven years of service history, this excavator represents an economical entry point for operations requiring mid-range lifting capacity and dig depth.

  • Operating weight: approximately 9,500 kg
  • Includes hydraulic grapple attachment
  • Suitable for confined job sites
  • Current location: Sichuan Province

Pricing reflects current market value for this year and configuration. Inspection recommended prior to purchase.

SpecificationsValue
No.1138983
Tonnage (tons)9
Working weight (kg)9180
Bucket capacity (m³)0.2-0.45 (0.39)
powerTraditional power
manufacturerMade in China
bucketbackhoe

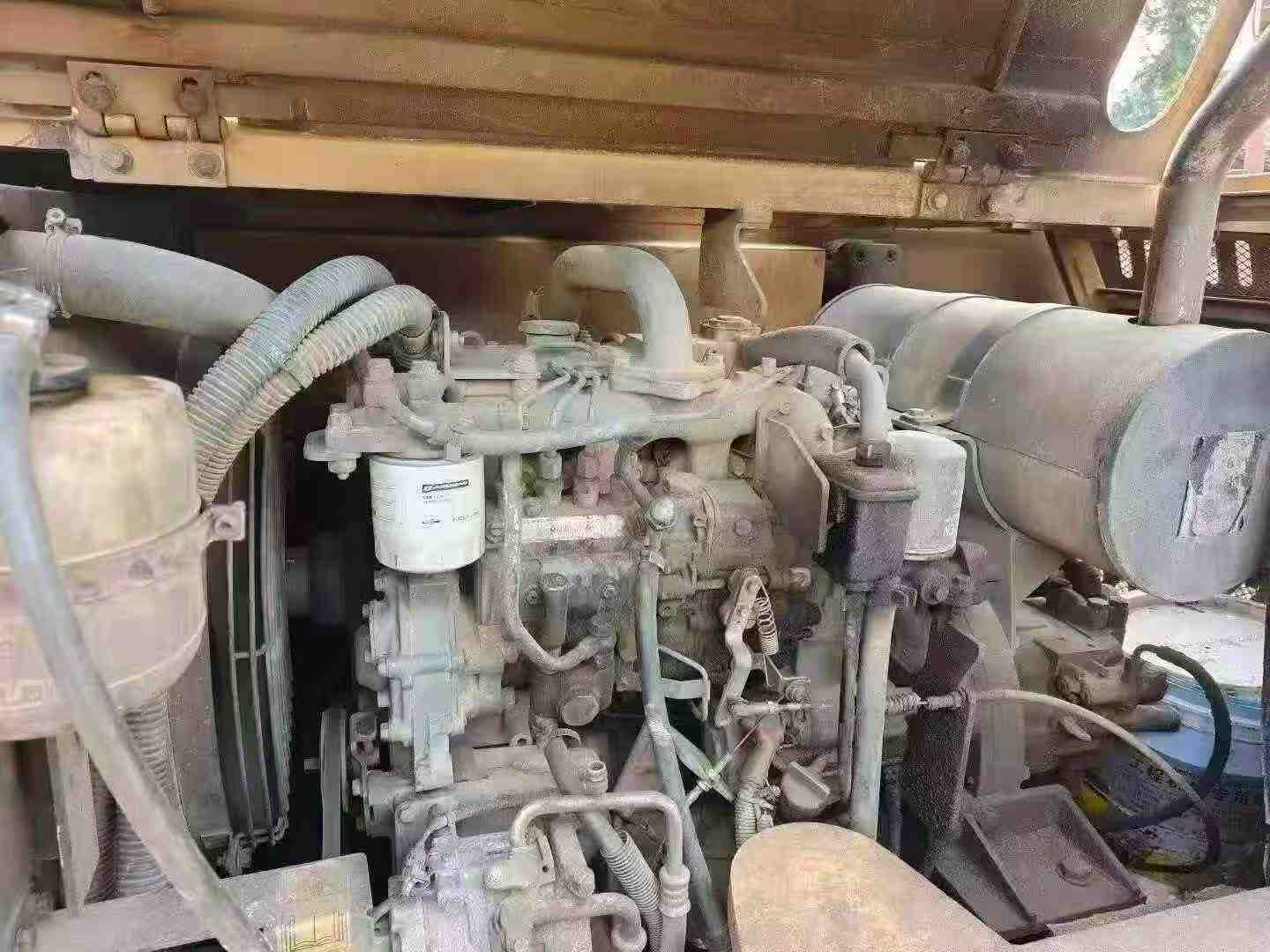

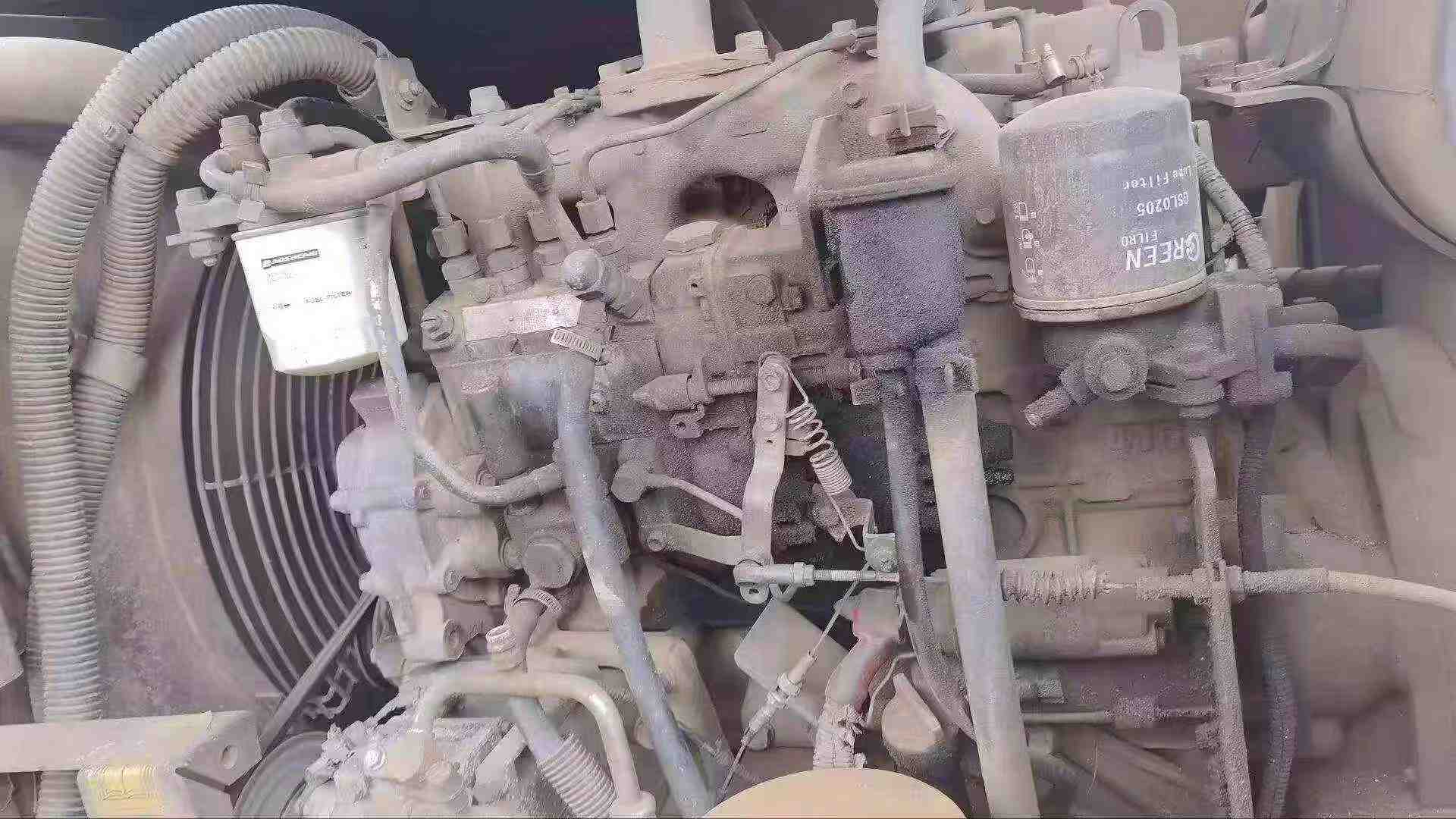

Engine typeKubota V3800DI-T-E3B
Rated power (kw/rpm)60.7/2200
Cooling modewater-cooling
Maximum torque (N.m)305.4/1600
Number of cylinders (PCS)4
Displacement (L)3.769
Ground specific pressure (Kpa)38.6
Rotation speed (rpm)11.2
Climbing ability (%)70% (35°)
Bucket digging force (kN)63.6
Rod digging force (kN)46.8
Travel speed (km/h)5.0/2.9
Fuel Tank (L)160
Hydraulic Tank (L)120
Engine Oil changes (L)12
Total transport length (mm)6560
Total transport width (mm)2260
Total transport height (mm)2650
Minimum ground clearance (mm)360
Minimum turning radius of front working device (mm)1990
Back end turning radius (mm)1885
Onboard width (mm)2160
Total track length (mm)2980
Track gauge (mm)1810
Track plate width (mm)450
Maximum height at minimum turning radius (mm)5700
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)41
Maximum digging radius (mm)6660
Maximum digging depth (mm)4330
Maximum excavation height (mm)7260
Maximum unloading height (mm)5210
Maximum vertical digging depth (mm)3080
Bulldozer lift or depth (mm)330/330
Dodging plate width × height (mm)420 (height)
see more

Overview

No.1138983

Brand Name:

Sany

Model Number:

SY95C

Year:

2016

Location:

Sichuan China

Pub Date
