2016 Sany SY95C

1/9
Buy Sany SY95C Used Excavator / 1
Buy Sany SY95C Used Excavator / 2
Buy Sany SY95C Used Excavator / 3
Buy Sany SY95C Used Excavator / 4
Buy Sany SY95C Used Excavator / 5
Buy Sany SY95C Used Excavator / 6
Buy Sany SY95C Used Excavator / 7

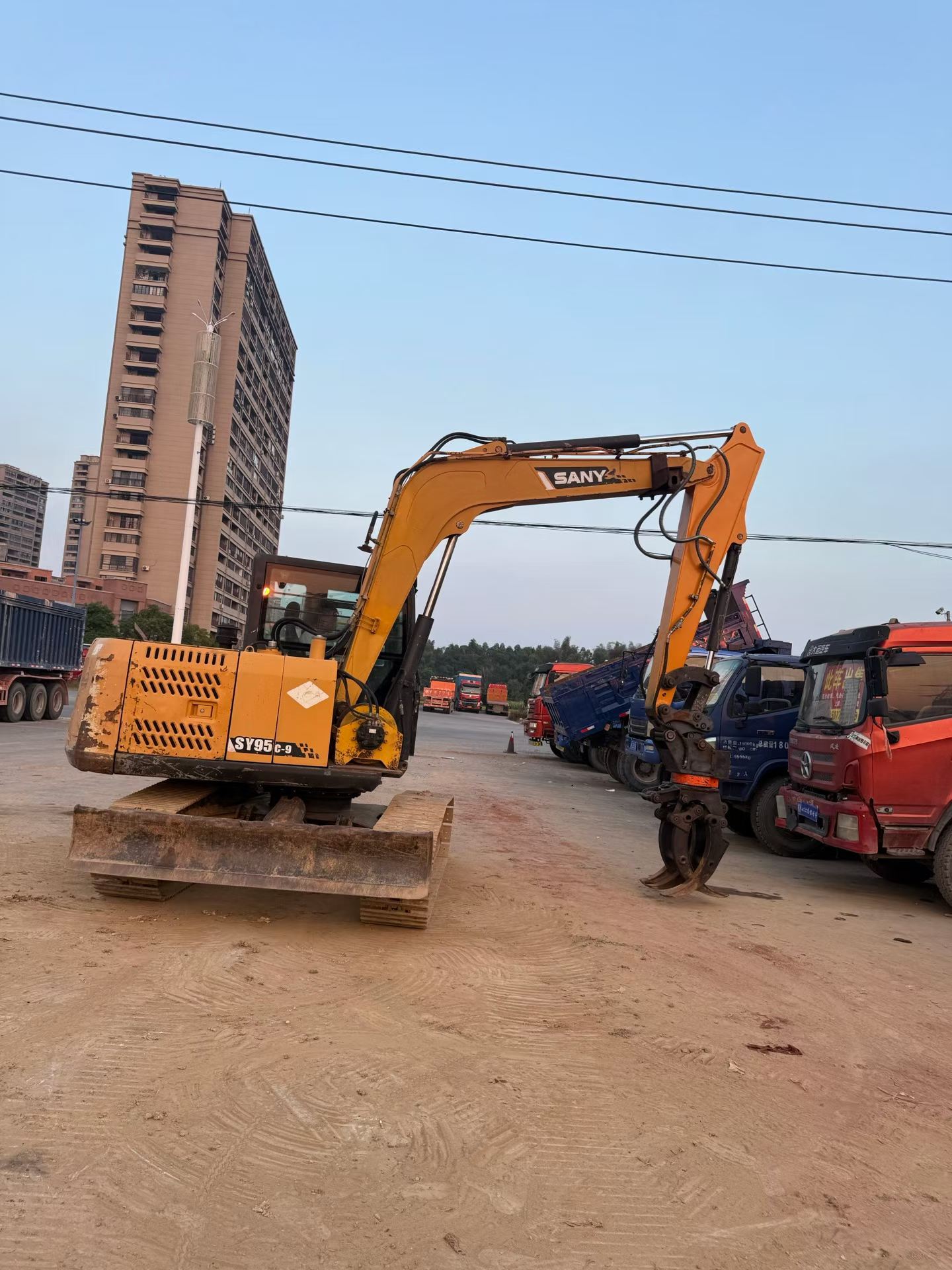

Buy Sany SY95C Used Excavator / 8
Buy Sany SY95C Used Excavator / 9

Product Description

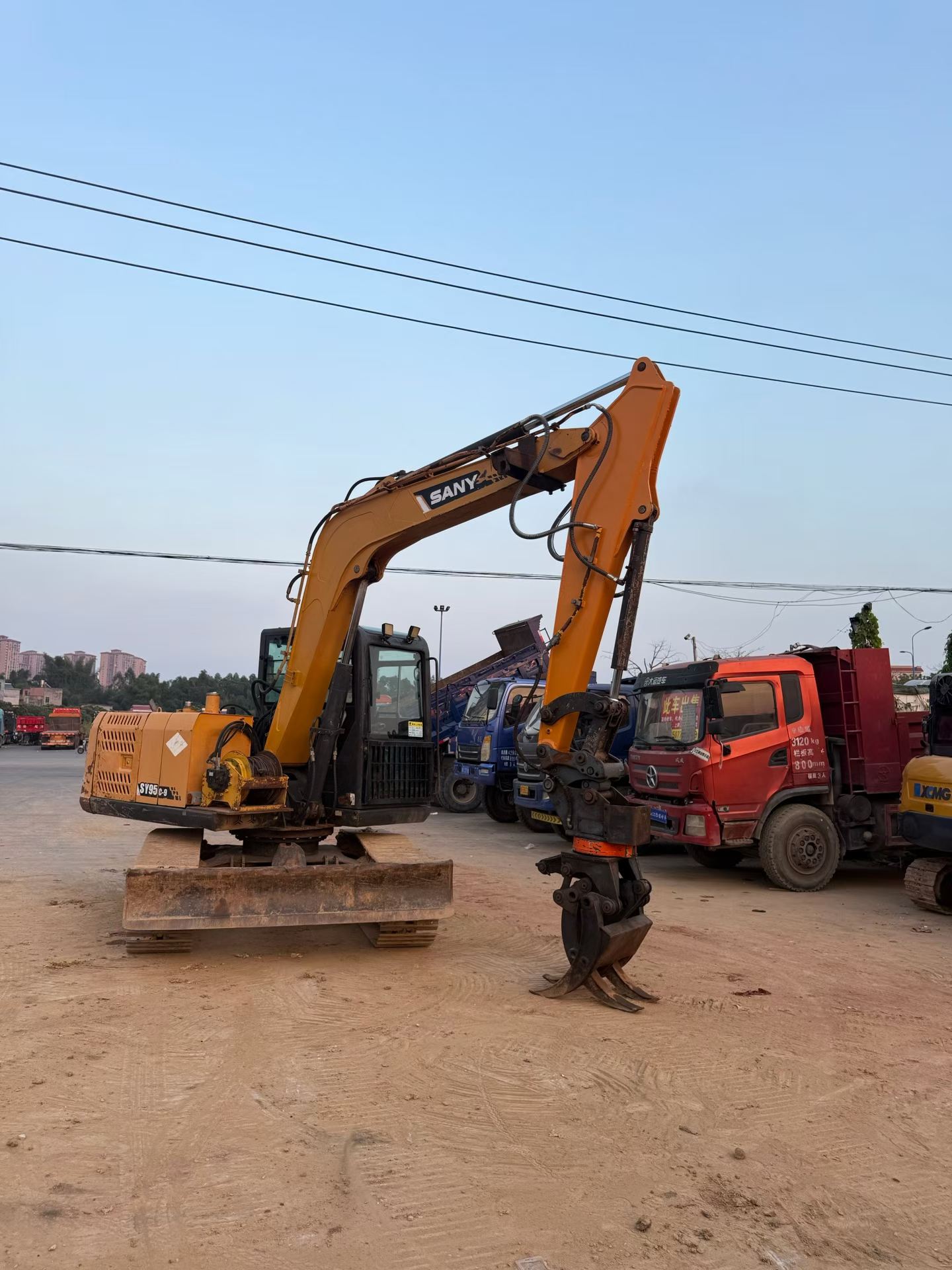

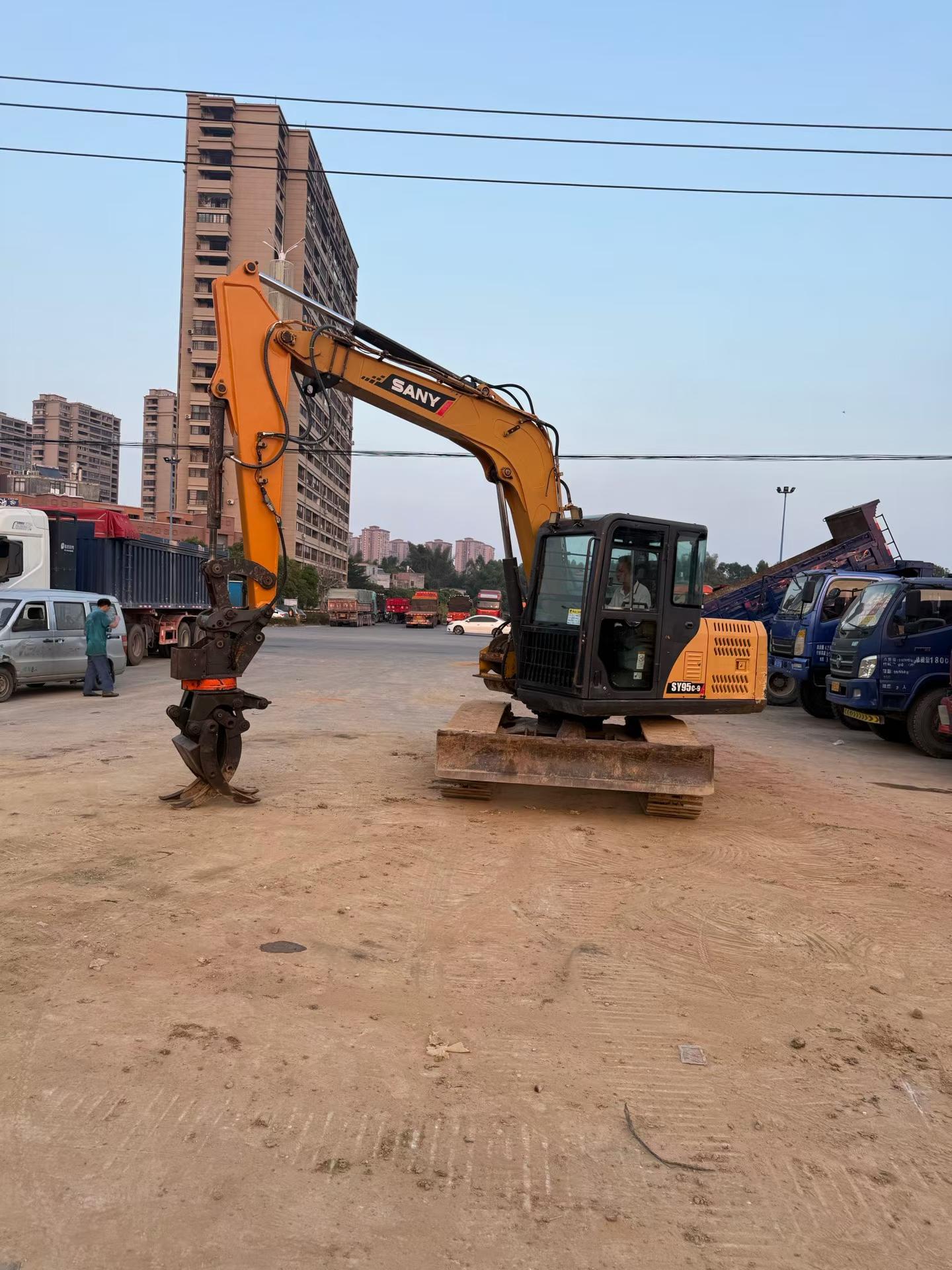

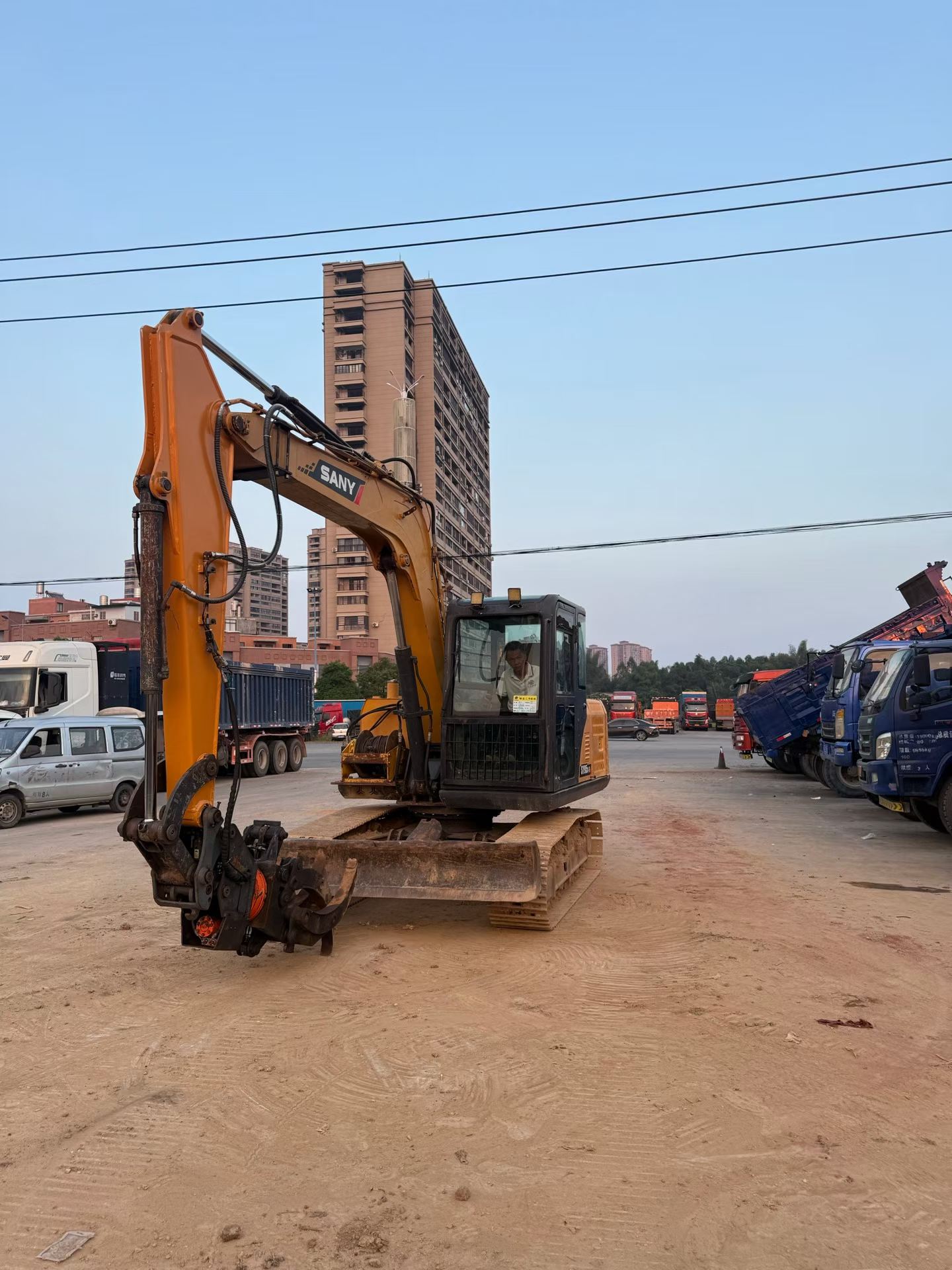

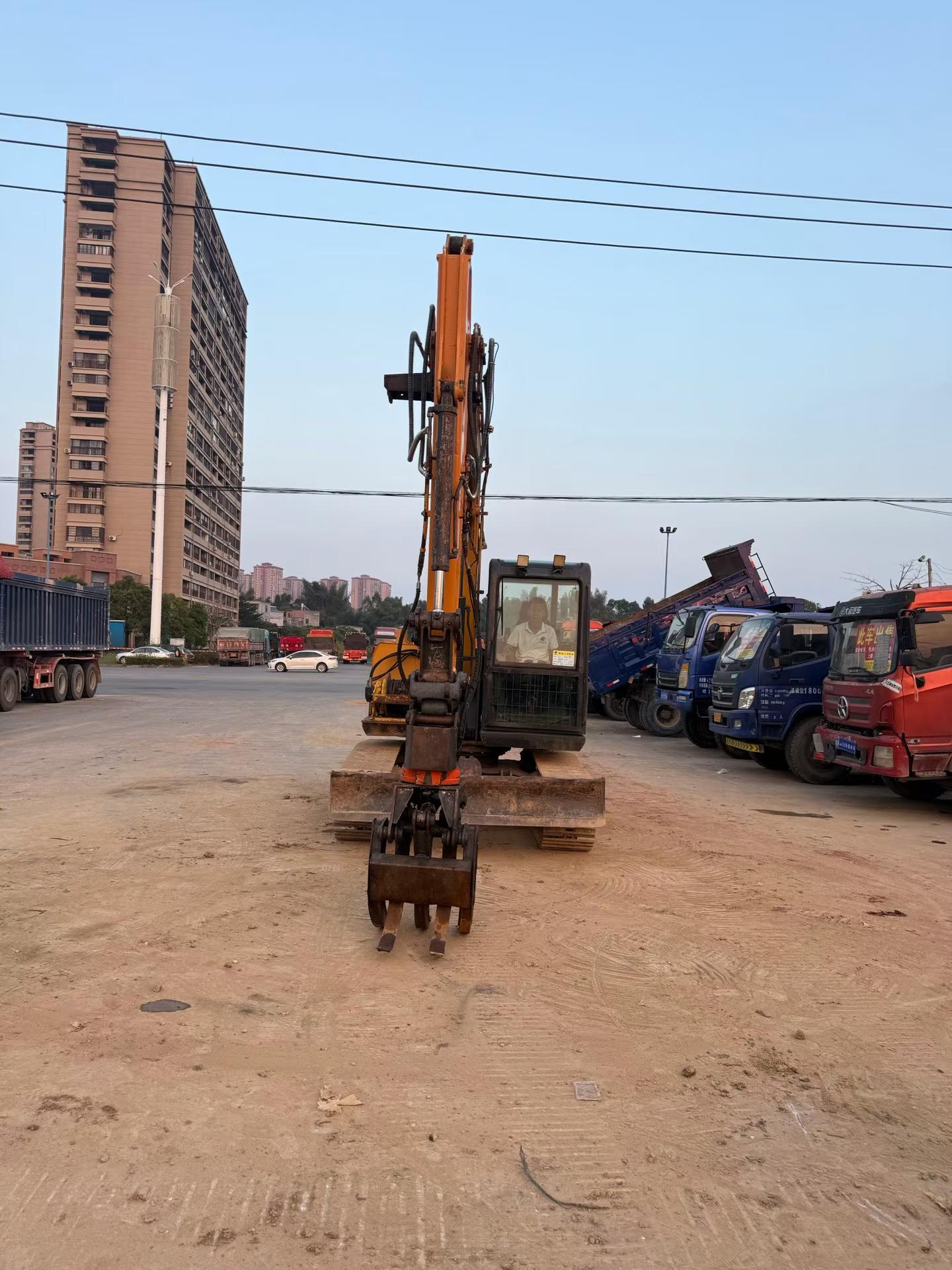

This 2016 Sany SY95C mid-size excavator offers reliable performance for demanding jobsite conditions. Currently located in Guangxi, China, this machine comes equipped with practical attachments that extend its operational versatility. The unit features an extended dipper arm for enhanced reach capabilities, plus an integrated grapple and winch system for material handling applications.

The SY95C is known for its balanced combination of digging force and fuel efficiency in the 9-ton class. This particular unit has been maintained in good working condition and is ready for immediate deployment.

  • Year: 2016
  • Model: Sany SY95C
  • Configuration: Extended arm, grapple, winch
  • Location: Guangxi, China
  • Condition: Good operating performance
  • Price: USD 14,850 (RMB 108,000)

Suitable for construction, demolition, and general earthmoving operations. Contact us for inspection arrangements and shipping quotes.

SpecificationsValue
No.1163306
Tonnage (tons)9
Working weight (kg)9180
Bucket capacity (m³)0.2-0.45 (0.39)
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeKubota V3800DI-T-E3B
Rated power (kw/rpm)60.7/2200
Cooling modewater-cooling
Maximum torque (N.m)305.4/1600
Number of cylinders (PCS)4
Displacement (L)3.769
Ground specific pressure (Kpa)38.6
Rotation speed (rpm)11.2
Climbing ability (%)70% (35°)
Bucket digging force (kN)63.6
Rod digging force (kN)46.8
Travel speed (km/h)5.0/2.9
Fuel Tank (L)160
Hydraulic Tank (L)120
Engine Oil changes (L)12
Total transport length (mm)6560
Total transport width (mm)2260
Total transport height (mm)2650
Minimum ground clearance (mm)360
Minimum turning radius of front working device (mm)1990
Back end turning radius (mm)1885
Onboard width (mm)2160
Total track length (mm)2980
Track gauge (mm)1810
Track plate width (mm)450
Maximum height at minimum turning radius (mm)5700
Number of sprockets (single side) (each)1
Number of wheels (single side) (each)5
Number of track plates (single side) (PCS)41
Maximum digging radius (mm)6660
Maximum digging depth (mm)4330
Maximum excavation height (mm)7260
Maximum unloading height (mm)5210
Maximum vertical digging depth (mm)3080
Bulldozer lift or depth (mm)330/330
Dodging plate width × height (mm)420 (height)
see more

Overview

No.1163306

Brand Name:

Sany

Model Number:

SY95C

Year:

2016

Location:

Guangxi China

Pub Date:
