Product Description

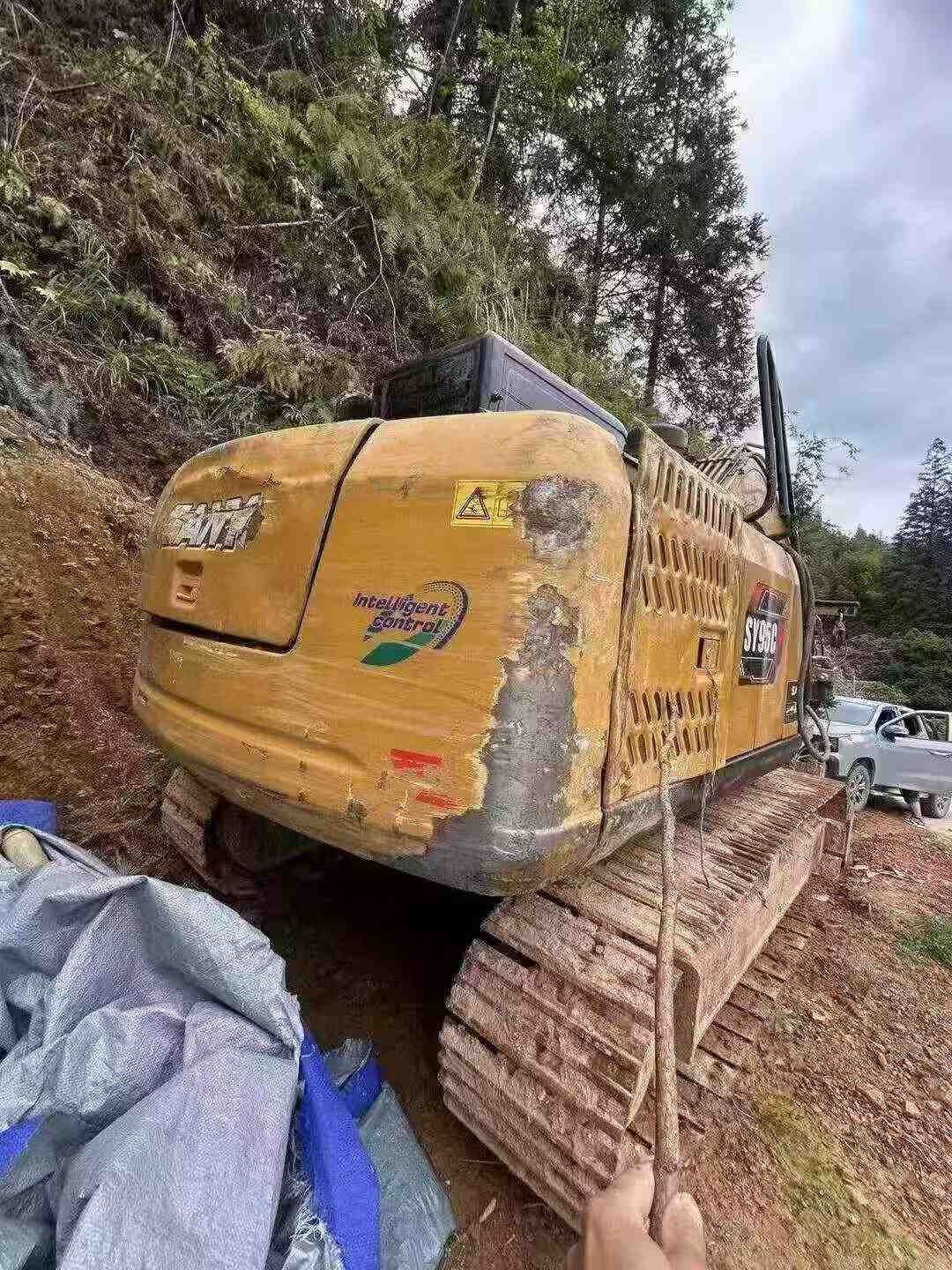

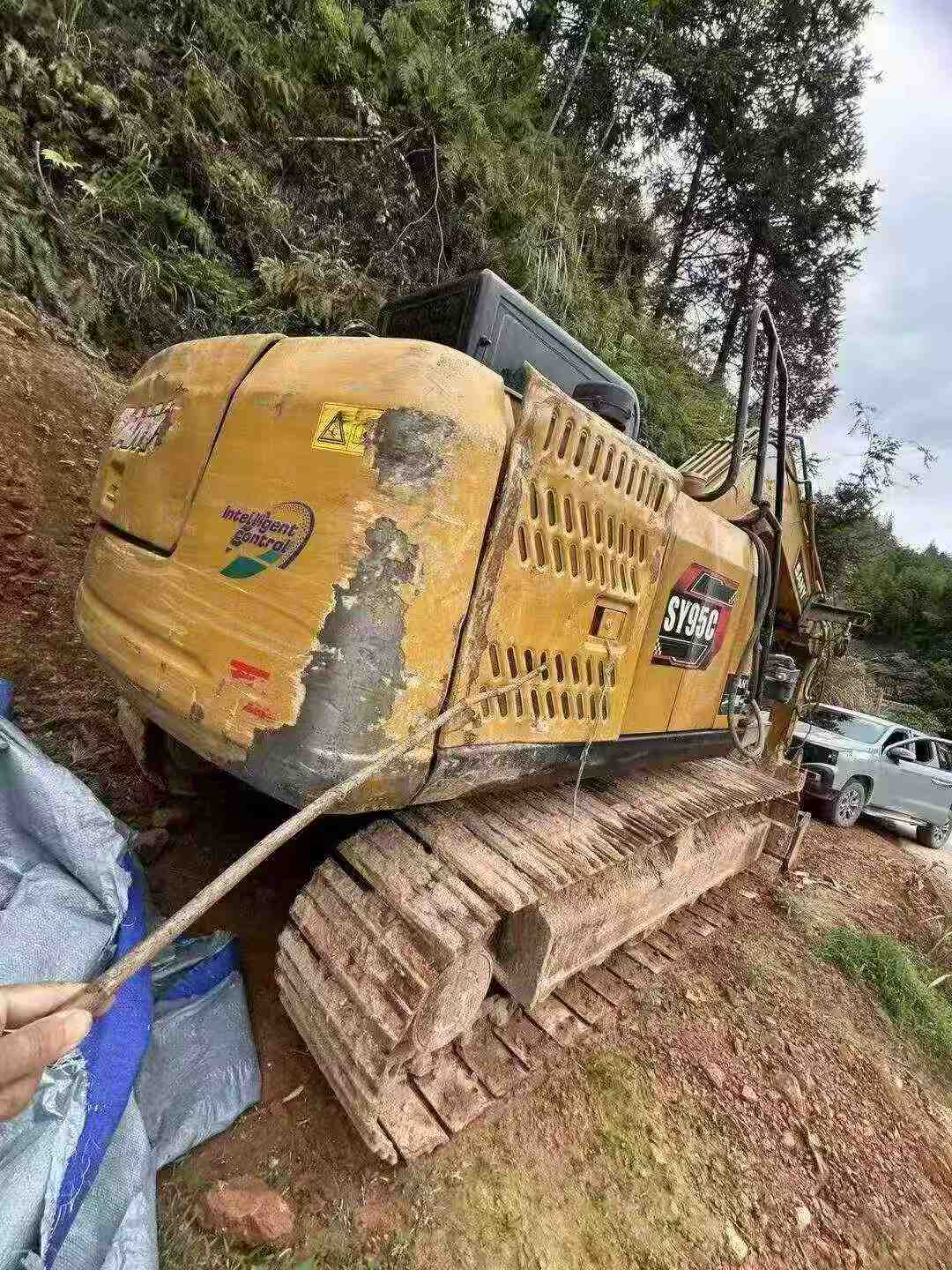

Built for daily production work, this 2018 Sany SY95C mini excavator delivers 9-ton performance with precision and reliability. Powered by a Kubota V3800DI-T-E3B engine generating 60.7 kW at 2200 rpm, this machine handles demanding excavation, grading, and demolition tasks without hesitation. Maximum digging depth reaches 4,330 mm while the 6,660 mm digging radius provides extensive working range for foundation work, trenching, and material handling operations.
Hydraulic power translates into real productivity with 63.6 kN bucket digging force and 46.8 kN arm force—enough to break through compacted soil and challenging ground conditions. The 0.39 m³ bucket moves material efficiently while the compact 2,260 mm transport width allows access to confined job sites. Currently located in Sichuan Luzhou, this backhoe excavator includes a 160L fuel tank for extended operating shifts and features water-cooled reliability proven across construction, utility, and landscaping applications.
- 9-ton working weight with Kubota diesel power
- 4.33 m digging depth, 6.66 m maximum reach
- 63.6 kN bucket force for tough digging conditions
- Compact dimensions for site maneuverability
- Ready for immediat
| Specifications | Value |
|---|---|
| No. | 1023581 |
| Tonnage (tons) | 9 |
| Working weight (kg) | 9180 |
| Bucket capacity (m³) | 0.2-0.45 (0.39) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Kubota V3800DI-T-E3B |
| Rated power (kw/rpm) | 60.7/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 305.4/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.769 |
| Ground specific pressure (Kpa) | 38.6 |
| Rotation speed (rpm) | 11.2 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 63.6 |
| Rod digging force (kN) | 46.8 |
| Travel speed (km/h) | 5.0/2.9 |
| Fuel Tank (L) | 160 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6560 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2650 |
| Minimum ground clearance (mm) | 360 |
| Minimum turning radius of front working device (mm) | 1990 |
| Back end turning radius (mm) | 1885 |
| Onboard width (mm) | 2160 |
| Total track length (mm) | 2980 |
| Track gauge (mm) | 1810 |
| Track plate width (mm) | 450 |
| Maximum height at minimum turning radius (mm) | 5700 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 41 |
| Maximum digging radius (mm) | 6660 |
| Maximum digging depth (mm) | 4330 |
| Maximum excavation height (mm) | 7260 |
| Maximum unloading height (mm) | 5210 |
| Maximum vertical digging depth (mm) | 3080 |
| Bulldozer lift or depth (mm) | 330/330 |
| Dodging plate width × height (mm) | 420 (height) |
