Product Description

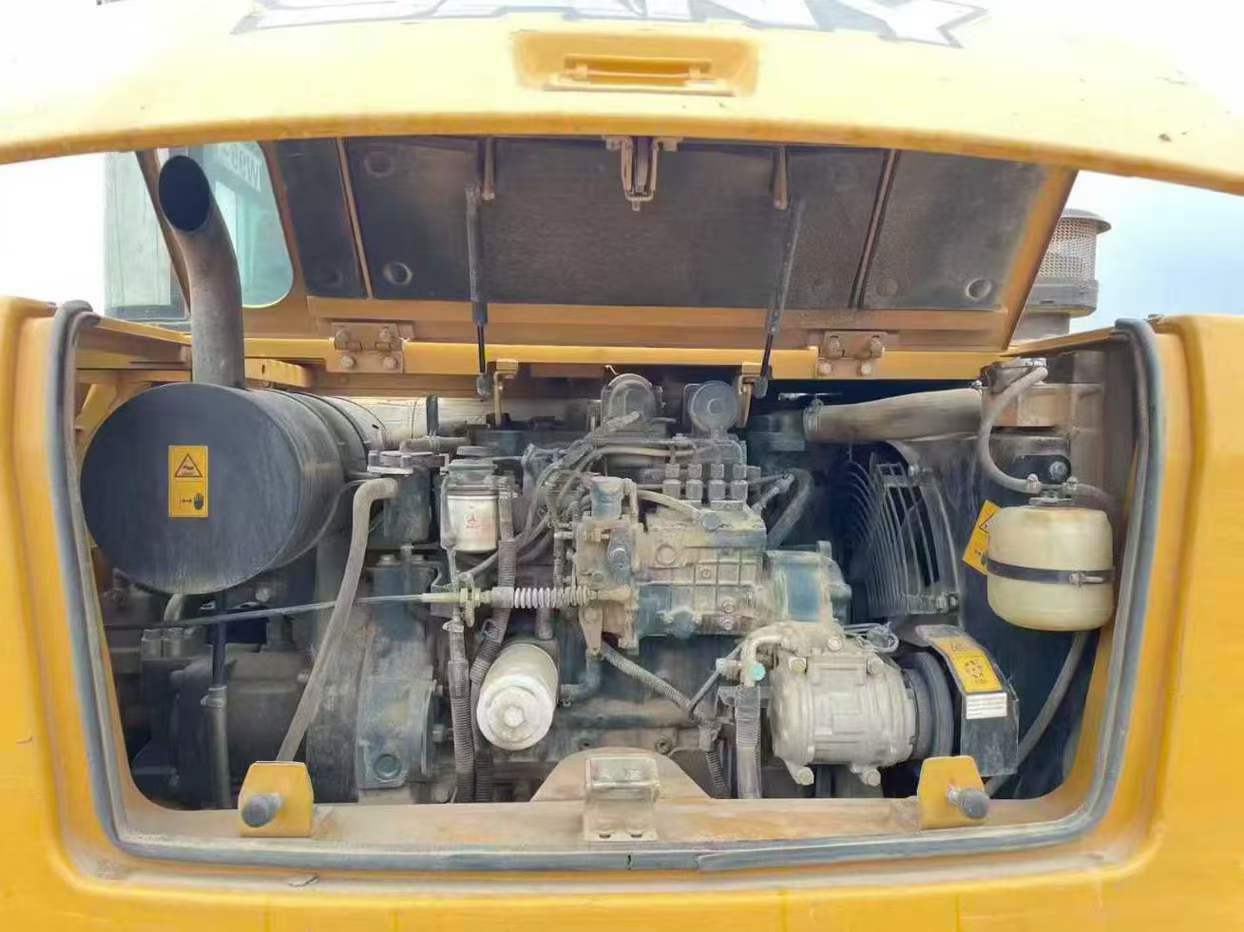

Engineered with Kubota's proven V3800DI-T-E3B engine delivering 60.7 kW at 2200 rpm, this 2020 Sany SY95C compact excavator combines reliable power with precision hydraulics. Operating at 9 tons working weight, the machine generates exceptional bucket digging force of 63.6 kN and arm digging force of 46.8 kN, ensuring productive performance across demanding applications. Water-cooled efficiency and 305.4 N·m maximum torque at 1600 rpm provide consistent output in extended operations.
Technical specifications include:
- Maximum digging reach: 6,660 mm with 4,330 mm digging depth
- Bucket capacity: 0.39 m³ standard configuration
- 11.2 rpm rotation speed for efficient cycle times
- 70% gradeability (35°) and 38.6 kPa ground pressure for versatile terrain capability
- Compact transport dimensions: 6,560 × 2,260 × 2,650 mm
- 160 L fuel capacity and 120 L hydraulic tank for extended runtime
Currently located in Nanning, Guangxi, this Chinese-manufactured unit represents Sany's commitment to robust construction equipment engineering.
| Specifications | Value |
|---|---|
| No. | 1022391 |
| Tonnage (tons) | 9 |
| Working weight (kg) | 9180 |
| Bucket capacity (m³) | 0.2-0.45 (0.39) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Kubota V3800DI-T-E3B |
| Rated power (kw/rpm) | 60.7/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 305.4/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.769 |
| Ground specific pressure (Kpa) | 38.6 |
| Rotation speed (rpm) | 11.2 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 63.6 |
| Rod digging force (kN) | 46.8 |
| Travel speed (km/h) | 5.0/2.9 |
| Fuel Tank (L) | 160 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6560 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2650 |
| Minimum ground clearance (mm) | 360 |
| Minimum turning radius of front working device (mm) | 1990 |
| Back end turning radius (mm) | 1885 |
| Onboard width (mm) | 2160 |
| Total track length (mm) | 2980 |
| Track gauge (mm) | 1810 |
| Track plate width (mm) | 450 |
| Maximum height at minimum turning radius (mm) | 5700 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 41 |
| Maximum digging radius (mm) | 6660 |
| Maximum digging depth (mm) | 4330 |
| Maximum excavation height (mm) | 7260 |
| Maximum unloading height (mm) | 5210 |
| Maximum vertical digging depth (mm) | 3080 |
| Bulldozer lift or depth (mm) | 330/330 |
| Dodging plate width × height (mm) | 420 (height) |
