Product Description

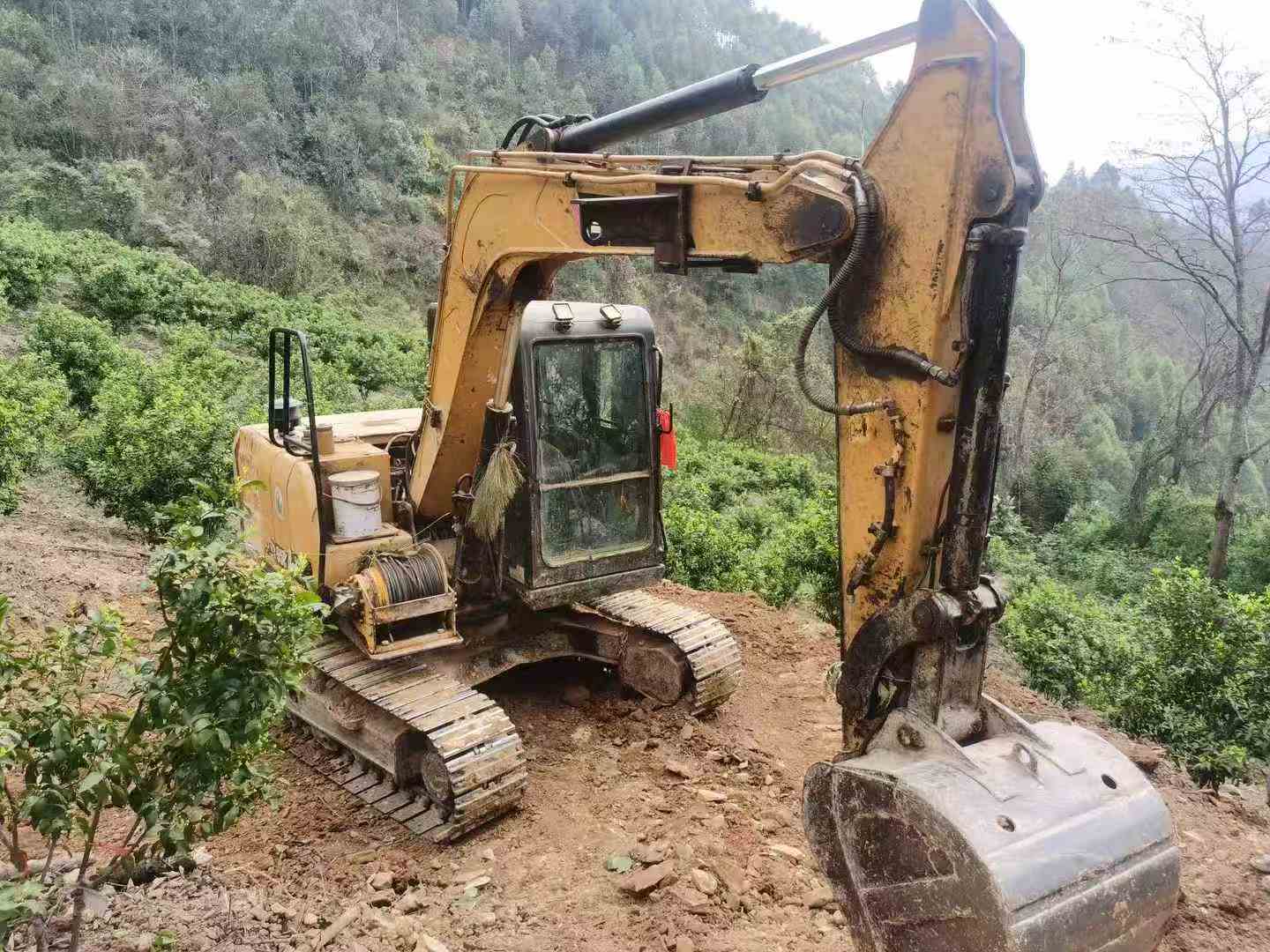

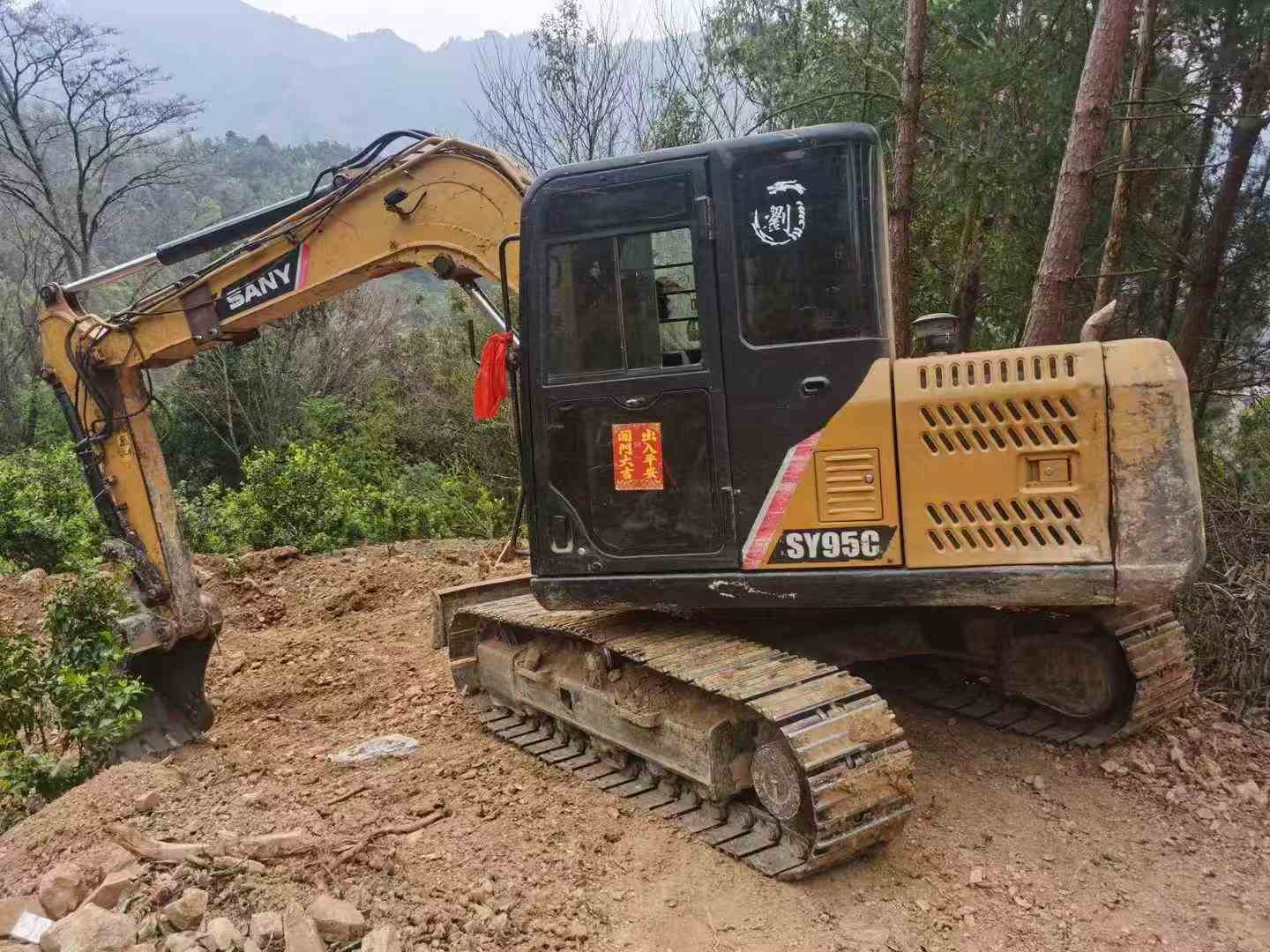

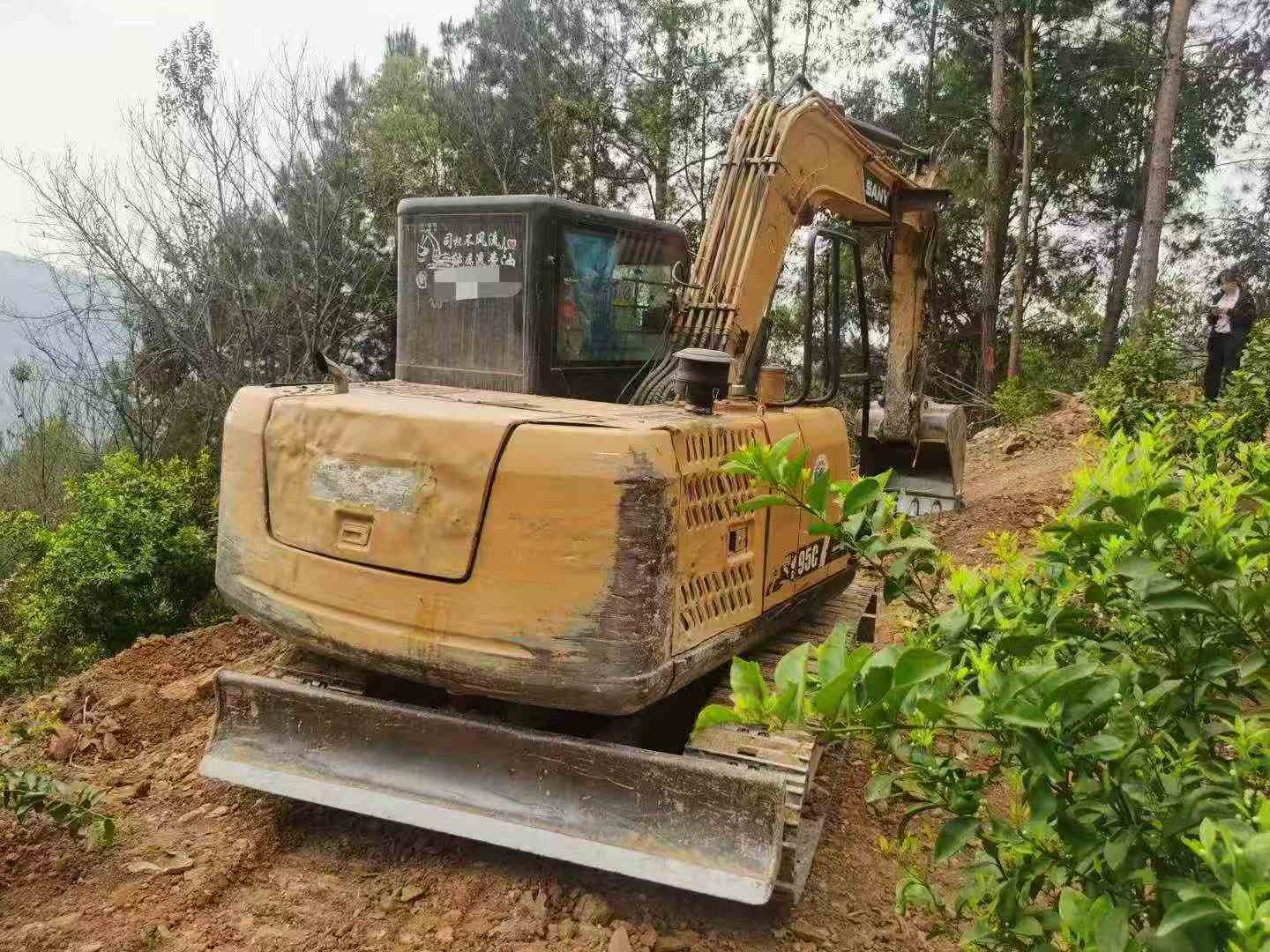

Built in 2021, this Sany SY95C 9-ton excavator delivers proven reliability backed by one of China's most established heavy equipment manufacturers. Operating weight of 9,180 kg and a Kubota V3800DI-T-E3B engine producing 60.7 kW ensure consistent performance across demanding jobsites. With a maximum digging depth of 4,330 mm and bucket digging force of 63.6 kN, this machine handles excavation, trenching, and loading applications with precision.
Sany's global parts network and strong resale value make this SY95C a smart investment for contractors seeking dependable used equipment. Currently located in Guangxi, China, this unit features:

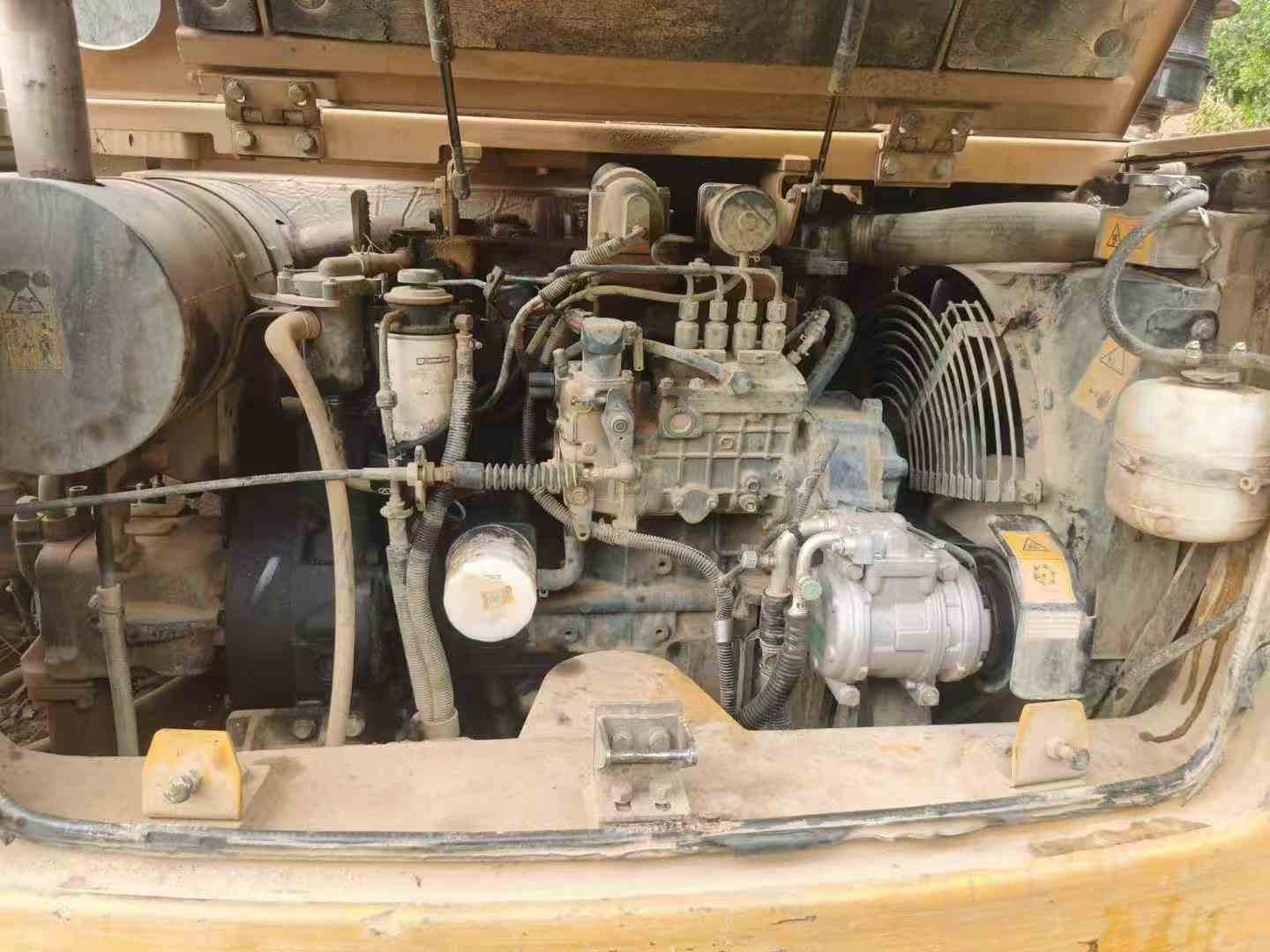

- Kubota water-cooled engine with 3.769L displacement
- Maximum digging radius of 6,660 mm
- Bucket capacity range: 0.2-0.45 m³
- 160L fuel tank for extended operation
- 70% gradeability and 11.2 rpm rotation speed
- Compact transport dimensions: 6,560 × 2,260 × 2,650 mm
Sany's reputation for manufacturing quality and widespread dealer support ensures long-term serviceability and competitive resale returns.
| Specifications | Value |
|---|---|
| No. | 1025169 |
| Tonnage (tons) | 9 |
| Working weight (kg) | 9180 |
| Bucket capacity (m³) | 0.2-0.45 (0.39) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Kubota V3800DI-T-E3B |
| Rated power (kw/rpm) | 60.7/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 305.4/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.769 |
| Ground specific pressure (Kpa) | 38.6 |
| Rotation speed (rpm) | 11.2 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 63.6 |
| Rod digging force (kN) | 46.8 |
| Travel speed (km/h) | 5.0/2.9 |
| Fuel Tank (L) | 160 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6560 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2650 |
| Minimum ground clearance (mm) | 360 |
| Minimum turning radius of front working device (mm) | 1990 |
| Back end turning radius (mm) | 1885 |
| Onboard width (mm) | 2160 |
| Total track length (mm) | 2980 |
| Track gauge (mm) | 1810 |
| Track plate width (mm) | 450 |
| Maximum height at minimum turning radius (mm) | 5700 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 41 |
| Maximum digging radius (mm) | 6660 |
| Maximum digging depth (mm) | 4330 |
| Maximum excavation height (mm) | 7260 |
| Maximum unloading height (mm) | 5210 |
| Maximum vertical digging depth (mm) | 3080 |
| Bulldozer lift or depth (mm) | 330/330 |
| Dodging plate width × height (mm) | 420 (height) |
