Product Description

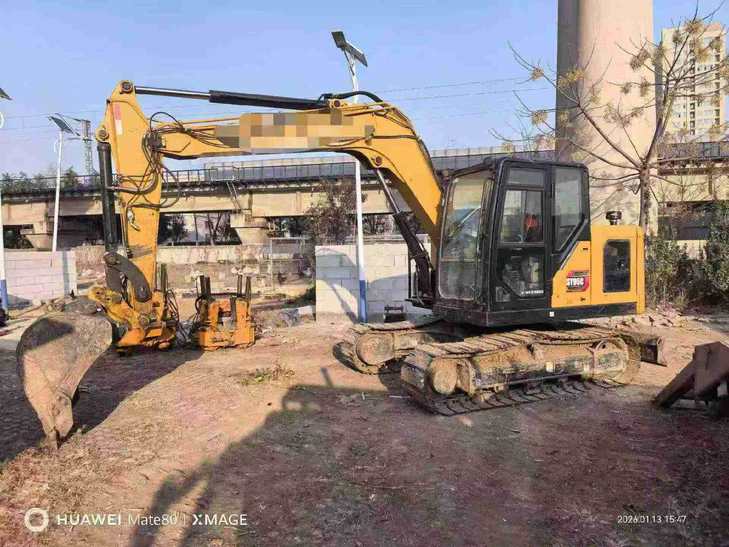

Built in 2023 and currently stationed in Shaoxing, Zhejiang, this Sany SY95C mini excavator delivers proven performance for contractors managing multiple jobsites. With a 9-ton operating weight and Kubota V3800DI-T-E3B engine producing 60.7 kW, this machine integrates seamlessly into existing fleets requiring reliable backup capacity. Maximum digging depth reaches 4,330 mm with a digging radius of 6,660 mm, while bucket capacity ranges from 0.2 to 0.45 m³ to match varying site demands.

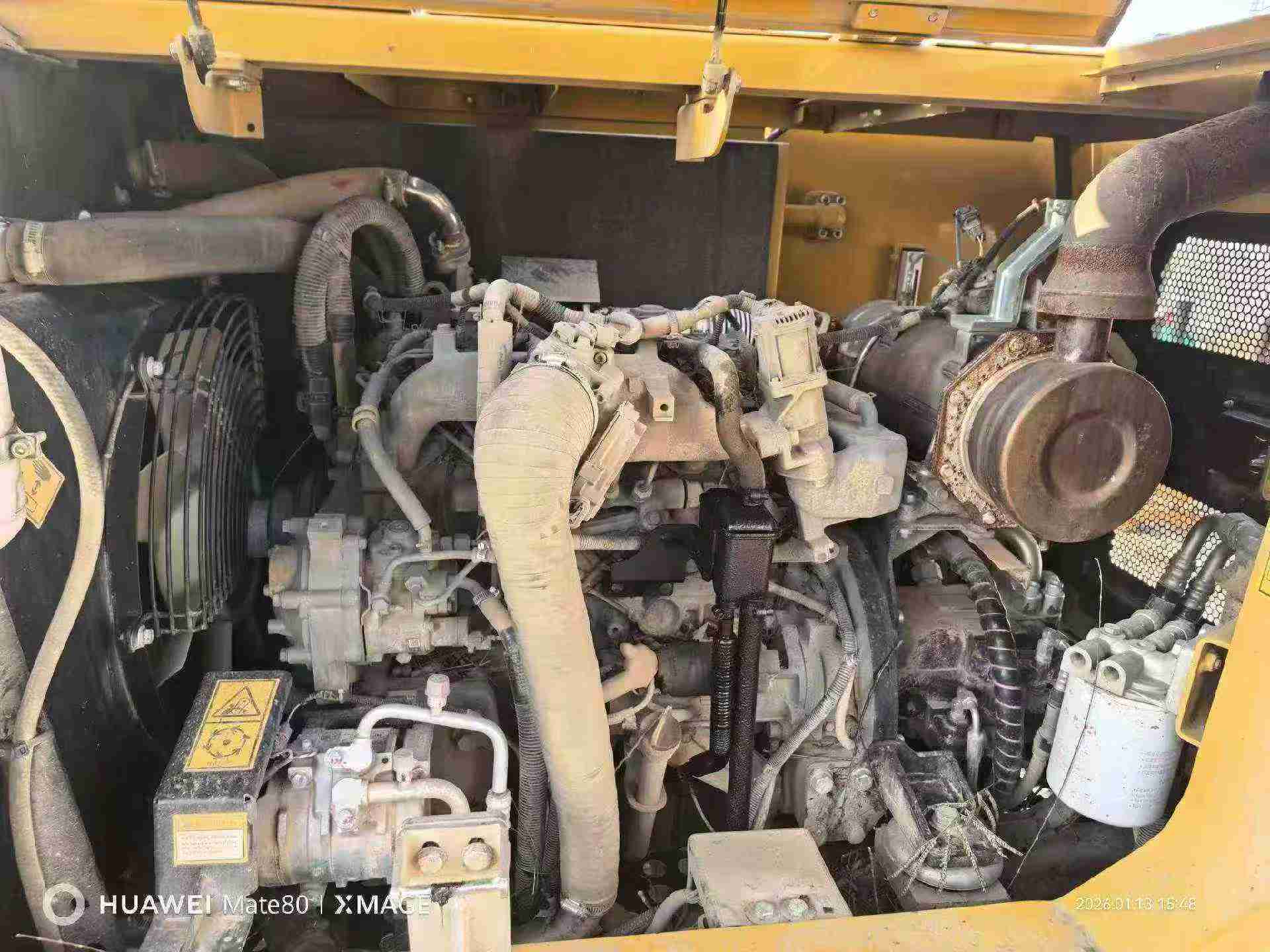

- Engine: Kubota V3800DI-T-E3B, 60.7 kW @ 2,200 rpm, water-cooled diesel
- Performance: 63.6 kN bucket digging force, 46.8 kN arm digging force
- Dimensions: 6,560 mm transport length, 2,260 mm width, compact 1,990 mm front turning radius
- Capacity: 160 L fuel tank, 120 L hydraulic reservoir for extended runtime
- Mobility: 5.0 km/h travel speed, 70% gradeability, 450 mm track width
Ready for immediate deployment across residential, utility, or landscaping operations where downtime isn't an option.
| Specifications | Value |
|---|---|
| No. | 1029393 |
| Tonnage (tons) | 9 |
| Working weight (kg) | 9180 |
| Bucket capacity (m³) | 0.2-0.45 (0.39) |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Engine type | Kubota V3800DI-T-E3B |
| Rated power (kw/rpm) | 60.7/2200 |
| Cooling mode | water-cooling |
| Maximum torque (N.m) | 305.4/1600 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 3.769 |
| Ground specific pressure (Kpa) | 38.6 |
| Rotation speed (rpm) | 11.2 |
| Climbing ability (%) | 70% (35°) |
| Bucket digging force (kN) | 63.6 |
| Rod digging force (kN) | 46.8 |
| Travel speed (km/h) | 5.0/2.9 |
| Fuel Tank (L) | 160 |
| Hydraulic Tank (L) | 120 |
| Engine Oil changes (L) | 12 |
| Total transport length (mm) | 6560 |
| Total transport width (mm) | 2260 |
| Total transport height (mm) | 2650 |
| Minimum ground clearance (mm) | 360 |
| Minimum turning radius of front working device (mm) | 1990 |
| Back end turning radius (mm) | 1885 |
| Onboard width (mm) | 2160 |
| Total track length (mm) | 2980 |
| Track gauge (mm) | 1810 |
| Track plate width (mm) | 450 |
| Maximum height at minimum turning radius (mm) | 5700 |
| Number of sprockets (single side) (each) | 1 |
| Number of wheels (single side) (each) | 5 |
| Number of track plates (single side) (PCS) | 41 |
| Maximum digging radius (mm) | 6660 |
| Maximum digging depth (mm) | 4330 |
| Maximum excavation height (mm) | 7260 |
| Maximum unloading height (mm) | 5210 |
| Maximum vertical digging depth (mm) | 3080 |
| Bulldozer lift or depth (mm) | 330/330 |
| Dodging plate width × height (mm) | 420 (height) |
