2017 Sany SY95C-9

1/7
Buy Sany SY95C-9 Used Excavator / 1
Buy Sany SY95C-9 Used Excavator / 2
Buy Sany SY95C-9 Used Excavator / 3
Buy Sany SY95C-9 Used Excavator / 4
Buy Sany SY95C-9 Used Excavator / 5
Buy Sany SY95C-9 Used Excavator / 6
Buy Sany SY95C-9 Used Excavator / 7

Product Description

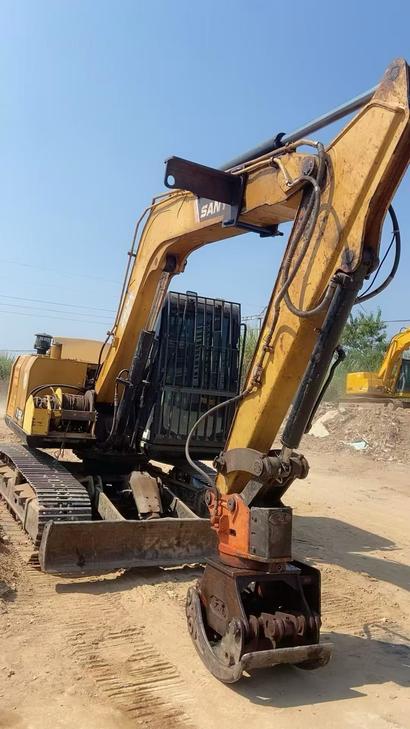

2017 Sany SY95C-9 excavator available in Guangxi, China. This 9.5-ton class machine comes equipped with an extended arm for enhanced reach and versatility in demanding applications. Factory-installed brake system and winch assembly make this unit particularly well-suited for forestry operations and slope work.

Key features include:

  • Extended boom configuration for increased working range
  • Integrated winch system for material handling and recovery operations
  • Brake-equipped undercarriage for enhanced stability on gradients
  • Forestry-ready specification
  • Well-maintained condition with recent return to inventory

The SY95C-9 represents Sany's reliable mid-size excavator platform, combining operational efficiency with robust construction. This machine has been configured for specialized forestry and terrain work, offering contractors a capable solution for challenging site conditions. Inspection welcomed.

SpecificationsValue
No.1171328
Tonnage (tons)9
Working weight (kg)8850
Bucket capacity (m³)0.39
Country of originShanghai
powerTraditional power
manufacturerMade in China
bucketbackhoe
Engine typeIsuzu 4GJ1-TABA-01-C2
Rated power (kw/rpm)53.8/2150
Cooling modewater-cooling
Maximum torque (N.m)255/1800
Displacement (L)3.059
Working form4 cylinder, 4 stroke, water cooled, direct injection
Ground specific pressure (Kpa)36
Rotation speed (rpm)11.2
Climbing ability (%)70% / 35 °
Bucket digging force (kN)63.6
Rod digging force (kN)46.8
Travel speed (km/h)5.0/2.9
Fuel Tank (L)160
Hydraulic Tank (L)130
Engine Oil changes (L)9
Total transport length (mm)6560
Total transport width (mm)2260
Total transport height (mm)2720
Full cab height (mm)2720
Minimum ground clearance (mm)360
Back end turning radius (mm)1990
Onboard width (mm)2160
Total track length (mm)2980
Track gauge (mm)1810
Track plate width (mm)450
Track ground length (mm)2340
Maximum digging radius (mm)6660
Maximum digging depth (mm)4330
Maximum excavation height (mm)7260
Maximum unloading height (mm)5210
Maximum vertical digging depth (mm)3080
Bulldozer lift or depth (mm)Lift 330/ push 330
Dodging plate width × height (mm)420(height)
