Product Description

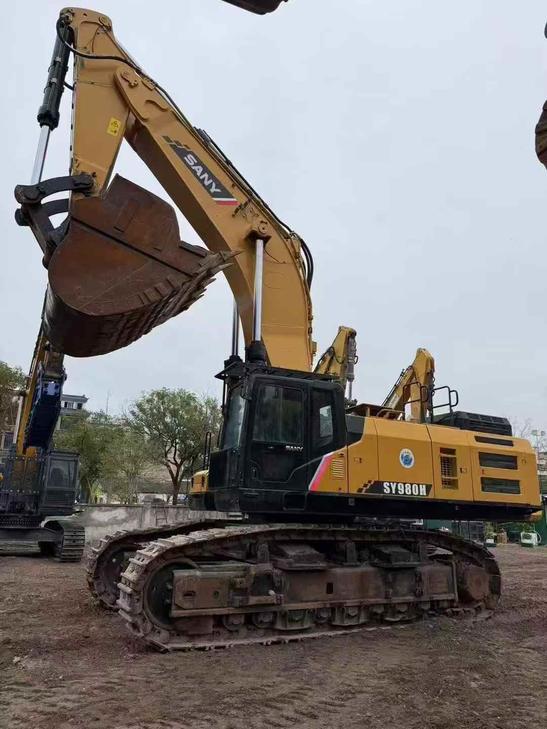

Built for heavy-duty excavation and high-volume earthmoving, this 2021 Sany SY980H delivers 98 tons of working capacity with a robust 425 kW engine and 945 N·m of maximum torque. Currently located in Guizhou, this China-manufactured crawler excavator combines a 5.5–6.5 m³ bucket capacity with exceptional digging force—495 kN for bucket operations and 446 kN for stick work—making it ideal for large-scale mining, quarry operations, and major civil construction projects.
Performance specifications include:
- Maximum digging reach of 12,280 mm and depth capacity to 6,740 mm
- Maximum unloading height of 8,345 mm for efficient truck loading
- 70% climbing ability and 132 kPa ground pressure for varied terrain work
- Dual travel speeds (3.4/2.3 km/h) for operational flexibility
- 7 rpm swing speed with 4,700 mm rear turning radius
Equipped with a backhoe configuration and traditional power system, this machine is transport-ready at 13,840 mm length and site-ready for immediate deployment in demanding excavation, mass grading, or demolition applications.
| Specifications | Value |
|---|---|
| No. | 1022304 |
| Tonnage (tons) | 98 |
| Working weight (kg) | 95800 |
| Bucket capacity (m³) | 5.5~6.5 |
| power | Traditional power |
| manufacturer | Made in China |
| bucket | backhoe |
| Rated power (kw/rpm) | 425/1800 |
| Maximum torque (N.m) | 945 |
| Ground specific pressure (Kpa) | 132 |
| Rotation speed (rpm) | 7 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 495 |
| Rod digging force (kN) | 446 |
| Travel speed (km/h) | 3.4/2.3 |
| Total transport length (mm) | 13840 |
| Total transport width (mm) | 3700/4460 |
| Total transport height (mm) | 5300 |
| Full cab height (mm) | 3880 |
| Minimum ground clearance (mm) | 945 |
| Minimum turning radius of front working device (mm) | 5010 |
| Back end turning radius (mm) | 4700 |
| Onboard width (mm) | 3480 |
| Total track length (mm) | 6350 |
| Track gauge (mm) | 2750 (Operations) /3510 (Transportation) |
| Track plate width (mm) | 650 |
| Track ground length (mm) | 5070 |
| Maximum height at minimum turning radius (mm) | 10580 |
| Maximum digging radius (mm) | 12280 |
| Maximum digging depth (mm) | 6740 |
| Maximum excavation height (mm) | 12310 |
| Maximum unloading height (mm) | 8345 |
| Maximum vertical digging depth (mm) | 4250 |
