Product Description

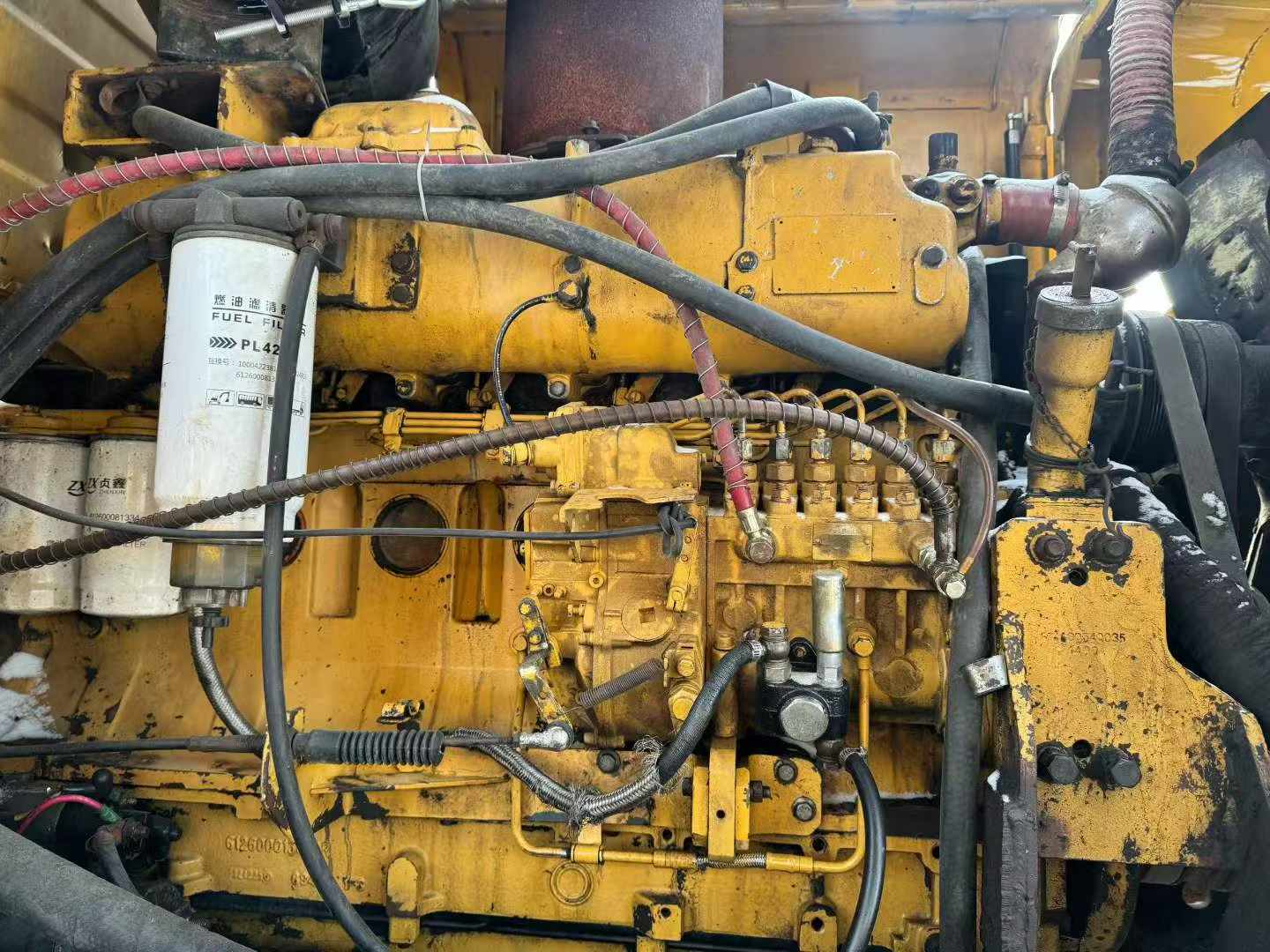

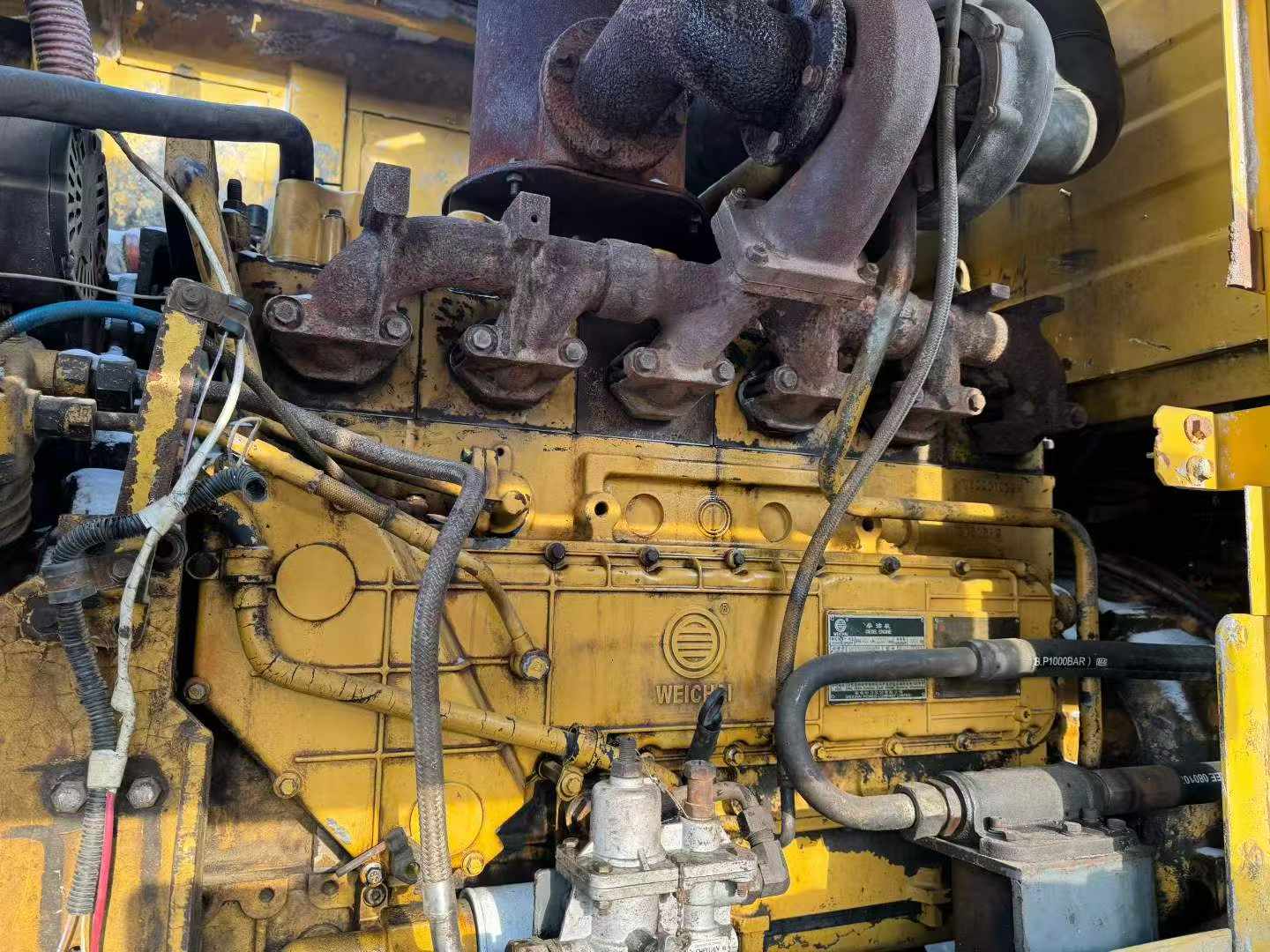

Proven in demanding conditions since 2012, this SDLG L953 wheel loader demonstrates the durability that has made it a workhorse across construction and material handling sites. With over a decade of operational history, this machine validates its robust engineering and long-term reliability. Powered by a WP10G220E341 engine delivering 162kW at 2200rpm and 950N.m maximum torque, it provides consistent performance for heavy-duty applications.
- Rated Load: 5000kg with 175kN digging force
- Operating Weight: 16,800kg for superior stability
- Maximum Tractive Force: 152kN ensures power through challenging terrain
- Unloading Height: 3080mm with 1105mm reach
- Maximum Speed: 38km/h for efficient site mobility
- Fuel Capacity: 260L for extended operation
- Dimensions: 7920mm × 3024mm × 3423mm
Currently located in Baoding, Hebei, this battle-tested loader combines proven mechanical integrity with practical specifications that continue to deliver results. A genuine workhorse built to last.
| Specifications | Value |
|---|---|
| No. | 1038317 |
| Engine type | WP10G220E341 |
| Rated power (kw/rpm) | 162/2200 |
| Cooling mode | |
| Maximum torque (N.m) | 950 |
| Working form | |
| Exhaust volume (L) | 9.726 |
| Bucket capacity (m³) | |
| Rated load (tons) | |
| Rated load (kg) | 5000 |
| Digging force (lifting force) (kN) | 175 |
| Machine operating weight (kg) | 16800 |
| Max - Unloading height (mm) | 3080 |
| Unloading distance (mm) | 1105 |
| Maximum tractive force (kN) | 152 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 240 |
| Engine Oil (L) | 20 |
| Wheelbase (mm) | 3000 |
| Wheel base (mm) | 2250 |
| Minimum ground clearance (mm) | 534 |
| Machine length (mm) | 7920 |
| Machine width (mm) | 3024 |
| Machine height (mm) | 3423 |
| Steering Angle | 35 |
| Ternary sum (s) | 9.3 |
| Speed 1 gear (km/h) | |
| Speed 2 (km/h) | |
| Maximum speed (km/h) | 38 |
