Product Description

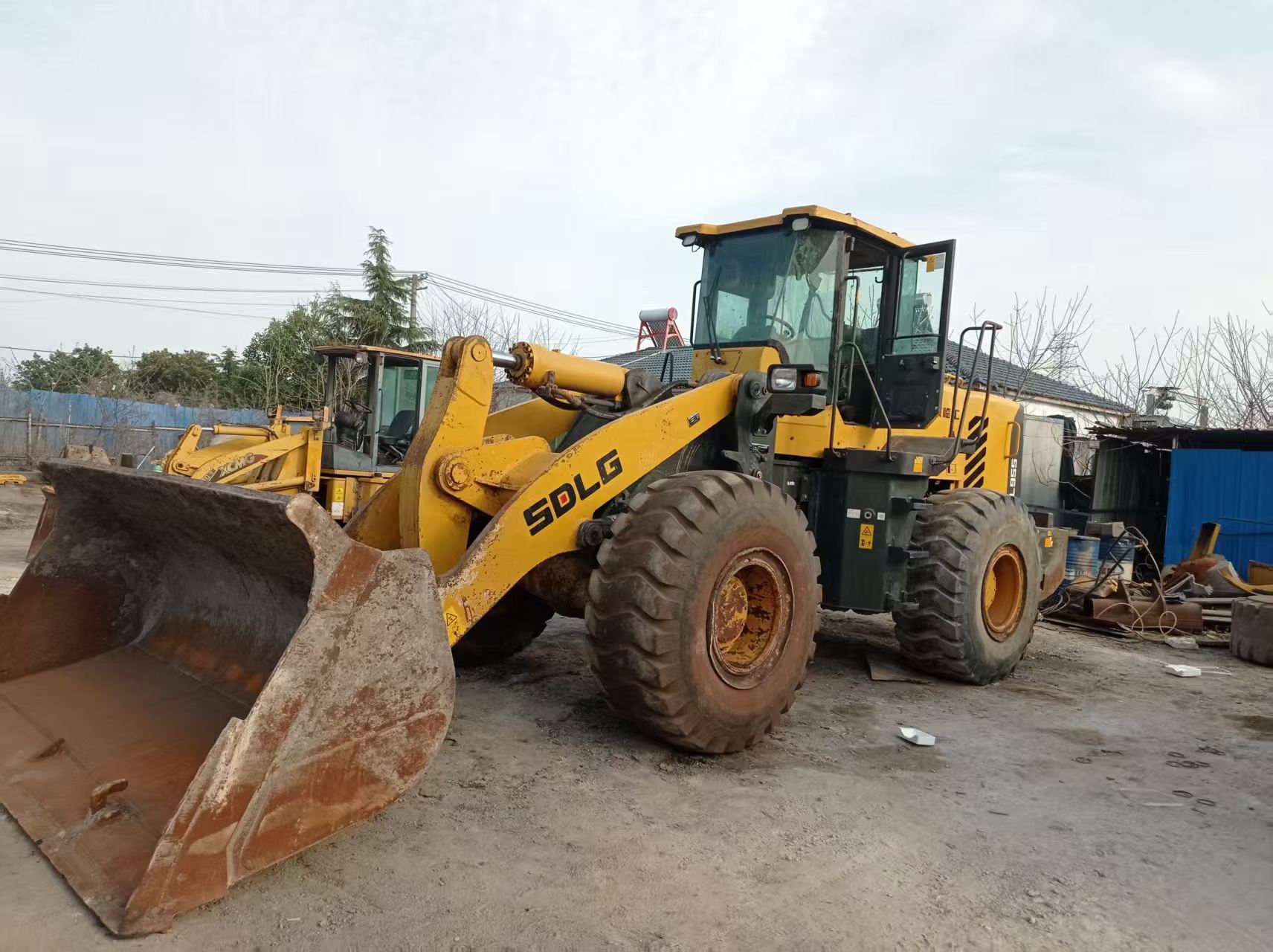

Built for heavy-duty performance, this 2020 SDLG L955 wheel loader delivers immediate productivity on demanding job sites. With a rated load capacity of 5,000 kg and a powerful WP10G220E343 engine generating 162 kW at 2,000 rpm, this machine handles material loading, stockpiling, and site preparation with authority. Maximum tractive force reaches 155 kN, while the 175 kN digging force ensures efficient bucket filling in varied materials.
Currently located in Nanjing, Jiangsu, this loader arrives ready for grading, excavation support, and demolition cleanup. The 17,000 kg operating weight provides stability during heavy cycles, and the 3,080 mm unloading height accommodates standard haul trucks. A 3,200 mm wheelbase and 35-degree steering angle deliver maneuverability in confined spaces without sacrificing power.
- Rated Load: 5,000 kg
- Engine Power: 162 kW (WP10G220E343)
- Max Tractive Force: 155 kN
- Operating Weight: 17,000 kg
- Unloading Height: 3,080 mm
- Fuel Capacity: 260 L
Contact Fair Trade Machinery for inspection details and shipping arrangements.
| Specifications | Value |
|---|---|
| No. | 1047871 |

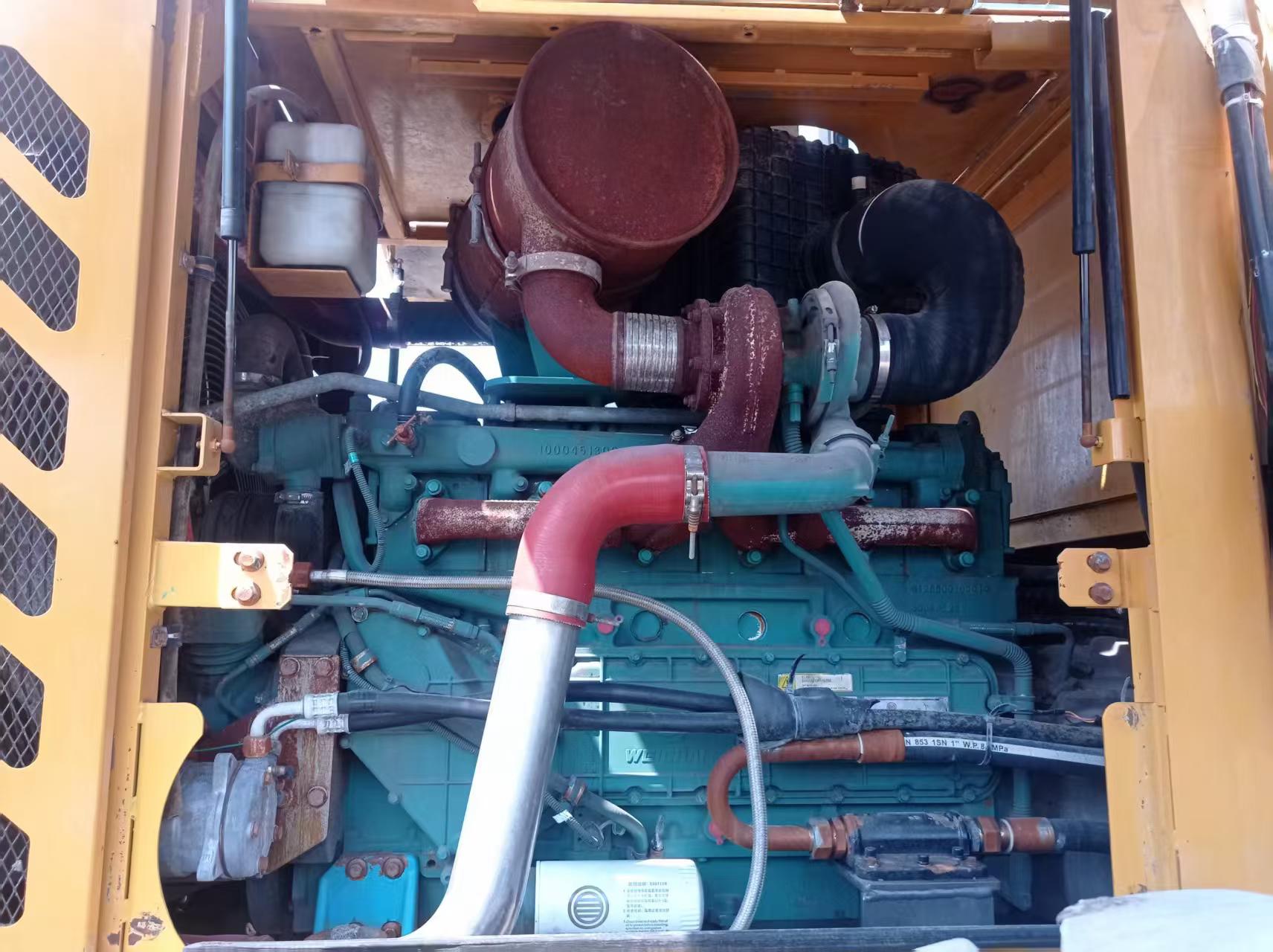

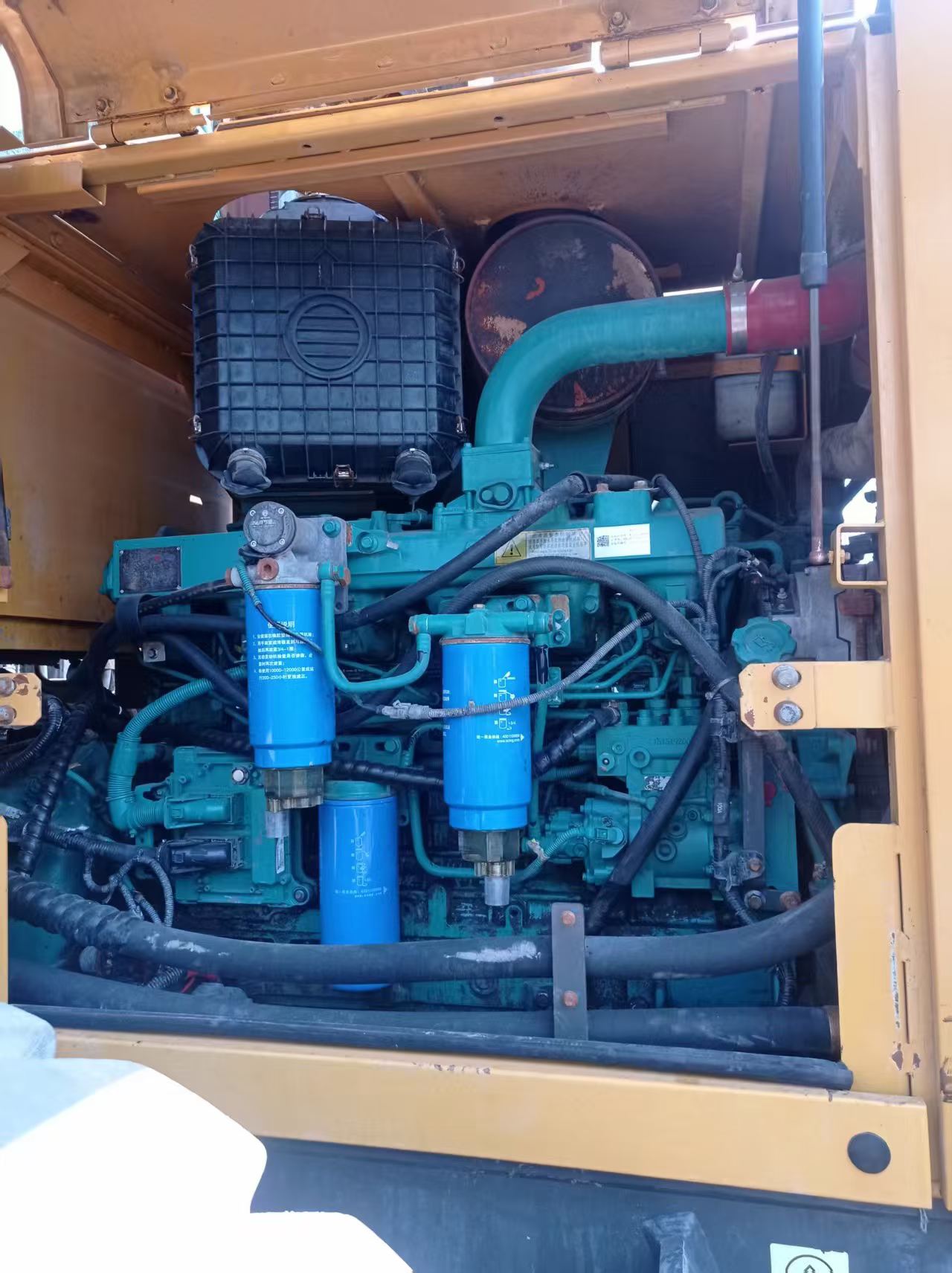

| Engine type | WP10G220E343 |
| Rated power (kw/rpm) | 162/2000 |
| Cooling mode | |
| Maximum torque (N.m) | 980/1300-1500 |
| Exhaust volume (L) | 9.726 |
| Bucket capacity (m³) | |
| Rated load (tons) | |
| Rated load (kg) | 5000 |
| Digging force (lifting force) (kN) | 175 |
| Machine operating weight (kg) | 17000 |
| Max - Unloading height (mm) | 3080 |
| Unloading distance (mm) | 1050 |
| Maximum tractive force (kN) | 155 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 240 |
| Engine Oil (L) | 20 |
| Wheelbase (mm) | 3200 |
| Minimum ground clearance (mm) | 534 |
| Machine length (mm) | 8050 |
| Machine width (mm) | 3024 |
| Machine height (mm) | 3423 |
| Steering Angle | 35 |
| Ternary sum (s) | 10 |
| Gear setting | 38 |
