Product Description

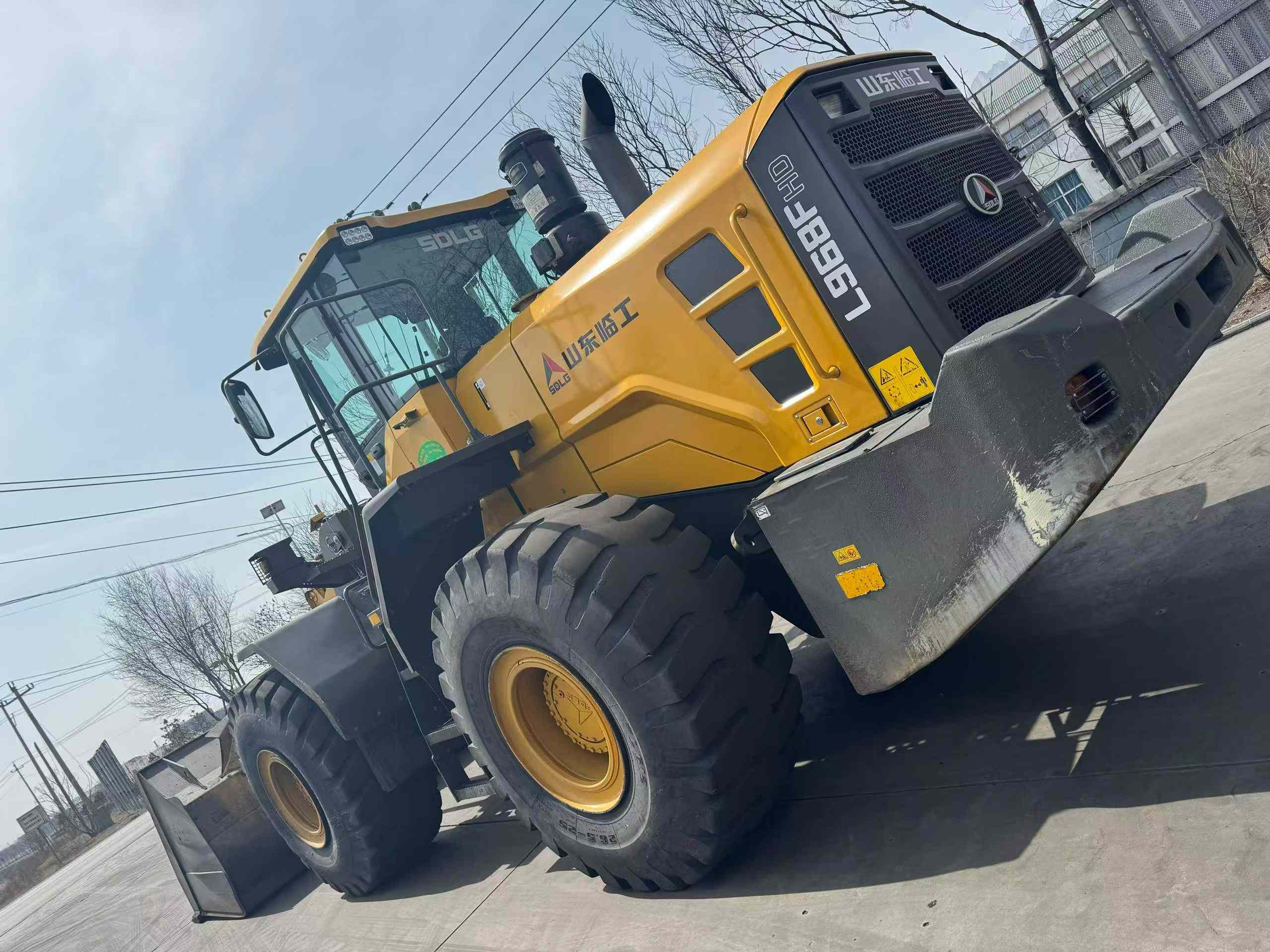

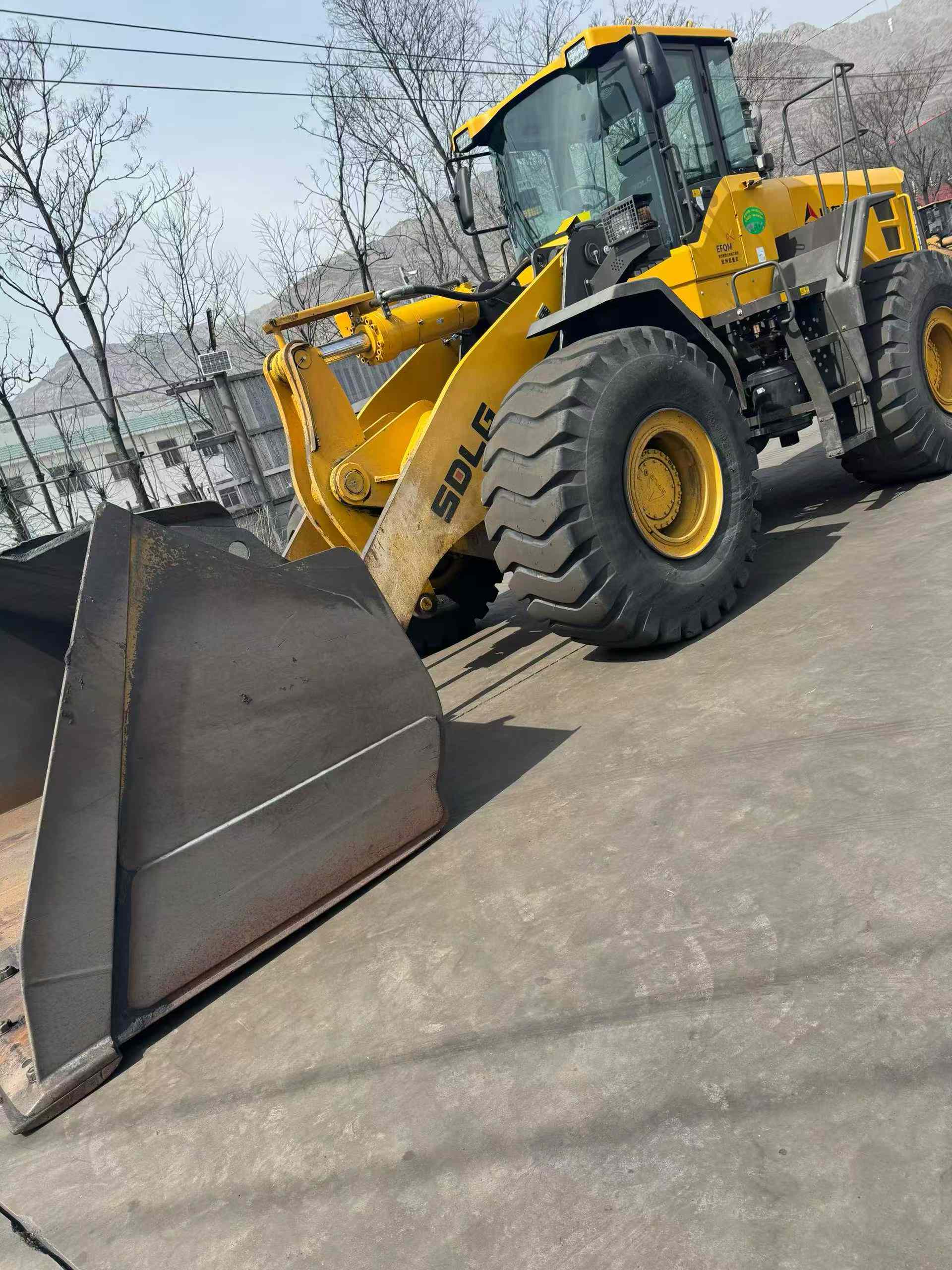

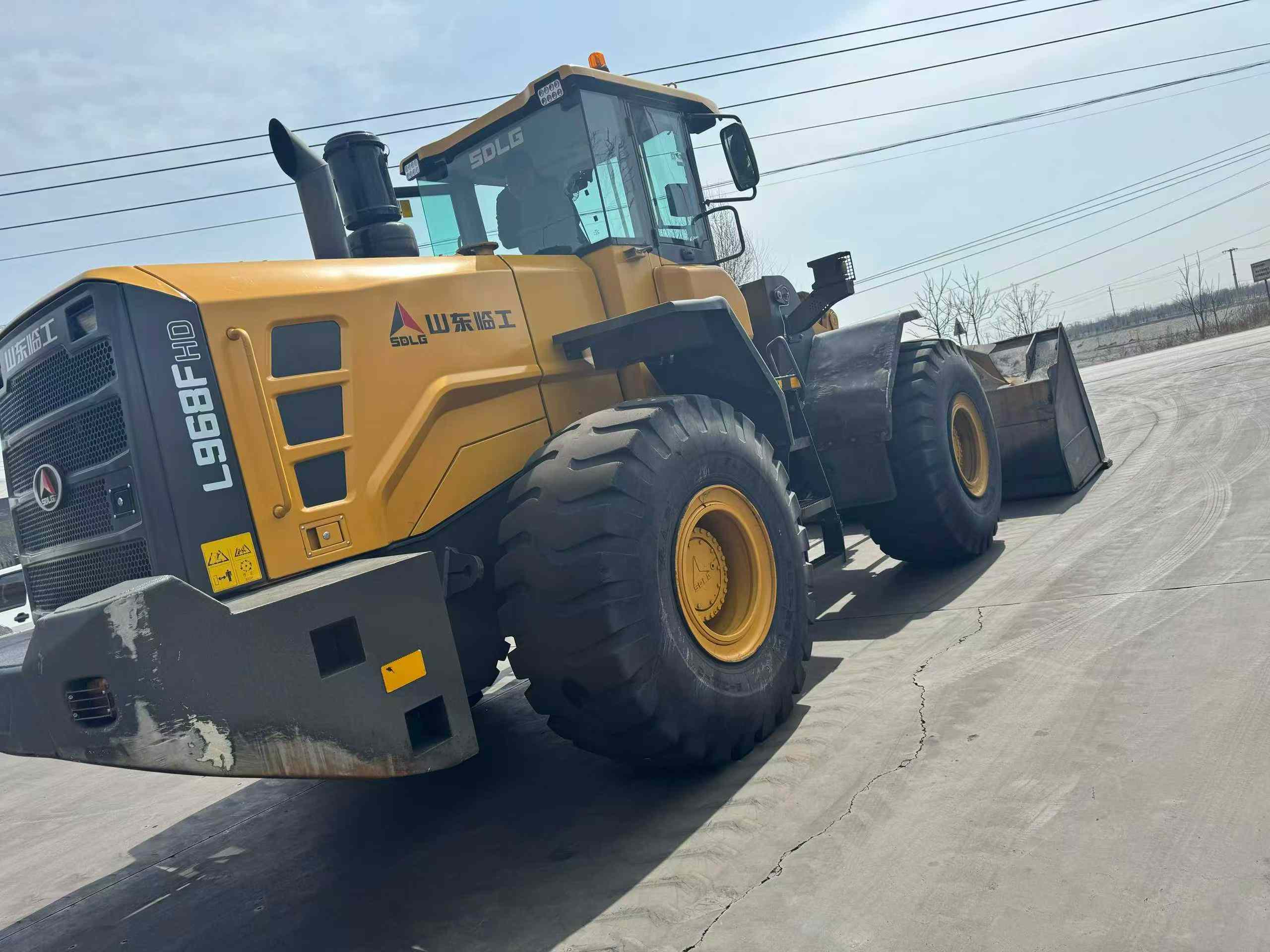

Built for high-capacity loading operations, this 2021 SDLG L968F wheel loader delivers 178 kW of power through its WP10G240E342 engine, paired with a robust 6-ton rated load capacity. Operators benefit from exceptional stability during material handling, supported by a 19,800 kg operating weight and 3,400 mm wheelbase that anchors the machine firmly across uneven terrain. The 3.5 m³ bucket moves efficiently with 210 kN of digging force, while the 38° steering angle ensures tight maneuverability in confined job sites.
Visibility from the cabin meets modern standards for this class, with sight lines designed to monitor bucket positioning and surrounding work zones effectively. The hydraulic system responds predictably under load, drawing from a 220-L tank to maintain consistent cycle times. With a maximum travel speed of 38 km/h and 10.3-second cycle time, productivity remains steady throughout shifts. Located in Baoding, Hebei, this loader combines proven SDLG engineering with the operational control demanded by experienced operators managing large-scale earthmoving and material transfer projects.
| Specifications | Value |
|---|---|
| No. | 1041472 |
| Engine type | WP10G240E342 |
| Rated power (kw/rpm) | 178/2100 |
| Cooling mode | |
| Maximum torque (N.m) | 1100/1500 |
| Working form | |
| Exhaust volume (L) | 9.726 |
| Bucket capacity (m³) | 3.5(3.0-5.0) |
| Rated load (tons) | |
| Rated load (kg) | 6000 |
| Digging force (lifting force) (kN) | 210 |
| Machine operating weight (kg) | 19800 |
| Max - Unloading height (mm) | 3250 |
| Unloading distance (mm) | 1090 |
| Maximum tractive force (kN) | 180 |
| Fuel Tank (L) | 350 |
| Hydraulic Tank (L) | 220 |
| Engine Oil (L) | 20 |
| Wheelbase (mm) | 3400 |
| Wheel base (mm) | 2250 |
| Minimum ground clearance (mm) | 530 |
| Machine length (mm) | 8680 |
| Machine width (mm) | 3200 |
| Machine height (mm) | 3470 |
| Steering Angle | 38 |
| Ternary sum (s) | 10.3 |
| Gear setting | |
| Maximum speed (km/h) | 38 |
