Product Description

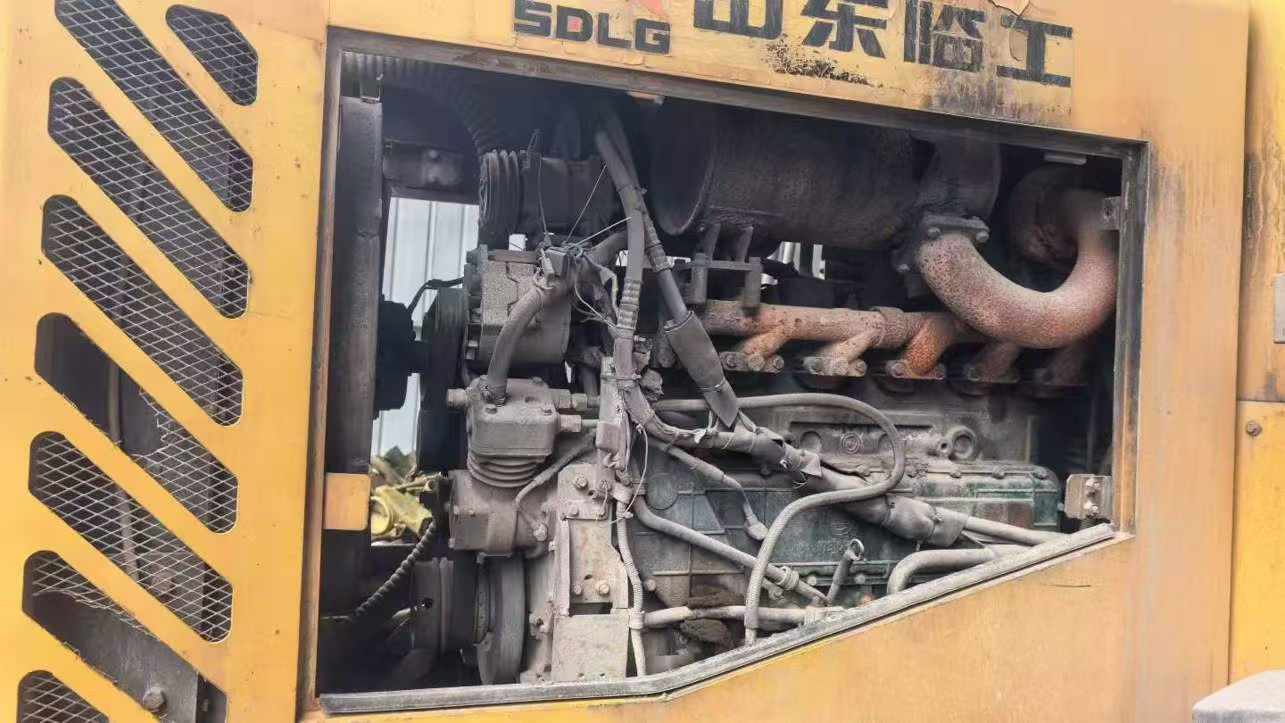

Powered by a robust WD10G220E23 engine delivering 162 kW at 2000 rpm, this 2015 SDLG LG952H wheel loader represents exceptional value for operations demanding reliable performance without the premium price tag of new equipment. With a 5000 kg rated load capacity and 2.8 m³ bucket, this machine handles heavy-duty material handling tasks efficiently while operating at a fraction of new equipment costs.
Key specifications include:
- Engine power: 162 kW with 890 N.m maximum torque
- Operating weight: 16,400 kg for superior stability
- Digging force: 160 kN for challenging applications
- Maximum unloading height: 3,070 mm with 1,190 mm reach
- 28° climbing ability for versatile terrain navigation
- Dual-speed transmission: 0-13 km/h (1st) / 0-38 km/h (2nd)
- Generous fuel capacity: 246 L for extended operations
Currently located in Baoding, Hebei, this loader offers substantial savings compared to new alternatives while maintaining the performance standards required for construction, mining, and aggregate operations. Smart buyers recognize proven machinery as a strategic investment.
| Specifications | Value |
|---|---|
| No. | 1042396 |
| Engine type | WD10G220E23 |
| Rated power (kw/rpm) | 162/2000 |
| Cylinder diameter × stroke (mm) | |
| Maximum torque (N.m) | 890 |
| Theoretical fuel consumption (L/h) | |
| Exhaust volume (L) | 9726 |
| Bucket capacity (m³) | 2.8 |
| Rated load (tons) | |
| Rated load (kg) | 5000 |
| Digging force (lifting force) (kN) | 160 |
| Machine operating weight (kg) | 16400 |
| Max - Unloading height (mm) | 3070 |
| Unloading distance (mm) | 1190 |
| Maximum tractive force (kN) | |
| Maximum climbing ability (°) | 28 |
| Fuel Tank (L) | 246 |
| Hydraulic Tank (L) | 240 |
| Wheel base (mm) | 2250 |
| Minimum ground clearance (mm) | 435 |
| Machine length (mm) | 7663 |
| Machine width (mm) | 3024 |
| Machine height (mm) | 3349 |
| Speed 1 gear (km/h) | 0-13 |
| Speed 2 (km/h) | 0-38 |
