Product Description
Discover the reliability and efficiency of this 2012 Sumitomo 130-6 excavator, available in Tianjin, China. This machine, originally a 130-5 model, has been meticulously maintained and is equipped with a national III emission standard, ensuring it meets current environmental regulations. Ideal for a variety of construction and excavation tasks, it has been used personally by the owner, guaranteeing its robustness and performance. The undercarriage is in excellent condition, presenting minimal wear, and the entire vehicle features intact rubber pads, enhancing its durability and stability on various terrains. Additionally, the air conditioning system is fully functional, providing a comfortable working environment even in the hottest conditions. This Sumitomo 130-6 is ready to be a valuable asset to your fleet.
- Year: 2012
- Brand: Sumitomo
- Model: 130-6 (originally 130-5)
- Location: Tianjin, China
- Emission Standard: National III
- Condition: Well-maintained, personal use

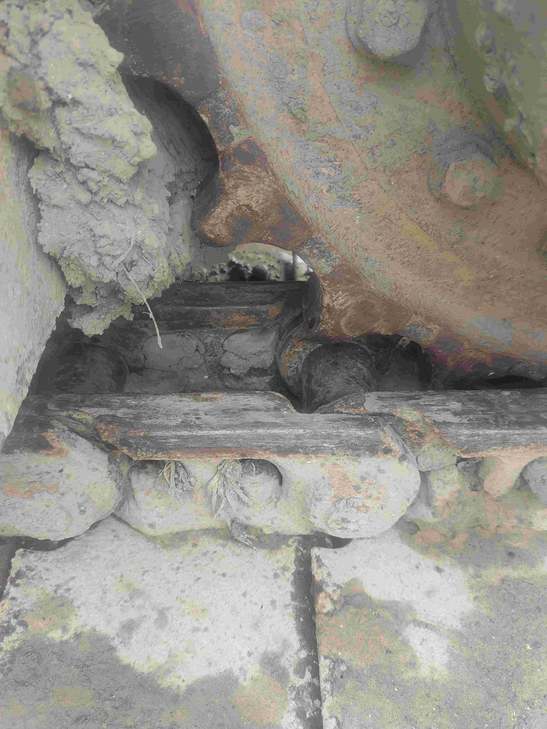

- Undercarriage: Excellent, like new
- Features: Full set of rubber pads, effective air conditioning
| Specifications | Value |
|---|---|
| No. | 1133110 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12700 |
| Bucket capacity (m³) | 0.5-0.55 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 70.9/2000 |
| Displacement (L) | 2.999 |
| Rotation speed (rpm) | 14.1 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 91 |
| Rod digging force (kN) | 62 |
| Travel speed (km/h) | 5.6/3.4 |
| Main overflow set pressure (Mpa) | 34.3/36.3 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 34.3/36.3 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 82 |
| Hydraulic System (L) | 157 |
| Total transport length (mm) | 7620 |
| Total transport width (mm) | 2540 |
| Total transport height (mm) | 2820 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 2340 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3500 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Maximum digging radius (mm) | 8310 |
| Maximum digging depth (mm) | 5540 |
| Maximum excavation height (mm) | 8770 |
| Maximum unloading height (mm) | 6390 |
| Maximum vertical digging depth (mm) | 4590 |
