Product Description

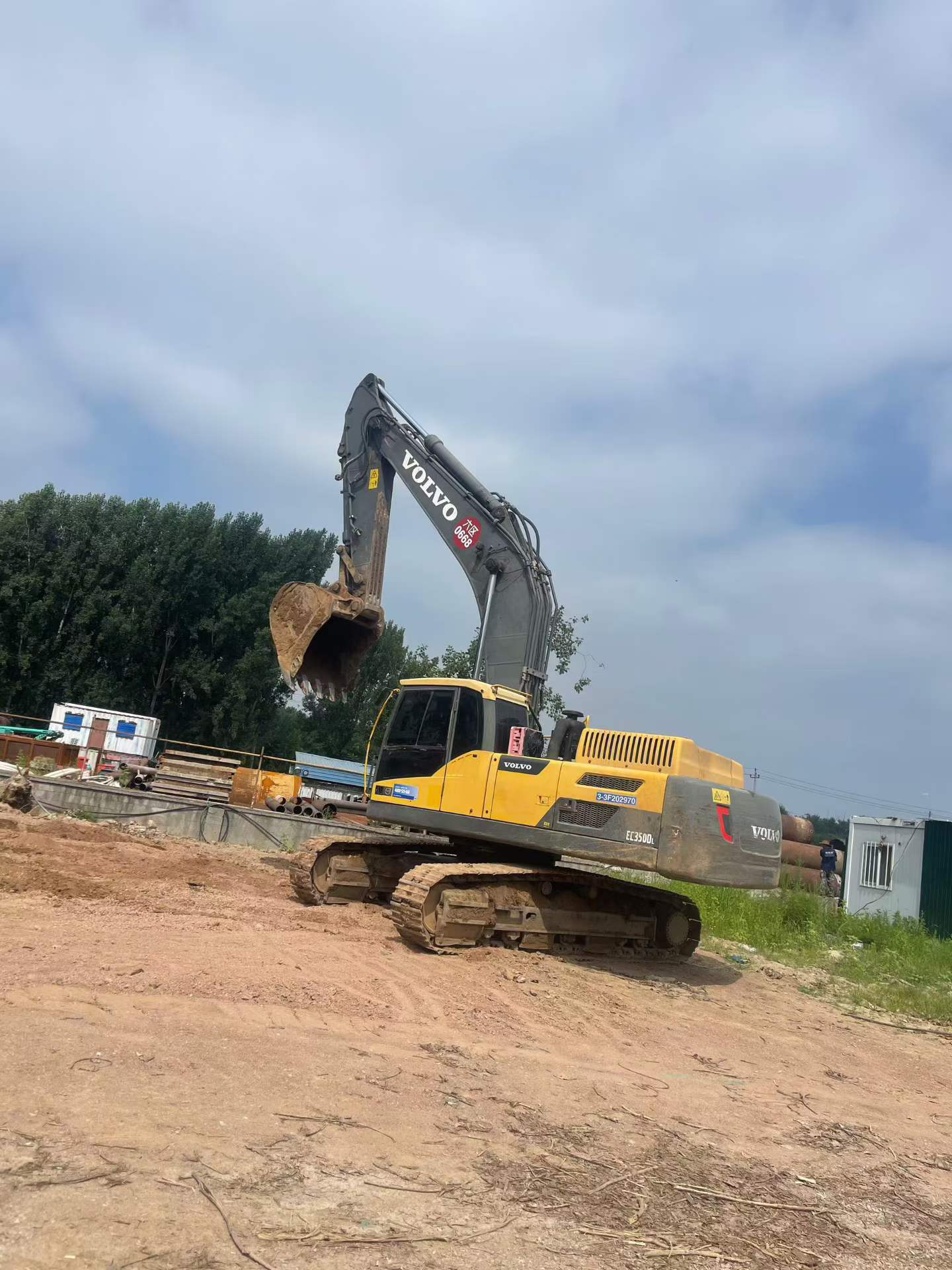

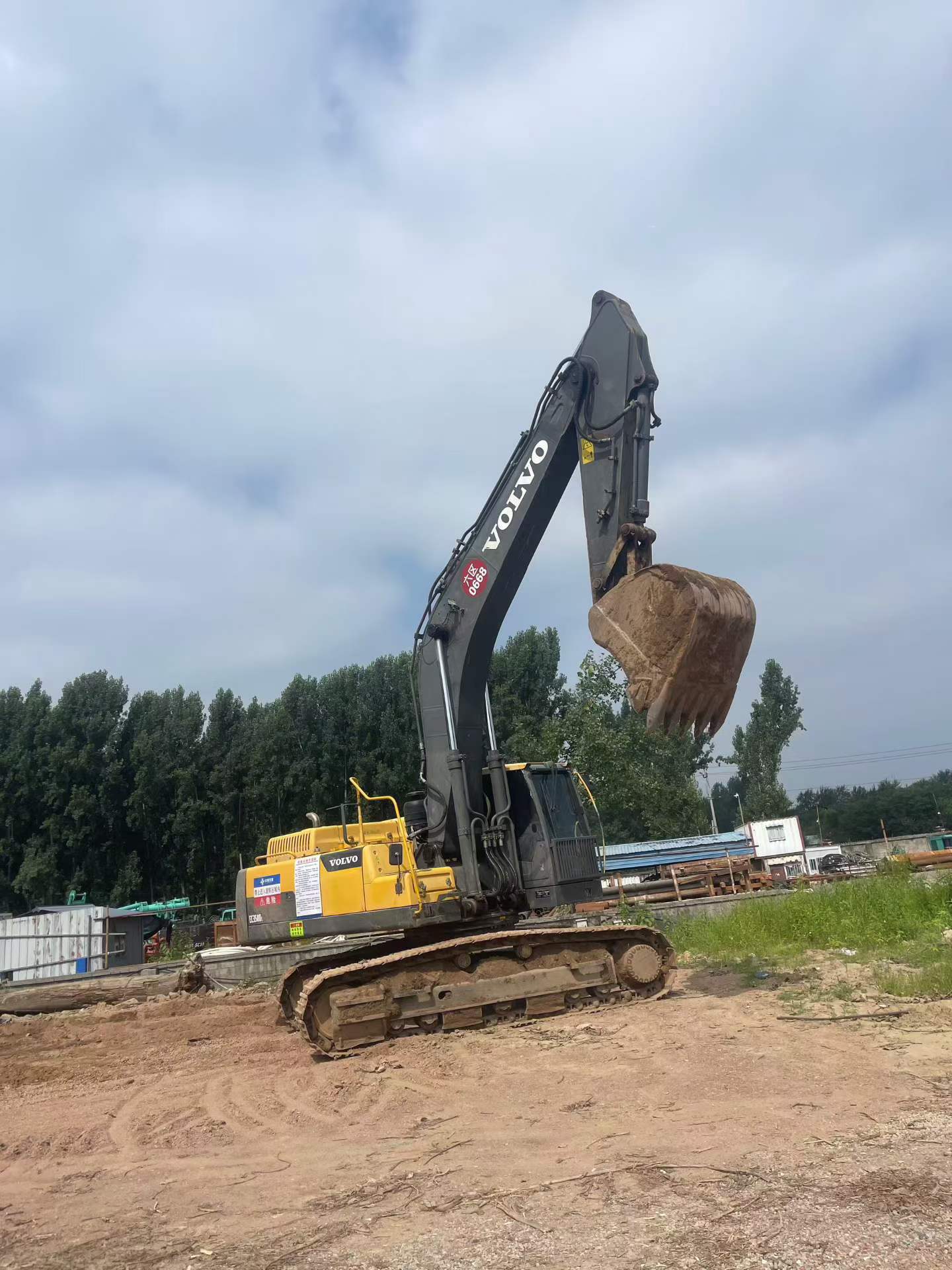

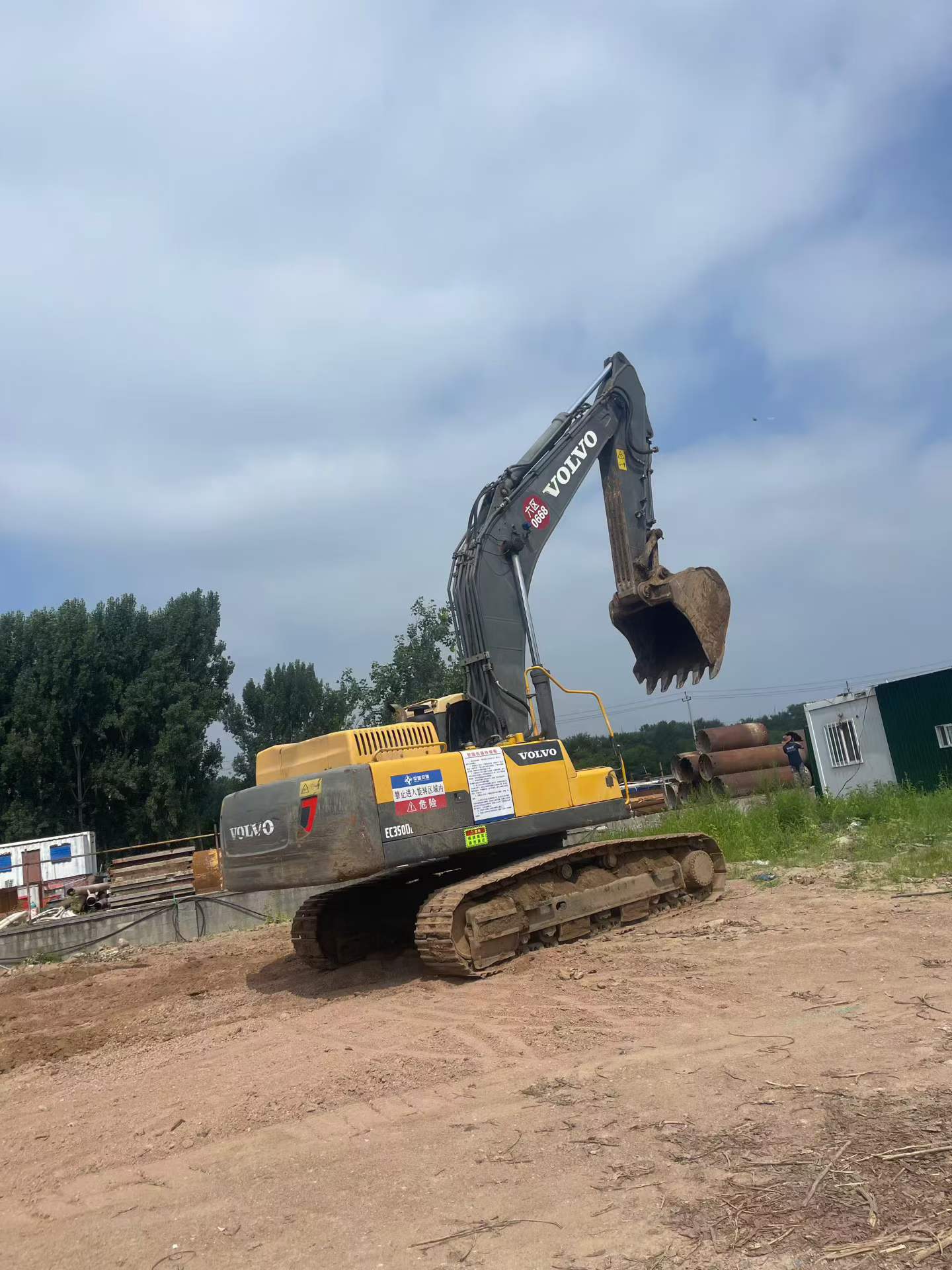

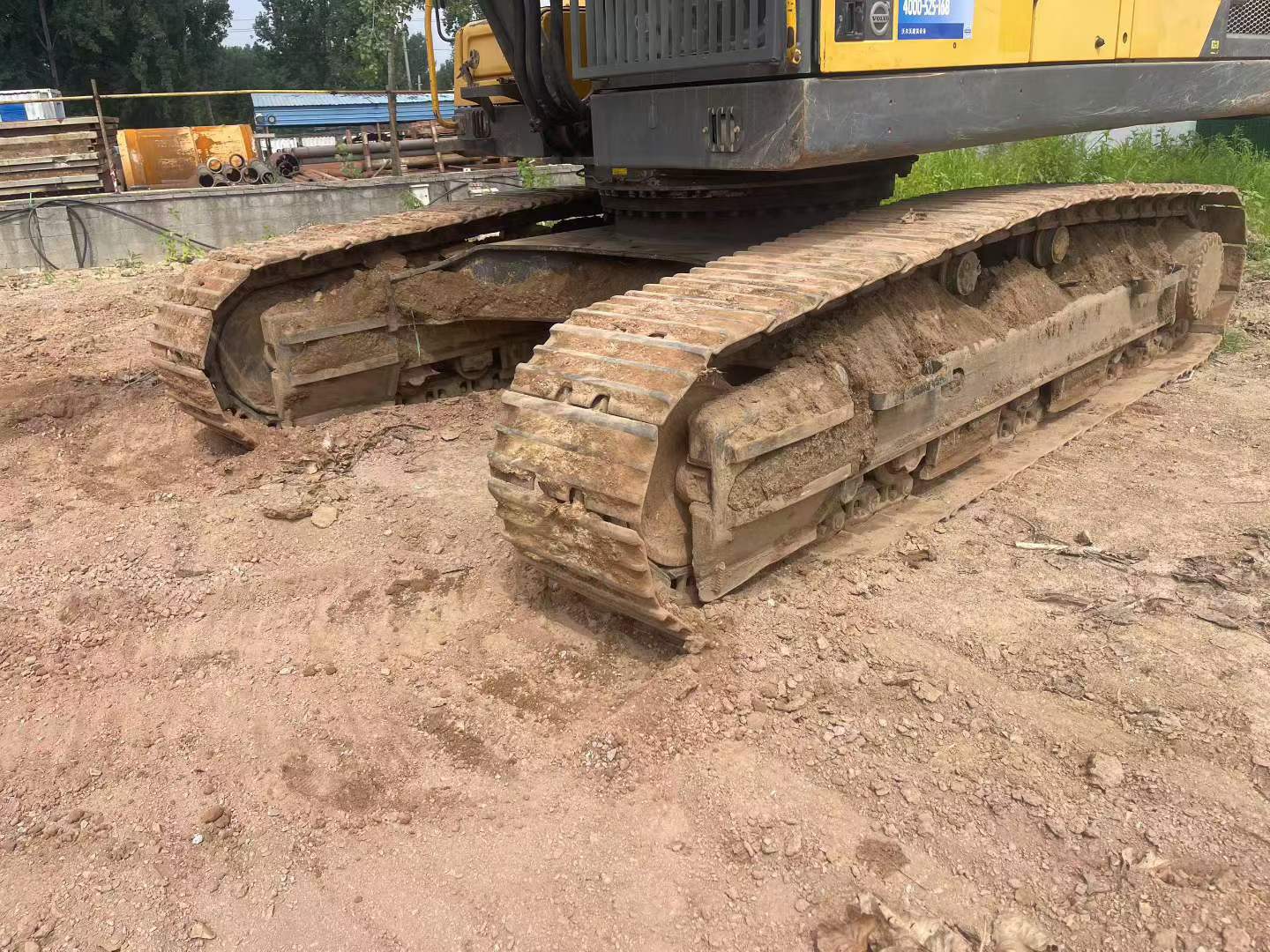

Discover the 2020 Volvo EC350D, a premium used excavator available in Peking, China. This machine boasts its original paint and components, including an authentic hammer pipe, ensuring robust performance and reliability. The EC350D is known for its powerful engine, which delivers high efficiency and productivity on any job site. Its well-maintained undercarriage is in excellent condition, with no leaks, reflecting its top-notch maintenance. Additionally, this excavator comes with warranty options, providing peace of mind. Detailed images and videos are available upon request to showcase the machine's quality and condition.
- Year: 2020
- Brand: Volvo
- Model: EC350D
- Location: Peking, China
- Original Paint and Components
- Powerful and Reliable Engine
- Warranty Options Available
| Specifications | Value |
|---|---|
| No. | 1102509 |
| Tonnage (tons) | 35 |
| Working weight (kg) | 34300-38700 |
| Bucket capacity (m³) | 1.0-2.53 |
| Country of origin | Korea |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |

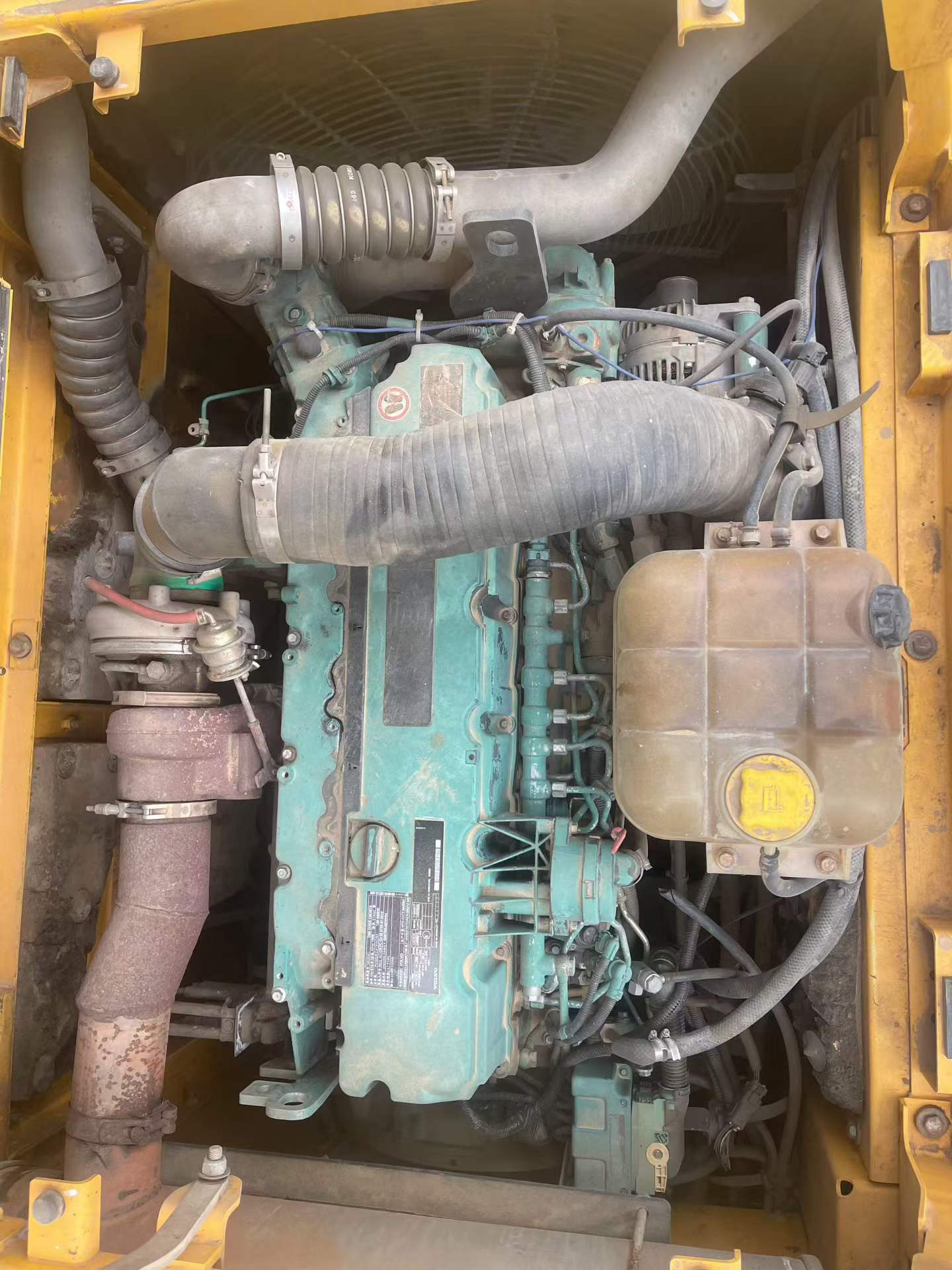

| Engine type | Volvo D8K |
| Rated power (kw/rpm) | 197/1800 |
| Cylinder diameter × stroke (mm) | 110 x 138 |
| Maximum torque (N.m) | 1340 |
| Displacement (L) | 7.8 |
| Rotation speed (rpm) | 10.3 |
| Climbing ability (%) | 35 ° |
| Maximum tractive force (kN) | 261 |
| Travel speed (km/h) | 3.3/5.1 |
| Turning torque (Nm) | 126 |
| Maximum flow of main pump (l/min) | 2 x 288 |
| Traveling Hydraulic Circuit (Mpa) | 33.3 |
| Rotary Hydraulic Circuit (Mpa) | 27.9 |
| Control Hydraulic Circuit (Mpa) | 3.9 |
| Working Hydraulic Circuit (Mpa) | 33.3/36.3 |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 1 x 170 x 1700 |
| Boom cylinders - Number × diameter × stroke (mm) | 2 x 150 x 1530 |
| Fuel Tank (L) | 580 |
| Hydraulic Tank (L) | 215 |
| Engine Oil changes (L) | 32 |
| Coolant (L) | 41 |
| Hydraulic System (L) | 465 |
| Total transport length (mm) | 11190 |
| Total transport width (mm) | 3190 |
| Total transport height (mm) | 3230 |
| Full cab height (mm) | 3030 |
| Counterweight ground clearance (mm) | 1180 |
| Minimum ground clearance (mm) | 500 |
| Back end turning radius (mm) | 4120 |
| Onboard width (mm) | 2990 |
| Total track length (mm) | 4630 |
| Track gauge (mm) | 2590 |
| Track plate width (mm) | 600 |
| Track ground length (mm) | 3700 |
| Maximum digging radius (mm) | 11110 |
| Maximum digging depth (mm) | 7480 |
| Maximum excavation height (mm) | 10330 |
| Maximum unloading height (mm) | 7250 |
| Maximum vertical digging depth (mm) | 5890 |
| Maximum excavation radius of stop surface (mm) | 10900 |
