Product Description

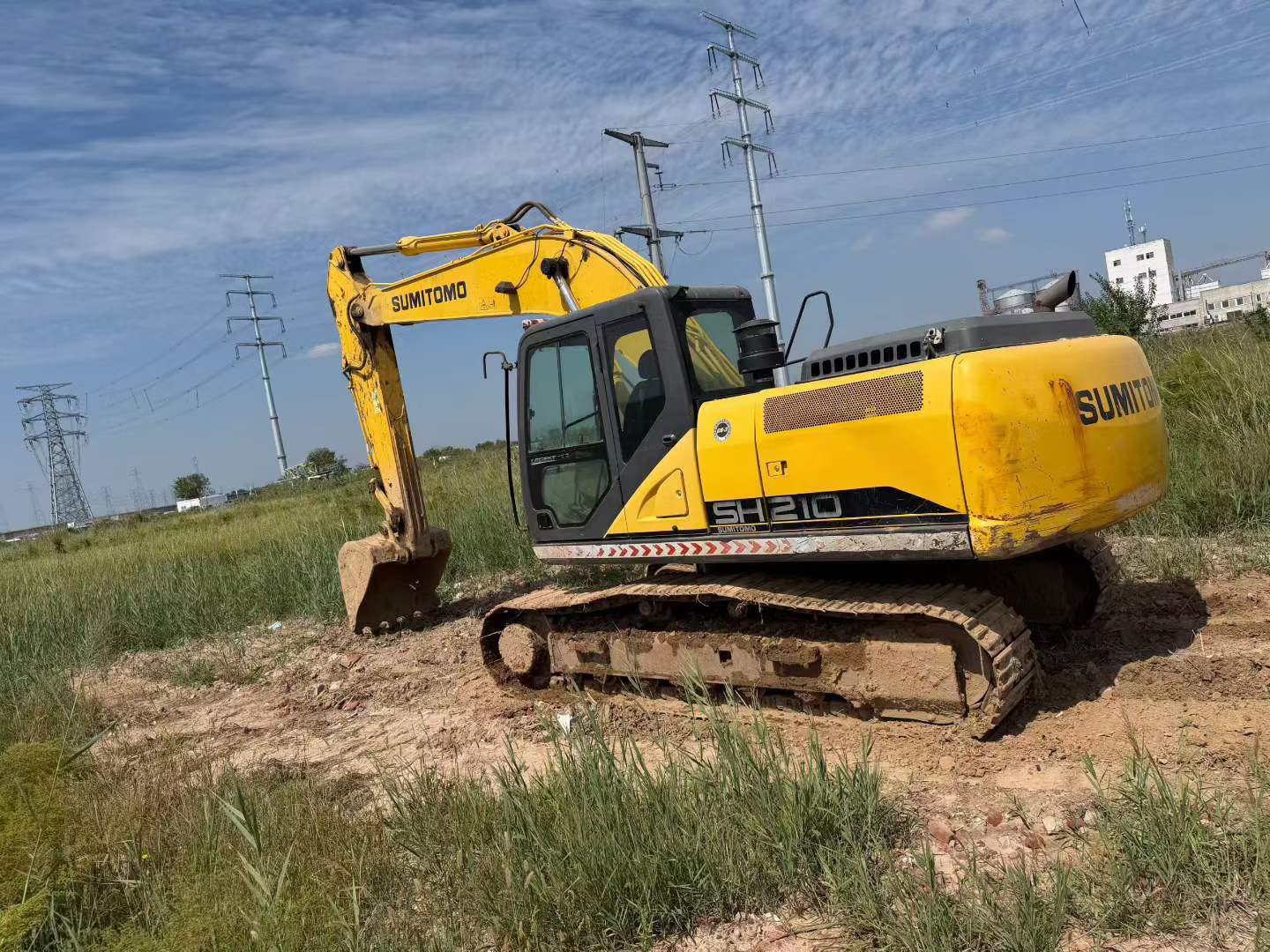

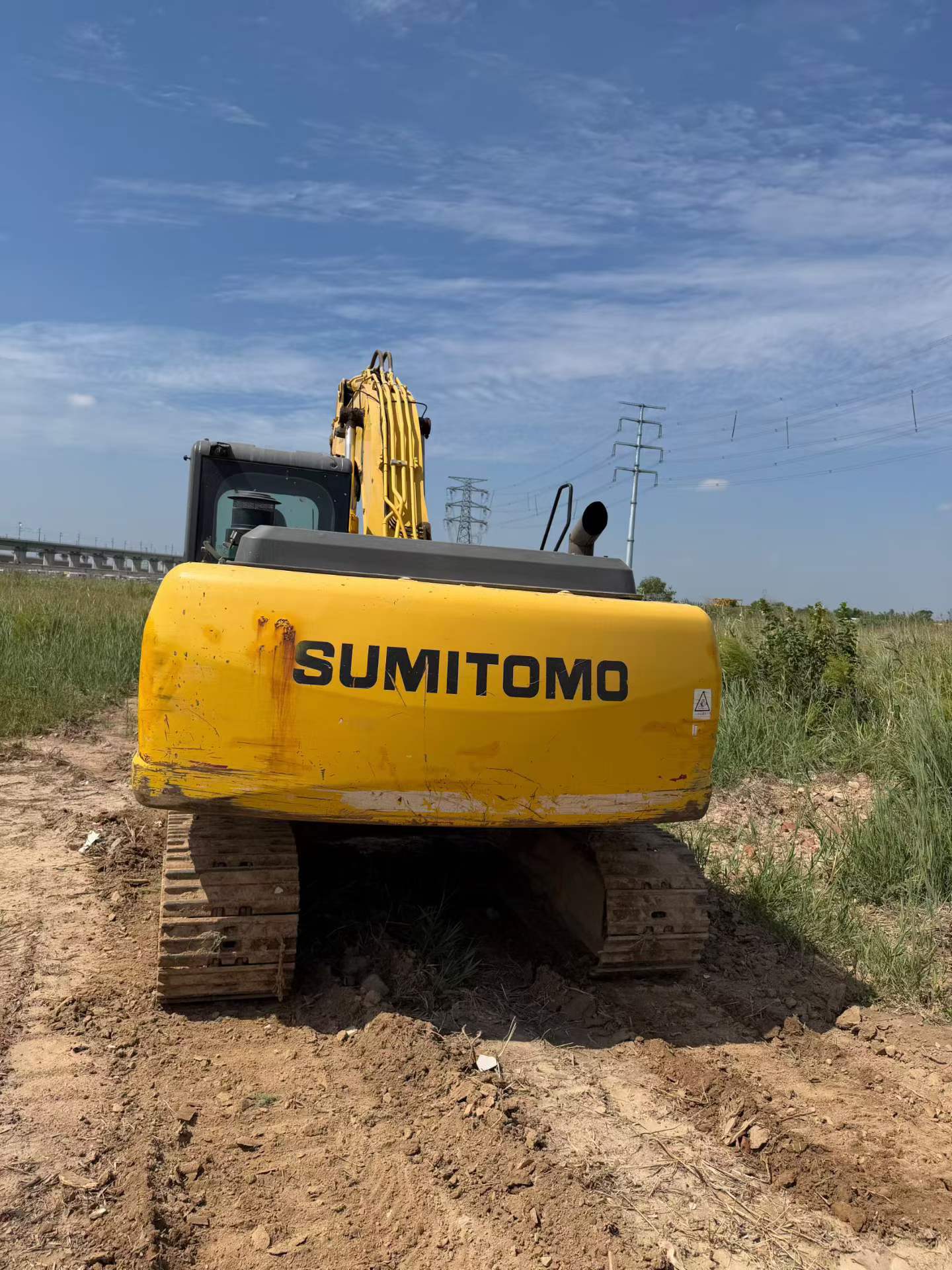

This 2017 Sumitomo SH210-5 hydraulic excavator represents a solid mid-size platform for earthmoving operations. Located in Shandong, China, the machine features its original undercarriage in good working condition. The unit has been primarily deployed in soil excavation applications, demonstrating typical wear patterns consistent with earthwork duty cycles.
Key attributes include:

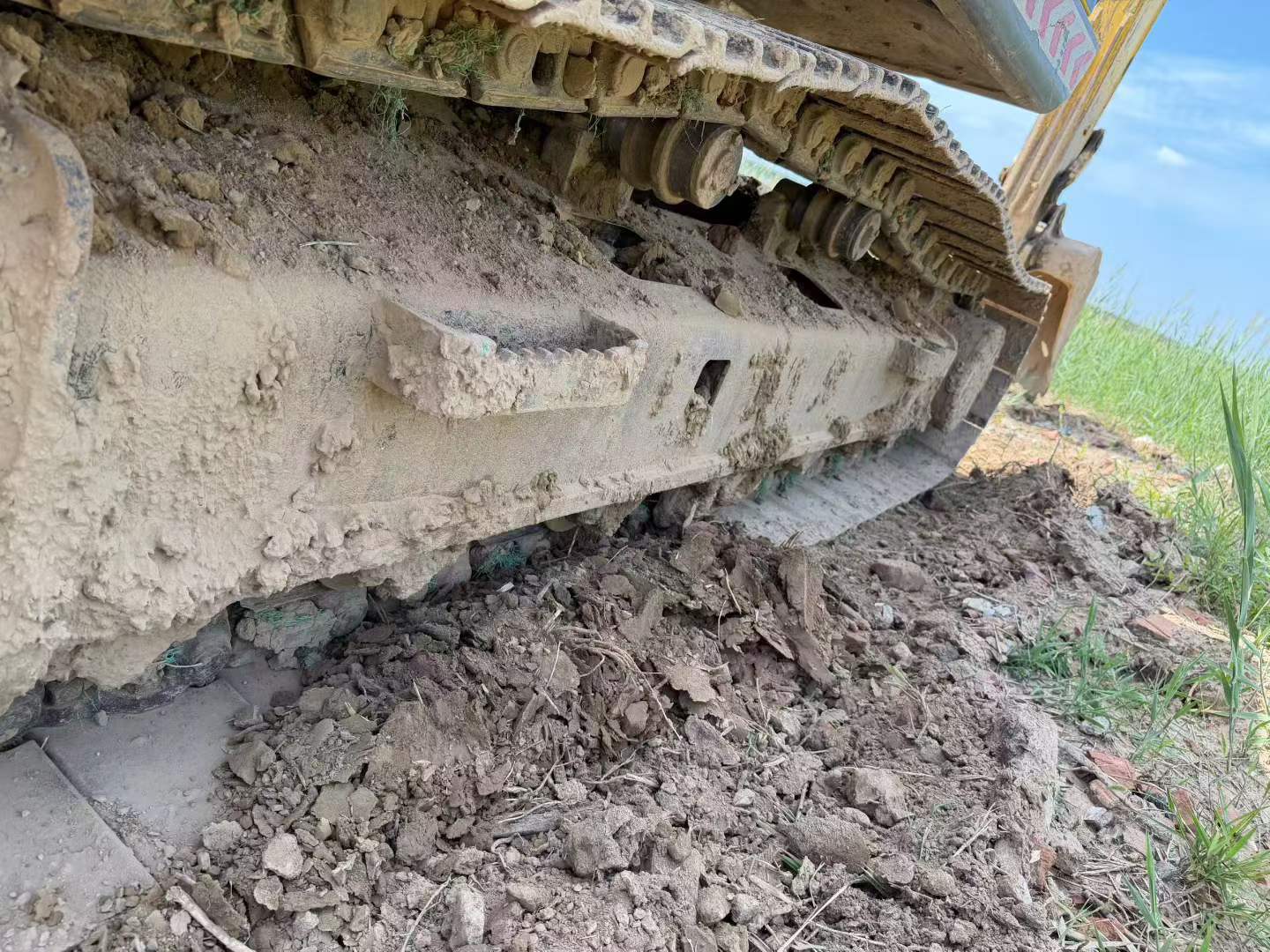

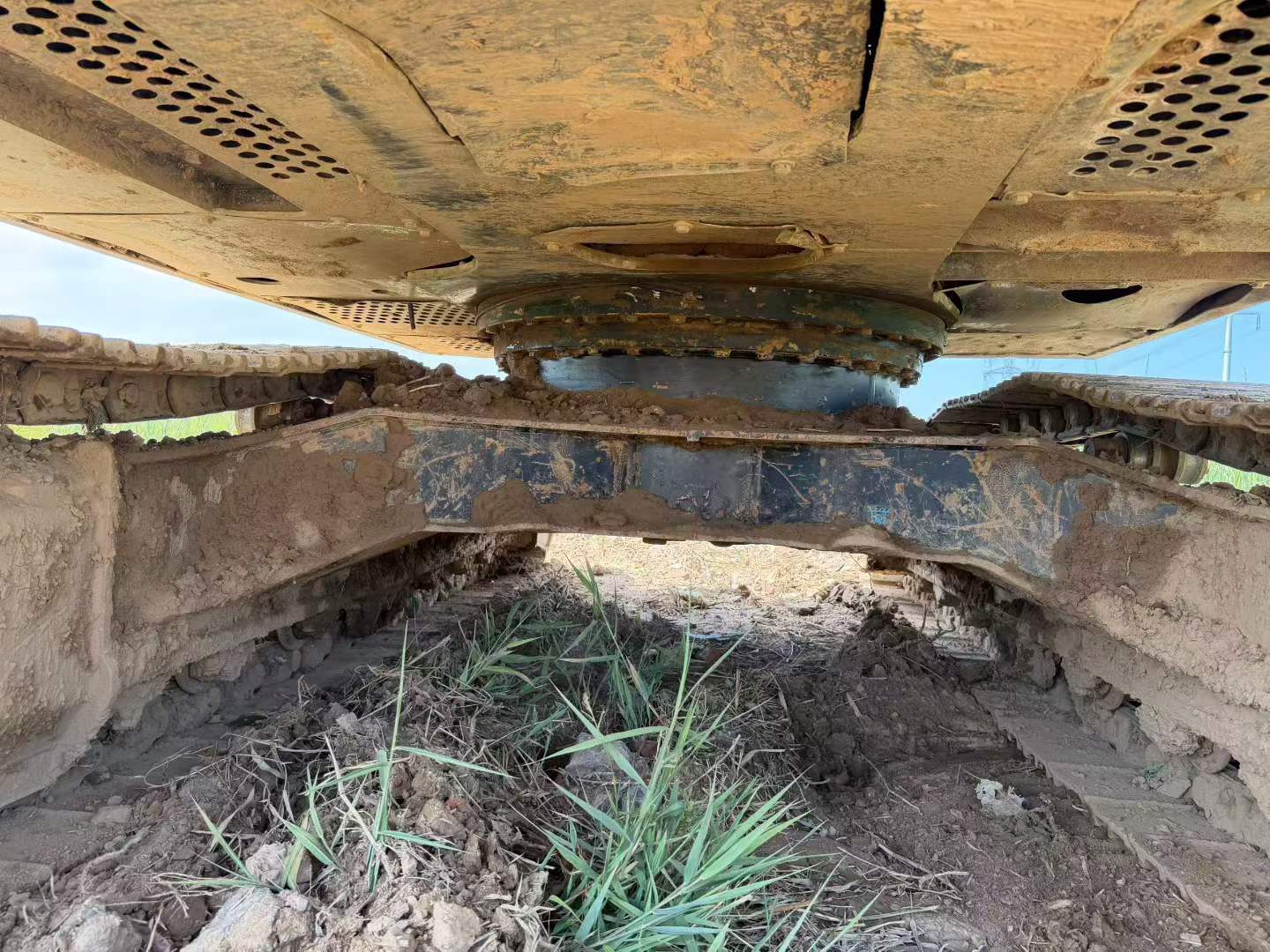

- Original equipment undercarriage assembly
- Operating weight class: approximately 21 metric tons
- Suitable for general excavation, trenching, and material handling

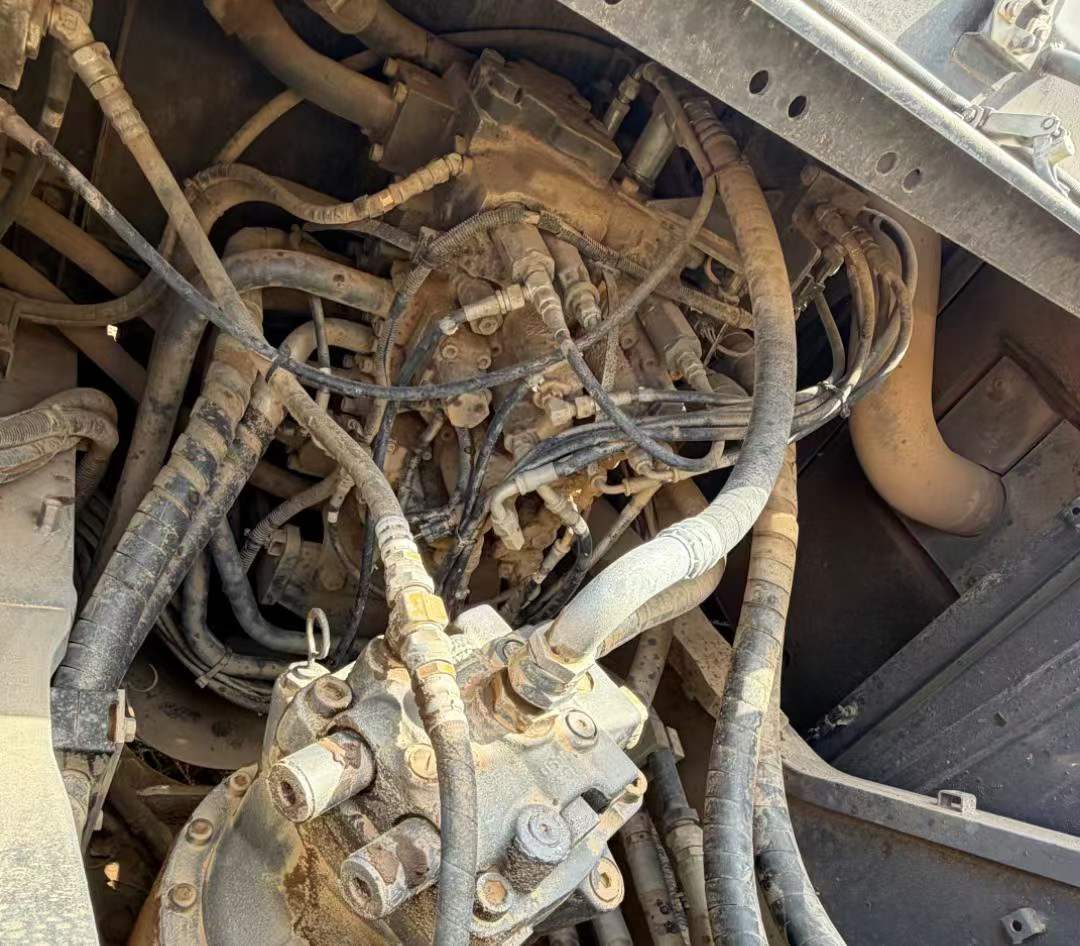

- Maintained service history with functional hydraulic systems
The SH210-5 series is known for reliable performance in construction and civil engineering projects. This unit is available for inspection and can be prepared for international shipping upon request. Contact us for detailed technical specifications, current hour meter reading, and export documentation assistance.
| Specifications | Value |
|---|---|
| No. | 1139268 |
| Tonnage (tons) | 21 |
| Working weight (kg) | 20600 |
| Bucket capacity (m³) | 0.9-1.0 |
| Boom length (mm) | 5700 |
| Rod length (mm) | 2900 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 117.3/1800 |
| Cylinder diameter × stroke (mm) | 115 x 125 |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 5.193 |
| Ground specific pressure (Kpa) | 45 |
| Rotation speed (rpm) | 11.5 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 142 |
| Rod digging force (kN) | 103 |
| Travel speed (km/h) | 3.4/5.6 |
| Type of walking hydraulic motor | Variable axial piston motor |
| Maximum flow of main pump (l/min) | 422 |
| Main pump type | |
| Bucket cylinders - Number × diameter × stroke (mm) | |
| Bucket rod cylinders - Number × diameter × stroke (mm) | 140 x 1460 |
| Boom cylinders - Number × diameter × stroke (mm) | |
| Fuel Tank (L) | 410 |
| Hydraulic Tank (L) | 147 |
| Engine Oil changes (L) | 23.1 |
| Coolant (L) | 26 |
| Hydraulic System (L) | 240 |
| Total transport length (mm) | 9400 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2970 |
| Counterweight ground clearance (mm) | 1040 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3600 |
| Back end turning radius (mm) | 2720 |
| Total track length (mm) | 4180 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Track ground length (mm) | 3370 |
| Maximum digging radius (mm) | 9900 |
| Maximum digging depth (mm) | 6650 |
| Maximum excavation height (mm) | 9610 |
| Maximum unloading height (mm) | 6810 |
| Maximum vertical digging depth (mm) | 5960 |
