Product Description

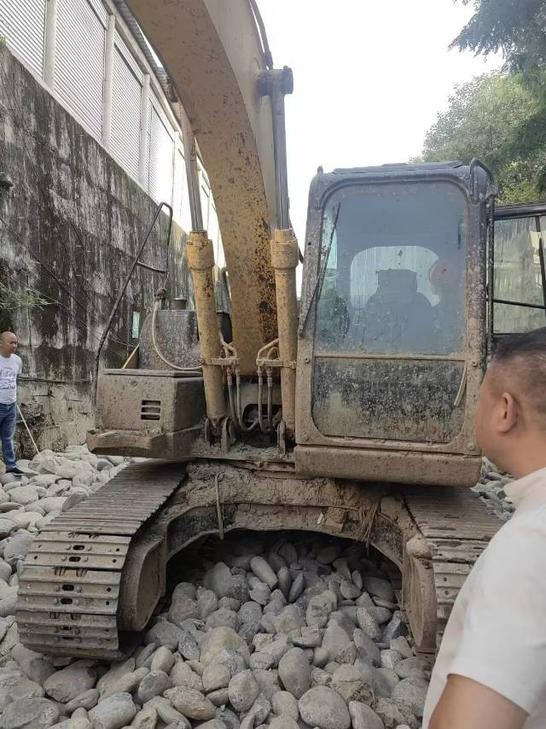

This 2020 Sumitomo SH130-6 hydraulic excavator represents an exceptional opportunity for contractors seeking reliable mid-size equipment. With only four years of operational history, this machine retains its original factory condition with authentic components throughout. Currently located in Jiangxi, China, this unit is available for immediate inspection with comprehensive documentation including detailed photographs and operational video footage.
The SH130-6 is renowned for its robust construction and efficient fuel consumption in the 13-ton class. This particular unit has been maintained in original specification, ensuring dependable performance for earthmoving, excavation, and general construction applications.
- Year of Manufacture: 2020
- Model: Sumitomo SH130-6
- Location: Jiangxi Province, China
- Condition: Original factory specification
- Documentation: Photos and video available upon request
Contact us for detailed specifications, pricing, and shipping arrangements to your destination port.
| Specifications | Value |
|---|---|
| No. | 1077405 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12700 |
| Bucket capacity (m³) | 0.5-0.55 |
| Boom length (mm) | 4600 |
| Rod length (mm) | 2500 |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | |
| Rated power (kw/rpm) | 70.9/2000 |
| Displacement (L) | 2.999 |
| Rotation speed (rpm) | 14.1 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | 91 |
| Rod digging force (kN) | 62 |
| Travel speed (km/h) | 5.6/3.4 |
| Main overflow set pressure (Mpa) | 34.3/36.3 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | Variable capacity piston pump |
| Main pump type | |
| Working Hydraulic Circuit (Mpa) | 34.3/36.3 |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 82 |
| Hydraulic System (L) | 157 |
| Total transport length (mm) | 7620 |
| Total transport width (mm) | 2540 |
| Total transport height (mm) | 2820 |
| Counterweight ground clearance (mm) | 890 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 2340 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3500 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Maximum digging radius (mm) | 8310 |
| Maximum digging depth (mm) | 5540 |
| Maximum excavation height (mm) | 8770 |
| Maximum unloading height (mm) | 6390 |
| Maximum vertical digging depth (mm) | 4590 |
