Product Description

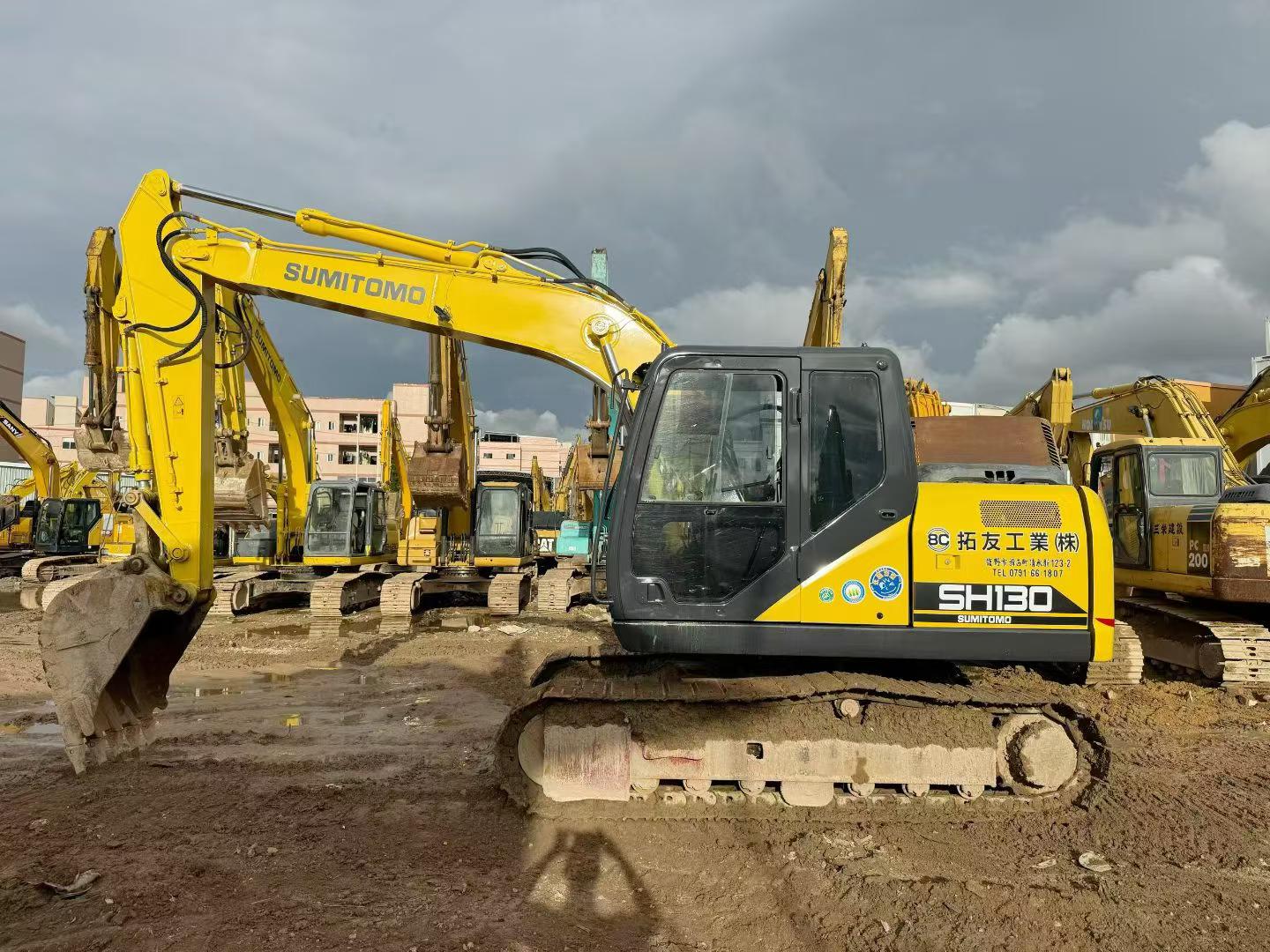

This used Sumitomo SH130-3 hydraulic excavator, model year 2020, is offered from stock in Guangdong, China. It is a 13-tonne-class machine in the size range most buyers use for general earthmoving, trenching, utility and site-preparation work, and it runs on a platform where parts supply and service support remain straightforward.
The unit is presented as a working machine, with the following details available to serious buyers:
- Standard boom, arm and bucket configuration
- Enclosed cab with heating and air conditioning
- Engine, hydraulics and undercarriage open to inspection
- Located in Guangdong, available for loading on short notice
- Export paperwork and container or flat-rack loading arranged on request
Hours, undercarriage wear readings and service history are confirmed at the time of inquiry, since used stock moves quickly and condition varies between units. Contact us for current photographs, a video of the machine running, and a quotation. Third-party inspection before purchase is welcome, and we can assist with surveys and shipping out of Guangdong ports.
| Specifications | Value |
|---|---|
| No. | 1156338 |
| Tonnage (tons) | 13 |
| Working weight (kg) | 12300 |
| Bucket capacity (m³) | 0.5 |
| Boom length (mm) | 5850 |
| Rod length (mm) | 2500 |
| Country of origin | Xiamen (in Fujian Province) |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | Isuzu AJ-4JJ1X |
| Rated power (kw/rpm) | 70.9/2000 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 4 |
| Displacement (L) | 2.999 |
| Working form | Four-stroke, direct injection, fully electronically controlled, turbocharged diesel engine with intercooling |
| Ground specific pressure (Kpa) | 40 |
| Rotation speed (rpm) | 14.3 |
| Climbing ability (%) | 70 |
| Bucket digging force (kN) | |
| Rod digging force (kN) | |
| Travel speed (km/h) | 3.4/5.6 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | Quantitative axial piston motor |
| Type of walking hydraulic motor | Variable axial piston motor |
| Hydraulic crushing pipeline is standard | no |
| Main pump type | Variable axial piston pump ×2+ gear pump |
| Fuel Tank (L) | 260 |
| Hydraulic Tank (L) | 157 |
| Total transport length (mm) | 7620 |
| Total transport width (mm) | 2540 |
| Total transport height (mm) | 2790 |
| Full cab height (mm) | 2790 |
| Counterweight ground clearance (mm) | 895 |
| Minimum ground clearance (mm) | 440 |
| Minimum turning radius of front working device (mm) | 2340 |
| Back end turning radius (mm) | 2130 |
| Total track length (mm) | 3500 |
| Track gauge (mm) | 1990 |
| Track plate width (mm) | 500 |
| Total track width (mm) | 2490 |
| Track ground length (mm) | 2790 |
| Maximum digging radius (mm) | 8310 |
| Maximum digging depth (mm) | 5540 |
| Maximum excavation height (mm) | 8770 |
| Maximum unloading height (mm) | 6390 |
| Maximum vertical digging depth (mm) | 4950 |
| Bulldozer lift or depth (mm) | No bulldozer |
| Dodging plate width × height (mm) | No bulldozer |
