Product Description

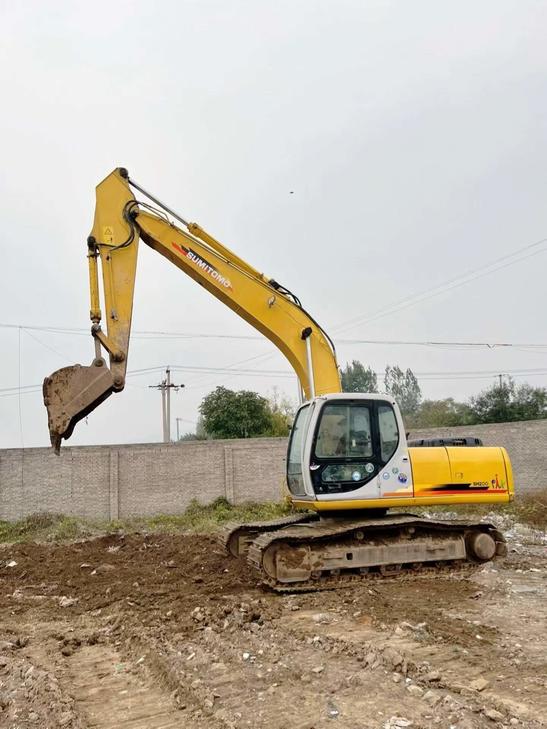

This 2020 Sumitomo SH200-3 hydraulic excavator offers reliable performance for demanding construction and earthmoving projects. Imported and well-maintained, this machine features the original electronic throttle system for precise fuel management and operational control. Recently fitted with new track chains at 69,000 RMB, ensuring extended service life and reduced near-term maintenance costs. The SH200-3 series is recognized for its balanced performance, fuel efficiency, and durability in challenging work environments.
- Year of Manufacture: 2020
- Model: Sumitomo SH200-3
- Operating Weight Class: ~20 tons
- Electronic throttle control (original equipment)
- New track chains installed
- Current Location: Hebei Province, China
- Condition: Good working order
Suitable for excavation, loading, and general contracting applications. Available for inspection in Hebei. Contact us for detailed specifications, service records, and export assistance.
| Specifications | Value |
|---|---|
| No. | 1173989 |
| Tonnage (tons) | 20 |
| Working weight (kg) | 19100 |
| Bucket capacity (m³) | 0.8 |
| Country of origin | |
| power | Traditional power |
| manufacturer | Joint venture/Import |
| bucket | backhoe |
| Engine type | ISUZU BB-6BG1T |
| Rated power (kw/rpm) | 103/1950 |
| Cooling mode | water-cooling |
| Number of cylinders (PCS) | 6 |
| Displacement (L) | 6.494 |
| Rotation speed (rpm) | 11.9 |
| Climbing ability (%) | 70/35 ° |
| Bucket digging force (kN) | 130 |
| Rod digging force (kN) | 93.5 |
| Travel speed (km/h) | 3.3/5.5 |
| Main overflow set pressure (Mpa) | 34.3 |
| Rotary hydraulic motor type | |
| Type of walking hydraulic motor | |
| Main pump type | |
| Fuel Tank (L) | 340 |
| Hydraulic Tank (L) | 206 |
| Total transport length (mm) | 9390 |
| Total transport width (mm) | 2800 |
| Total transport height (mm) | 2910 |
| Full cab height (mm) | 2910 |
| Minimum ground clearance (mm) | 460 |
| Minimum turning radius of front working device (mm) | 3620 |
| Back end turning radius (mm) | 2750 |
| Total track length (mm) | 4180 |
| Track gauge (mm) | 2200 |
| Track plate width (mm) | 600 |
| Total track width (mm) | 2800 |
| Maximum digging radius (mm) | 9960 |
| Maximum digging depth (mm) | 6710 |
| Maximum excavation height (mm) | 9650 |
| Maximum unloading height (mm) | 6840 |
| Maximum vertical digging depth (mm) | 6080 |
